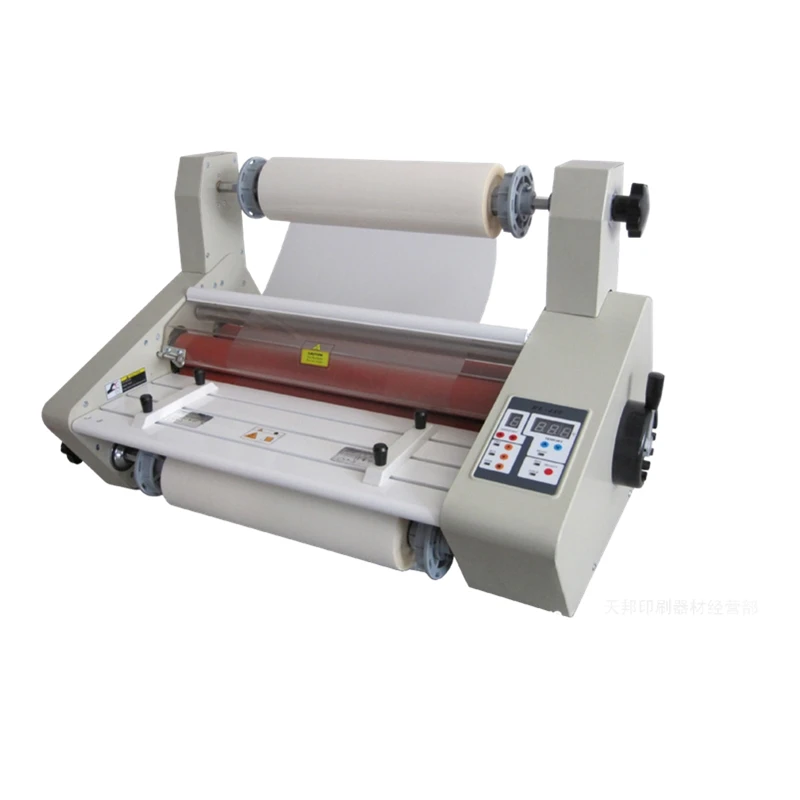

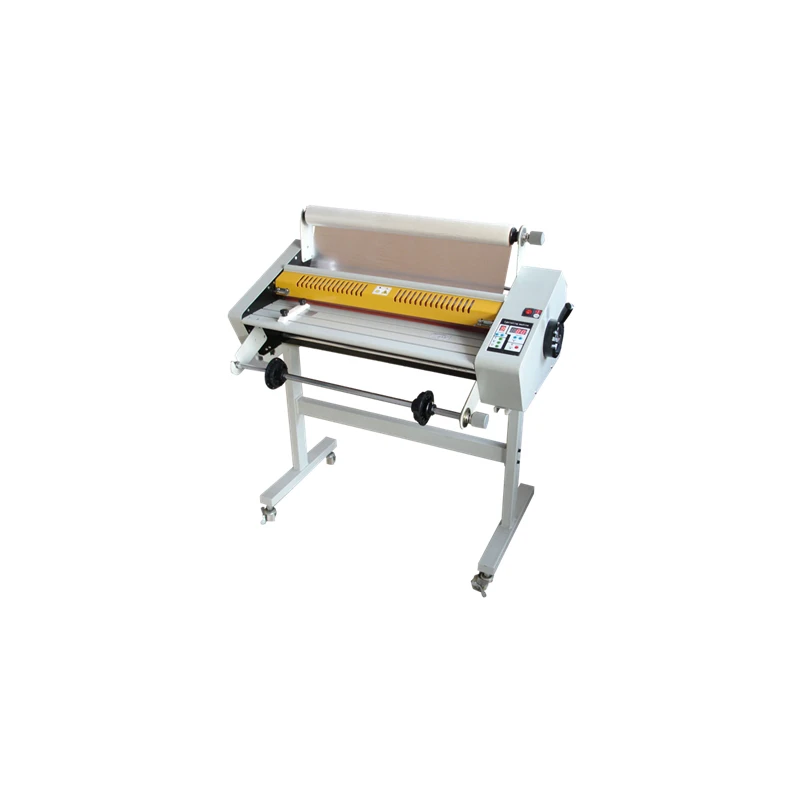

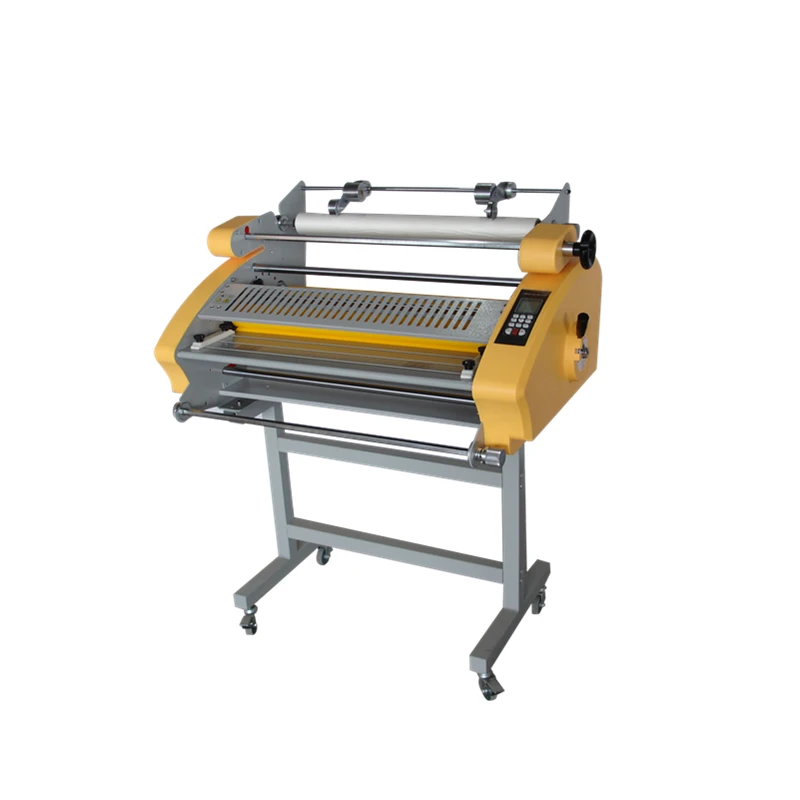

SG 3816 3800 Ламинирование Ширина автоматическая машина для ламинирования термопленкой

SG-3816 3800laminating width automatic thermal film laminating machine

A heated roll laminator uses heated rollers to melt glue extruded onto lamination film. This film is in turn applied to a substrate such as paper or card using pressure rollers. The primary purpose of laminating with such a machine is to embellish or protect printed documents or images. Heated roll laminators can vary in size from office based pouch laminators to industrial sized machines. Such industrial machines are primarily used for high quantity/quality output by printers or print finishers.

Main Features

1.Infrared tempearature sensor is comfort for long time operation, the temp erroe is controlled by 3°c.

2.imported big rubber roller is not easy to damage in the high temperature.

3.Patent od anti-rolling technology, it can be adjusted arbitrary accoding to the different thickness of paper

4.pressure adjustment, sutible for all kinds of paper

5.Intelligent and humanized operating system, it is easy to operate.

6.With take uo device for cold laminator

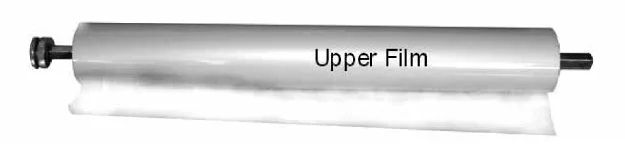

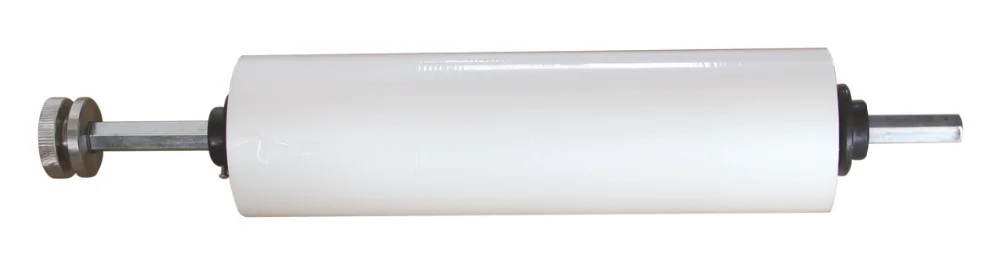

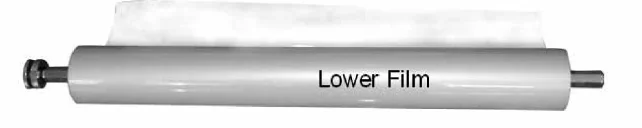

1.As shown in picture , insert the core adapter onto the upper/lower film shaft.

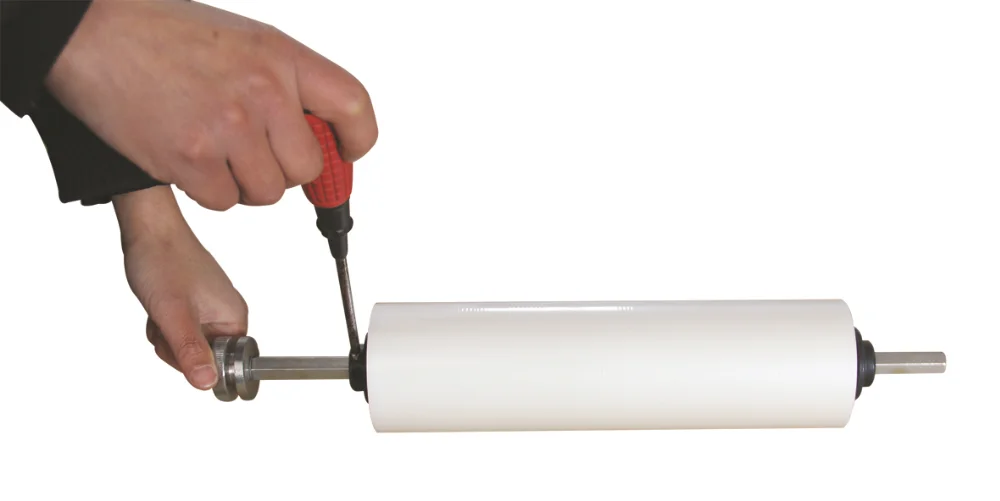

2.As shown in picture , using the special tool, fix the core adapter on the film shaft with screw-driver.

3.Set the glossy side of the upper and lower film towards the heat rollers.

(Glossy side is PET film and matte side is thermal polymer laminating adhesive)

4.Center film as shown in step  3 and 4.

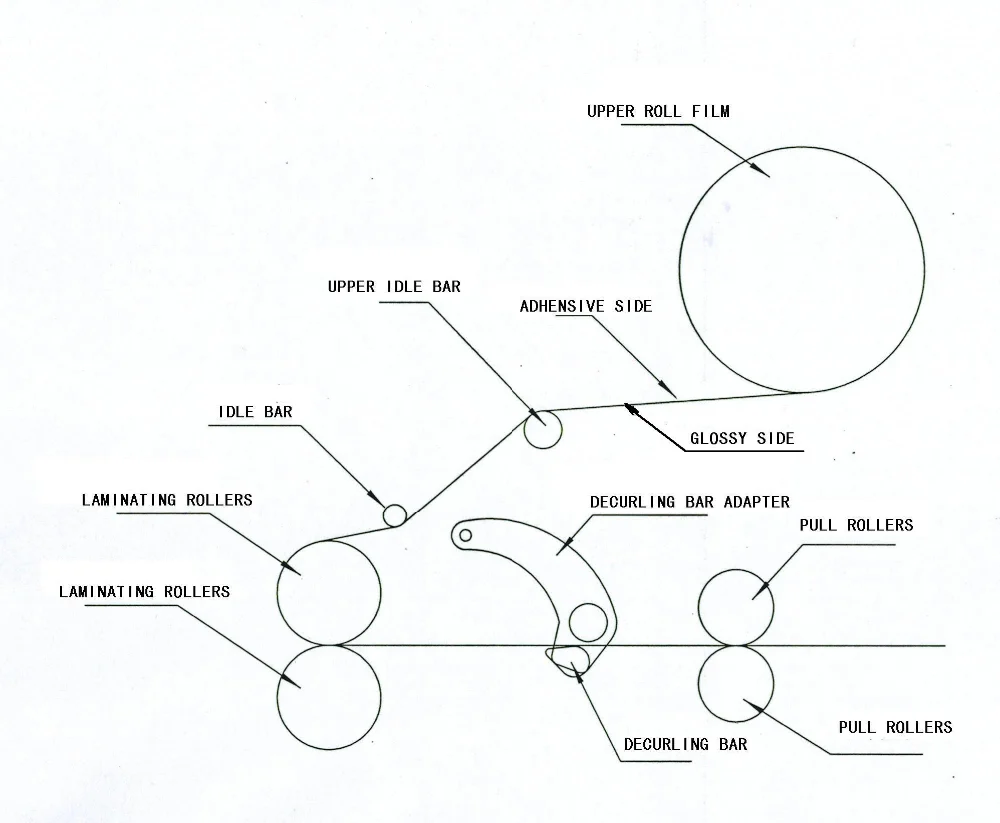

THREADING FILM

Fit the extended front table, open the safety

cover and then adjust the DECURLING BAR

to the lowest position

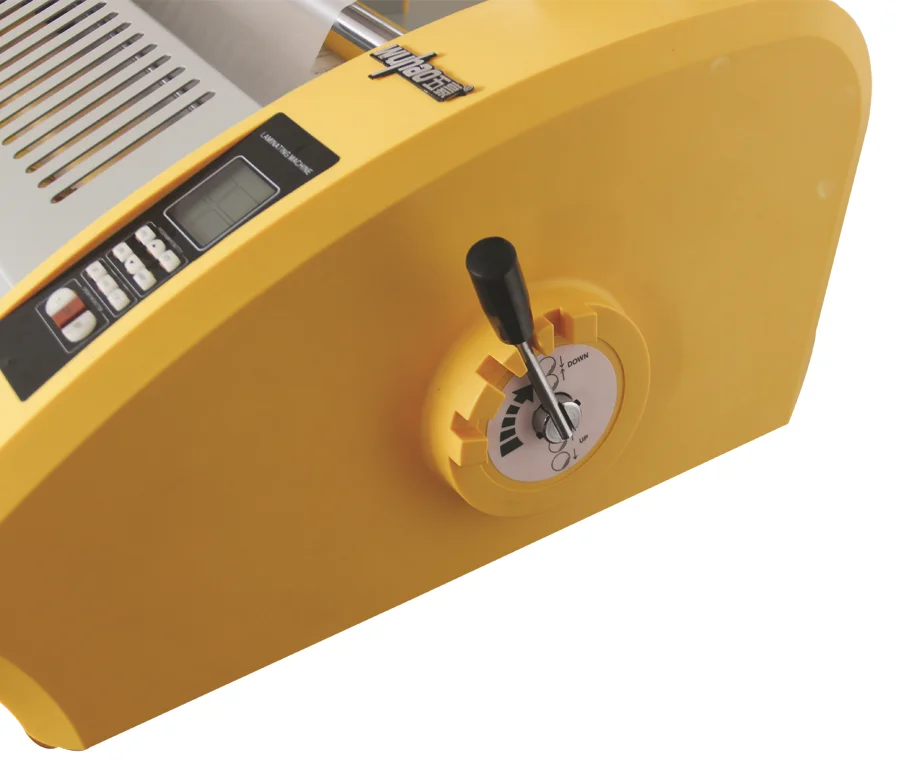

Adjust the PRESSURE LEVER to UP

Insert and push the leader board until board

reaches pull rollers

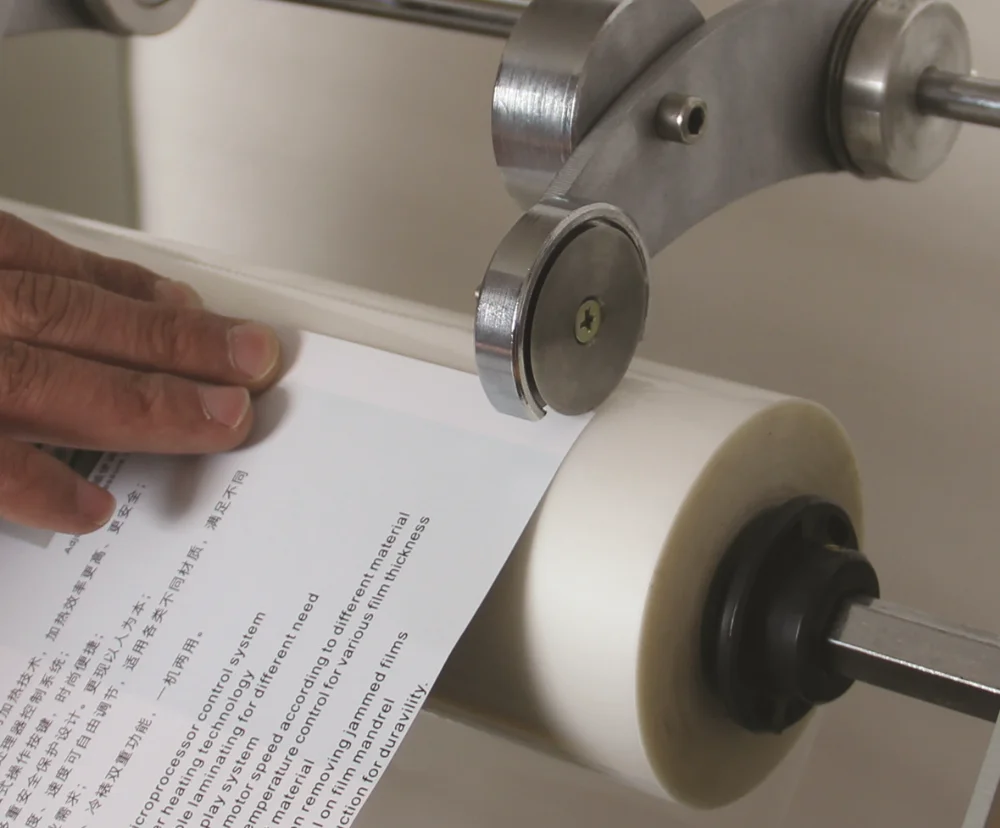

Adjust the position of the perforating blade on the

film (1-2mm)

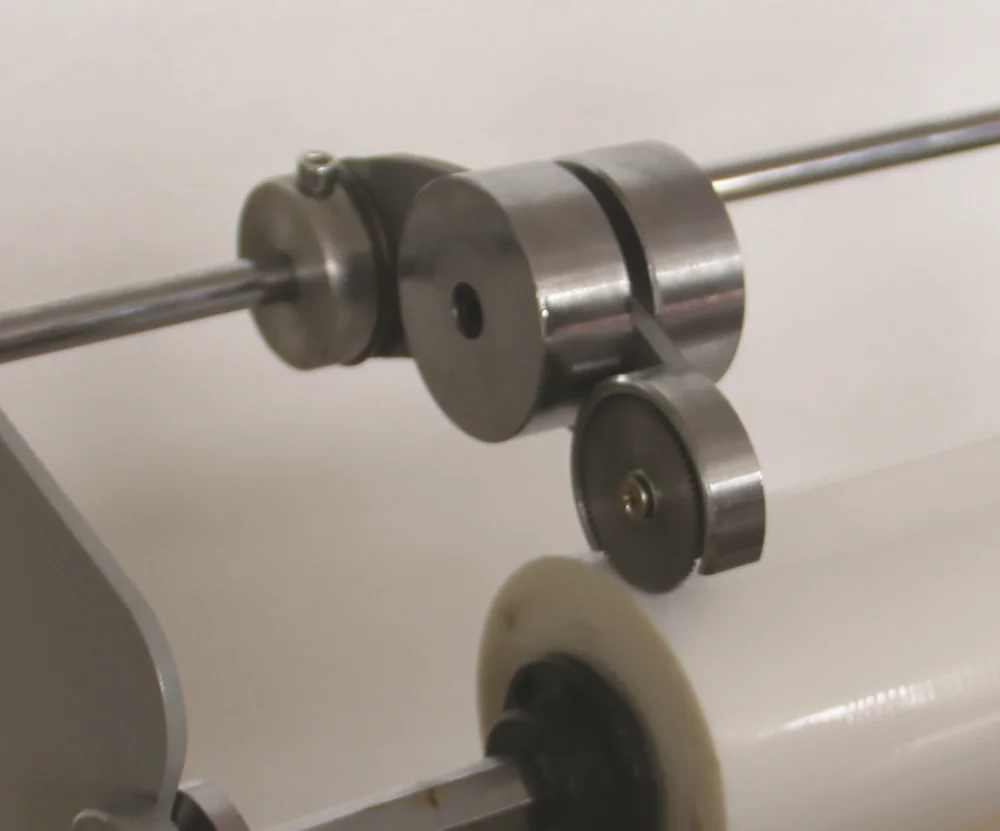

Fix the position of round blade according to the

width of the documents

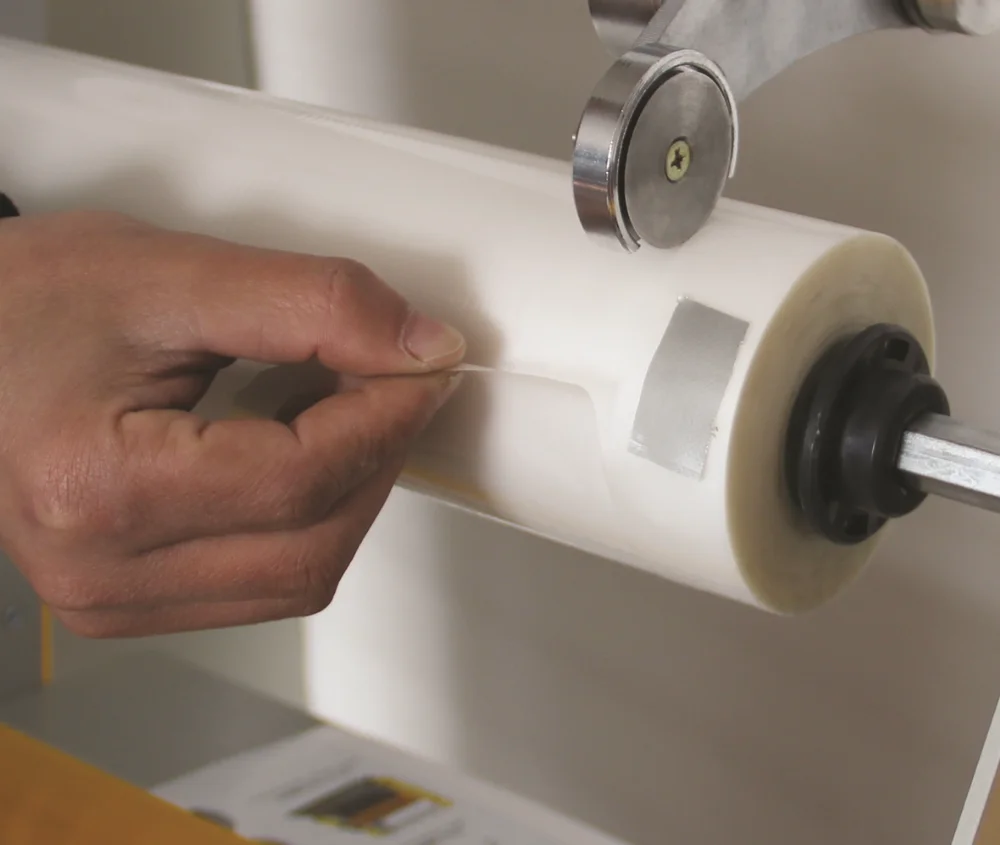

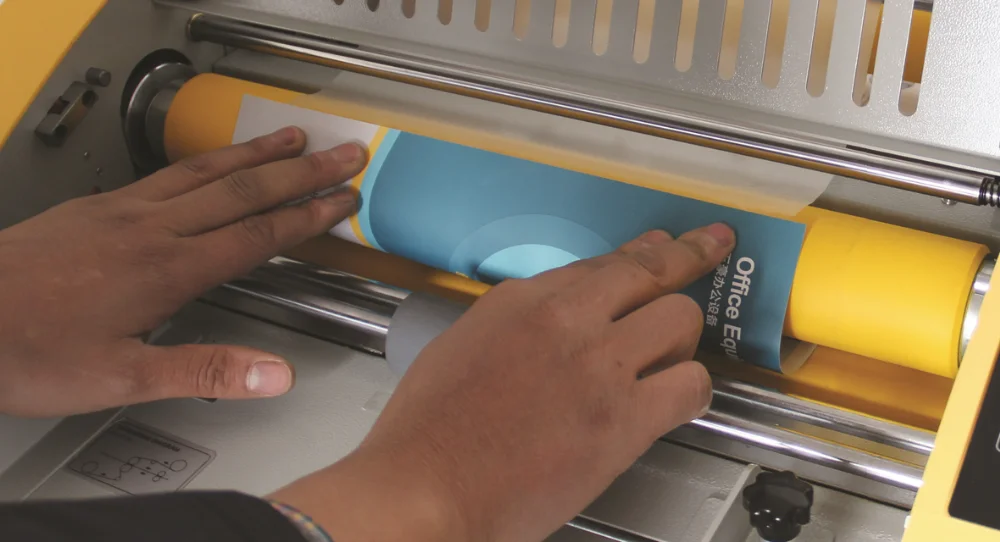

Please stick the excess film to the roller

Thread the film over the upper ldle Bar and

underneath the Safety Cover until the film rests on

the upper roller

Sticker the leader board to the upper roller and film

Fit the extended front table,Close the Safety Cover.

Adjust the Guide-document according to the width

of the document

Adjust the nip setting to "Laminating" mode
