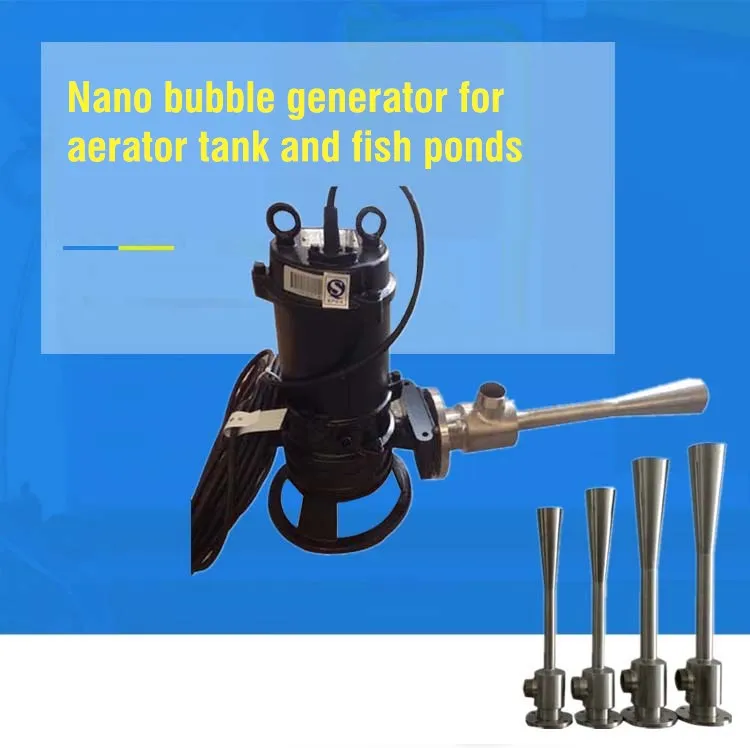

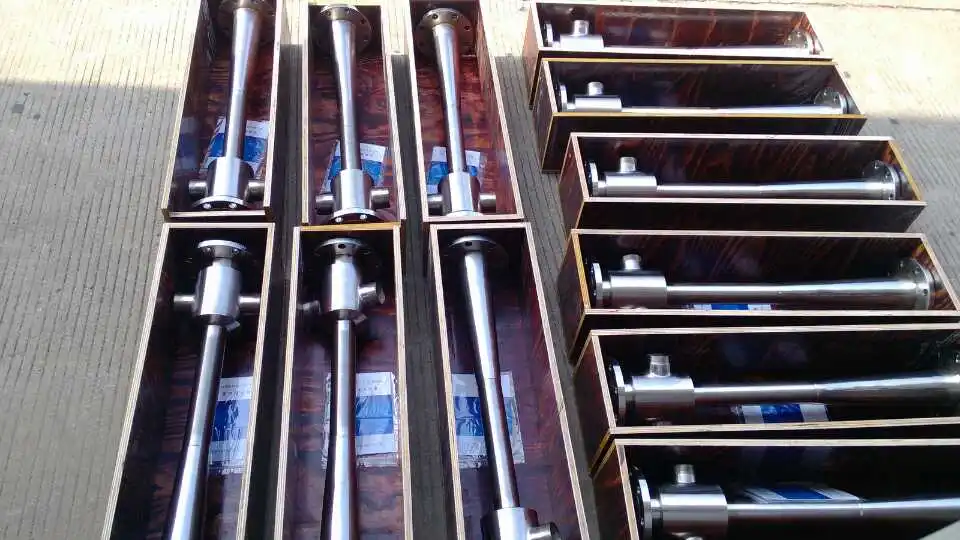

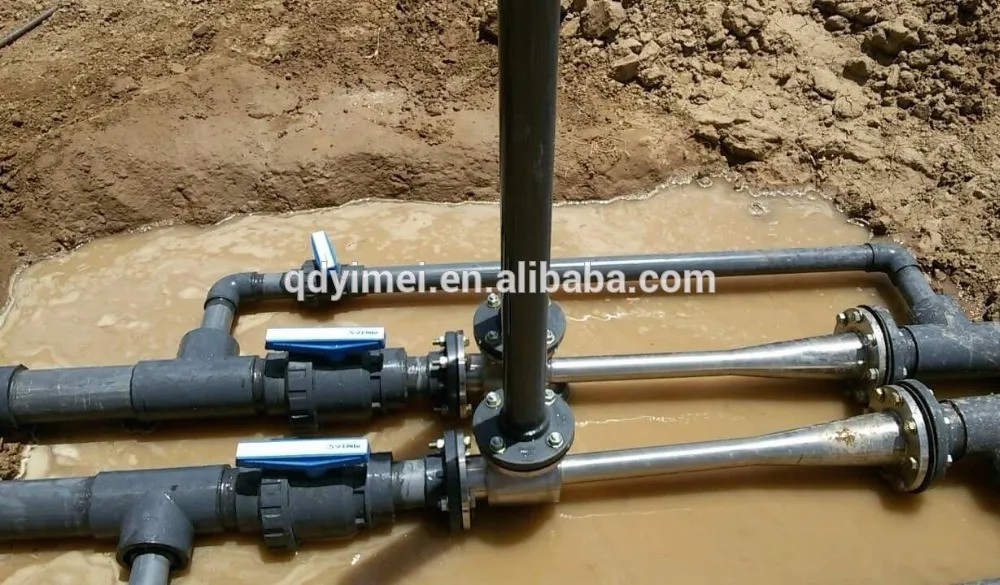

stainless steel venturi inject nano bubble generator for fish and shrimp tank

principle:

Through the submersible pump the water flow through the nozzle to form high speed water flow,The formation of negative pressure suction air around the nozzle,Through the mixing chamber is mixed with water,In the spread of the horn tube produce water vapor mixture flow, high speed jet,With many air bubbles in the large area and deep waters of the water vortex stirring,Complete the aeration, and the shaft power changes over the depth of subduction, can adjust the volume.

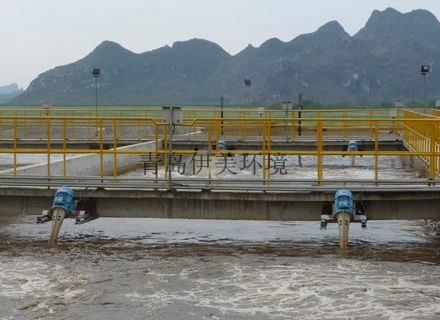

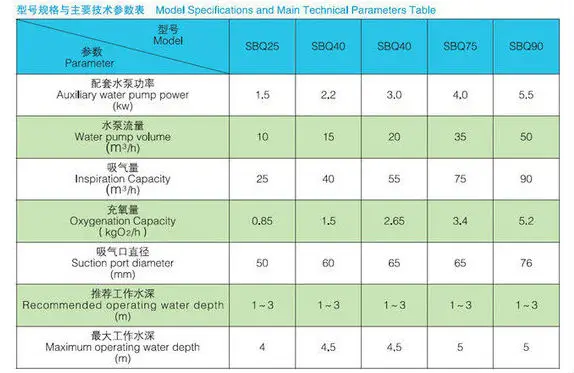

YMSA type submersible jet flow aeration used in sewage treatment plant aeration pond ,aeration grit chamber ,make the sewage and sludge mixed liquor oxygenate mix ,biological treatment sewage or breeding pond increasing oxygen ,air inflow is 10-400m³/h, increase oxygen capacity is 0.37-24kg/h , motor power is 0.75-22kw ,can separate use or combine use .

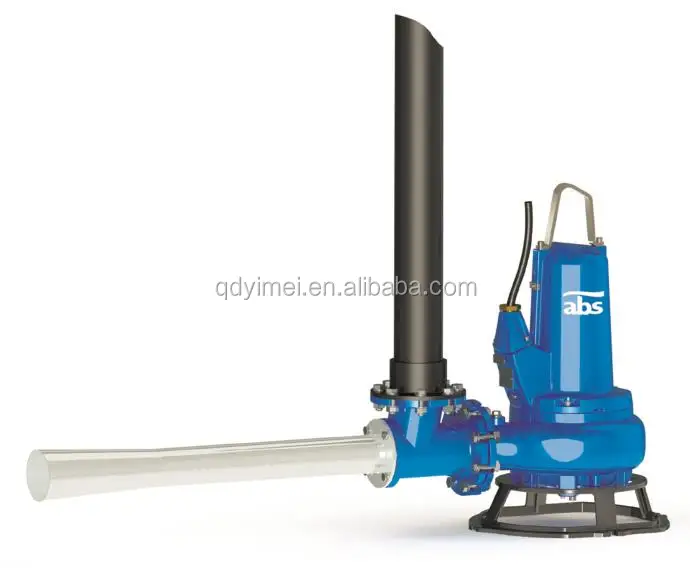

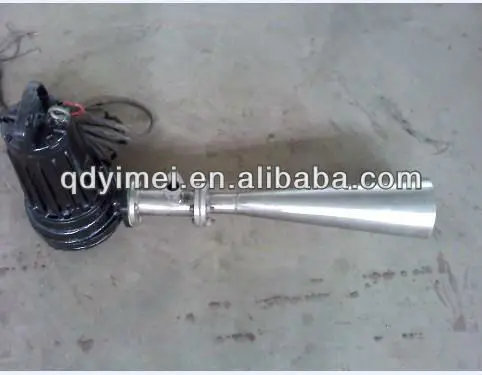

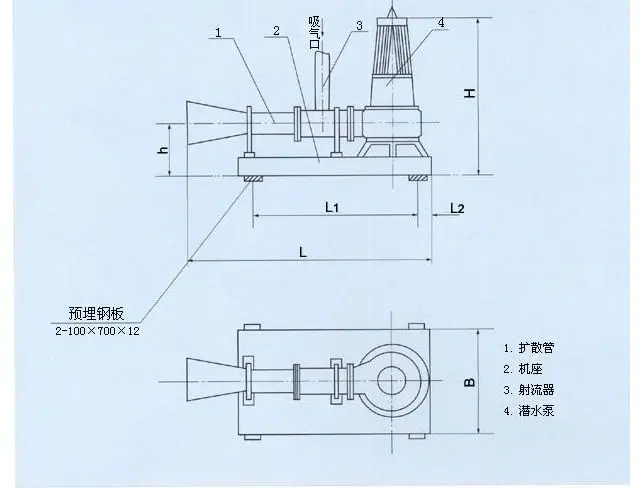

This aerator is consists of submersible pump ,jet device ,air dissuser ,air suction pipe and tube five parts .blend with advanced scattered flow technology based on the traditional jet mechanism using jet aerator way ,adopting jet aeration.

submersible jet aerator is mainly used for:

1.Water pretreatment and wastewater biochemical treatment process

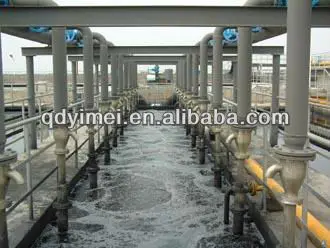

2.Aeration settling basin, pre aeration pool, oxidation pond etc aeration and mixing

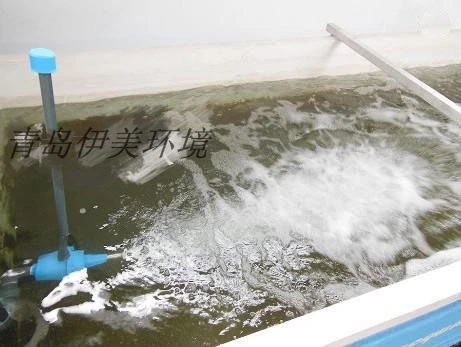

3.Aquaculture pond aerobic and landscape water curing

4.High-rise buildings running water, filling water cycle process

characteristic:

1.Submersible jet aerator has compact structure, cover an area of an area small, the characteristics of easy installation. Because of the aerator is mainly composed of submersible sewage pump, aerator, and inlet pipe of three parts, compact structure, covers an area of less; And aerator installation is convenient, easy to maintain.

2.Aeration efficiency is high, wide scope of application. Aerator has high-speed jet flow, liquid gas mixture, high oxygen absorption rate, high power efficiency. Than traditional aeration tank the 3 ~ 4 times, high efficiency and aeration time shortened, and be applied to various wastewater treatment, including pushing flow aeration tank, mixing, delay aeration tank, aeration oxidation ditch and oxidation pond, etc.

3.Aerator system is simple, high reliability. Because do not need blower equipment aerator, simple system, in addition to inhale outlets, the rest are running into the water, the noise is small.

4.Investment and operation cost is low. Because of the jet aerator is suitable for the deep aeration tank, reduce cover an area of an area, the system is simple, save investment cost, high treatment efficiency

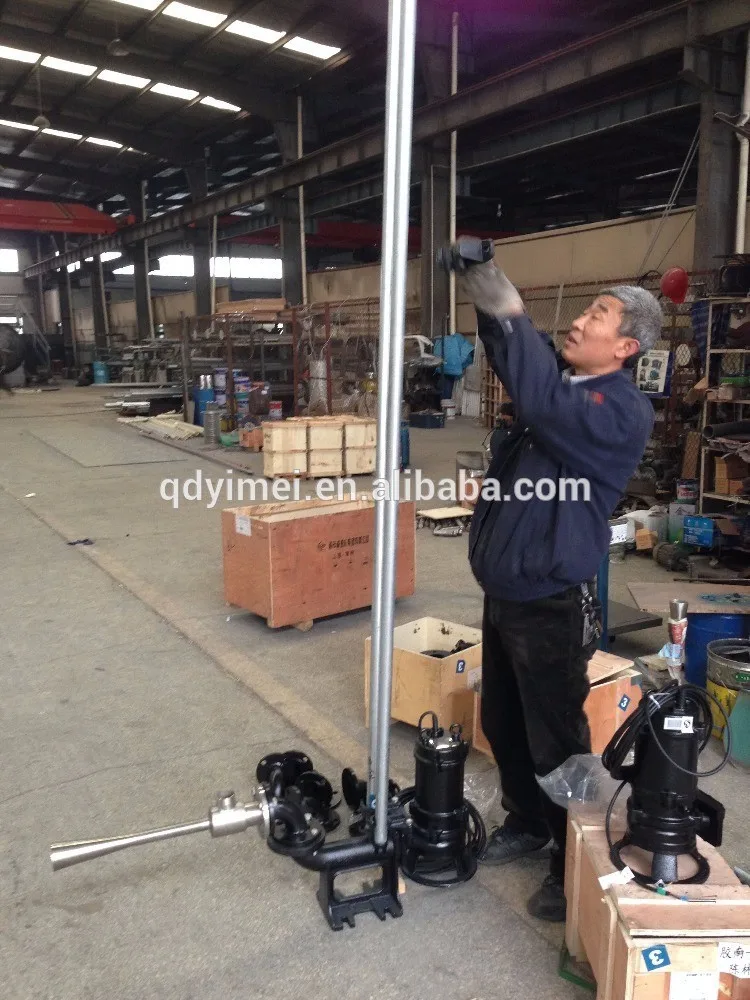

Submersible jet aerator
