Product Overview
Description

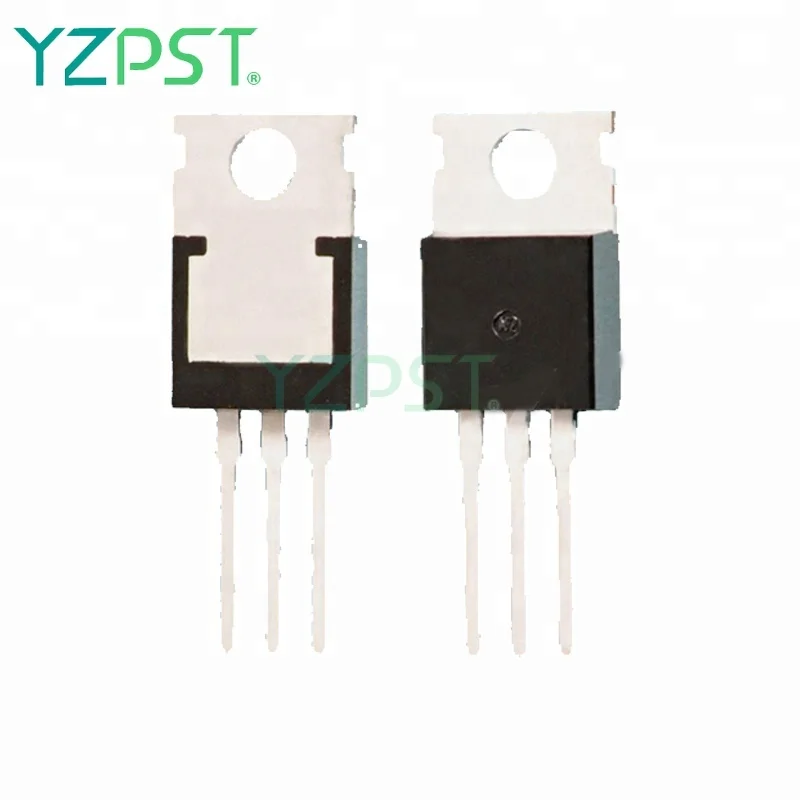

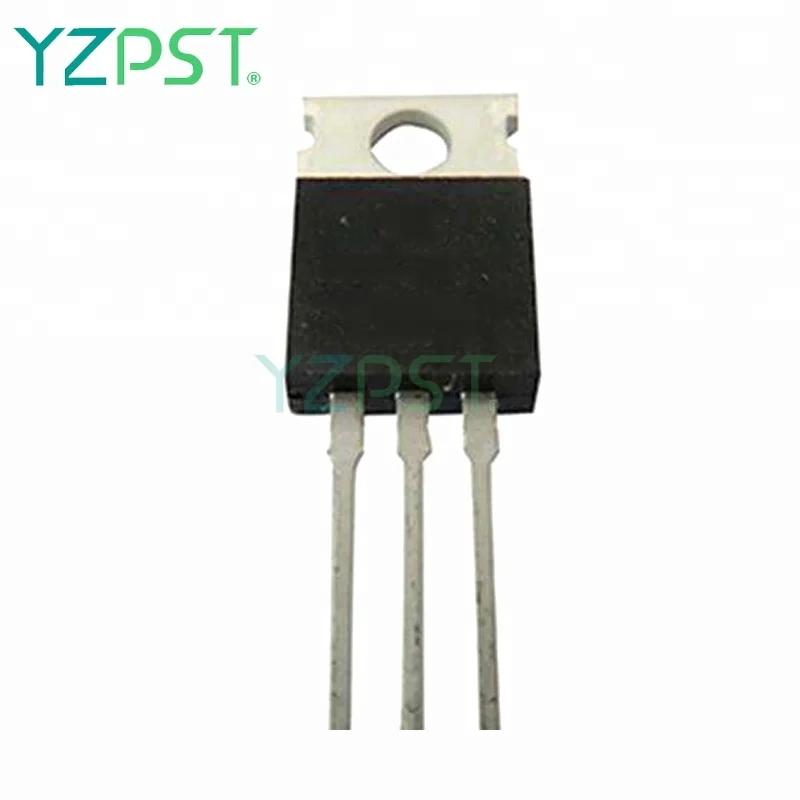

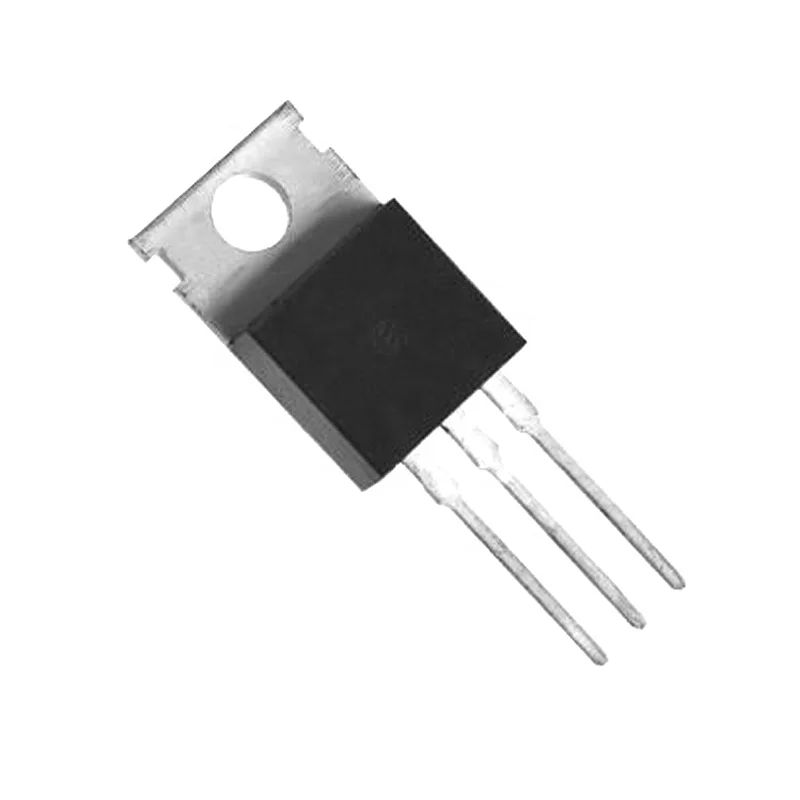

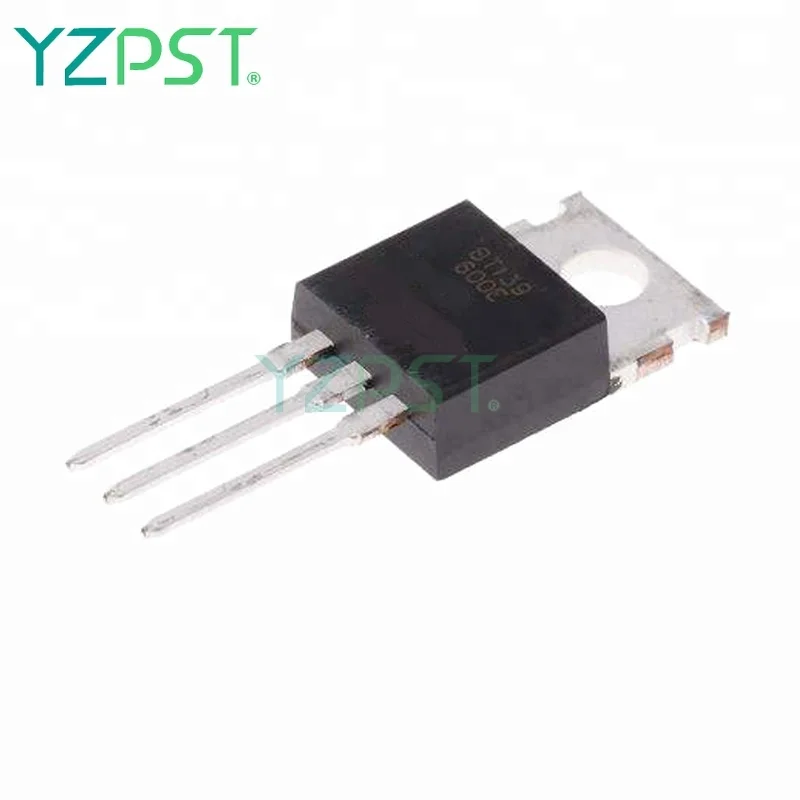

TO-220P 16A triac BT139 applications
Product Description
General description
Passivated triacs in a TO-220P plastic package. intended for use in applications requiring high bidirectional transient and blocking voltage capability

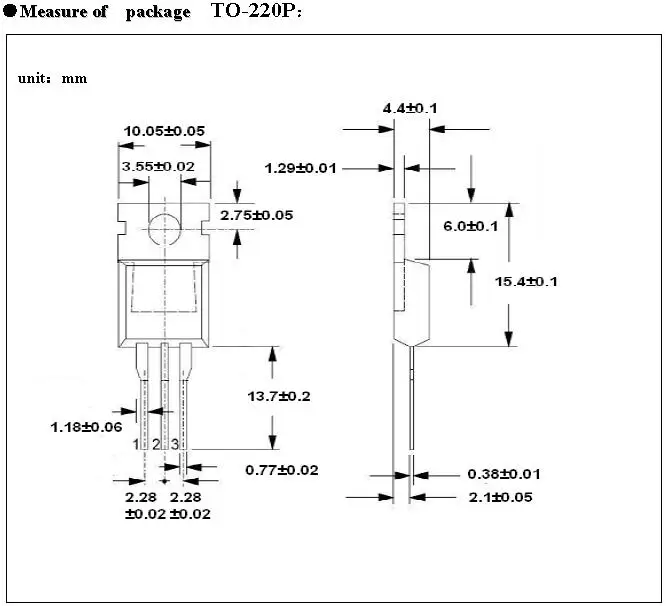

Package TO-220P
Main Feature (Tj=25℃)
Symbol | Value | Unit |
IT(RMS) | 16 | A |
VDRM / VRRM | ≥600 | V |
ITSM | 140 | A |
Absolute ratings (Limiting Values)
Symbol | Parameter | Value | Unit | |
IT(RMS) | RMS on-state current(full sine wave) | 16 | A | |
ITSM | Non- repetitive Peak on-stateCurrent (full cycle,Tj=25℃,F=50Hz,tp=20ms) | 140 | A | |
I2t | I2t Value for fusing(tp=10ms) | 98 | A2S | |
IGM | Peak gate current | 2 | A | |
VGM |
| 5 | V | |
PGM |
| 5 | W | |
PG(AV) | Average gate power | 0.5 | W | |
di/dt | Repetitive rate of rise of on-state current after triggering(IT=6A,IG=0.2A,dIG/dt=0.2A/μs) | Ⅰ-Ⅱ-Ⅲ | 50 | A/μs |
IV | 10 | |||
Tstg Tj | Storage temperature Operating junction temperature | -40--+150 -40--+125 | ℃ | |
Thermai Resistances
Symbol | Parameter | Conditions | Min | Type | Max | Unit |
Rth j-mb
| Thermal Resisatance,Junction to mb | One cycle Half cycle | —— —— | —— —— | 4.0 1.7 | K/W K/W |
Rth j-a | Thermal Resisatance,Junction to ambient | -- | —— | 55 | —— | K/W |
