PVC swimming pool waterproof membrane with fabric reinforced
- Category: >>>
- Supplier: Weifang Xuxin Waterproof Materials Co. Ltd.
Share on (60785673564):
Product Overview
Description
Product Description
Product Show:

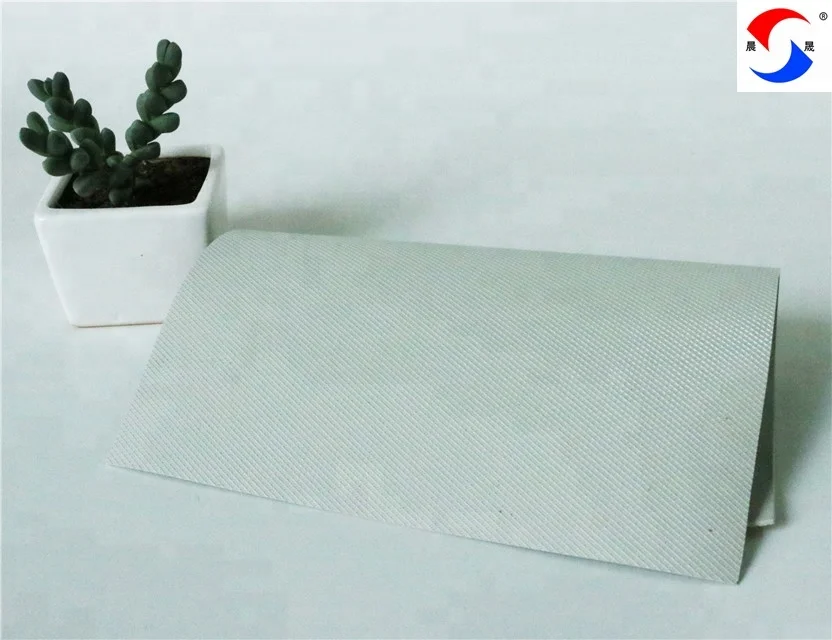

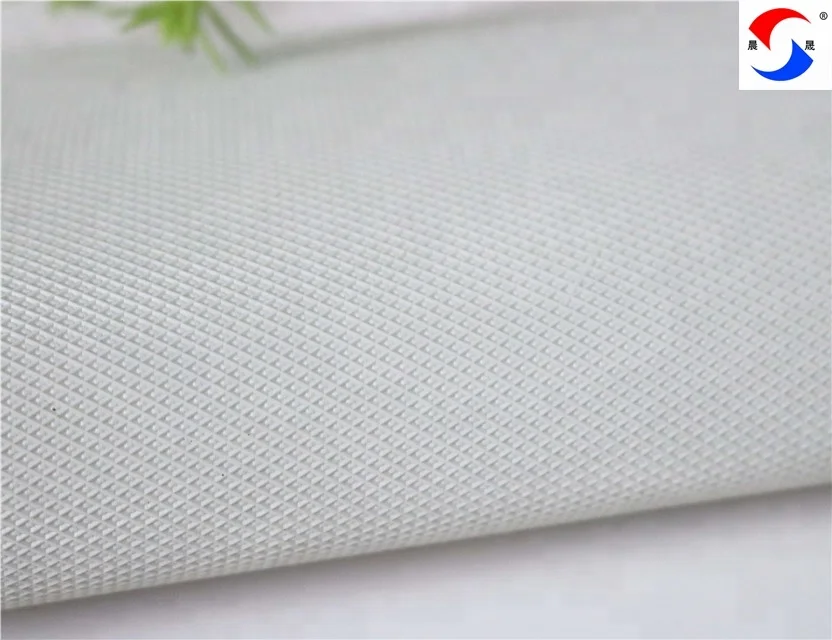

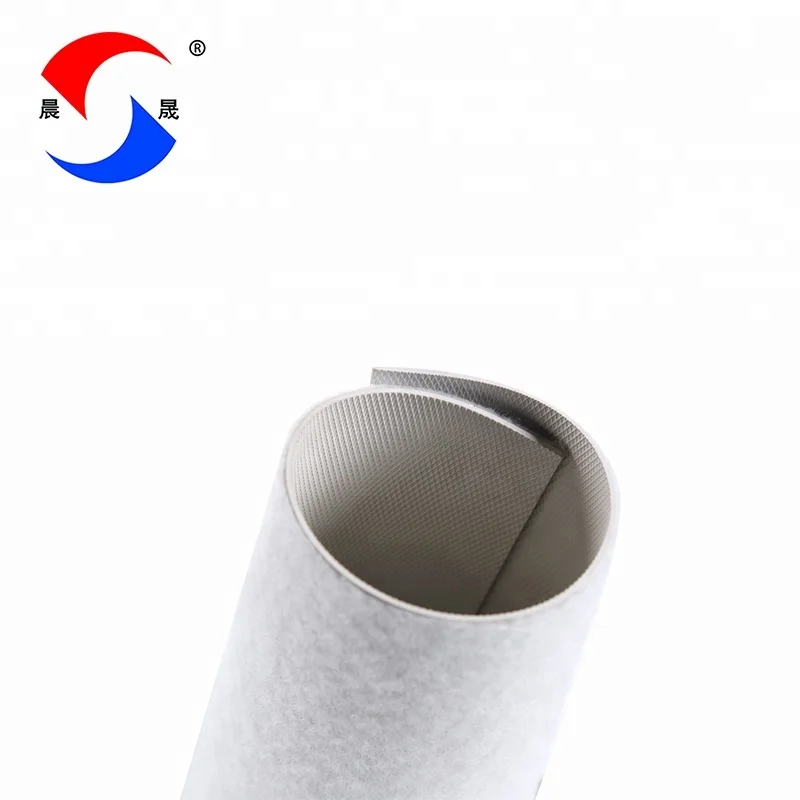

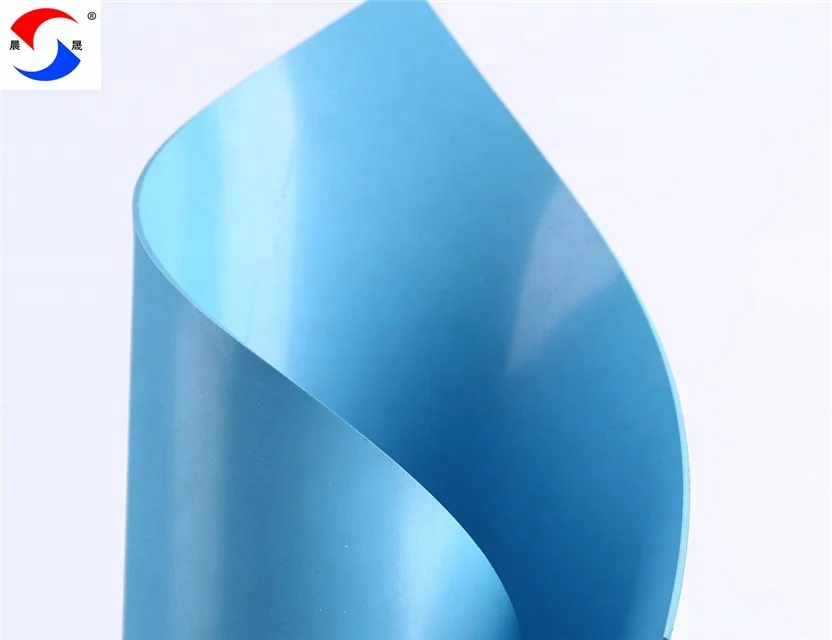

The polyvinyl chloride(PVC)waterproof membrane is a kind of polymer compound waterproof membrane compound of polyvinyl chloride(PVC) colophony, plasticizer,stabilizing agent,ultraviolet radiation(UV) resistance agent, all kinds of dyes and other agents.
Charateristice:
1.Exposed to sunshine: UV rays resistance, long service life and aging resistance
2.Easy installation and dimensional stability: can be wieldable under wide range of temperature and experience minus dimension change in thermal treament.
3.High tensile strength and elongation thus can accommodate movements of substrates.
4.Good flexibility under low temperature(-20 degree), good adaptability to ambient temperature difference.
5.Secure anti-puncture and good rooting resistance, no pollution caued to environment when being welded and good waterproofing choice for plant roofs.
6.Good plasticity:convenient and fast treatment of detailed parts of corners and edges.
Size:
Thickness(mm) | Width(m) | Length(m) |
1.2 | 2.05m | 20m/roll |
1.5 | 2.05m | 20m/roll |
2.0 | 2.05m | 20m/roll |
Note:Other sizes can be offered upon specific requirements | ||
Date Sheet:
No. | Test ltem | Index | |||||
H | L | P | G | GL | |||
1 | The thickness of resin layer above the reinforcement fabric mm≥ | - | 0.40 | ||||
2 | Tensile property | Maximum Tension N/cm≥ | - | 120 | 120 |
| 120 |
Tension Strength Mpa≥ | 10 | - | - | 10 | - | ||
Max.Tension Elongation%≥ | - | - | 15 | - | - | ||
Breaking Elongation%≥ | 200 | 150 | - | 200 | 100 | ||
3 | Heating Treatment Sixe Change Rate%≤ | 2.0 | 1.0 | 0.5 | 0.1 | 0.1 | |
4 | Low-temperature Bending resistance | -25℃ No Craze | |||||
5 | Water Impermeability | 0.3Mpa,2hWater Impermeability | |||||
6 | Impact Resistance | 0.5kg·m Water Impermeability | |||||
7 | Anti-static Load | - | - | 20kg Water Impermeability | |||
8 | Seam Peel Strength N/mm≥ | 4.0 or Membrane Breaking | 3.0 | ||||
9 | Angle Tear Strength N/mm≥ | 50 | - | - | 50 | - | |
10 | Trapezoid Tear Strength N≥ |
| 150 | 250 |
| 220 | |
Usage:
PVC waterproofing membrane can variously be used to the roof of building, underground building,tunnel,dam,pool,sewage treatment works, garbage disposal facilities. It also can be suitable to any requirement of all kinds of technological practice & ifferent grade of roof waterproof and underground constructions waterproof.
Packaging & Shipping

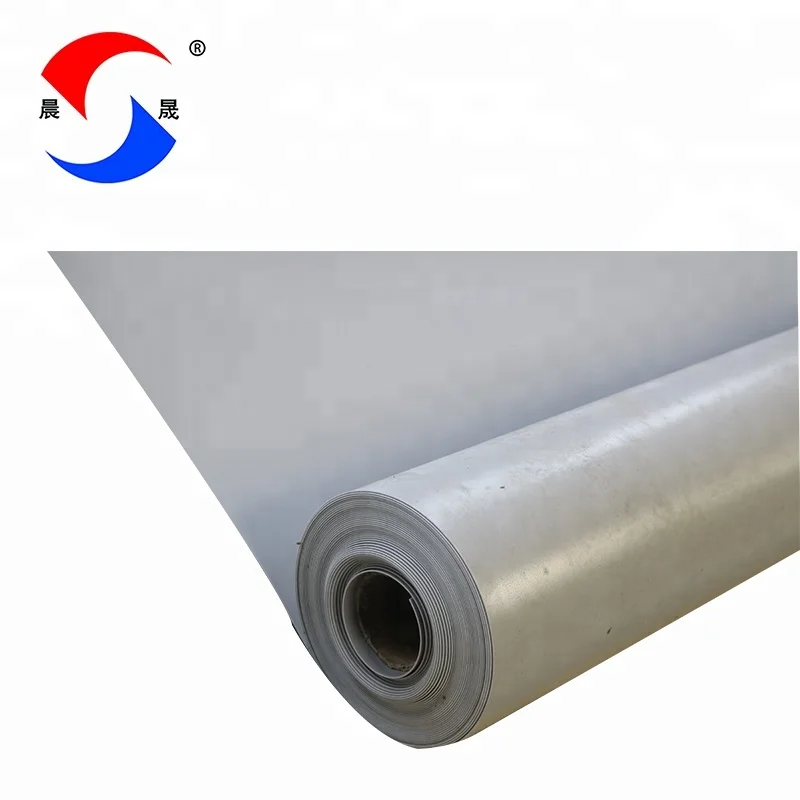

In rolls with pallet. Size can be make as your require.
Our Services
Company Information
Weifang Xuxin Waterproof Materials Co.,Ltd is one specialized supplier on waterproof materials.
Products got the approval of ISO9001, ISO14001, and some products can meet ASTM and
Products got the approval of ISO9001, ISO14001, and some products can meet ASTM and
CE international standards.
As a public company, we mainly supply SBS Modified Bitumen waterproof Membrane, PE/PVC/EPDM/TPO
As a public company, we mainly supply SBS Modified Bitumen waterproof Membrane, PE/PVC/EPDM/TPO
Waterproof Membrane, Waterproof Coating, etc.
Not for the best, but for the better, work and service for you esteemed customers requirmrnts.Hope to contribute to waterproofing industry for future brilliance with you together.
Year of Incorporation | 2003.9 | Annual Turnover 2012 | 23000000USD |
Size of factory (SQM) | 18180 | Estimated Turnover 2013 | 35000000USD |
Total number of staff | 200 | Ownership | private |
ISO Certification | ISO9001 ISO14001 | ISO Certificate number | 10410Q20910ROS 10410E10261ROS |
ISO Accreditation issued by | Shandong WorldCom Quality Certification Co., Ltd. | ISO issue Date | 2010.11.18 |
