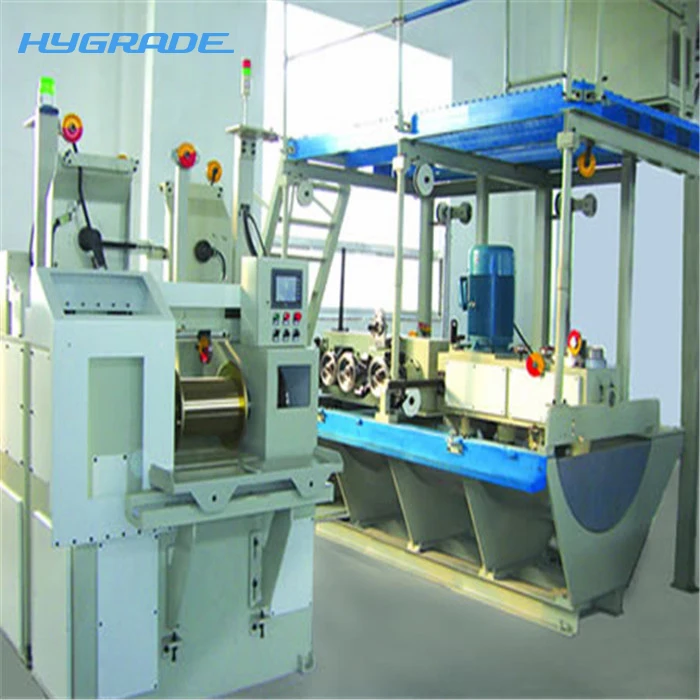

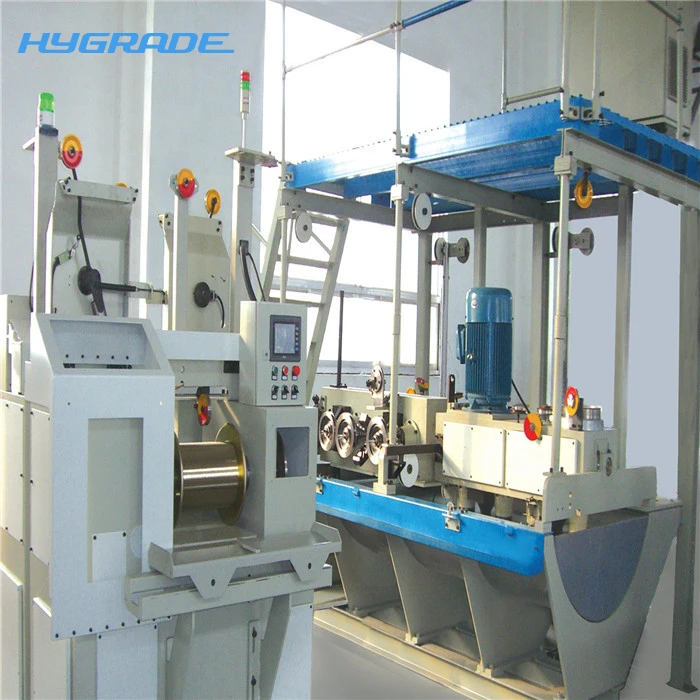

LT242 Cutting Wire Wet Water Tank Wire Drawing/Pulling Machine
LT242 Cutting Wire Wet Water Tank Wire Drawing/Pulling Machine
LT242 Cutting Wire Wet Water Tank Wire Drawing/Pulling Machine
LT242 Cutting Wire Wet Water Tank Wire Drawing/Pulling Machine

LT242 Cutting Wire Wet Water Tank Wire Drawing/Pulling Machine

Share on (60785833155):


Price:RUB 994,632.60

Quantity:


Product Overview

Description

Product Description

 Type: LT242 Wet Wire Drawing Machine
 Material: High Carbon Steel Wire C%: 0.70-0.96%
 Wire Diameter: Inlet Diameter: ø0.8-ø1.5mm
Outlet Diameter: ø0.10-ø0.25mm
 Drawing Speed: 16m/s
 Drawing Pass: 23
 Capstan Diameter: ø242mm
 Motor Power: Main motor: 22KW,Take up motor:1.5KW
 Take Up: Individual Take up units control
 Production Name: Steel Wire Wet Wire Drawing Machine
 Certificate: CE,IAF,ISO9001
 Trade Mark: Hygrade
 Origin: Wuxi, China

Advantage

 European and American advanced technology.
 Simple and safe to operate and maintain. Beautiful construction.
 High efficiency, energy-saving.
 Advanced PLC control, convenient for operation and maintenance.

Our company

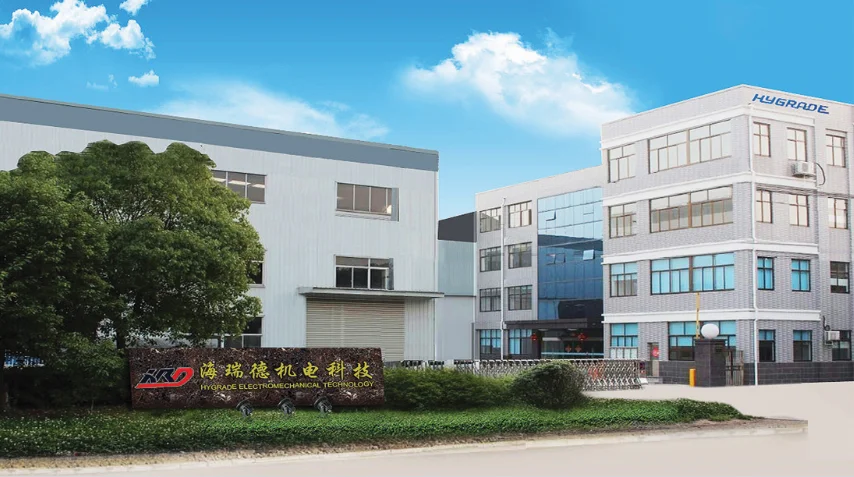

Jiangyin Hygrade Electromechanical Technology Co., Ltd. was found in July 2011, located in Jiangyin City. Hygrade is a professional enterprise that manufactures wire rod pickling line, brass plating line, patenting line, galvanizing line ,online wire rod pickling treatment line, concentrated acid treatment production line; annealing heat treatment production line; electro galvanized, hot galvanized production line; copper electroplating production line; phosphating, borax treatment line products, etc. We have the license of import-export and certificates of CE, SGS, ISO9001, etc. With professional technical team and seasoned international trade staff, we have great reputation in both domestic and overseas markets.

Application
 -- Steel wire for transport belt, tire bead wire, High-pressure hose wire, Steel cord, Gas shielded welding wire, Staples, Spring steel wire, Steel wire rope, etc.

-- Undertake the following projects, and manufacture the related complete sets of equipment.

 Steel Wire Treatment Line:
1. Surface Pre-treatment of dry drawing (first dry-drawing) production line
2. Intermediate Patenting production line
3. Bead wire production line
4. Galvanizing production line
5. Brass / Copper plating production line
6. Phosphating production line

 Related complete sets of equipment:
1. Pay-off & take-up machine and units
2. Mechanical descaling device & brush descaling machine
3. Natural Gas Furnace
4. Pickling Tank
5. Wire drawing machine
6. Cabling machine
7. Double Twister Machine
8. Spiral Machine
9. Other auxiliary equipment

Our service

 Provide the technical design and solutions;
 New plant construction guidance;
 Designing and manufacturing of non-standard equipment;
 Professional technical training and guidance on site according to the contract;
 Supply accessories at any time;
 Tele-technical consulting and services;
 Other special technical service according to client’s requirements.

Contact us

Jiangyin Hygrade Electromechnical Technology Co.,Ltd.
Address：No.22, Zhuwen Road, Zhutang Town, Jiangyin City, Jiangsu Province, China
Zip code：214415
Tel：0086-510- 86175601-8500
Fax：0086- 510-86382925
Mobile: 0086-15852606969
