1 hp oil free air compressor

Product Overview

Description

1 hp oil free air compressor

—————————————————————

 Specifications:

Model	LT.	CYLINDER	L/min	C.F.M	HP	R.P.M	Bar	P.S.I
MZB-550H-9	9	63.7*2	110	3.8	3/4	1440	8	115
MZB-550H-15	15	63.7*2	110	3.8	3/4	1440	8	115
MZB-550H-24	24	63.7*2	110	3.8	3/4	1440	8	115
MZB-550H-65	65	63.7*6	330	11.4	3/4X3	1440	8	115
MZB-750H-90	90	63.7*8	440	15.2	3/4X4	1440	8	115





Feature & Attention:

—————————————————————

1. In order to prevent the compressor from starting with pressure when the compressor is shut down due to power failure, the pressure switch power off handle should be pulled when the compressor starts again, the air in the pipeline is drained out, and the compressor is restarted.



2. The user must set up the compressor protection ground wire to ensure that all metal shells of the compressor are in good contact with the earth, and the grounding resistance should conform to the national standard.



3. The compressor should stop running immediately when it finds serious leakage, abnormal sound and bad smell, and then can run again after troubleshooting and returning to normal.



4. Air compressor is oil-free air compressor, friction parts are self-lubricating, so do not add lubricating oil.



5. Air compressors must be fixed to ventilated, stable and strong working faces, and shock absorbers must be available to reduce noise and vibration.



6. Filter media (foam sponge or felt) in the filter should be cleaned every three months, blowing off the dust on the medium, if necessary, wash with water, dry and reuse.



7. Compressor maintenance at least once a quarter, including thorough cleaning of the compressor external dust and dirt, check and fasten the compressor around the connection bolts, ground wires are in good condition, check electrical wiring for aging damage.



Application:

—————————————————————

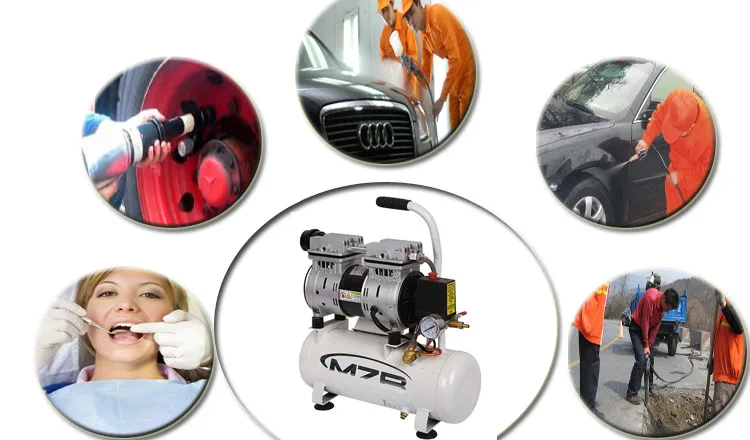

1.Be used in operating rooms, supply rooms, gastrointestinal mirror rooms, bronchoscope rooms, stomatology, computer rooms and other places where gas sources are needed.



2.The tank body is formed by steel die, white paint is sprayed outside, and the main motor is made of aluminum and plastic.



3.The machine is easy to operate, just plug in the power supply, connect the air outlet to the high pressure water gun, and automatically switch, so that you can save energy and worry.



4.An environmentally friendly and energy-saving green product.







 FAQ:

—————————————————————



Q: Are you trading company or manufacturer ?
A: We are manufacturer who is specialized in producing kinds of air compressors over 15 years.

Q: How long is your production time?
A: For custormized products,it usually spend 30 days after recepit of deposit.At any time if the goods are in stock.

Q: Do you provide samples ? Is it free ?
A: Yes, we could offer the sample for testing quality.If you receive the sample and then later decide to place an order, the sample charge will be deducted from the cost of the order.

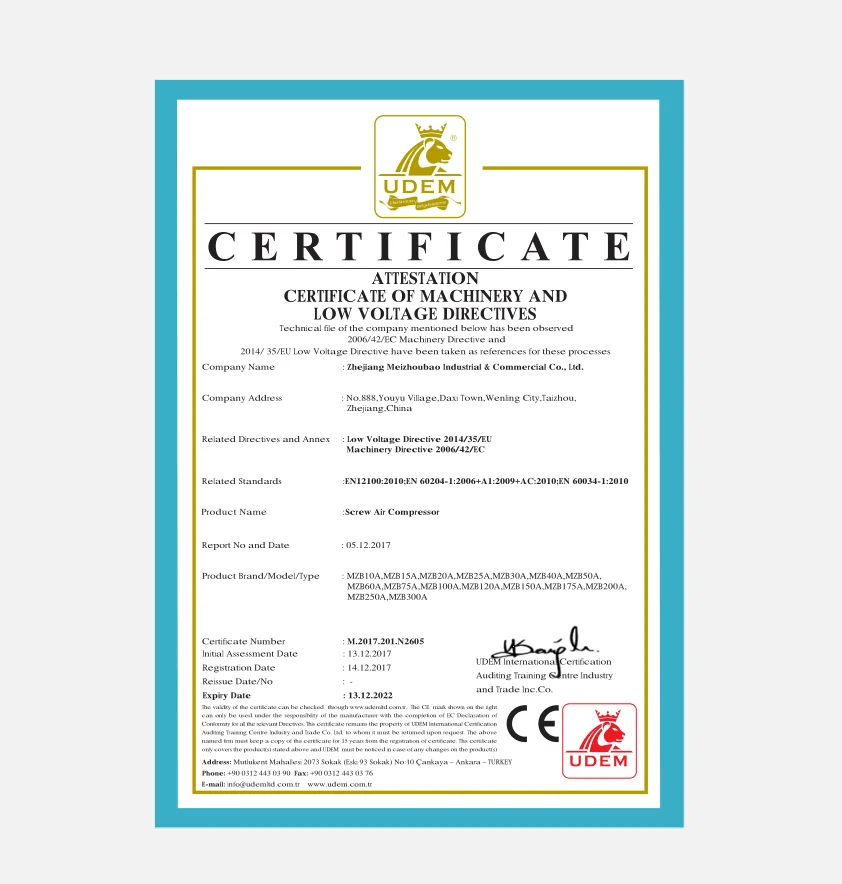

Certifications:

—————————————————————



https://mzb.en.alibaba.com/?spm=a2700.7756200.1998619056.7.84e671d2PoVIIP





Packing & Delivery & Payment:

—————————————————————















1.Direct driven air compressor with carton package.

2.Belt driven air compressor with wooden crate package.

3.Mute/Oil less air compressor with honey box package.

4.Customized is okay but should pay the extra money.





Our delivery time is 30 days after recieved the payment.

Our general payment is 30% in advance and the balance paid at the sight of B/L copy after shipment.
