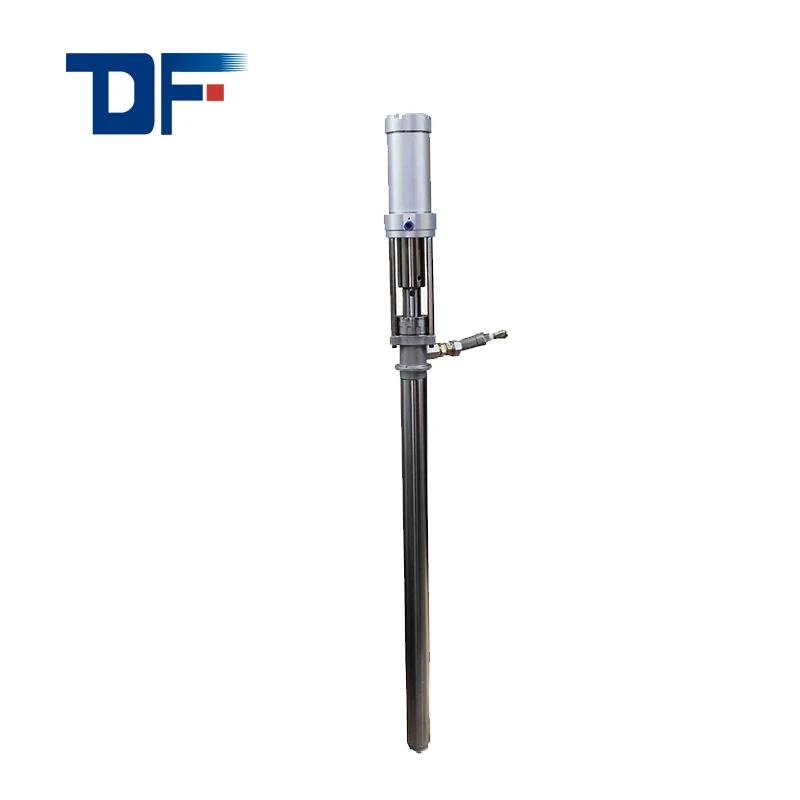

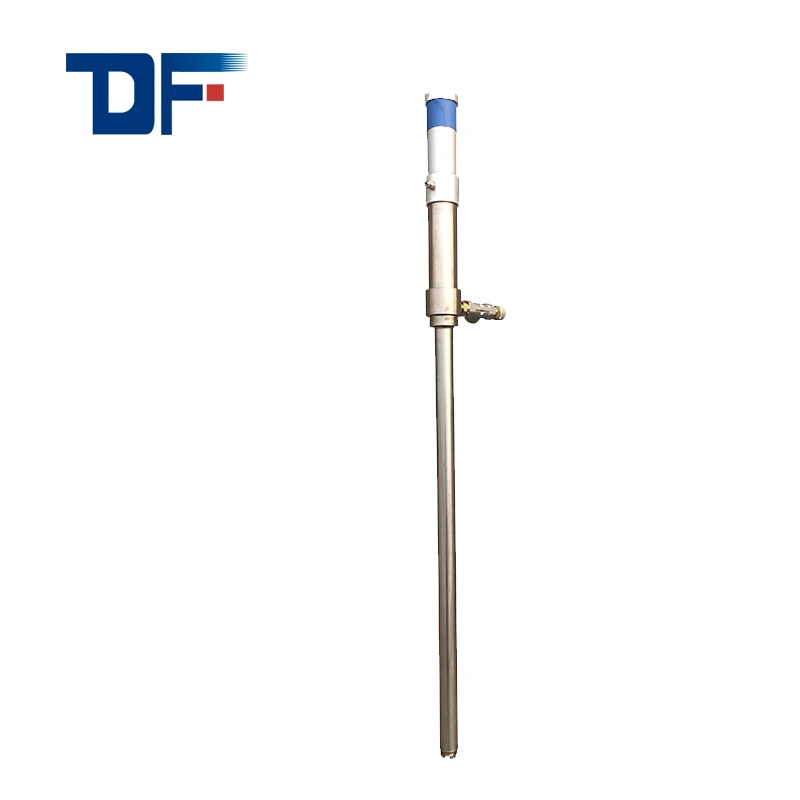

High Pressure Polyurethane Foam Injection Pump For Waterproofing

Model/Name

Polyurethane Pump

Polyurea Pump

T3

Pressure Ratio

2:1

2:1

3:1

Dia. Of Air Motor(mm)

50

63

76.2

Size of Fluid Outlet(mm)

ZG-3/4

ZG3/4

ZG-3/4

Pressure Range of Air Motor(Mpa)

0.1-0.8

0.1-0.8

0.1-0.8

Max. Fluid Pressure(Mpa)

1.5

2.5

2.8

Max. Output(KG)

28

34

42

Length(mm)

1313

1320

1366

Weight(KG)

7

9

10

Max. Ambient Temperature

50℃

50℃

50℃

Max. Fluid Temperature

80℃

80℃

80℃
