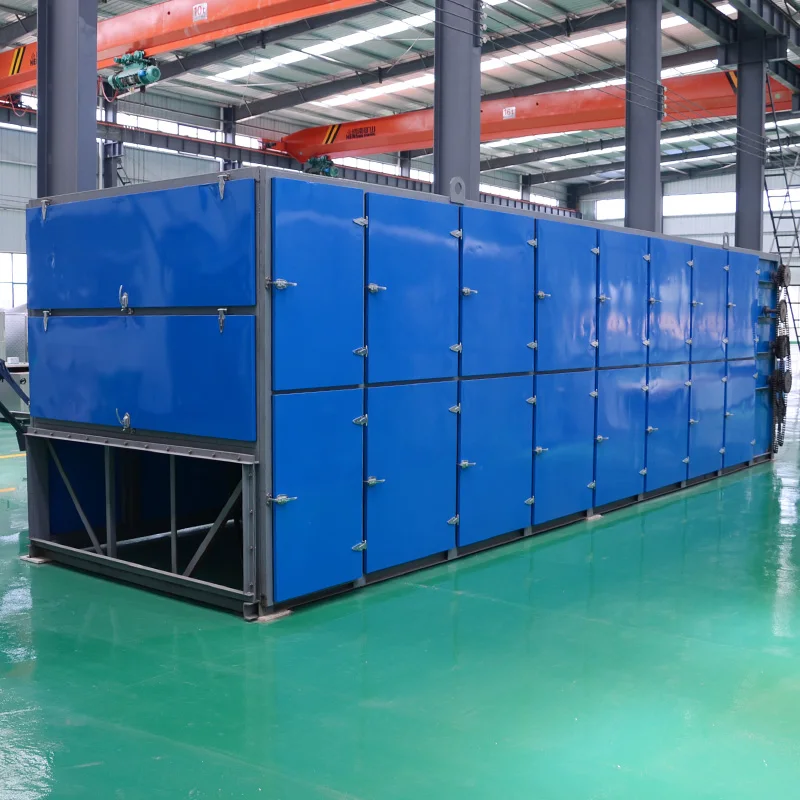

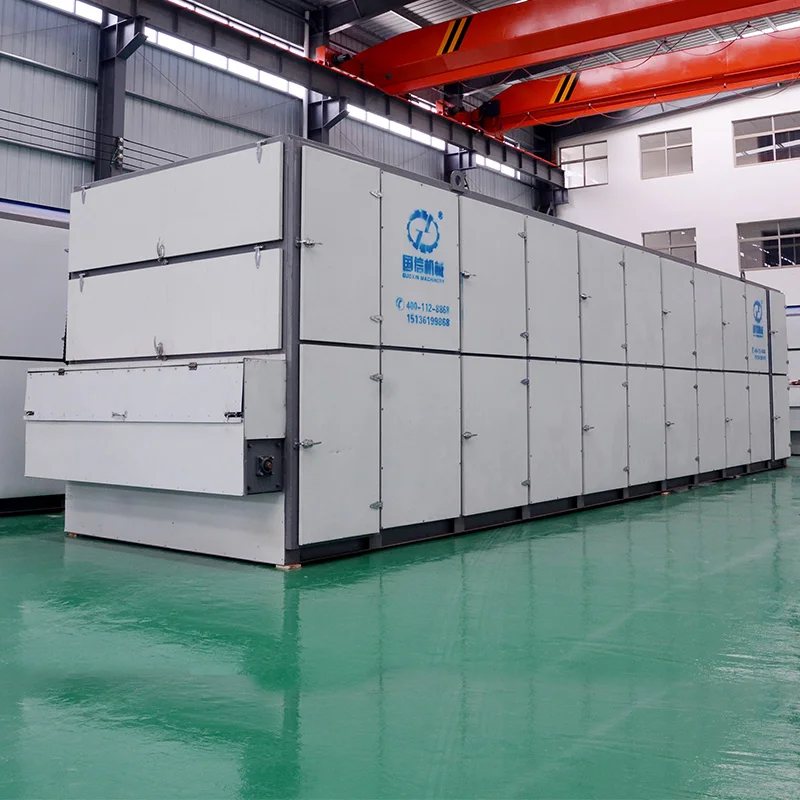

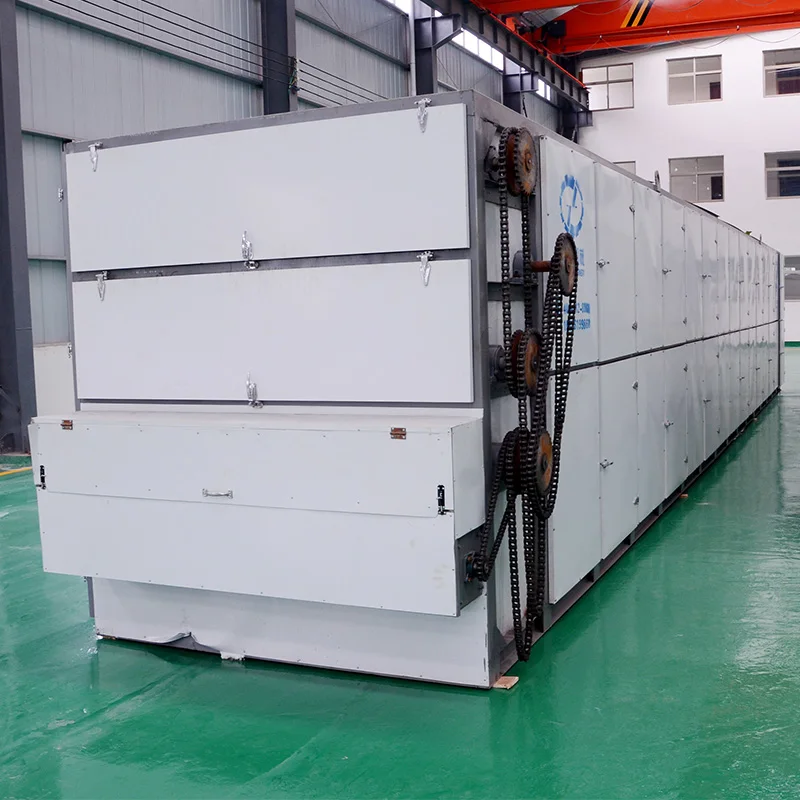

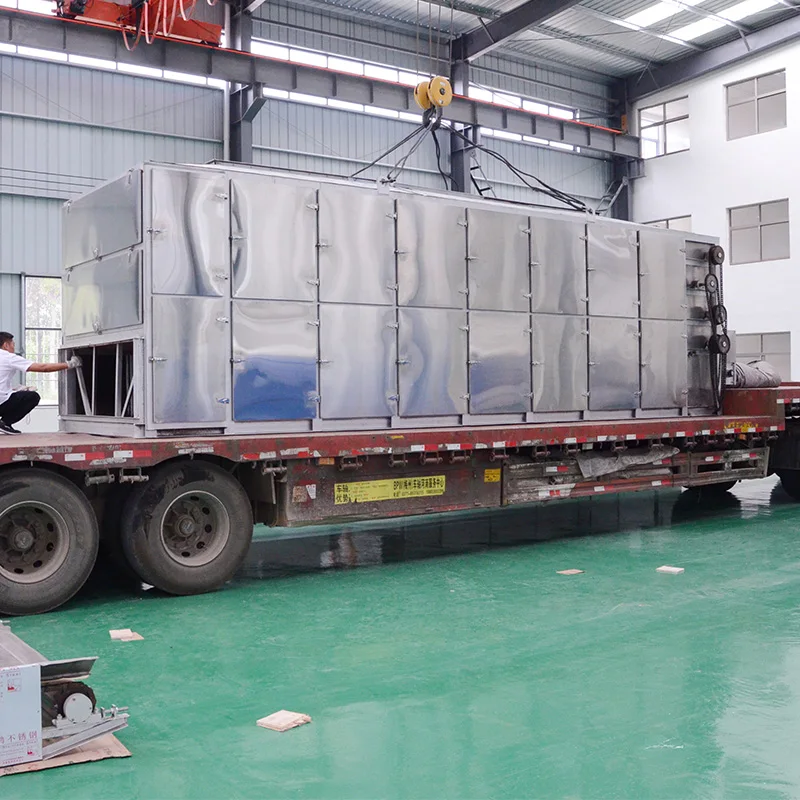

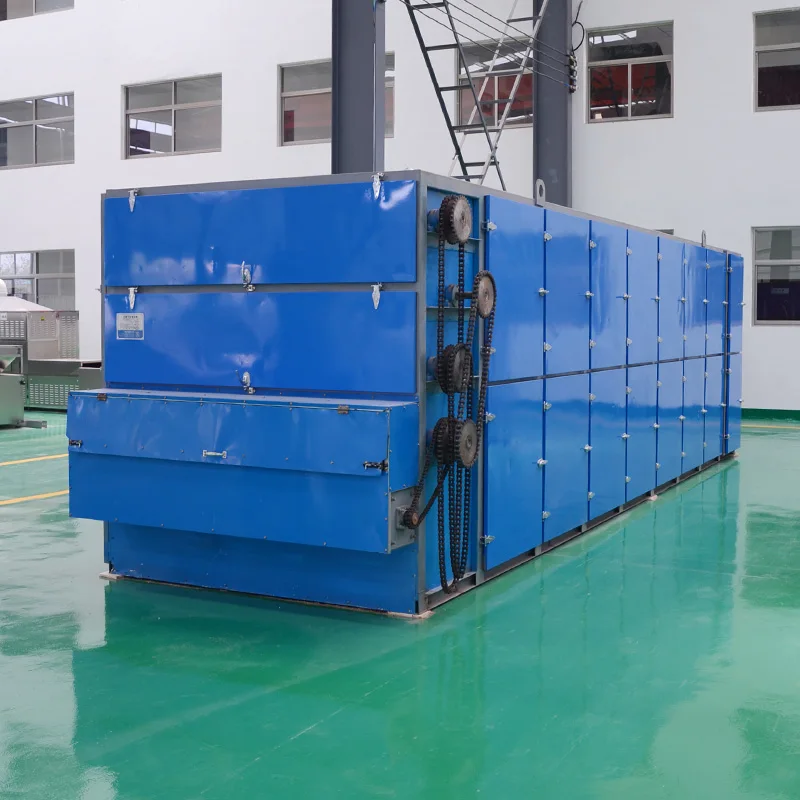

Carrot drying equipment garlic and ginger/onion dryer machine

Product Overview

Description

Carrot drying equipment garlic and ginger/onion dryer machine

1.Heat exchange furnace.

2.Heat exchange furnace draft fan with chimney.

3.Fan( Strong air volume and make the raw material fast dry).

4.Spinach drying equipment system (Food grade stainless steel,drying temperature 30-120 degree centigrade).

5.Feeding conveyor.

6.Discharge conveyor.

7.Control panel.

Working principle of onion dryer machine:

The material goes through the head of the machine.The distributed feeder distributes the materials in the mesh belt evenly,adjust the thickness of the material according to the conditions.The linear velocity is decided by the different kinds of raw material and moisture insisde. The dried material is discharged from the discharging port. Due to the function of fan, drive the hot air flow through the guide duct into the internal of bottom of the myrcia leaf drying machine.

then drying the material from the bottom to the top, and next discharge the exhaust through air outlet of the duct.

If want to get better drying effect and reasonable capacity, it should combine reasonably properly, and organic with the raw material moisture, liner of mesh belt, air volume and air temperature.

For the myrcia leaf drying machine is 4 layers, the material from feeder port to discharge port is 2.5-4 hours.The speed of drier can control according to different raw material.

The advantage of onion dryer machine:



1. For the whole processing line need 1-2 people to operate.

2. 15 years drying experience and have many sucess working sites can visit.

3. Saving energy,for our flakes drying machine not only according to heat to dry,but also according to strong air.So the myrcia leaf drying machine efficiency and capacity improve alot.

4.For our drying machine is low speed rotation,so it dont have spare parts and easy to maintenance.

5.Stainless steel material to ensure the product reach hygienic standard.

6.After make contract and the seller will dispatch engineer to buyer's working sites help buyer install the drying machine until the machine get good drying effect,then our engineer will back to our country.

Techinical parameters of onion dryer machine:

MODEL	GX-1.5*6m GX-2*8m GX-2*9m GX-2*10m GX-2*11m GX-2*12m
Layer	4
	29 m2 54 m2 60 m2 68 m2 75 m2 83 m2
Thickness	50—200mm
Temperature	40—120℃
Period	0.5-5 hour
Power	YCT-1.1kw			YCT-1.5kw			YCT-1.5kw	YCT-2.2kw	YCT-2.2kw	YCT-3kw
Evaporation	300kg/h			430kg/h			500kg/h	560kg/h	620kg/h	680kg/h
Size of hot air stove	3.2*1*2.7			3.9*1.26*3			3.9*1.26*3	4.7*1.5*3	4.7*1.5*3	4.7*1.5*3
Suction fan	8C-11kw			10C-15kw			10C-15kw	11C-22kw	12C-22kw	12C-22kw
Smoke extraction fan	3.15C-1.5kw			Y5-47-4C-2.2kw
Feeding conveyor	0.12kw
Total power	13.72kw			18.82kw			18.82kw	26.52kw	27.32kw	27.32kw

Application of onion dryer machine:

Customer working site of onion dryer machine:
