380 385/390 395MHz Duplex Bandpass Filter or Bandpass Duplexer for BDA
- Category: >>>
- Supplier: Shenzhen Xinlun Communication Technology Co. Limited
Share on (60786015620):
Product Overview
Description
Product Description
380-385/390-395MHz Bandpass Duplexer for BDA
Specifications:
NO. | Parameters | ||
Uplink RX | Downlink TX | ||
1 | Frequency Range
| 380 -385MHz | 390-395MHz |
| frequency can be made within 350~520MHz range | |||
2 | Insertion Loss | ≤2.0dB | ≤2.0dB |
3 | Pass Band Ripple | ≤1.0dB | ≤1.0dB |
4 | Attenuation Out of Band | ≥85dB@DC-360MHz ≥85dB@390-3000MHz | ≥85dB@DC-385MHz ≥85dB@415-3000MHz |
5 | Isolation | ≥85dB | |
6 | VSWR | ≤1.3 | |
7 | Average Power | ≥100W | |
8 | RF Connection Mode | ANT:SMA/F,50Ω; RX: SMA/F,50Ω; TX: SMA/F,50Ω; | |
9 | Operation Temperature | -25℃ ~ +70℃ | |
10 | Storage Temperature | -40℃ ~ +85℃ | |
11 | Humidity | ≤95% | |
12 | Dimension | 177mm*134mm*85mm(L*W*H) | |
13 | MTBF | ≥100000h | |

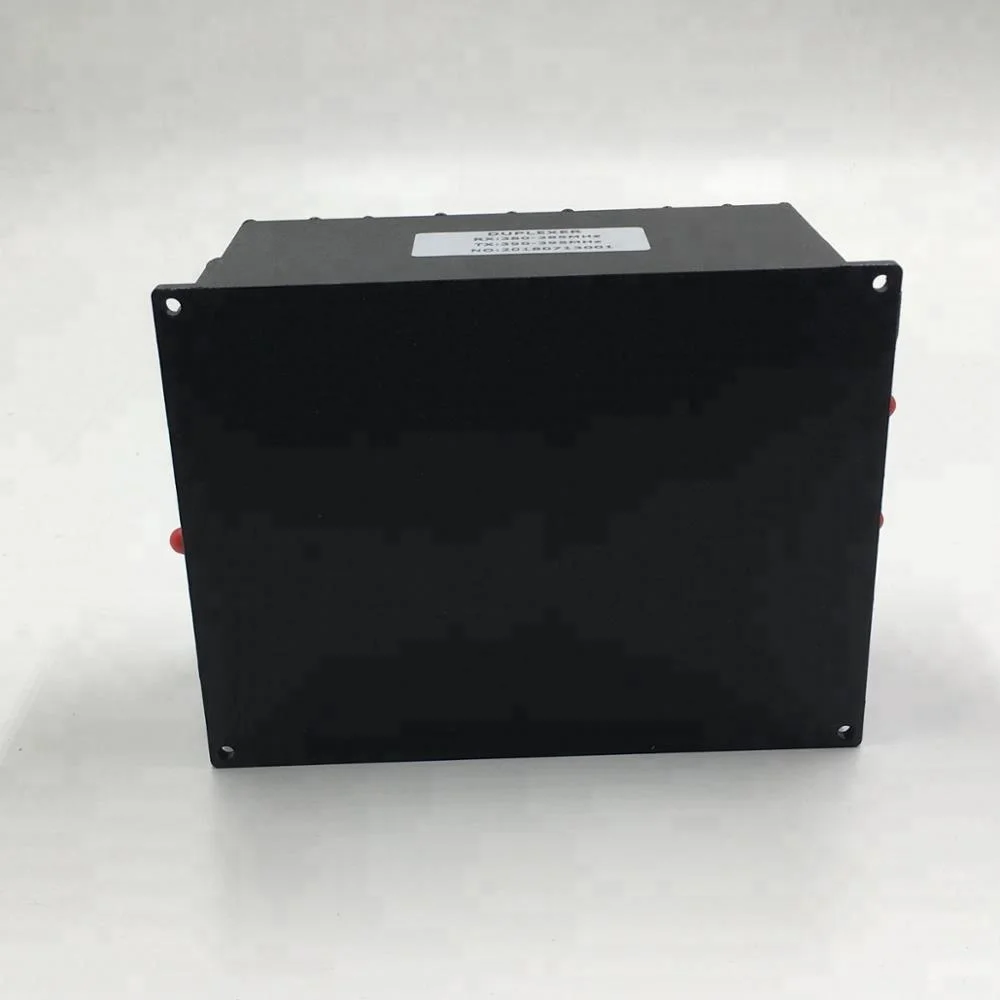

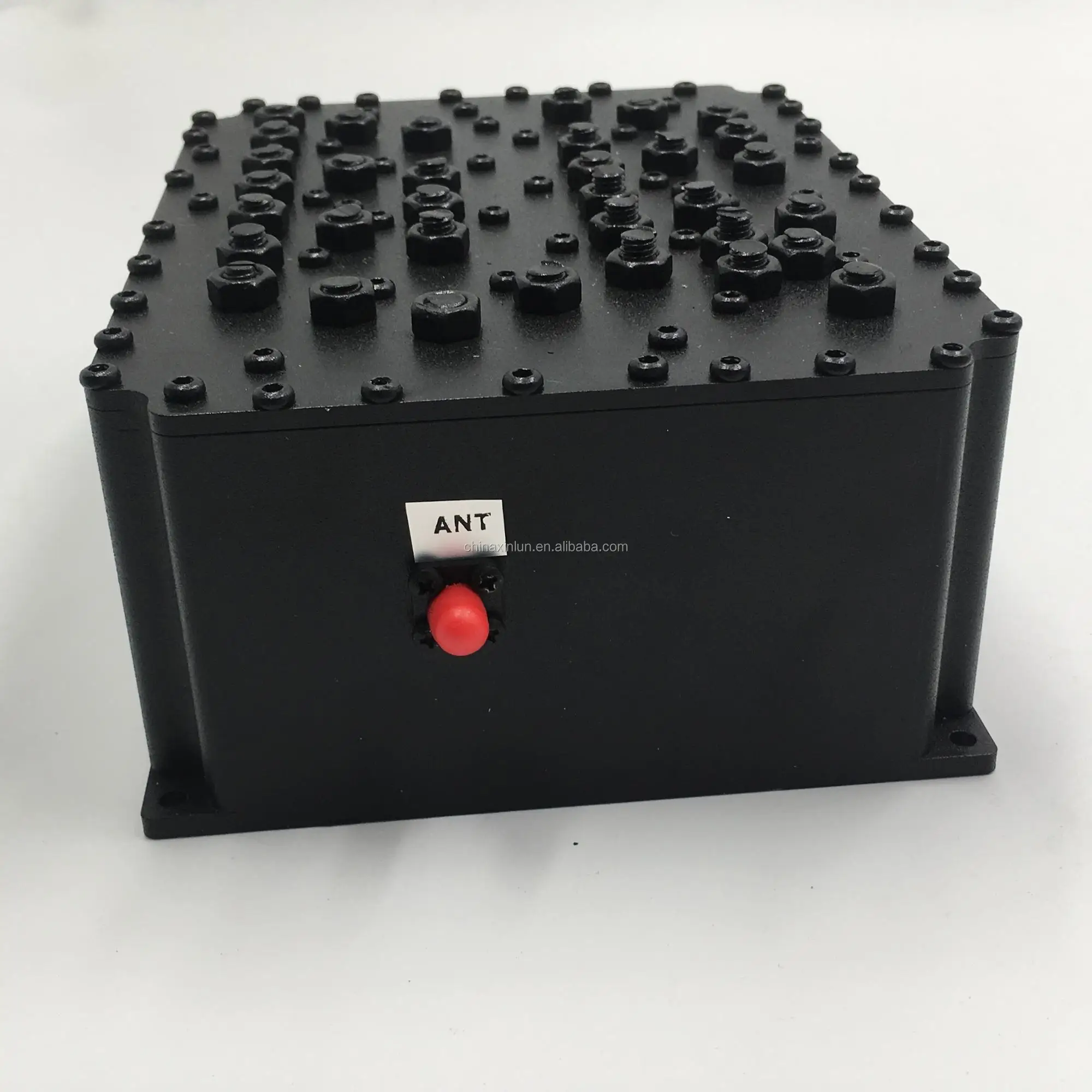

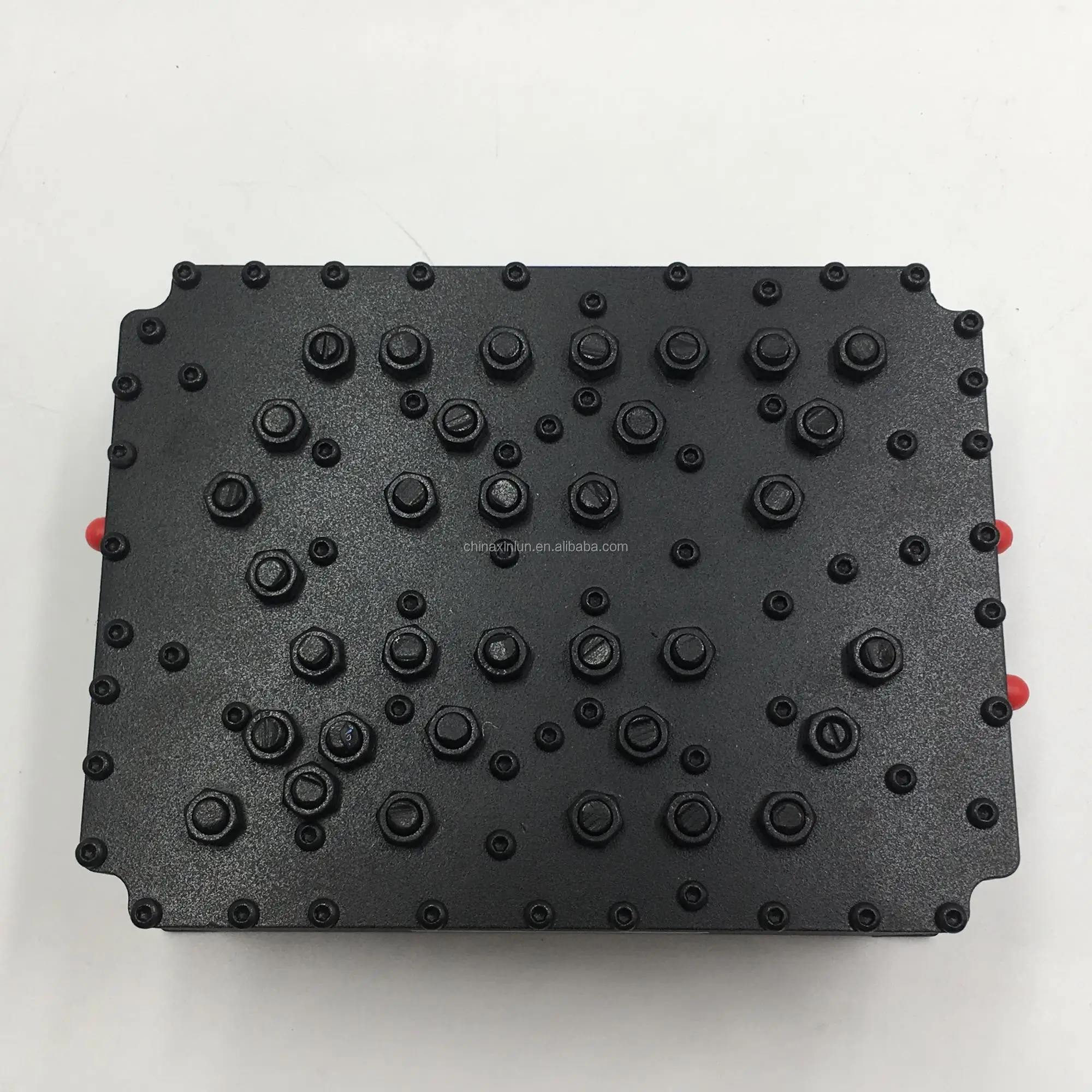

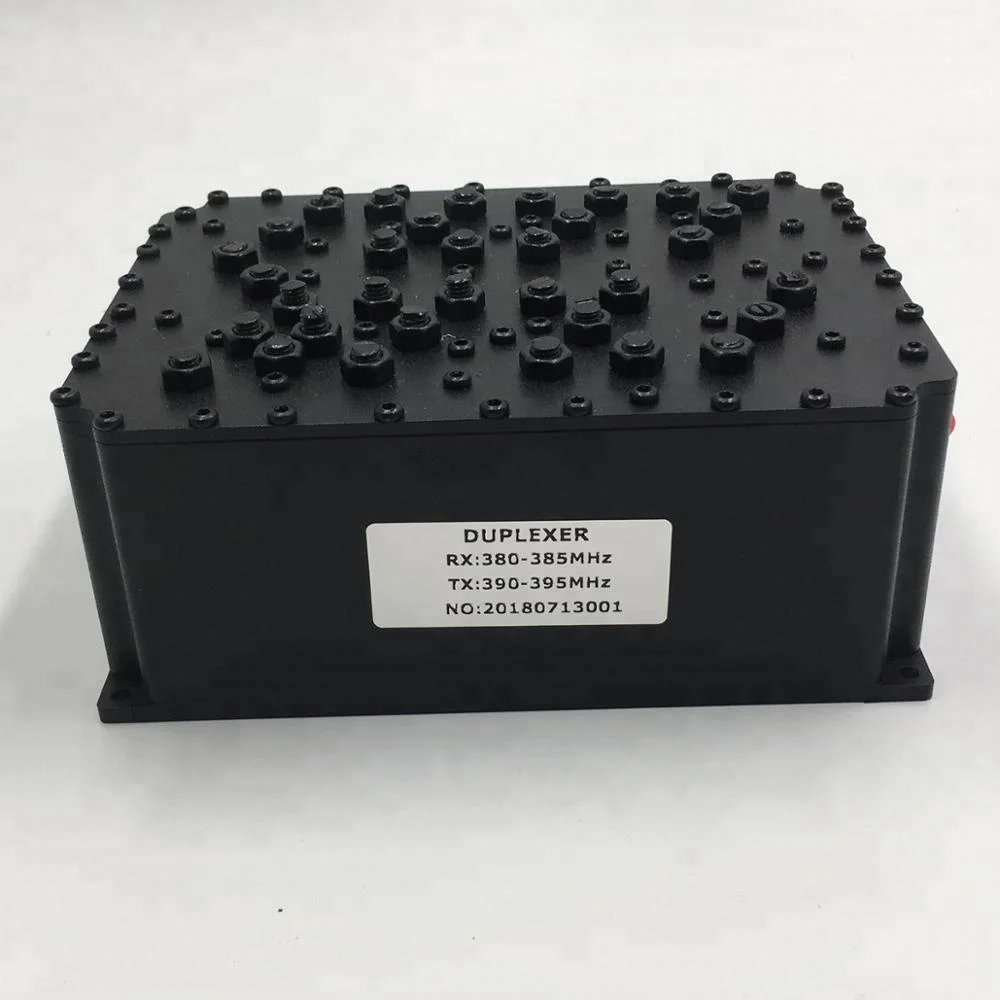

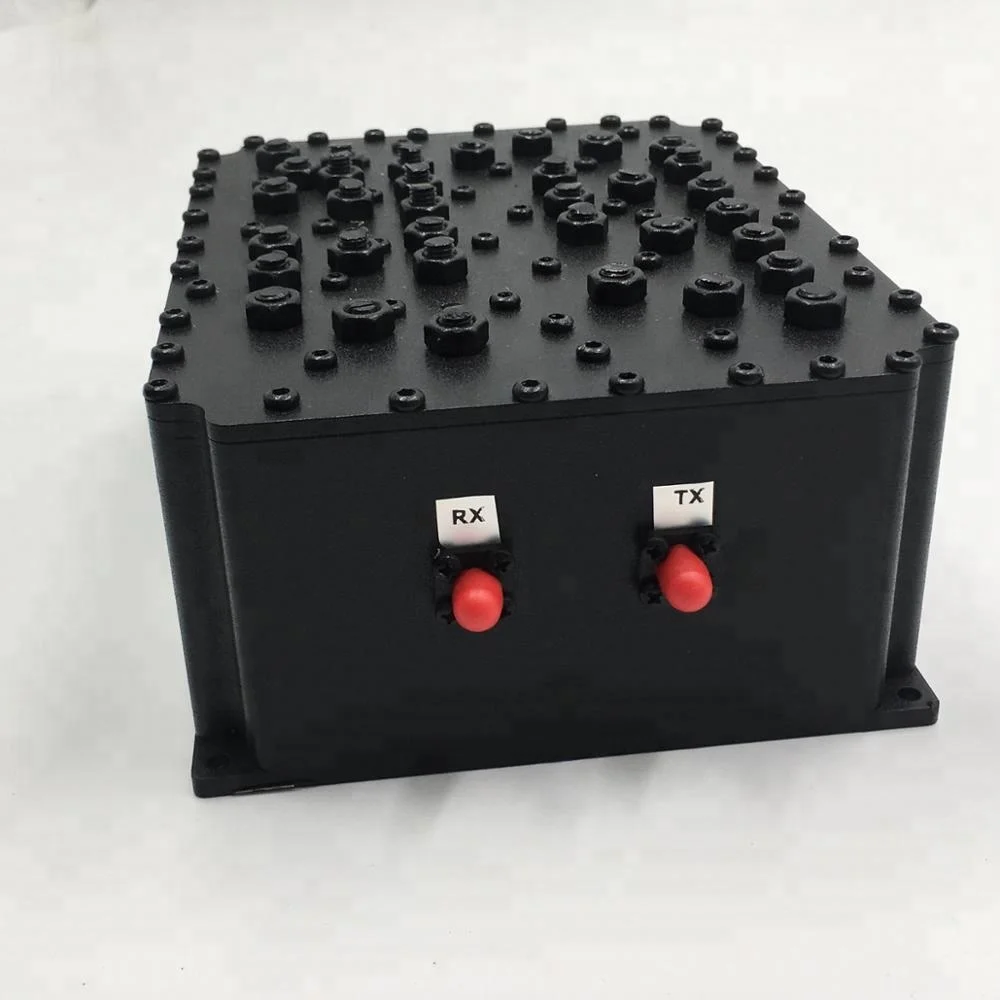

Detailed Images
Related Products
Our company produce RF duplexers,power splitters,directional couplers,bandpass filters,
TX combiners,RX multicouplers,dummy loads,RF attenuators,RF isolators,tetra repeaters,pico
repeaters,bi directional amplifiers,band selective repeaters,fiber optic repeaters,
power amplifiers,low noise amplifiers and so on.
Packaging & Shipping
1.Packaging: paper box;
2.Delivery time:usually within 3~21days after payment;
3.Shipping ways:DHL/UPS/FEDEX/EMS etc;
4.Payment ways:T/T,Western Union,Paypal,Alibaba Trade Assurance.
Our Services
1.Your inquiry related to our products or prices will be replied in 24 hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
