LE 4021 reverse osmosis membrane for ro plant
- Category: >>>
- Supplier: Tianjin Tian Gong New Material Technology Co. Ltd.
Share on (60786027648):
Product Overview
Description
Product Description
This series apply to surface water, groundwater whose salt content is under 2000mg/L and some low pollution water after desalination processing.
It is currently widely appiled in municipal landscape and agricultural irrigation, drinking water of municipal water supply and drainage, water treatment, hospital, medical industry boiler makeup water, pure water, food processing and parmaceutical mnufacturing industry, laboratory pure water equipment, and other field.
Specification and Main Performance of RO Membrane Elements
Type | Model | Performance | Structure Parameter | ||||
Stable Rejection / % | Average permeate flux /gpd (m3/d) | Effective Membrane Area / ft2 | Flowpath Diameter / mil | Product Pipe Inner Diameter / mm | |||
LE Series | LE-4021 | 99.0 | 1000(3.80) | 38 | 31 | 19.0 | |
Testing Conditions: |
| ||||||
Testing Pressure | 150psi(1.03 MPa) | ||||||
Temperature of Testing Solution | 25 ℃ | ||||||
Testing Concentration(NaCl) | 1500 mg/L | ||||||
pH Value of Testing Solution | 7.5 | ||||||
Recovery of Single Membrane Element | 20% | ||||||
Operation Limits and Conditions: |
| ||||||
Max. Working Pressure | 600 psi(4.14 MPa) | ||||||
Max. Feedwater Flow | 6 gpm(1.36 m3/h)(8040) | ||||||
|
| ||||||
Max. Inflow Temperature | 45℃ | ||||||
Max. Inflow SDI15 | 5 | ||||||
Residual Chlorine Concentration of Feedwater | <0.1 mg/L | ||||||
pH Range of FeedwaterDuring Continuous Operation | 3~10 | ||||||
pH Range of FeedwaterDuring Chemical Cleaning | 2~12 | ||||||
Max Pressure Drop of Single Membrane Element | 15 psi(0.1 MPa) | ||||||
Our Services
- Advanced techniques
- Strong research competence
- Excellent performance
- Strictly in quality
- Responsible after sales service
- ODM&OEM service are available
Packaging & Shipping

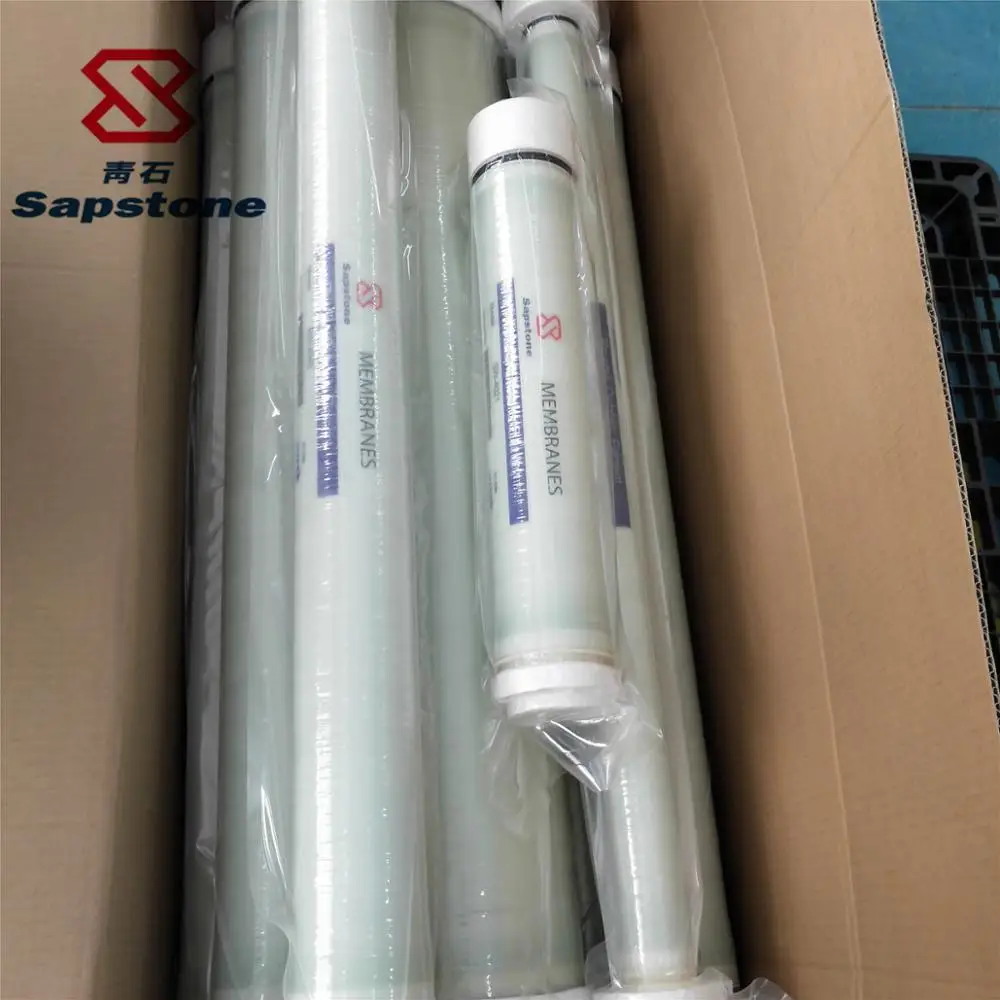

Standard Sapstone packaging: several pieces per carton, and several carton per wooden pallets.
Special packaging: we will meet the requirement if you have.
Company Information
Kung Ta New Material CO., LTD
Quality: Clear as Sapphire and Quality as Rock
Registered trademark: Sapstone
Products: domestic/ commercial/ industrial ro membrane elements
NF membrane
Brife Introduction:
Tianjin Kung Ta New Materials Technology CO.,LTD is a leading manufacturer of ro membrane in China with ISO9001 certificated. As a high-tech enterprise, we take membrane separation technology as our core competence, and specialize in the R&D and manufacture of membrane products, the production of membrane equipment as well as the design, construction and operation of membrane engineering application.
Contract
Sales Manager: Helen Lee
Mobile phone: +86 13102193230
website: www.tjgdnm.com
QQ: 1491949543
Address: No.4 Buinding, Hailande Industrial Zone, Xiqing, Tianjin, China
