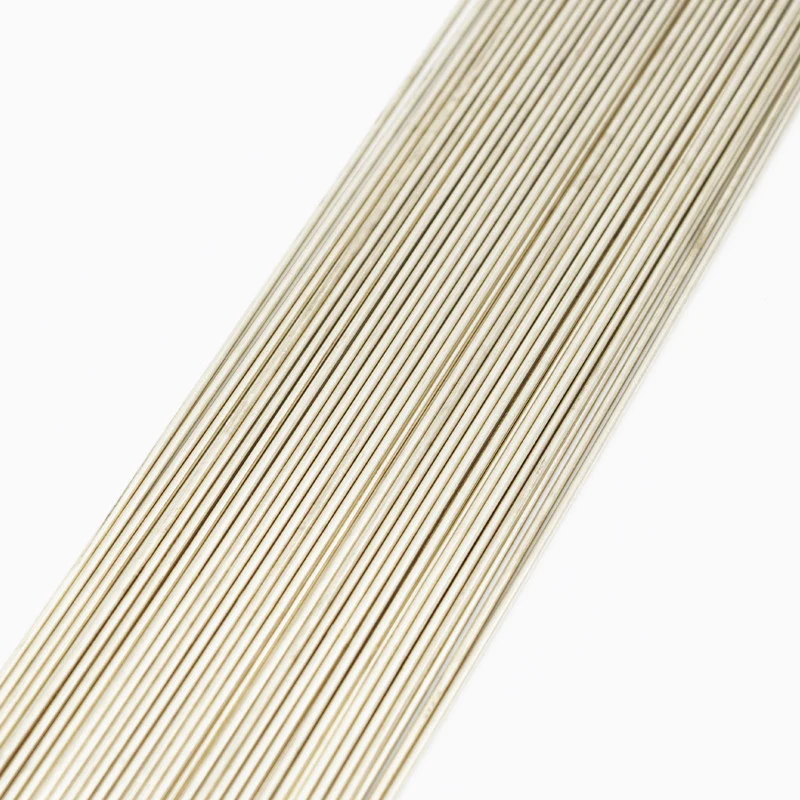

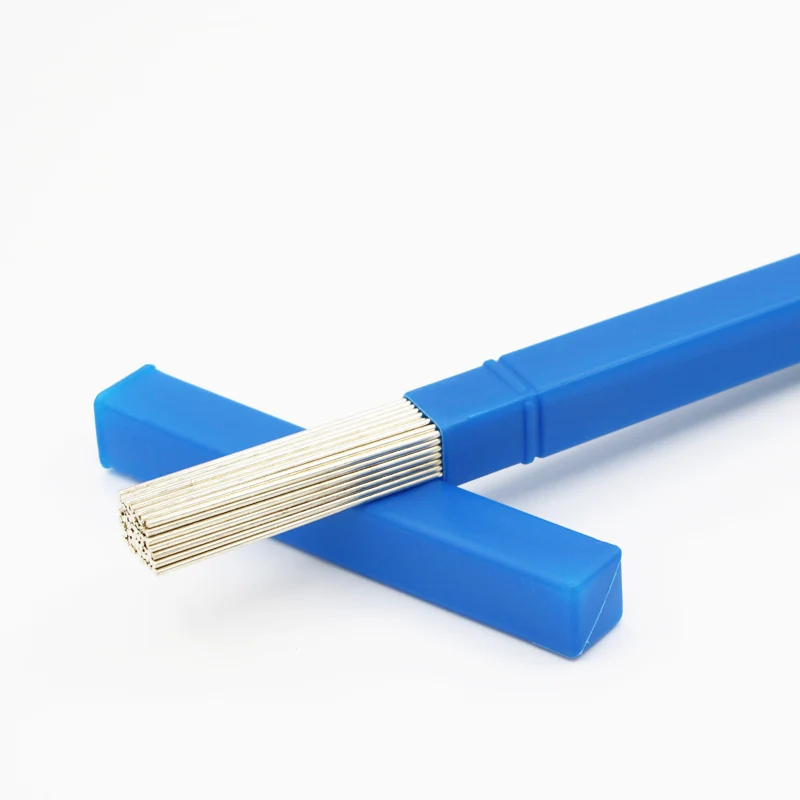

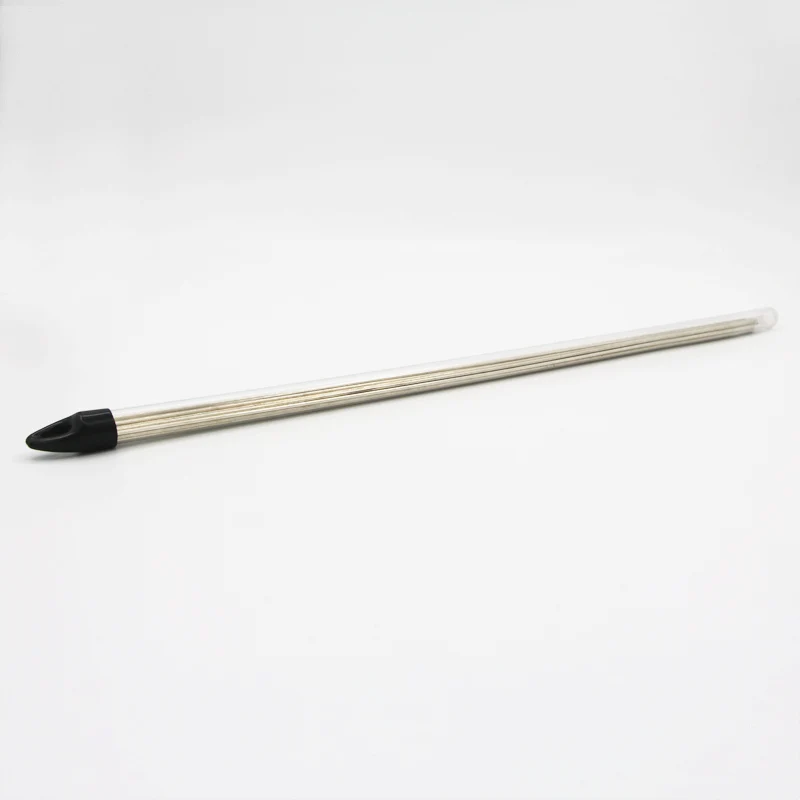

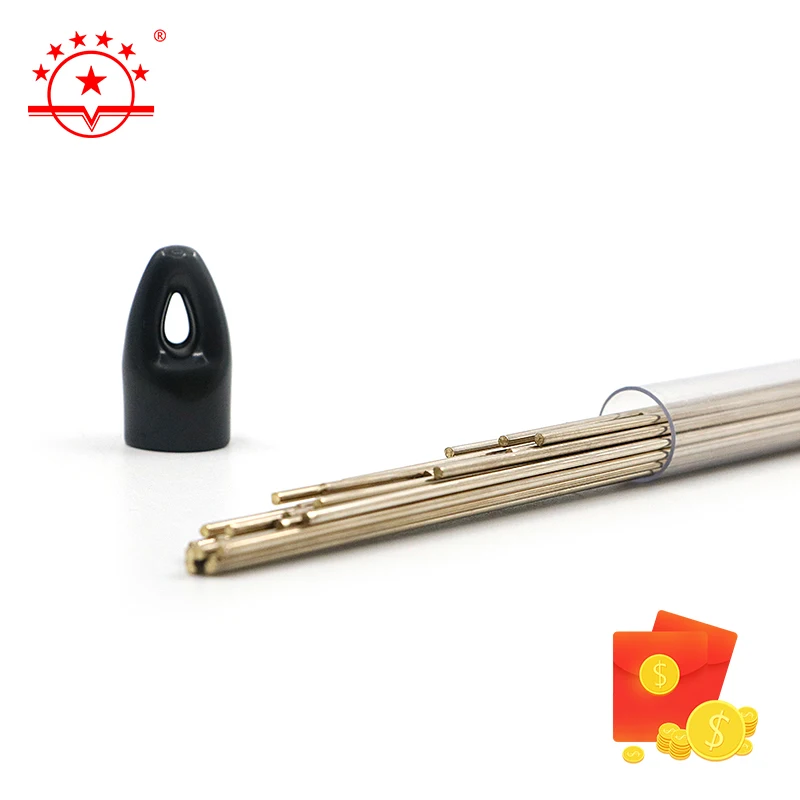

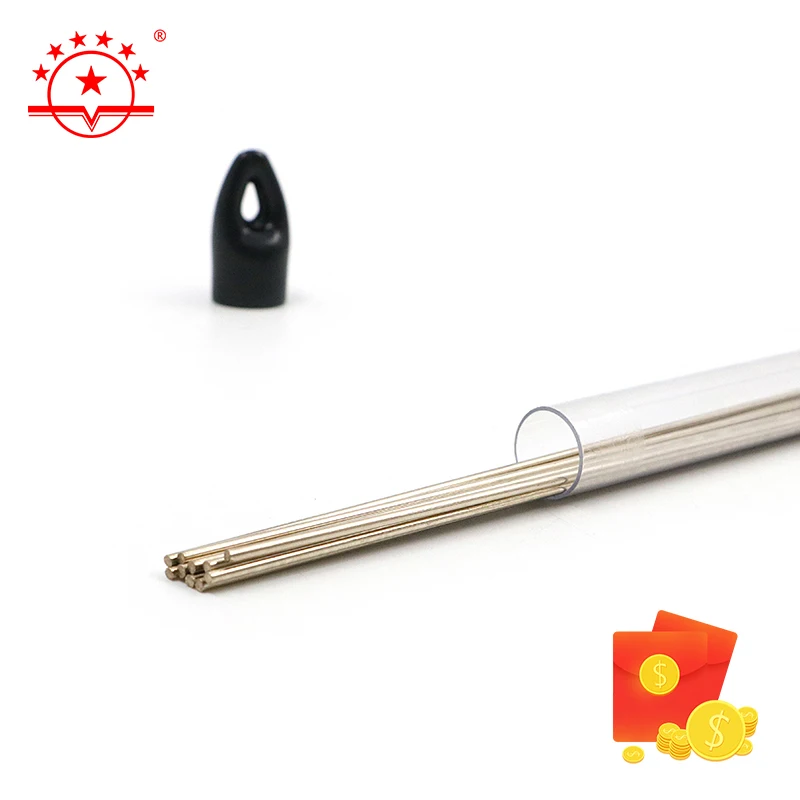

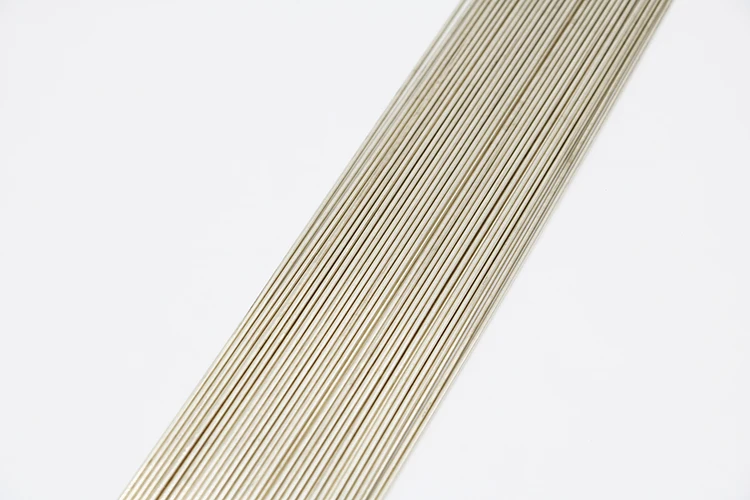

Air Condition 5% Bag 5 Cadmium Free Silver Brazing Welding Rods Silver Solder Bars
- Category: >>>
- Supplier: Xinxiang Kolanky Technical Co. Ltd.
Share on (60786069145):
Product Overview
Description
Product Paramenters
Code | Related Standard | Chemical Composition | Melting Temperature | Mg | |||||
Ag% | Cu% | Zn% | Solidus℃ | Liquidus℃ | |||||
JAg-10 | 9-11 | 52-54 | 36-38 | 815 | 850 | ||||
JAg-20 | CWA:BAg20CuZn | 19-21 | 40-42 | 38-40 | 690 | 810 | |||
JAg-25 | CWA:BAg25CuZn DVS:L-Ag25 | 24-26 | 40-42 | 33-35 | 680 | 795 | |||
JAg-30 | CWA:BAg30CuZn AWS:BAg-20 | 29-31 | 37-39 | 30-34 | 677 | 766 | |||
JAg-40 | CWA:BAg40CuZn | 39-41 | 29-31 | 29-31 | 621 | 732 | |||
JAg-45 | CWA:BAg45CuZn AWS:BAg-5 | 44-46 | 29-31 | 24-26 | 677 | 743 | |||
JAg-50 | CWA:BAg50CuZn AWS:BAg-6 | 49-51 | 33-35 | 14-18 | 688 | 714 | |||
JAg-50Ni | CWA:BAg50CuZnNi AWS:BAg-24 | 49-51 | 19-21 | 26-30 | 660 | 707 | |||
JAg-35 | CWA:BAg35ZnCu AWS:BAg-35 | 34-36 | 31-33 | 31-35 | 685 | 754 | |||
Product Advantages
Silver-Copper-Zinc Brazing Alloy
It is kind of high silver solder, it has perfect processing property, low melting point, good wettability and good ability to fill
the gap, high joint strength, good plasticity, and good electrical conductivity and corrosion resistance.
Silver-Copper-Zinc Brazing Alloy
It can be used for brazing all ferrous and non-ferrous metals except aluminum, magnesium, and low melting point metal.And suitable
for brazing copper with copper alloy pipe fitting, tools, electrical motor, electrical appliance parts.
Product packaging
1. Diameter: 1.6/2.0/2.4/2.5mm; Length: 400/ 500/750mm;

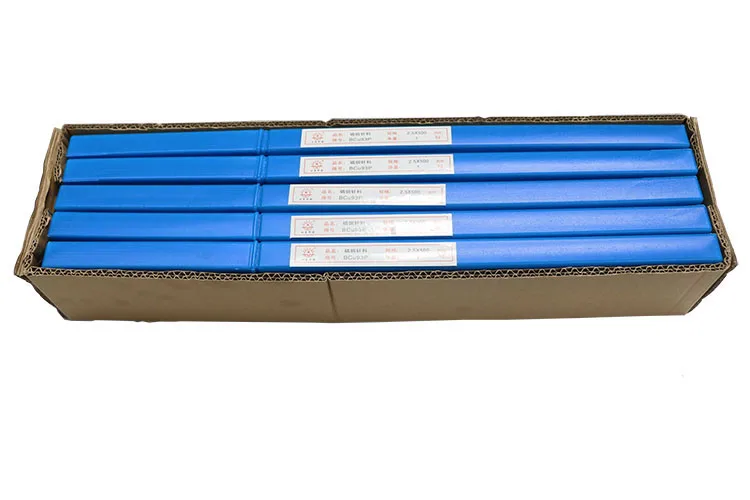

2. Standard export seaworthy packing: with polyethylene film including drier, put them in carton; 1kg/box, 10/20kgs/carton box;
3. Based on the customer's different requirements, it can be customized.
2. Standard export seaworthy packing: with polyethylene film including drier, put them in carton; 1kg/box, 10/20kgs/carton box;
3. Based on the customer's different requirements, it can be customized.
