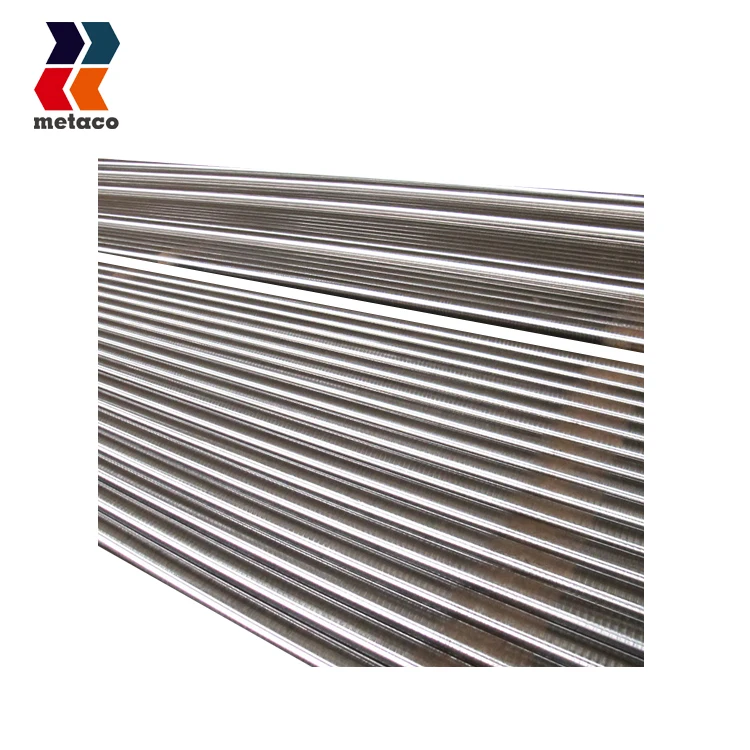

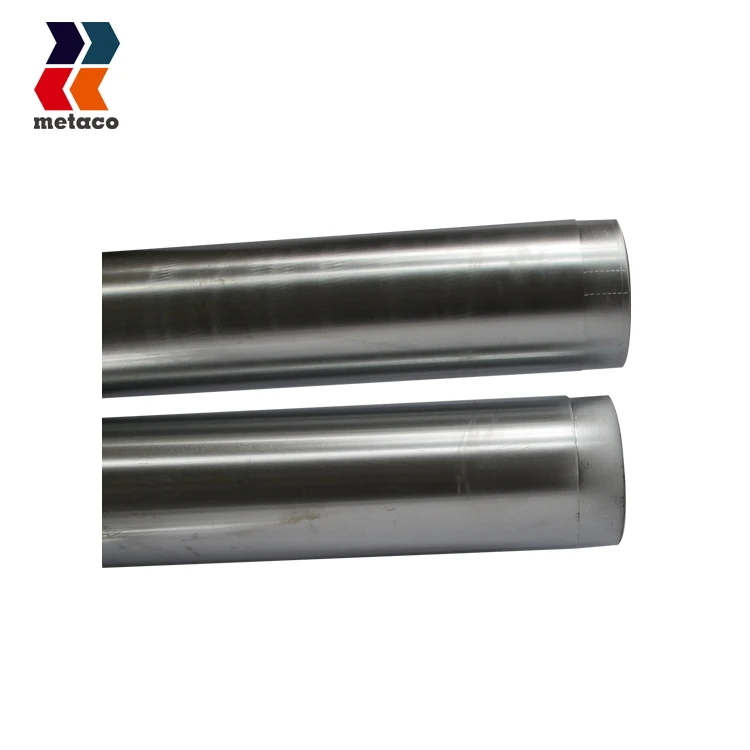

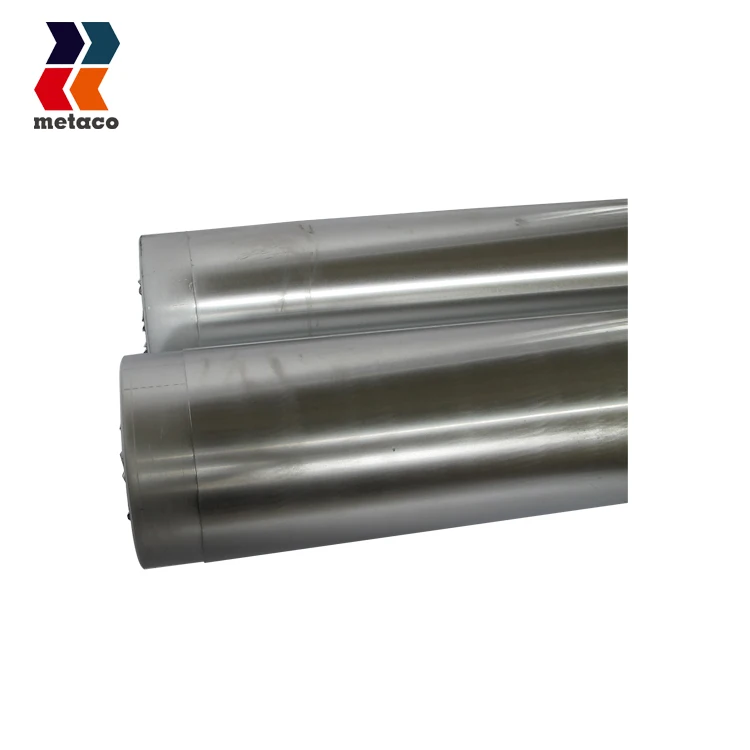

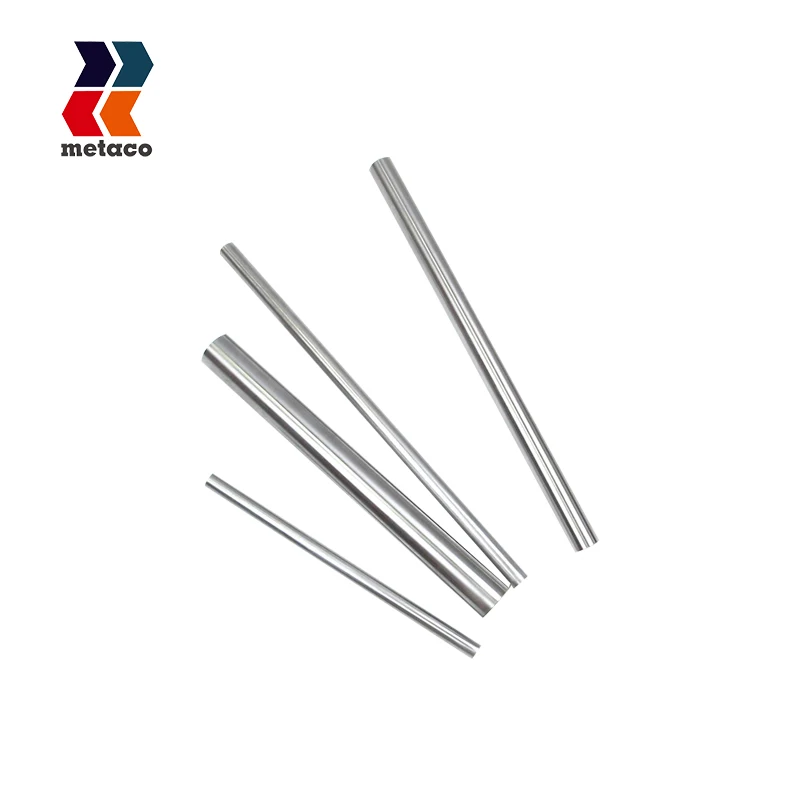

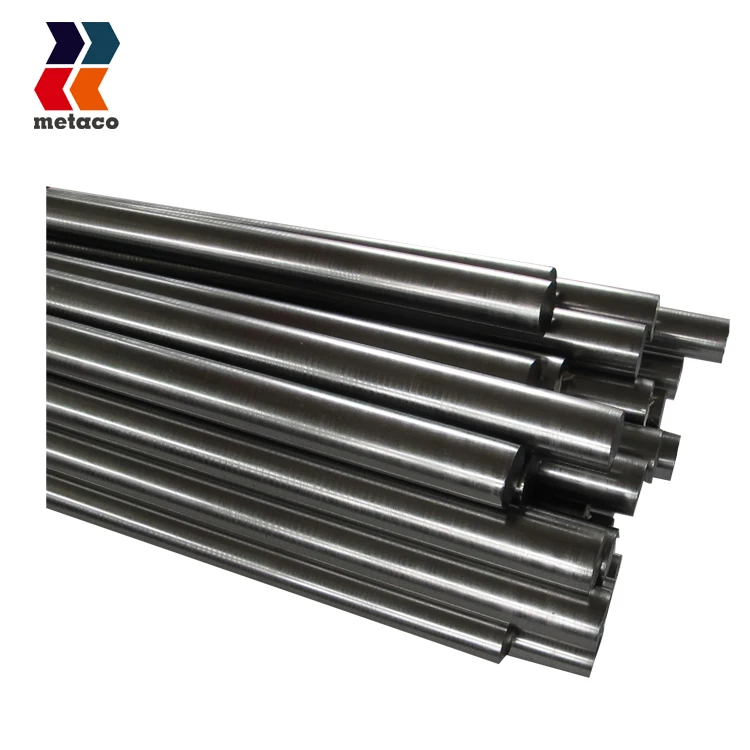

SAE 1045 steel centerless grinding and polishing rod

Product Overview

Description

Product name	Centerless ground rod
Type of linear shaft	harden shaft,chrome shaft,soft shaft,hollow shaft
Diameter	3mm-150mm
Length	max length 6 meters,can be cut off according to customers' demands
Material	carbon steel,bearing steel Gcr15,stainless steel
Surface finish	harden chrome plated, polished, or customized
Plating thickness	10~20 μm in radius
Heat treatment	induction hardened or non hardened
Hardness	HRC 58~62
Hardness depth	0.8~3mm
Tolerance	h8~h12
Roughness	less than 1.5 μm
Straightness	less than 5 μm in 100mm
Roughness	less than 3 μm
performance	long life,low noise,good smooth
customized for	end stepped,end tapped,end thread,key grooved and so on
