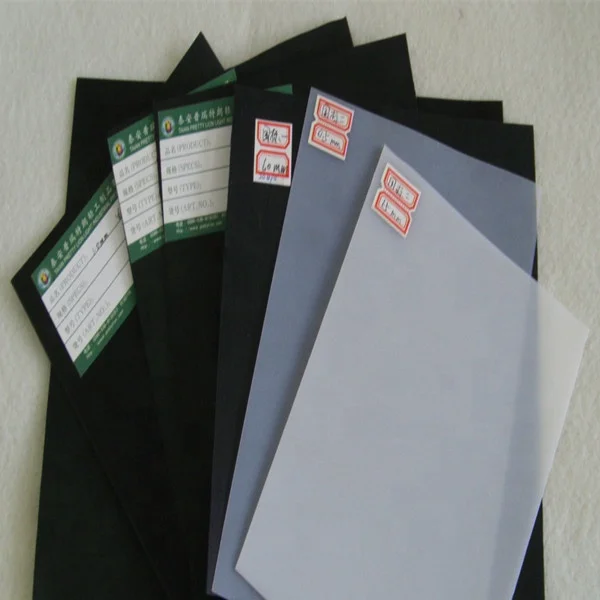

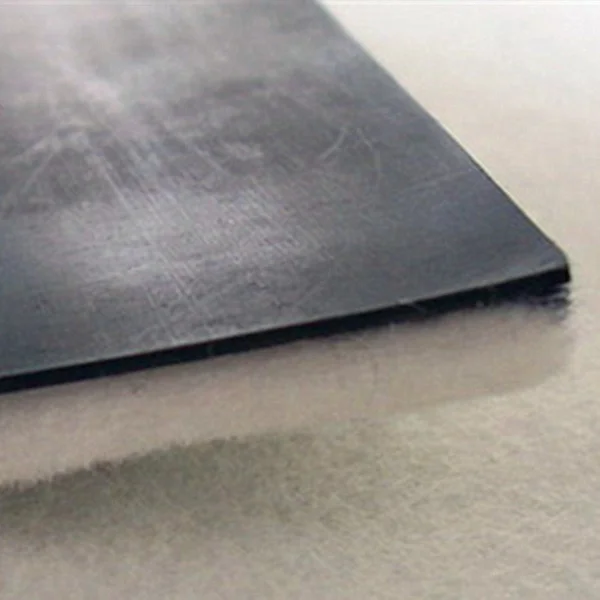

HDPE Geomembrane pond liners for dam liners

Product Overview

Description

Composite geomembrane,a waterproof material,compound with geotechnological fabric and geomembrane , it is used for draining off water and adding the muscle mainly. It divides into one cloth one membrane and two cloth first membrane,width 4-7m,weight range is 200-1500g/m2.

  The geomembrane is against drawing, tearing resistance,and high CBR plunger strength, can meet the need of civil engineering such as water conservancy , municipal administration,building,traffic,subway,tunnel etc.Because of selecting high polymer materials for use and adding the aging-resistant materials in the production technology, it can use in the unconventional temperature environment.



Ordinary High Density Polyethylene Geomembrane (GH-1 Type)



Item	Index
Thickness, mm	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density, g/cm3	0.940
Yield strength (MD/CD), ≥N/mm	3	5	8	11	13	16	22	26	33
Break strength (MD/CD), ≥N/mm	5	8	12	17	20	24	34	40	51
Yield elongation (MD/CD), ≥%	/	/	/	11
Break elongation (MD/CD), ≥%	450
Right angle tear strength (MD/CD),≥N	24	40	60	80	100	120	160	200	240
Puncture-resistant strength, ≥N	51	85	125	170	200	250	340	400	500
Carbon black content, %	2.0-3.0





Environmental Smooth High Density Polyethylene Geomembrane (GH-2S Type)
