Hand Soap/Detergent Piston Filling Machine

Product Overview

Description

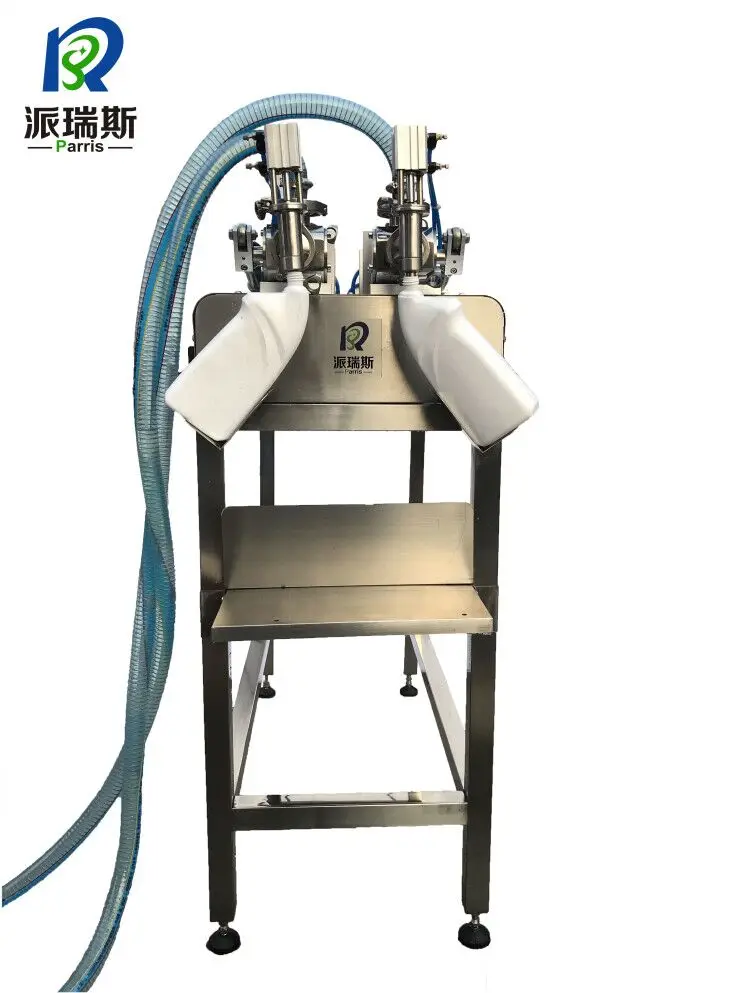

Hand Soap/Detergent Piston Filling Machine





Description:

        The Model PSCF1000-2H is a product innovated and upgraded on the basis of this companys series products and introduced foreign advanced filling machine technology.. The product is simple and reasonable in design, high in accuracy and easy in operation. The equipment uses special rotating valve to control material-feeding and measurement, especially suits for the filling of high-viscosity material(e.g.crude oil, asphalt, paint,emulsion etc.)Suitable for filling various kinds of highly viscous fluid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. This machine reasonable in design, smart in model, easy to operate, the pneumatic part adopts the pneumatic components of  Taiwans AirTac,SHAKO. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.According to customer requirements, such as brand, stainless steel materials, cylinder seal materials etc.





Main Parameters:

Model	PSCF1000-2H
Filling Material	Liquid/Cream/Oil
Filling Volume	100-1000ml
Filling Speed	40b/min(100ml),25b/min(500ml),18b/min(1000ml)
Air	0.4-0.6 Mpa
Power	10W
Voltage	220V/110V
Weight	35KGS
Dimension	120mm*45mm*120mm L*W*H



Advantages:

1.Bottle feeding, positioning and operating are pneumatic control

2.Rotary indexing fasten and divide bottle, and different sizes just need to change the rotary indexing

3.Equiped with a heavy duty sus 304 stainless steel,with the contacted material of sus 316 stainless steel

4.High filling accuracy of 0.5%

5.No bottle no filling facility,and after filling,it has high consistent liquid fill level

6.Available with ball drop bearing and brush drop system

7.Emergency switch in case of abnormal operation

8.Airtac electrical components which has high quality of after-sale service

9.One year guarantee period and lifetime maintenance

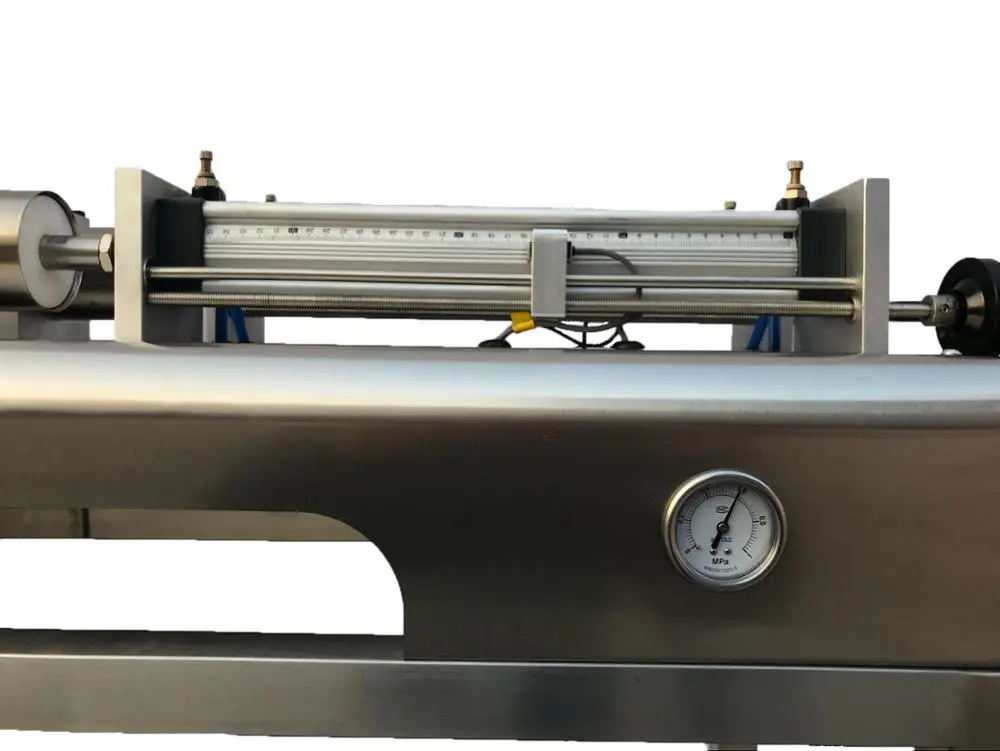

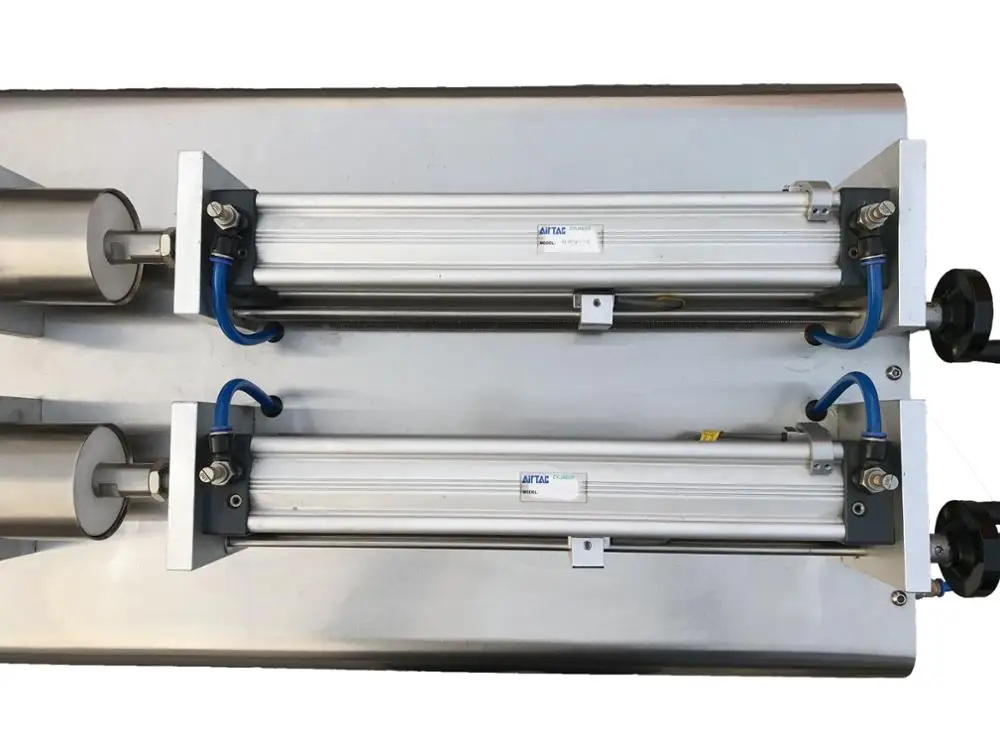

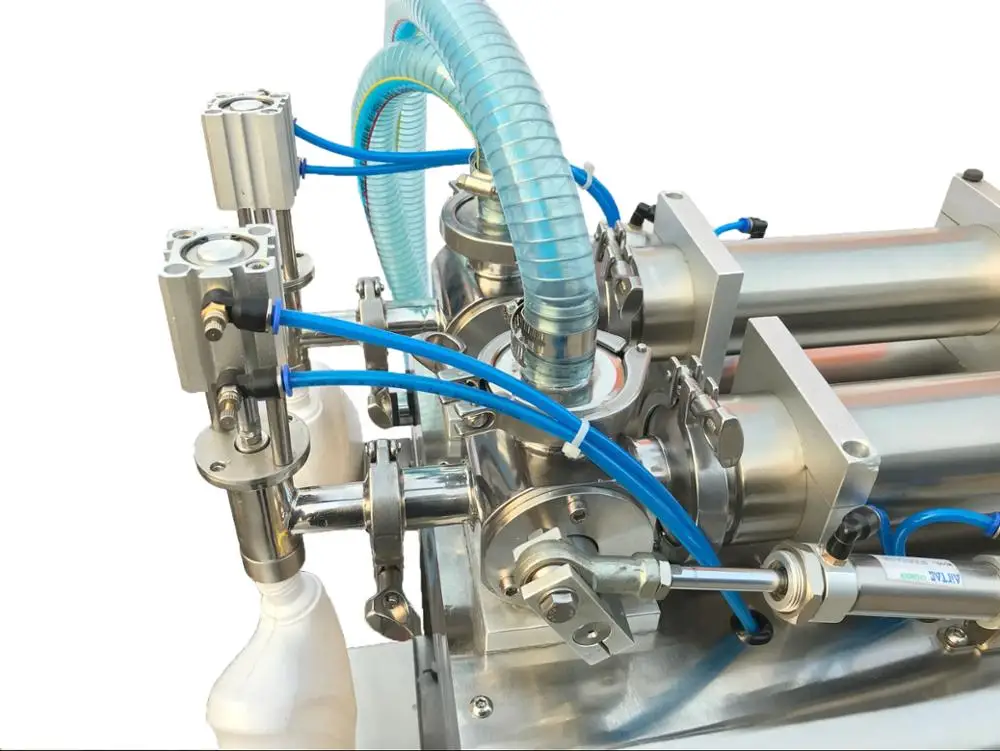

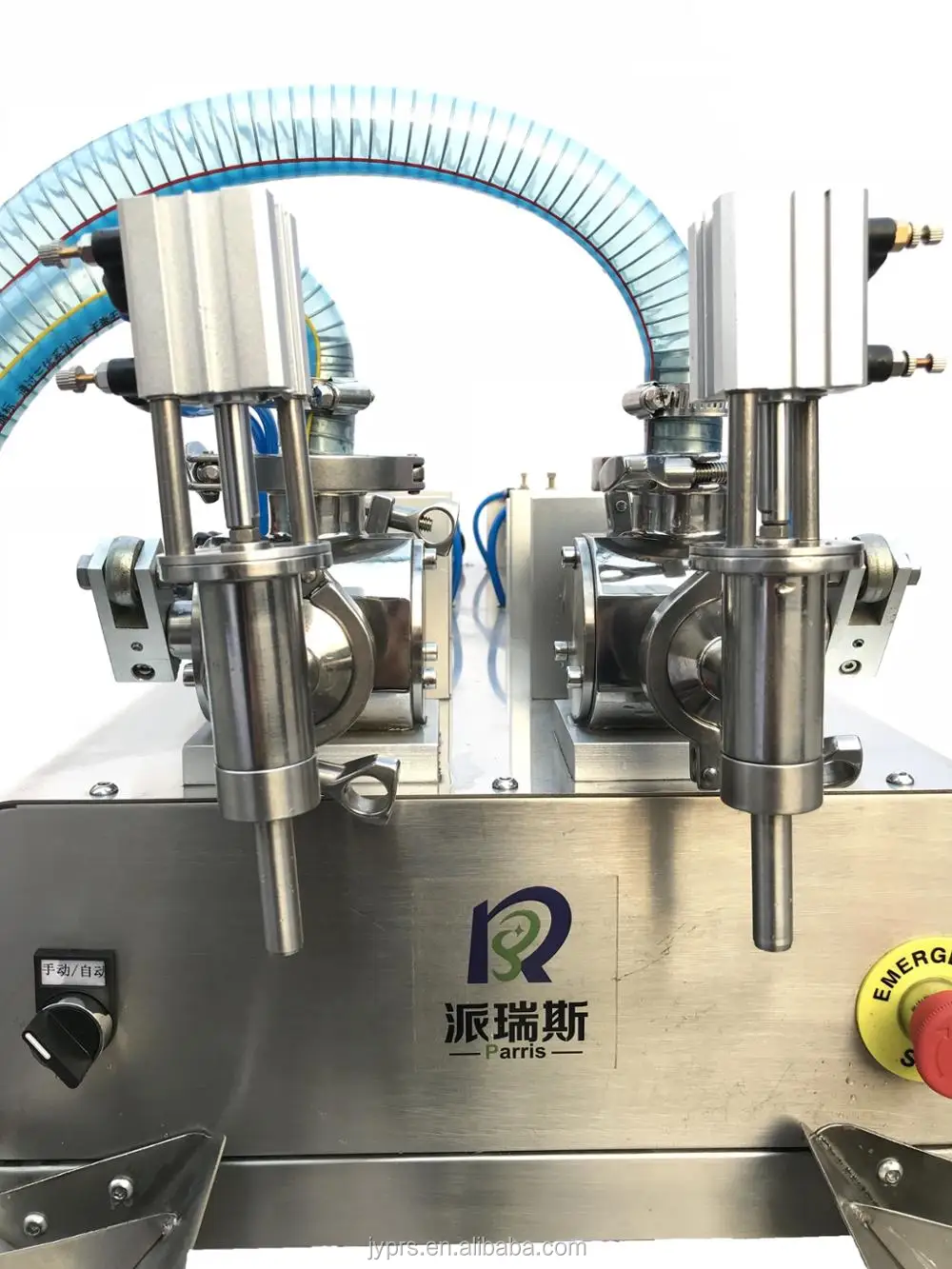

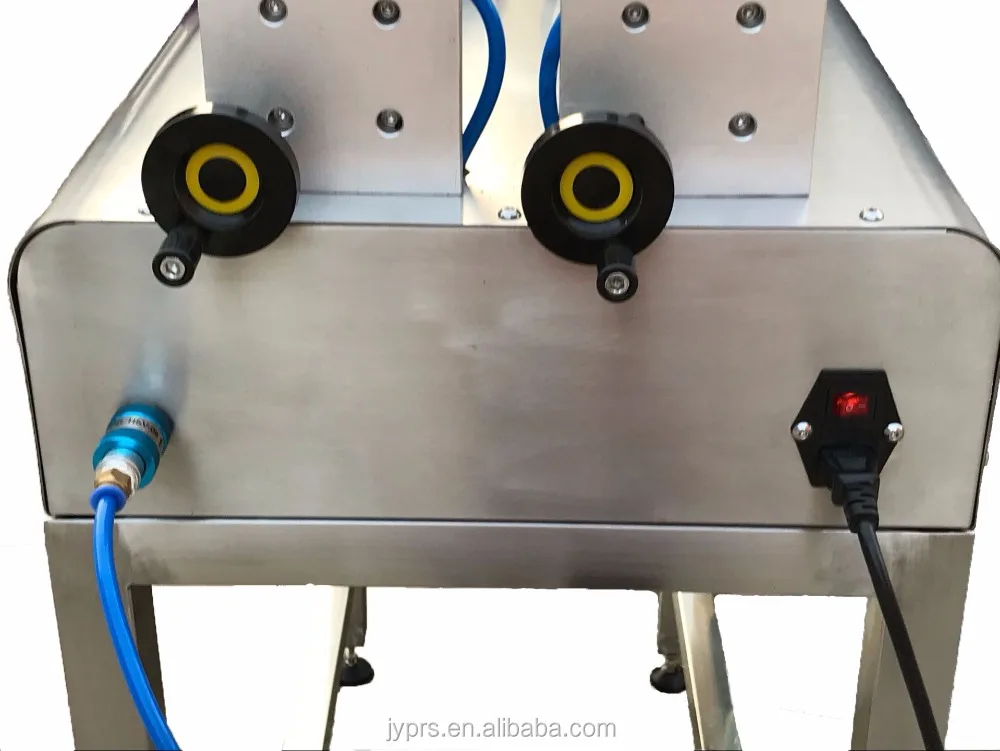

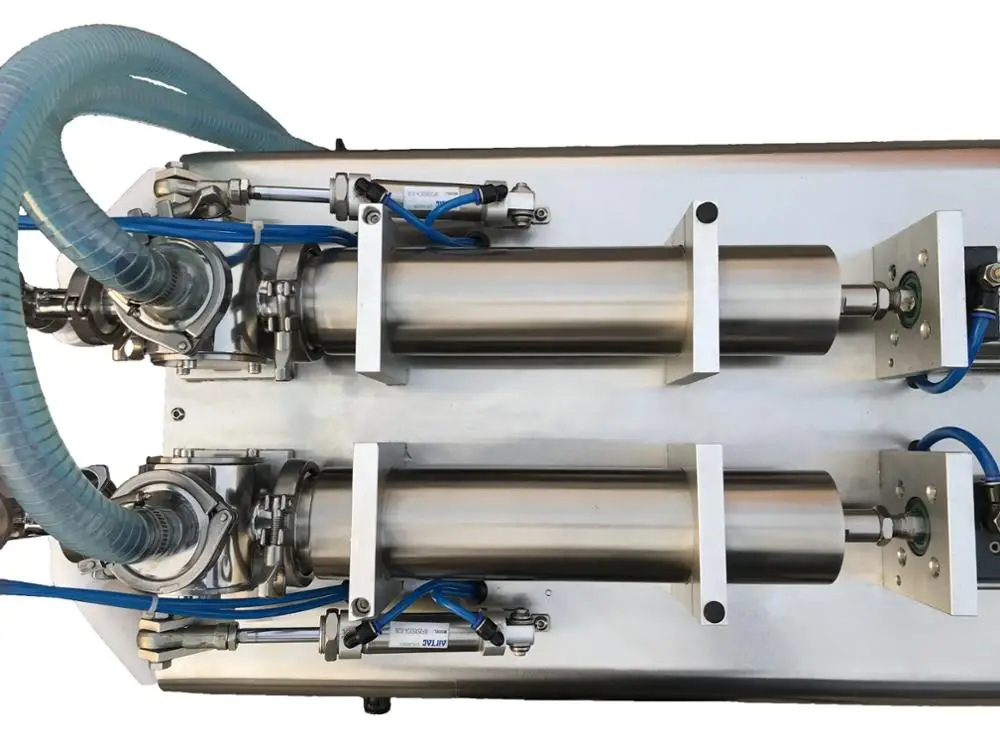

Detailed parts:

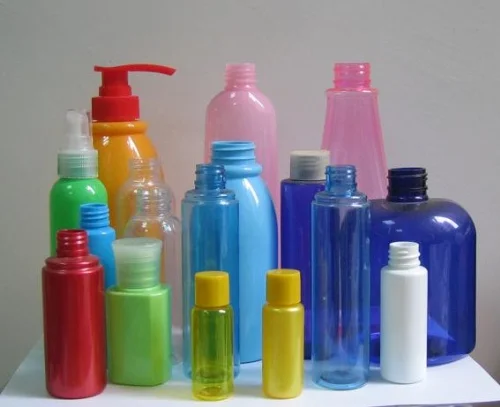

Suitable for these containers:
