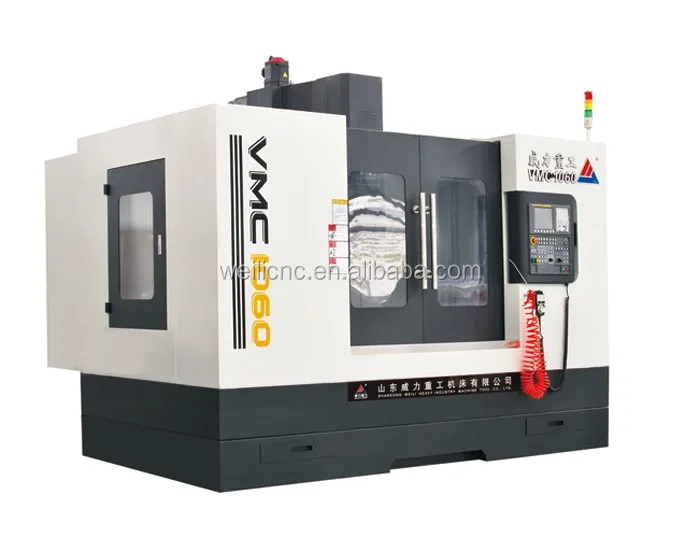

cnc vertical mills VMC1060 with high precision
- Category: >>>
- Supplier: Shandong Weili Heavy Industry Co. Ltd.
Share on (60786115975):
Product Overview
Description
cnc vertical mills VMC1060 with high precision

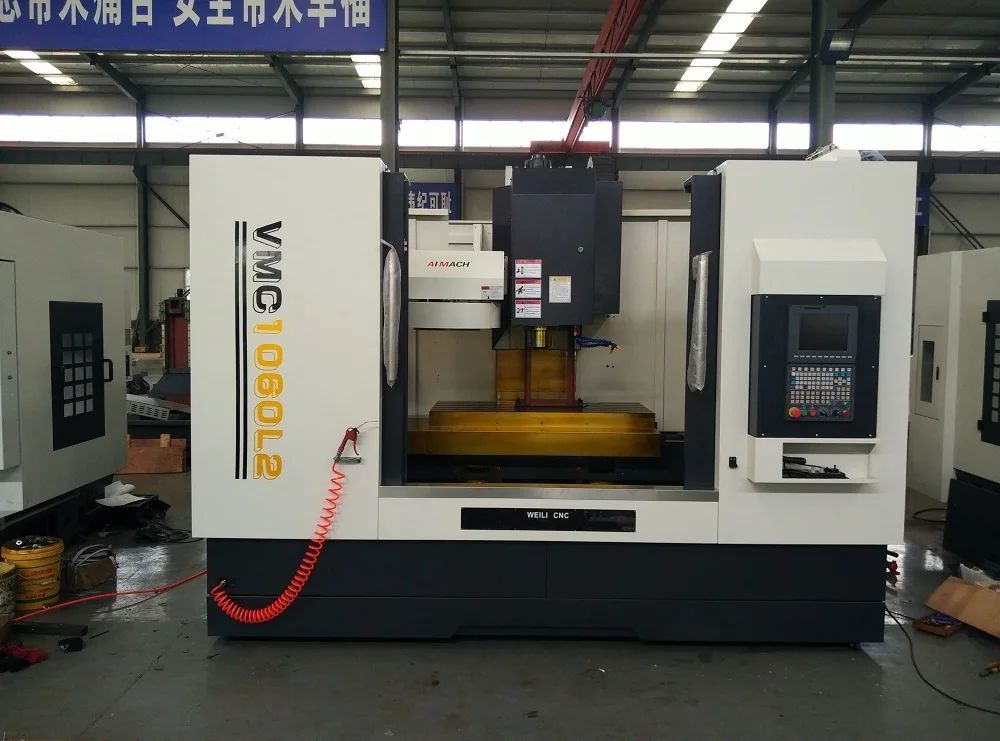

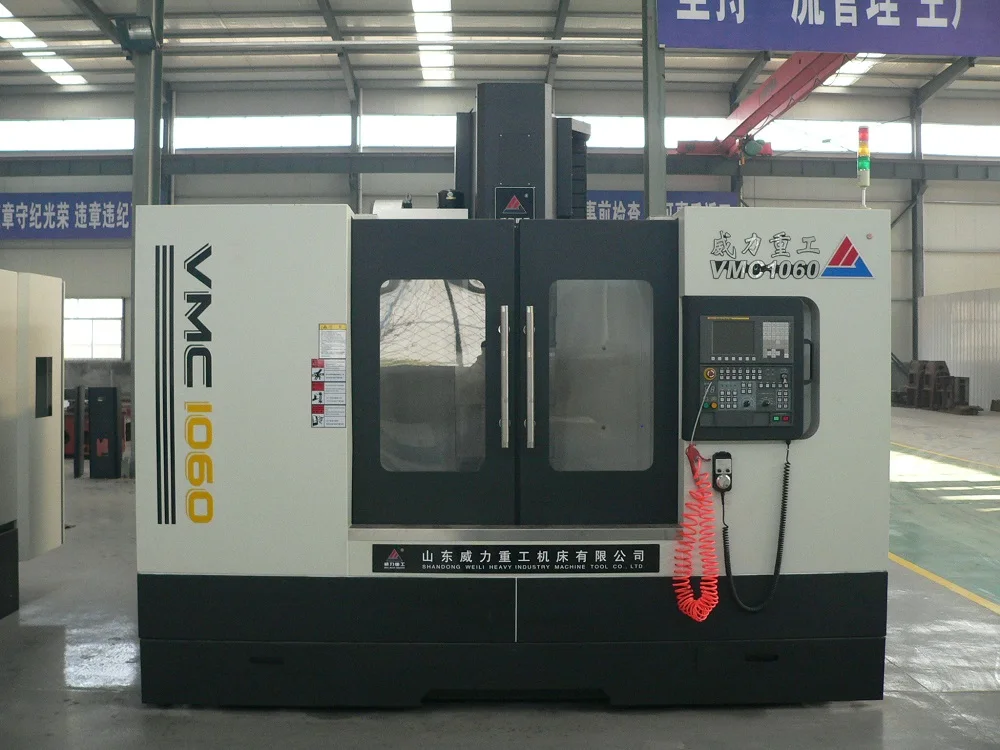

PRODUCT DISPLAY
MAIN PARAMETER | VMC1060 CNC vertical mills | ||
Table Travel | X axis | 1000 mm | |
Y axis | 600 mm | ||
Z axis | 600 mm | ||
Distance between spindle end to table | 120-720 mm | ||
Distance between spindle center to vertical column guide way | 650 mm | ||
Feed | X axis rapid feed | 15 m/min | |
Y axis rapid feed | 15 m/min | ||
Z axis rapid feed | 12 m/min | ||
Cutting feed | 1-5000 mm/min | ||
Table | Table size | 1300x600 mm | |
Max. Load weight | 800 kg | ||
T slot | 5-18-100 mm | ||
Spindle | Spindle speed | 8000 rpm | |
Spindle diameter | 70 mm | ||
Spindle taper | BT40 | ||
Blind rivet | MAS-P40T-Ⅰ | ||
Spindle broach force | 8KN | ||
Main motor power | 7.5/11KW | ||
Servo motor | X axis | 2.5 kw, 20N.M | |
Y axis | 2.5 kw,20N.M | ||
Z axis | 2.5 kw,20N.M | ||
Tool changer | Type | Hat type/disc type | |
Quantity | 16/24 tools | ||
Max. Diameter of tool | 80/150 mm | ||
Max. Length of tool | 300 mm | ||
Max. Weight of tool | 6 kg | ||
Machine weight | 6700 kg | ||
Machine size | 3200x2250x2960 mm | ||
Base version:
| ITEM | BRAND |

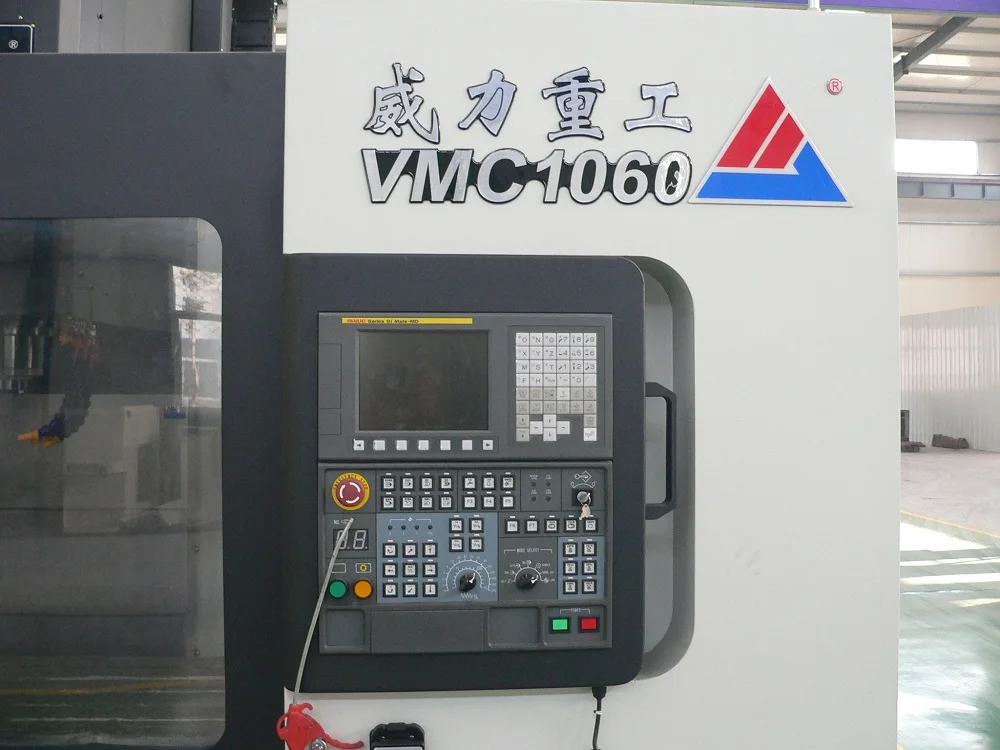

| CNC controller | FANUC Oi-mate MD |
| ATC(funnel,16 piece)(optional :disc,24 piece) | DETA, Taiwan |
| Spindle BT40 | POSA ,ROYAL , Taiwan |
| linear guide way | INA,German |
| ball screw | PMI or HIWIN, Taiwan |
| bearing | NSK, Japan |
| electrical part | Schneider or Siemens |
| knife cylinder | Air TAC,made in Taiwan |
| coupling | KTR or S+J,German |
| Lubrication system | HERG,Japan |

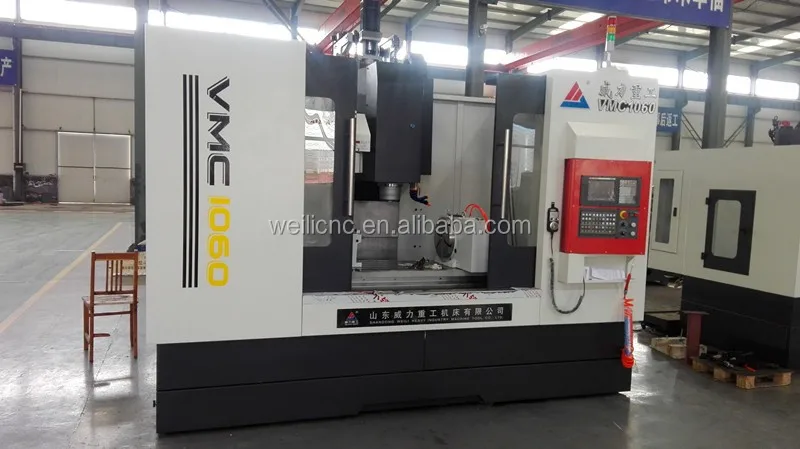

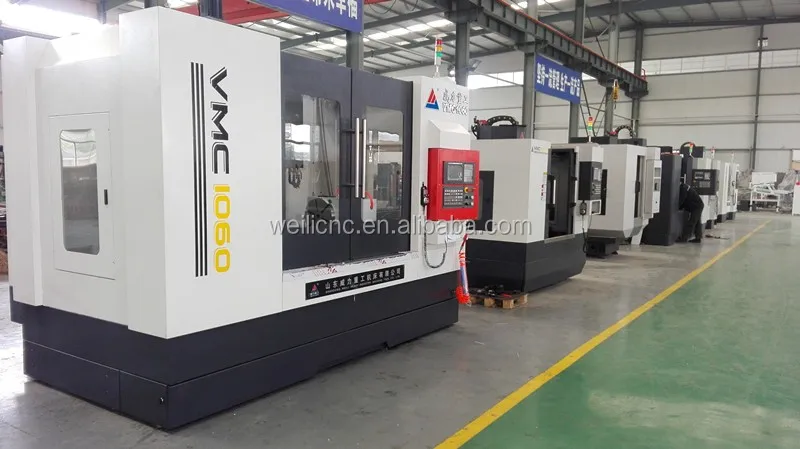

ACTUAL DISPLAY

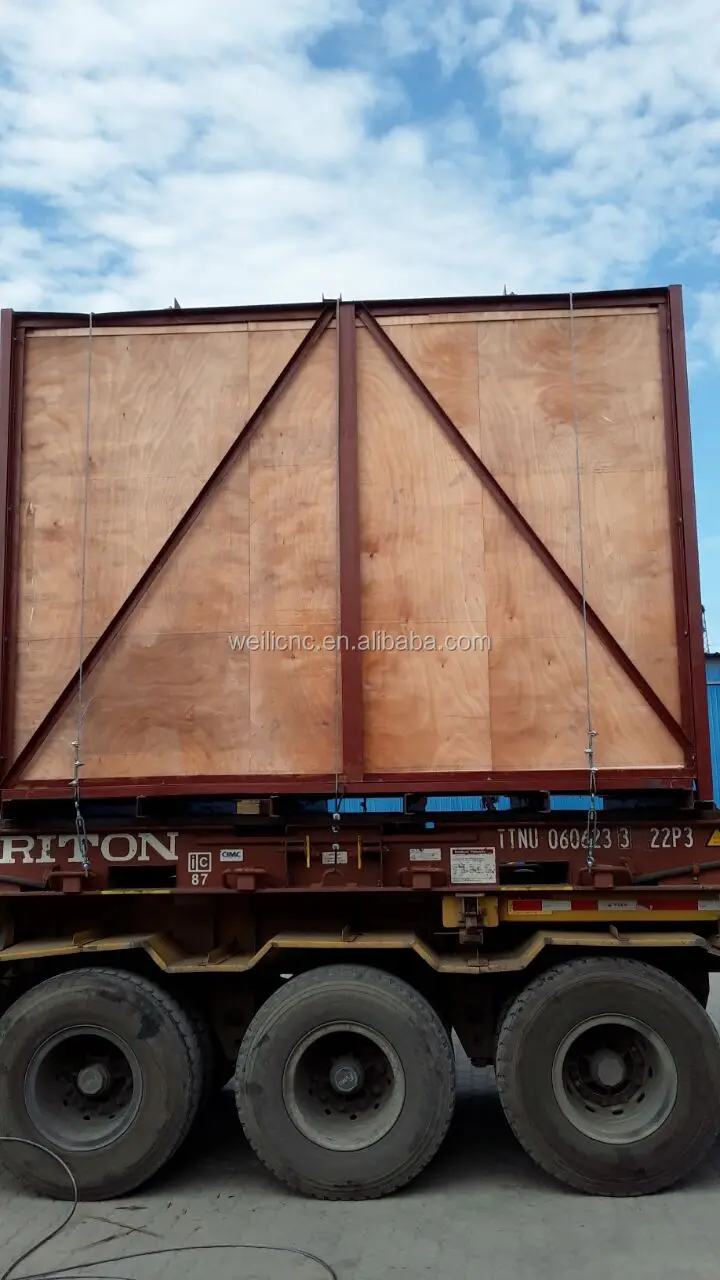

PACKAGE
one set cnc vertical mills VMC1060 with high precision in one plywood case
PAYMENT
cnc vertical mills VMC1060 with high precision
Payment: TT 30% deposit, balance 70% before delivery. / LC at sight.

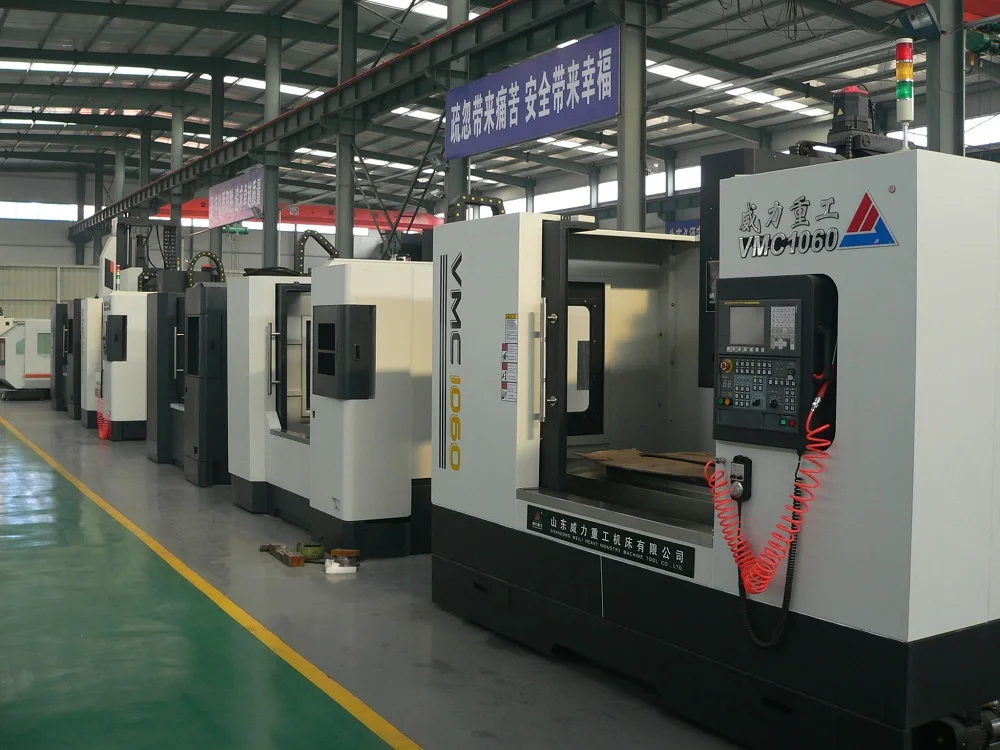

Our workshop
Main products:3 axes vertical CNC milling machining center,Vertical CNC Machine Center, CNC High Speed Vertical Machining Center, CNC High Speed Vertical Machining Center, High Speed Die and Mold CNC Machining Center,
CNC Milling Machine, Machining Centers, Machining Tools ,CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine.
VMC550,VMC650,VMC850,VMC1060,VMC1270,VMC1370,VMC1580
| Guideways | Travels(mm) | Table size | Spindle Taper | |
| VMC430 | Linear | 430*300*450 | 700*300 | BT30 | |
| VMC550 | Box | 500*400*455 | 620*380 | BT30 | |
| VMC650 | Box | 650*400*480 | 800*420 | BT40 | |
| VMC850L2 | X,Y Linear | 850*500*550 | 1050*500 | BT40 | |
| VMC850L3 | Linear | 850*500*550 | 1050*500 | BT40 | |
| VMC1060 | Box | 1000*600*700 | 1300*600 | BT40 | |
| VMC1060L2 | X,Y Linear | 1000*500*550 | 1200*510 | BT40 | |
| VMC1270 | Box | 1200*700*600 | 1360*700 | BT50 | |
| VMC1270L2 | X,Y Linear | 1200*700*700 | 1300*610 | BT50 | |
| VMC1370 | Box | 1300*700*650 | 1400*710 | BT50 | |
| VMC1580 | Box | 1500*800*700 | 1700*800 | BT50 | |
| VMC1690 | Box | 1600*900*680 | 1800*900 | BT50 | |
| VMC1890 | Box | 1800*900*800 | 2000*900 | BT50 |
About us
| Shandong Weili Heavy Industry Machine Tools Company have a hard-earned reputation for durability and reliability, and are built to last. From the start, our mission has been focused on offering our clients affordable, heavy-duty machine tools, without sacrificing quality and performance. And with a nationwide dealer network, we are committed to providing our clients with the highest level of responsive service and support. |
 |
If you have some doubt for above machine, plz contact me. I will be very glad. W E L C O M E T O I N Q U I R Y, M Y F R I E N D. |
