1.5kva inverter 12v 220v 1500w 5years warranty grid tied panel solar inverter
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (60786127179):
Product Overview
Description

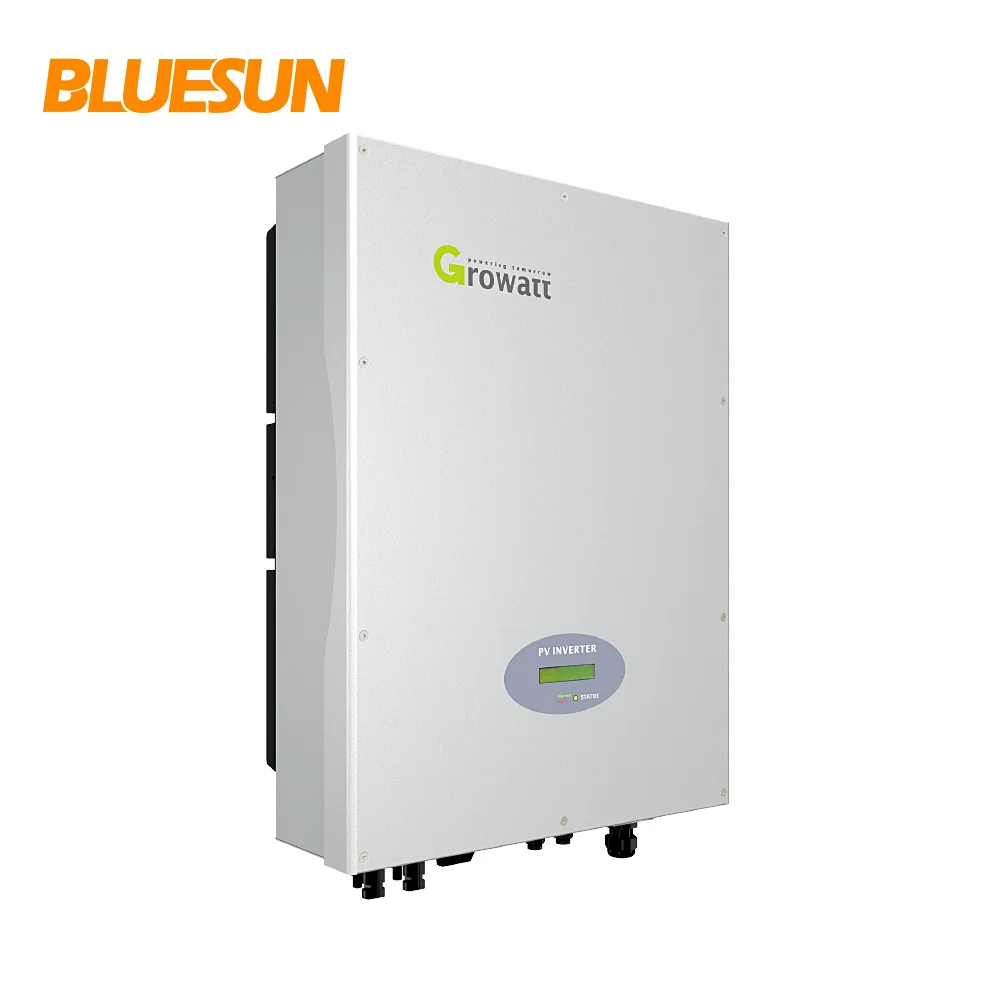

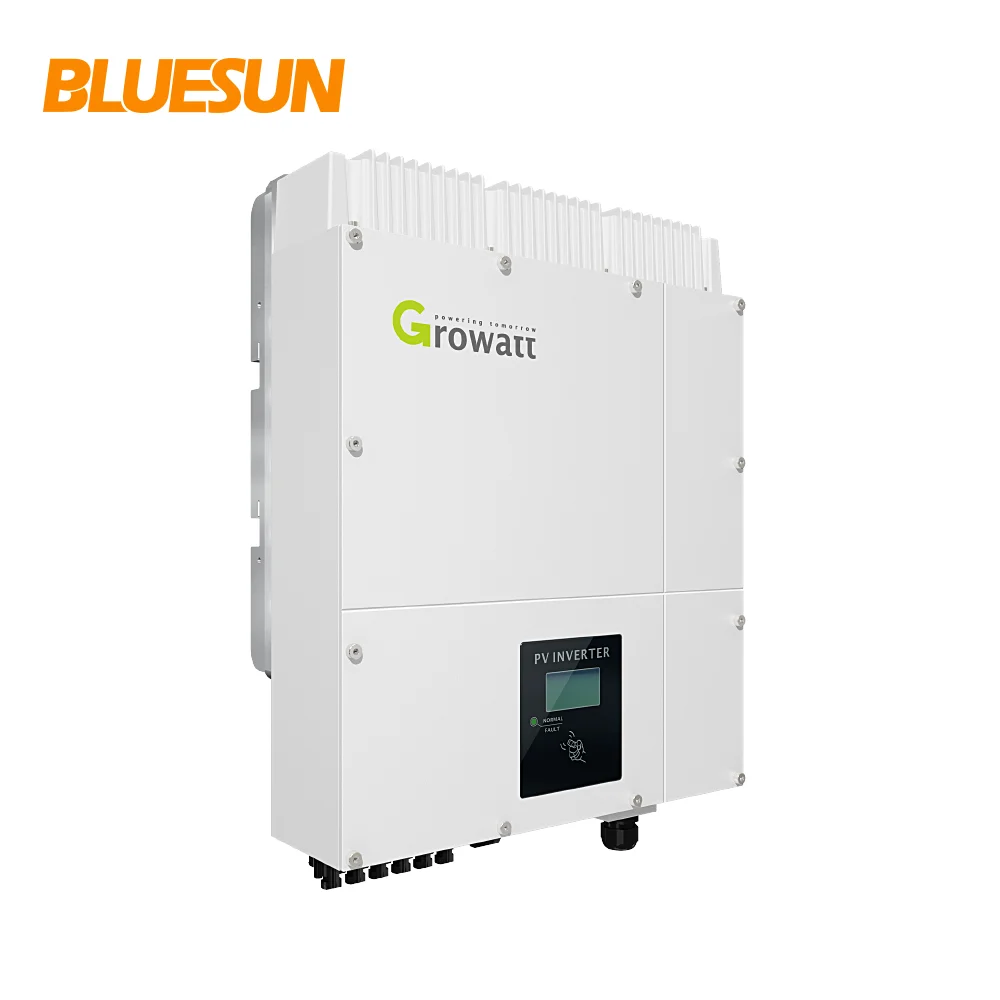

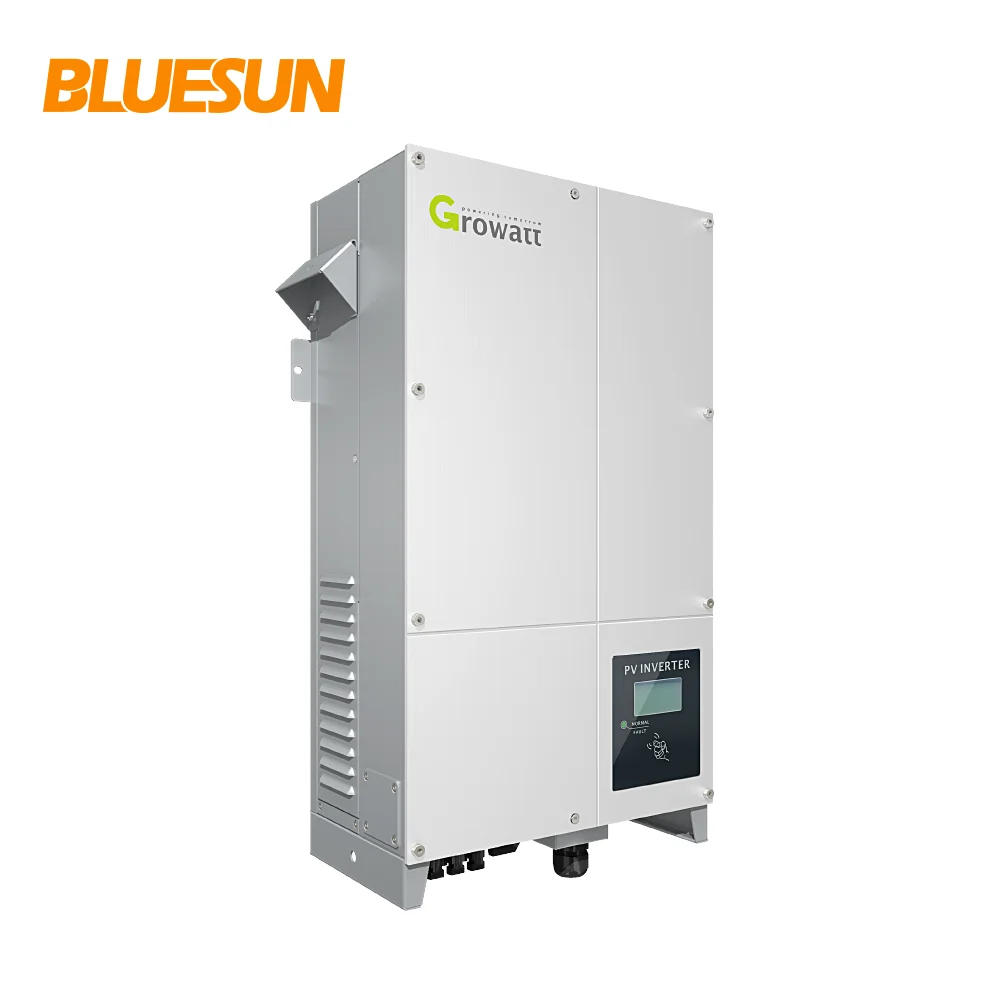

Grid Tie Inverter
Equipments&Details
Data sheet | Growatt 1000-S | Growatt 1500-S | Growatt 2000-S | Growatt 3000-S | ||||
Input data | ||||||||
Max.DC Power | 1300W | 1900W | 2300W | 3400W | ||||
Max.DC Voltage | 450V | 450V | 450V | 550V | ||||
Start Voltage | 80V | |||||||
PV Voltage Range | 70-450V | 70-550V | ||||||
MPPT Voltage Range | 70V-450V/180V | 70V-450V/250V | 70V-450V/360V | 70V-550V/360V | ||||
Full Load DC Voltage Range | 110V-400V | 175V-400V | 200V-400V | 250V-500 | ||||
Number of MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||||||
Max. Input Current | 10A/10A | 11A/11A | 13A/13A | |||||
Max. Input Current per String | 10A/10A | 11A/11A | 13A/13A | |||||
Output AC | ||||||||
Rated AC Output Power | 1000W | 1600W | 2000W | 3000W | ||||
Max. AC Output Power | 1000VA | 1650VA | 2000VA | 3000VA | ||||
Max. apparent current | 4.7A | 7.8A | 9.5A | 14.3A | ||||
AC Grid Frequency;Range AC normal voltage range | 50/60HZ 220/230/240V | |||||||
Power factor at rated power | 1 | |||||||
Displacement power factor configurable | 0~0.8leading 0.95lagging | |||||||
THDI | 3% | |||||||
AC connection | Single Phase | |||||||
Efficiency | ||||||||
Max. efficiency | 97.6% | |||||||
Euro-eta | 97.1% | |||||||
MPPT efficiency | 99.5% | |||||||
Protection Devices | ||||||||
DC reverse polarity protection | Yes | |||||||
DC switch for each MPPT | Yes | |||||||
Output AC overcurrent protection | Yes | |||||||
Output AC overvoltage proection-varistor | Yes | |||||||
Ground fault monitoring | Yes | |||||||
Grid monitoring | Yes | |||||||
Integrated all-pole sensiteve leakage current monitoring unit | Yes | |||||||
General data | ||||||||
Dimension(W/H/D)mm | 271*267*142 | 271*320*142 | ||||||
Operation temperatur range | -25~+60degree with derating above 45degree | |||||||
Self consumption | <0.5W | |||||||
Standby consumption | 12W | |||||||
Topology | Transformerless | |||||||
Cooling concept | Smart cooling | |||||||
Environmental protection rating | IP65 | |||||||
Altitude | 2000m | |||||||
Relative Humidity | 100% | |||||||
Features | ||||||||
Interfaces | RS232/RF/WIFI/LAN/GPRS | |||||||
Warranty | 5 years / 10 years (opt) | |||||||
Packing&Delivery
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL | ||||
Application
100KW grid tie solar power system in Cambodia
20KW on grid solar system in Europe 200KW on grid solar system in China
1.2MW solar power plant in Malaysia
