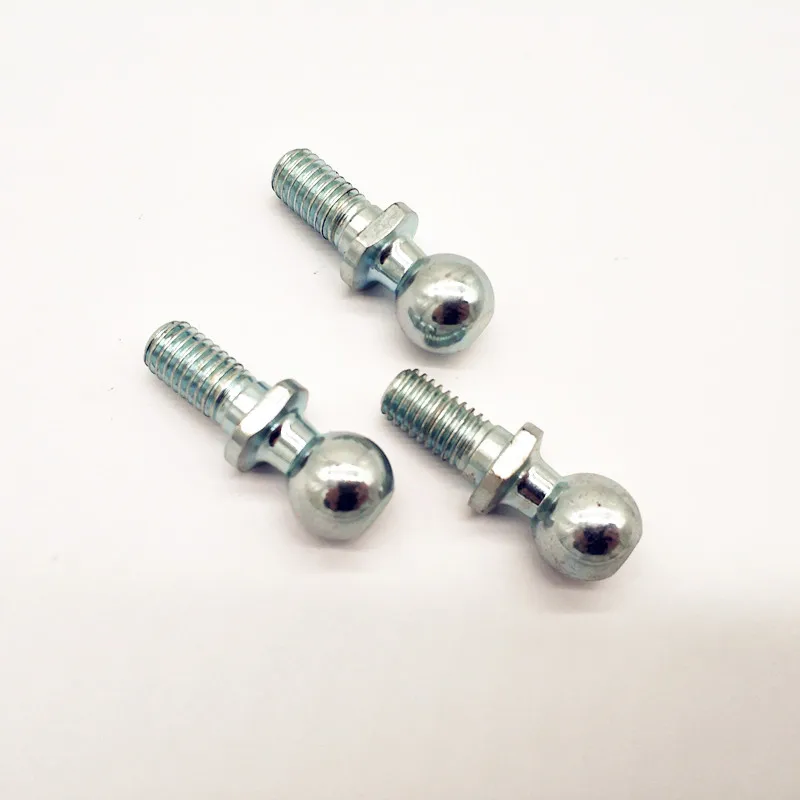

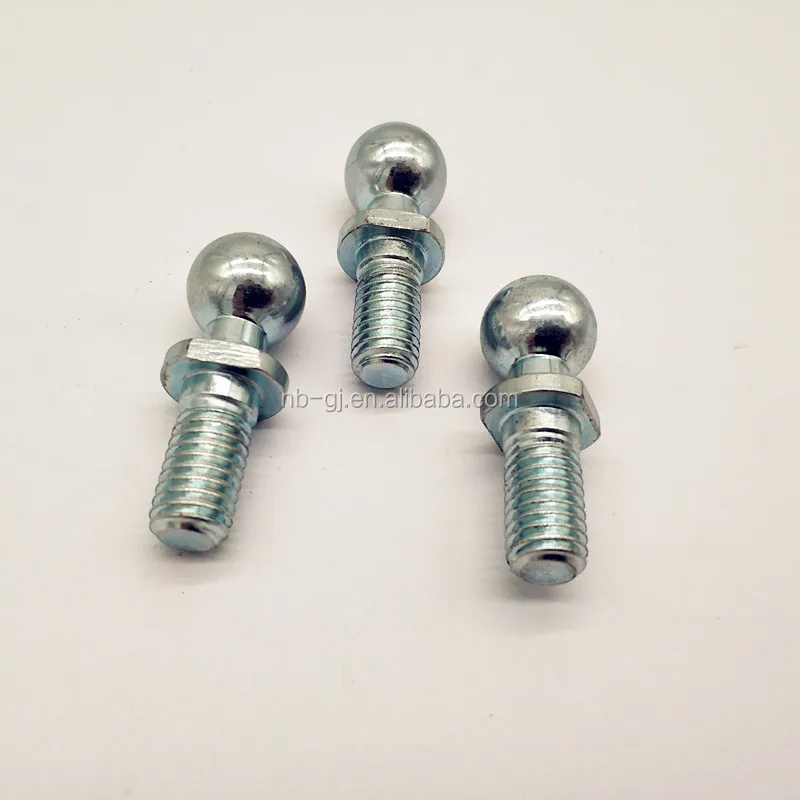

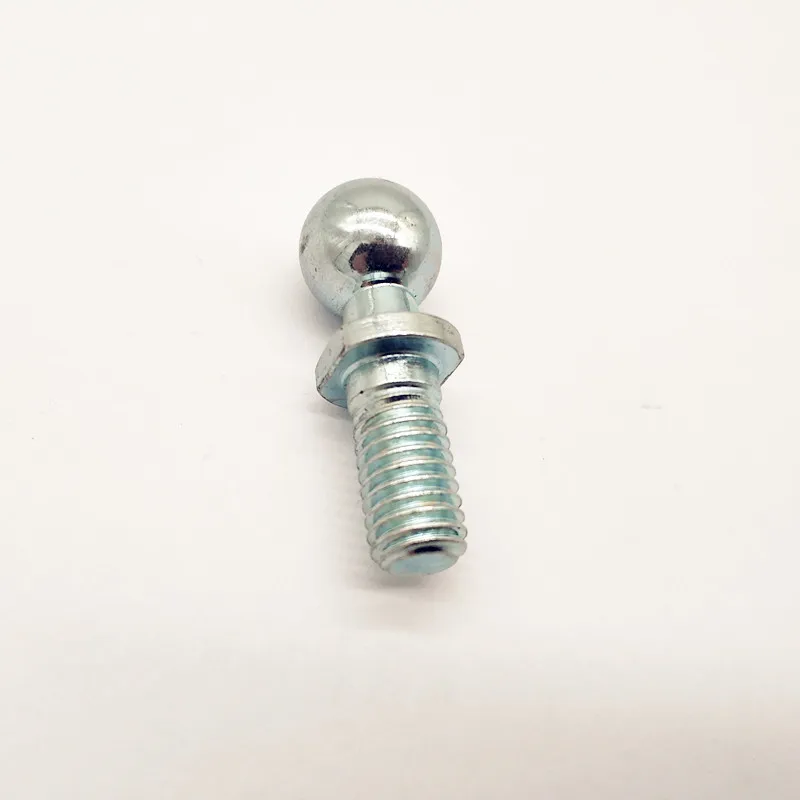

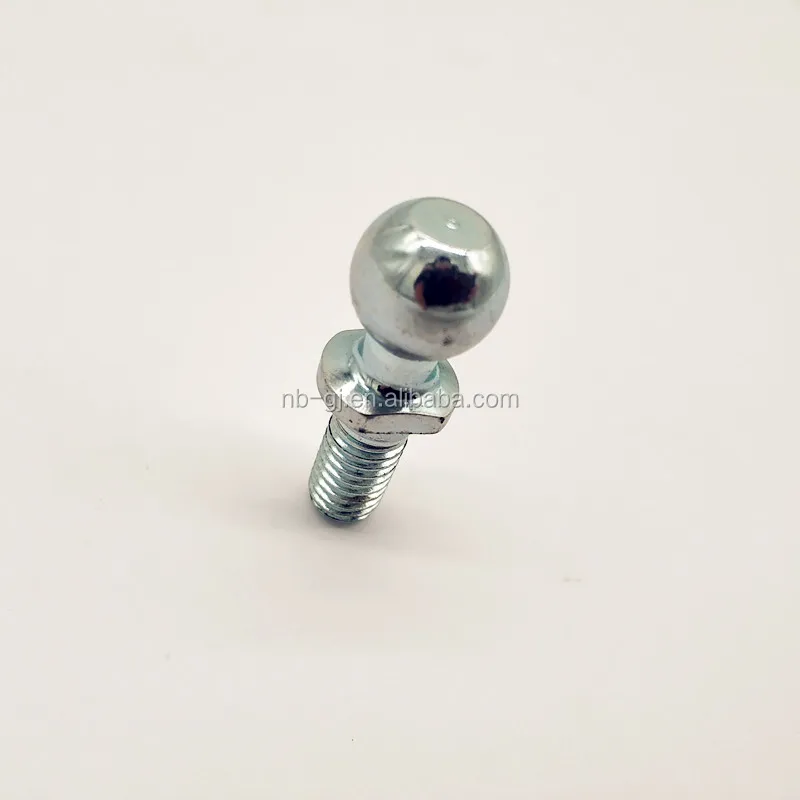

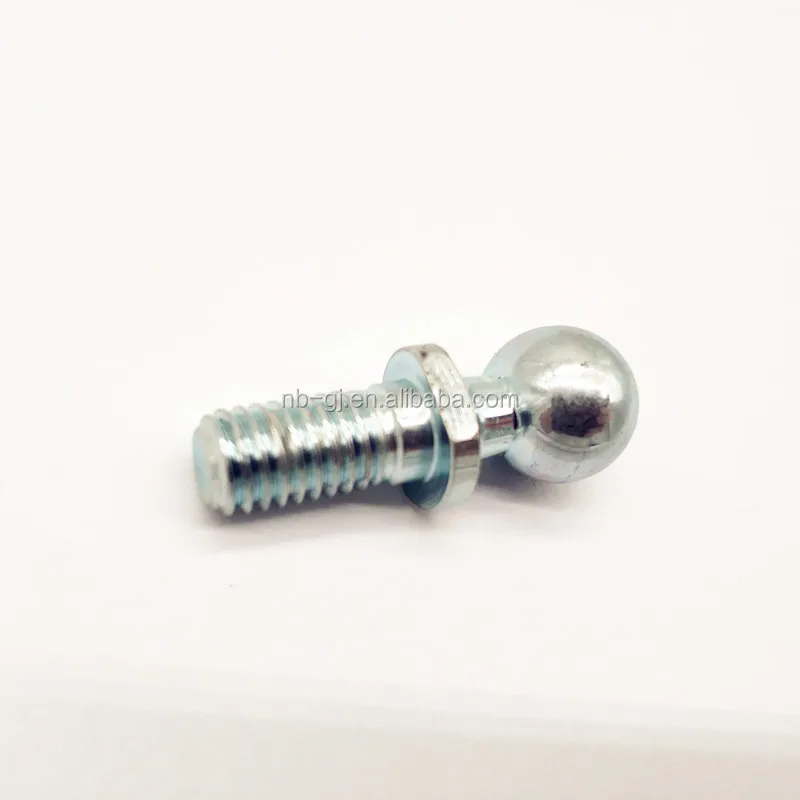

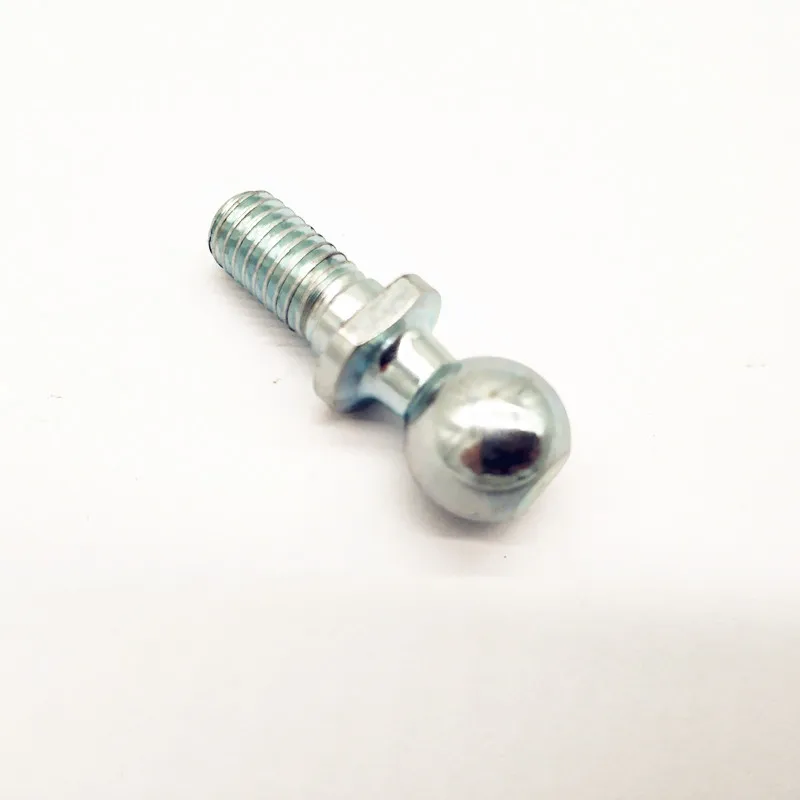

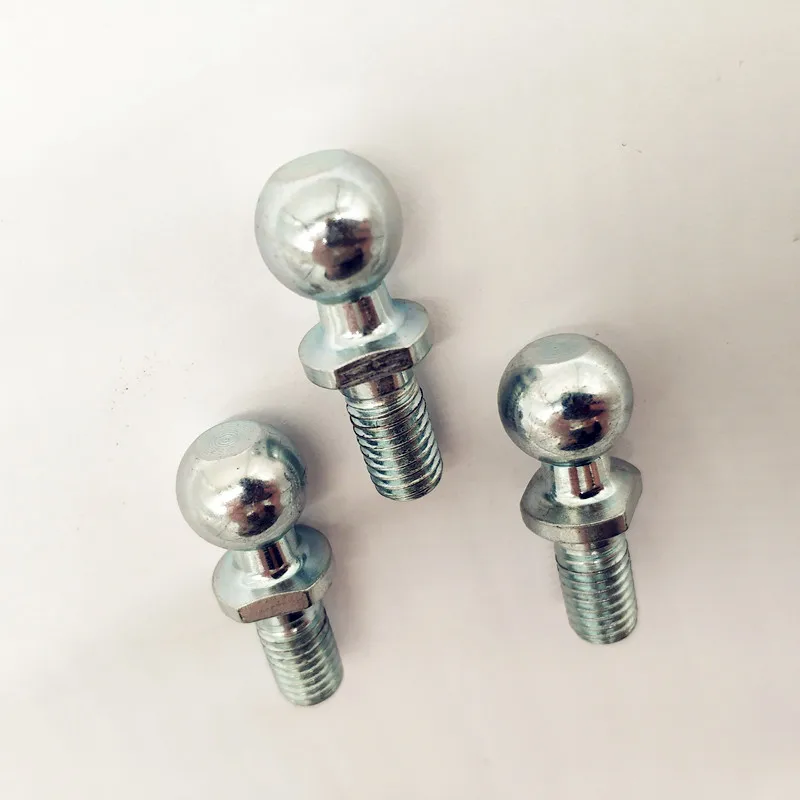

carbon steel M6 threaed ball stud
- Category: >>>
- Supplier: Ningbo Yinzhou Crown Strength Machinery Accessories Factory
Share on (60786176178):
Product Overview
Description
Product detail

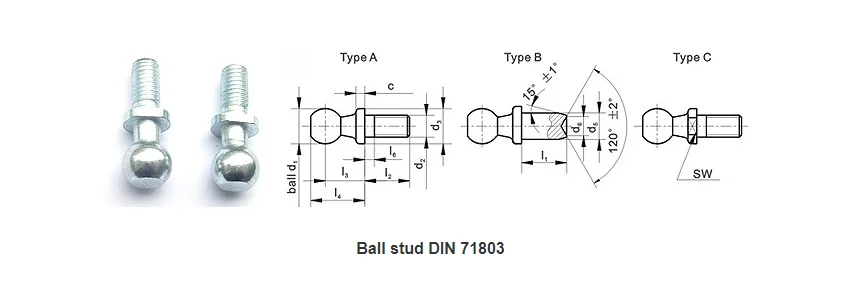

| Dimension(mm) | Weight(kg/100pcs) | ||||||||||||
| d1 hg | d2 | l1 ±0.2 | c +0.4 | d3 h14 | d5 h11 | d6 -0.4 | l2 ±0.3 | l3 ±0.3 | l4 ±0.3 | l6 max. | SW h14 | A & C | B |
| 8 | M 5 | 4 7.5 | 2 | 8 | 5 | 3 | 10.2 | 9 | 12.5 | 4 | 7 | 4.55 | 0.385 0.435 |
| 10 | M 6 | 4.5 8 | 2.2 | 10 | 6 | 4 | 12.5 | 11 | 15.5 | 4 | 8 | 8.5 | 0.71 0.78 |
| 13 | M 8 | 5 10 | 2.4 | 13 | 8 | 6 | 16.5 | 13 | 18.5 | 5.3 | 11 | 17.7 | 1.42 1.6 |
| 16 | M 10 M 12 | 6 13 | 2.7 | 16 | 10 | 8 | 20 | 16 | 23 | 7.3 | 13 | 35.1 | 2.35 2.96 |
| 19 | M 14x15 M 14x2 M 16 | 12 18 | 3 | 19 | 14 | 10 | 28 | 20 | 28.5 | 10.8 | 16 | 71.2 | 5.62 6.37 |
- Material : Carbon steel 1045 (carbon steel 1035 welded with ball)
- Surface : galvanized,passivated in zinc/clear, zinc/yellow
- Optional for all ball studs : Stainless steel 304
