Digital flatbed plastic metal glass wood a4 UV printer

Product Overview

Description

Digital flatbed plastic metal glass wood a4 UV printer

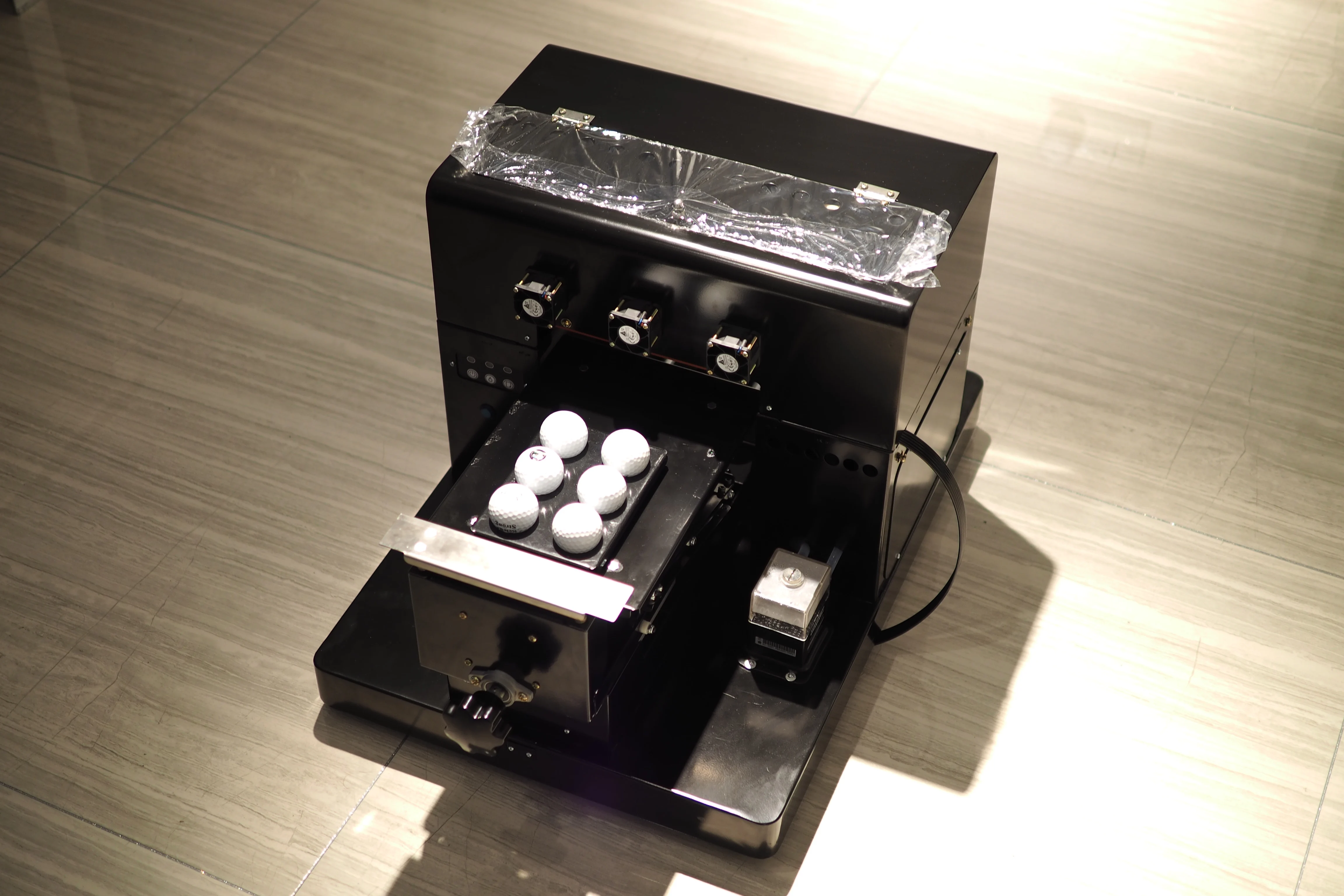

 small size  flatbed uv printer a4 mobile printer for any materials,  small size  flatbed uv printer a4 mobile printer was built with industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing system... 6 color and max. 2860 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing result...



1). small size flatbed uv printer a4 mobile printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.

2). small size flatbed uv printer a4 mobile printer Fast printing speed by print on A4 size with full color of business phone case printing machine only need 64 seconds.

3). Super table size of business phone case printing machine ensure you can print on any media with max. 21*30cm printing area.

4). Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching.  And ball screw design can make small size flatbed uv printer a4 mobile printer printing resolution much higher and printing more stable.

5). small size flatbed uv printer a4 mobile printer has easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate the machine more convinence

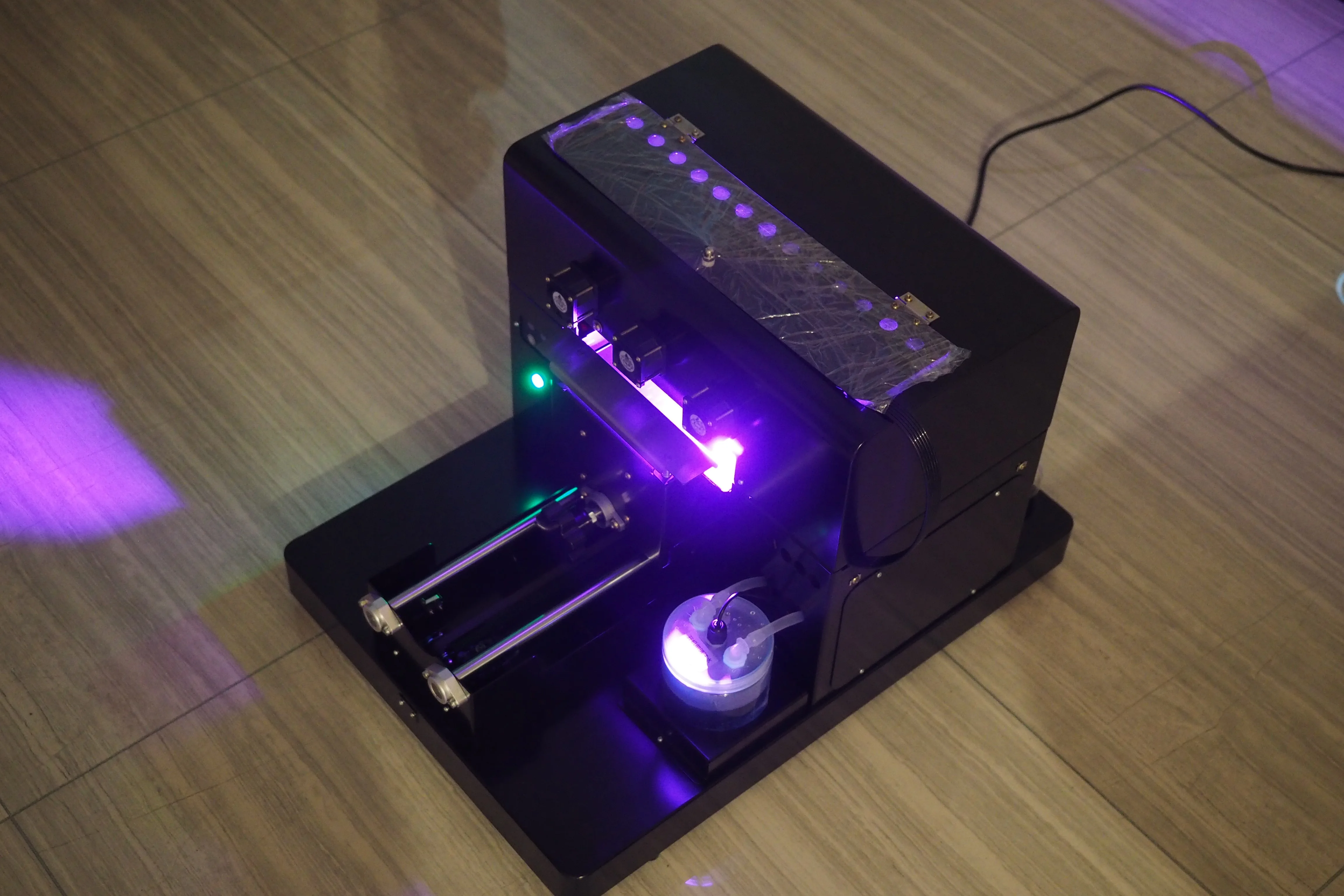

6).  High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. small size flatbed uv printer a4 mobile printer combine with the high effective water circulation cooling system to ensure the stable printing.

7). small size flatbed uv printer a4 mobile printer has 6 color customize channel of  small size flatbed uv printer a4 mobile printer can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.

8). small size flatbed uv printer a4 mobile printer has unique 3D texture output option  of  A4 uv printer is available.

Model	Syoon Digital flatbed plastic metal glass wood a4 UV printer
LED-UV Function	UV lamp system	6 Power degree adjustable system
	UV Power	100W
	UV lamp life time	50000hours
	UV light wavelength	390-400nm
	Light power	500mw/w
	Cooling type	Water circulation
	Cooling adjustment	Automatic on/off between 25-30c
	Control Software	Acrorip823_W
Repeat printing precision		Overlap small than 0.1mm
Head maintain		Head clean during/after printing, Keep-wet system when idle.
Ink system		Ink damper refill system
Max. printing size		A4+: 210mm*300mm
Print head		L800 with 1440 nozzles
Print color		CMYK+WW
Print direction		Unidirection / Bidirection
Print speed		A4(1440dpi)/ 80s
Max. media thickness		8CM
Max. media weight		15KG
Max. printing resolution		2880dpi*1440dpi
Ink volume		150ML
Ink type		UV environmentally ink
Height adjustable		Manual / Automatic
Print head protection		Intellective automatic detect
Working power		110-240V 50-60HZ 75W
Interface		USB2.0 /IEEE1394
System require		Windows XP / Vista/ Win7/win8/win10
Working enviroment		25-30C, 50% Humidity, Dust free
Net weight/Gross weight		30KG/48KG







Warranty
1.We provide 12months warranty and lifelong technical support since the shipping date((except printhead , ink pump).
2.We have completely english instruction video and manual for you.
3.We provide free online training.
4. Engineer fly to your site for final repair if needed.





1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on .

We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .

2. All kinds of original spare parts for the machine to ensure your machine running smoothly

What is more , all the printers have one year warranty. During the warranty, if any problems of the parts , you can send us back to repair or exchange .
