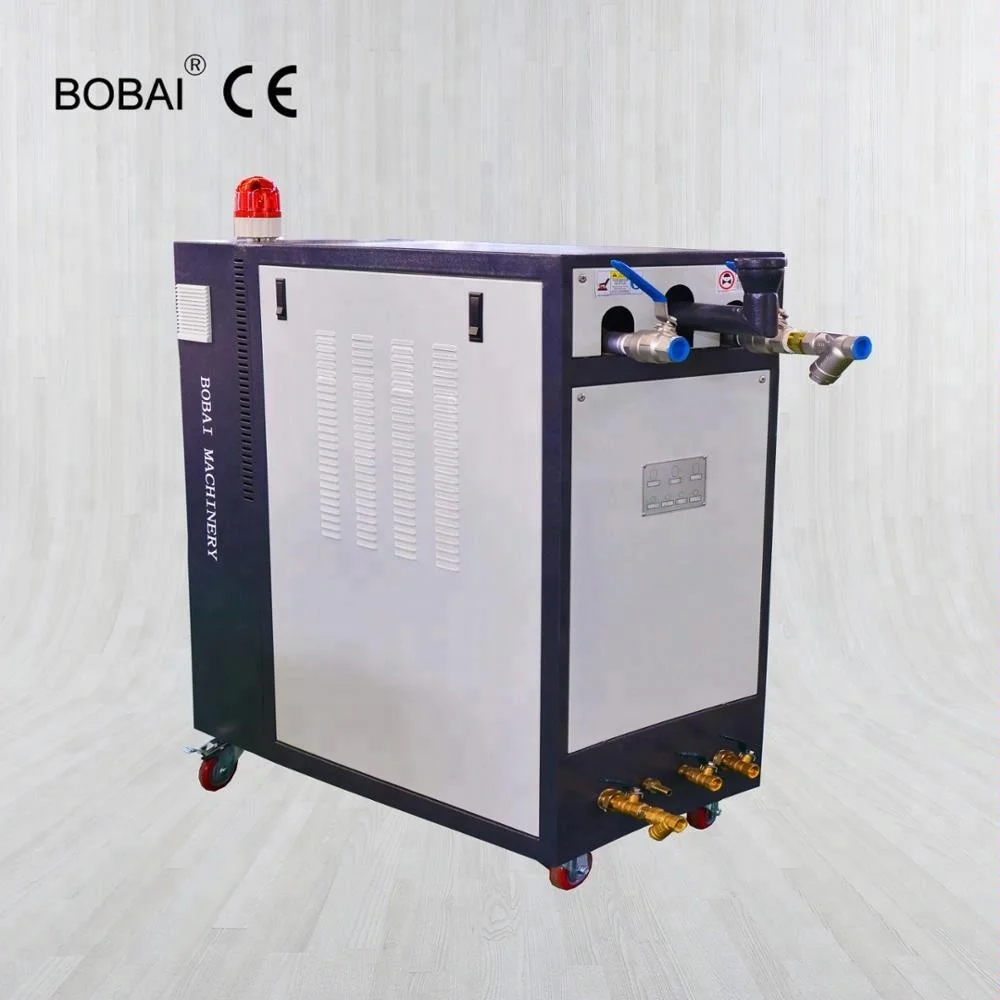

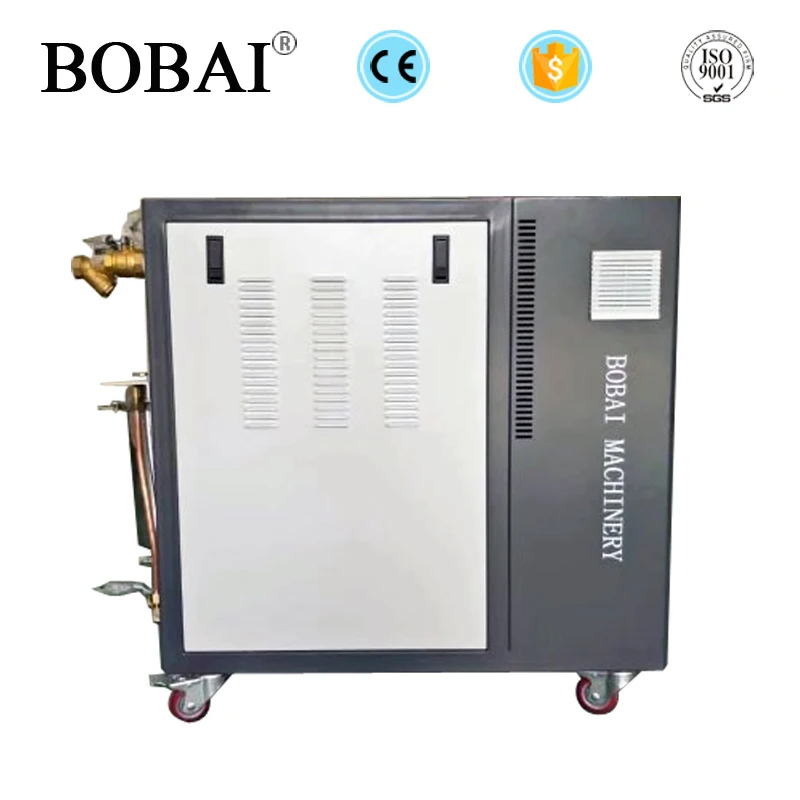

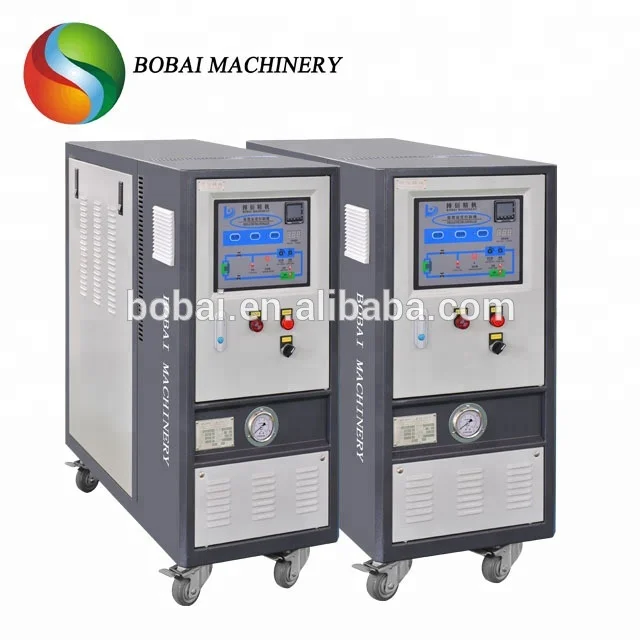

300 degree centigrade oil circulation price digital mold temperature controller for Injection Moulding Machine
- Category: Mould Temperature Controller >>>
- Supplier: Bobai Machinery (shanghai) Co. Ltd.
Share on (60786233246):
Product Overview
Description
Product Description
Standard oil cycle temperature control machine
Temperature control range: cooling water into the water temperature to 300 ℃
Machinery and piping components
Start the automatic exhaust function
The function of free switching of heating power
High performance high temperature coupling shaft pump for long uninterrupted work
The piping system adopts seamless steel tube/non-ferrous materials
Indirect cooling system for heat exchangers
The imported heating wire of Sweden achieves excellent thermal efficiency and long service life
Filters are installed in the media circulation loop and the cooling water supply pipeline
Electrical and control components
Isolation type electrical control box
The appliance chooses the global famous brand supplier
Electronic safety temperature controller
The fault direct display is convenient for maintenance and maintenance
The unit has perfect safety protection system

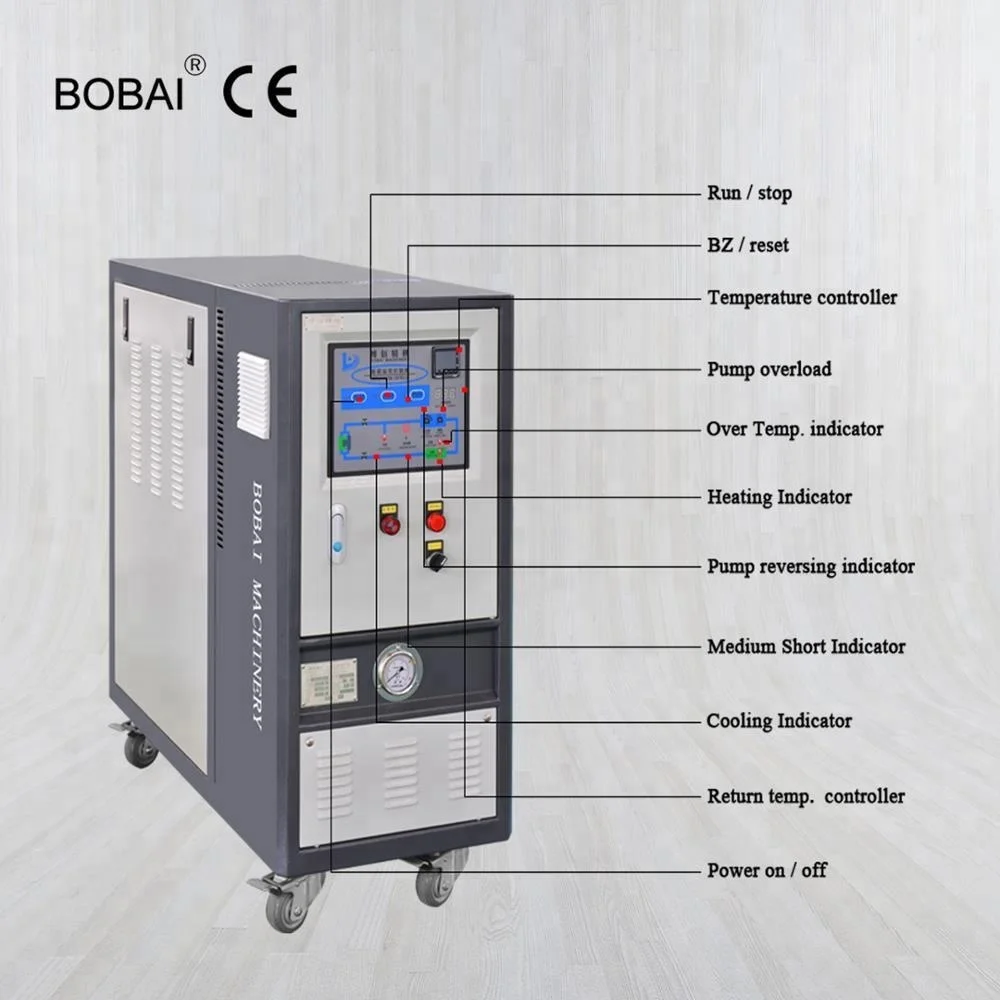

Easy-to-read display, which can display system running state, set temperature, operating temperature and return medium temperature.
Optional parts/customizer
gassing and return oil function
RS485 remote communication
Instant cooling shutdown
Multi-point temperature control unit
Equipped with a 7-inch, 10-inch color touch screen, PLC
Customizable pump power and heating power
Solid state relay, three-phase electronic regulator
A connector for a variety of analog and type-type electrical interfaces
Continuous control with electric or pneumatic control valves
Other high requirement piping systems and electrical selection
Main model
| Model | Unit | BGOT-20 | BGOT-40 | BGOT-50 | BGOT-75 | BGOT-100 | BGOT-150 |
| Max temperature control range | ℃ | 300° | |||||
| Temp control accuracy | PID±1℃ | ||||||
| Power suply | AC3φ380V 50HZ 3P | ||||||
| Circulation medium | HEAT TRANSFER FLUID | ||||||
| Cooling method | INDIRECT COOLING | ||||||
| Heating power | KW | 18 | 36 | 45 | 60 | 90 | 120 |
| Pump power | KW | 1.5 | 3 | 3.7 | 5.5 | 7.5 | 11 |
| Max power flow | L/MIN | 108.3 | 208 | 333 | 416 | 666 | 208 |
| pumping head | M | 28 | 30 | 32 | 37 | 35 | 80 |
| Power supply | KW | 20 | 39 | 49 | 66 | 98 | 132 |
| Expansion tank capacity | LITER | 35 | 55 | 100 | 100 | 150 | 250 |
| Alert function | incomplete phase /oil shortage/overtemperature/overload/pump reversal/low pressure | ||||||
| Cooling water pipe diameter | INCH | 1/2(DN15) | 1/2(DN15) | 1/2(DN15) | 1/2(DN15) | 3/4(DN20) | 3/4(DN20) |
| Circulation oil pipe diameter | INCH | 1(DN25) | 1-1/4(DN32) | 1-1/2(DN40) | 1-1/2(DN40) | 2(DN50) | 2-1/2(DN65) |

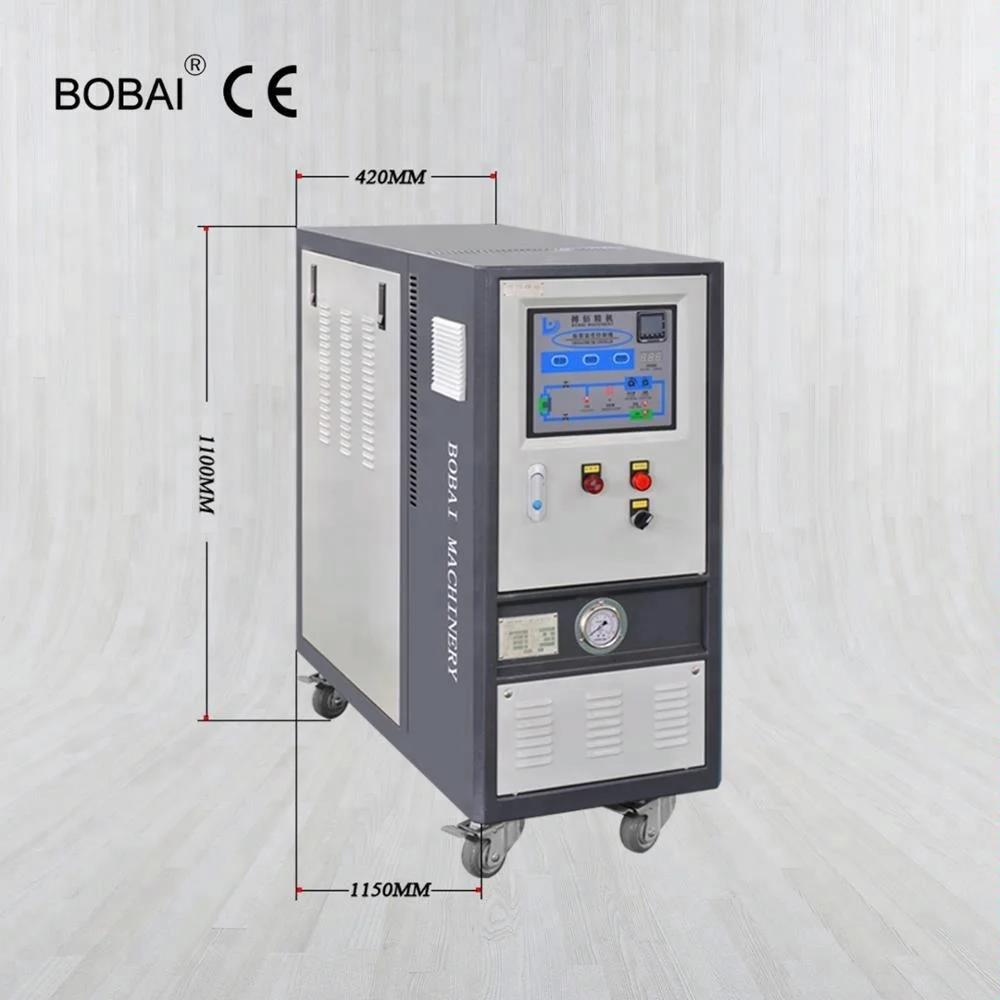

| L*W*H | MM | 1150*420*1000 | 1610*550*1200 | 1610*550*1200 | 1650*630*1300 | 1650*700*1500 | 1650*700*1500 |
| Roughly Weight | KG | 120 | 150 | 160 | 210 | 320 | 450 |
Exhibition
Company and workshop
Certification
Payment&transport
FAQ
How about the quality of your product?
--BOBAI strictly enforce the ISO international quality system standards and CE standards.
-- We take a test on every product before delivery.
How about price of this product?
-- We can give the competitive price . We serve medium and high-end products
-- As long as we provide the specific parameters, we can quote quickly.
-- Discount can be given according to quantity.
What is the MOQ?
-- 1 unit.
If you can be custom-made?
-- We can make products according to customer's requirements.
What is the voltage?
-- according to the customer's request.
