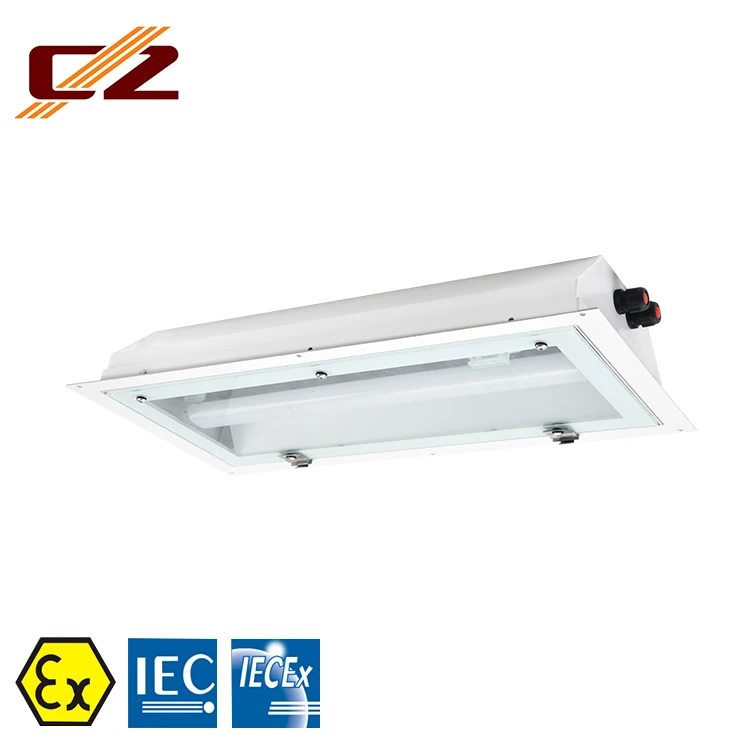

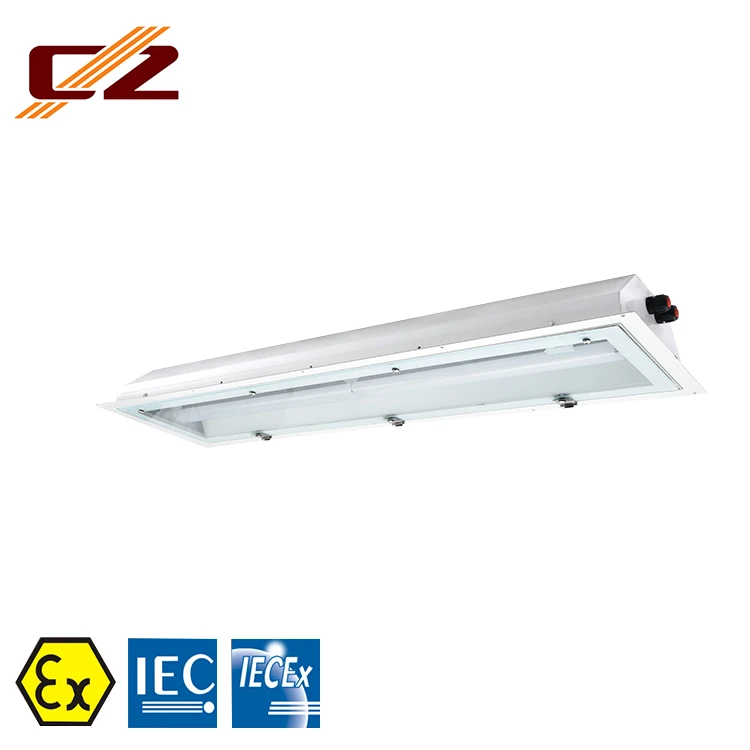

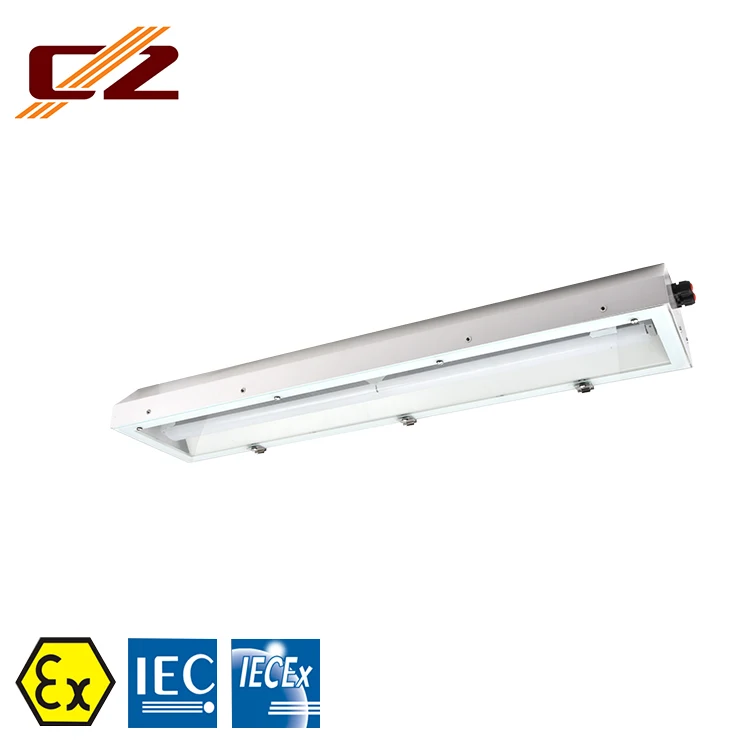

Stainless Explosion proof LED ceiling light fitting
- Category: >>>
- Supplier: CZ Electric Co. Ltd.
Share on (60786256756):
Product Overview
Description

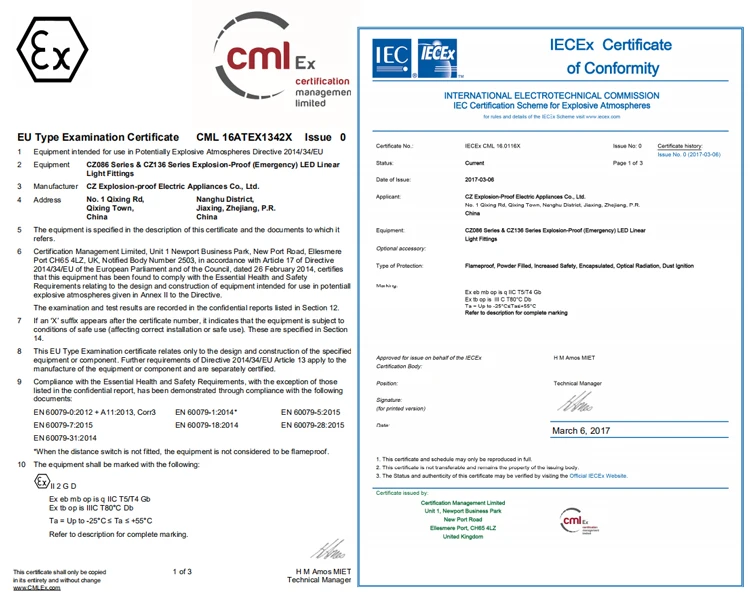

all our certifications is REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!
| Certification | Ex mark |
| IECEx | Ex db eb mb op is q IIC T5/T4 Gb Ex tb IIIC T80°C Db |
| ATEX |  II 2 G D Ex db eb mb op is q IIC T5/T4 Ex tb IIIC T80°C Db |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+50°C/55°C | |
| Degree of protection | IP66 | |
| Terminals | L1, L2, L,N, PE, each terminal 2X 1.5- 10mm2 | |
| Color temperature | 5700K | |
| Color rendering index | Ra≥ 80 | |
| Pole mounting | Moulded plastie 1×M25×1.5 cable gland,Outside diameter of cable:Φ 8- 17mm | |
| Power factor | λ> 0.95 | |
| Cable entry | Moulded plastie 1×M25×1.5 cable gland, Outside diameter of cable:Φ 8-1 7mm Moulded plastic 2×M25×1.5 stopping plugs | |
Descriptions:
Explosion-proof (emergency) LED linear light fittings are manufactured by carbon steel, SS304/316L and the
transparent parts are manufactured by toughened glass. They have good protection ability due to its high stability
and high mechanical strength. There are sealing gaskets between the enclosure and transparent parts. The lights
have functions of interlocking compaction device and automatic power off. They will be automatic power off when
open the glass cover and be energized to work when closed. They can be working in circuit of 100-250V, 50/60Hz.
IECEX and ATEX certified.
Degree of protection up to IP66.
The separately certified explosion-proof power supply module and explosion-proof inverter module inside have the function of constant current output and over temperature protection.
With the latest high-efficient LED chips, LED light source module has excellent luminous intensity and color
Rendering performance.
Emergency ones have indicators of fault, charging and discharging.Mounting accessories available in adjustable brackets and inserting brackets

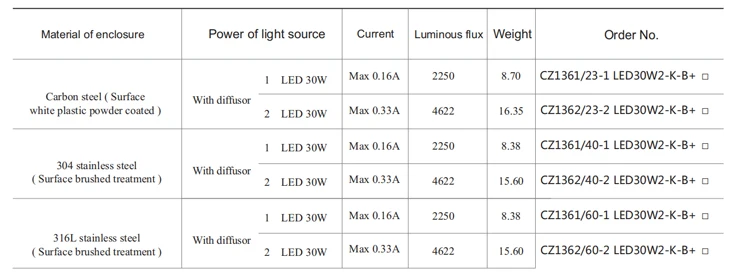

Order specification

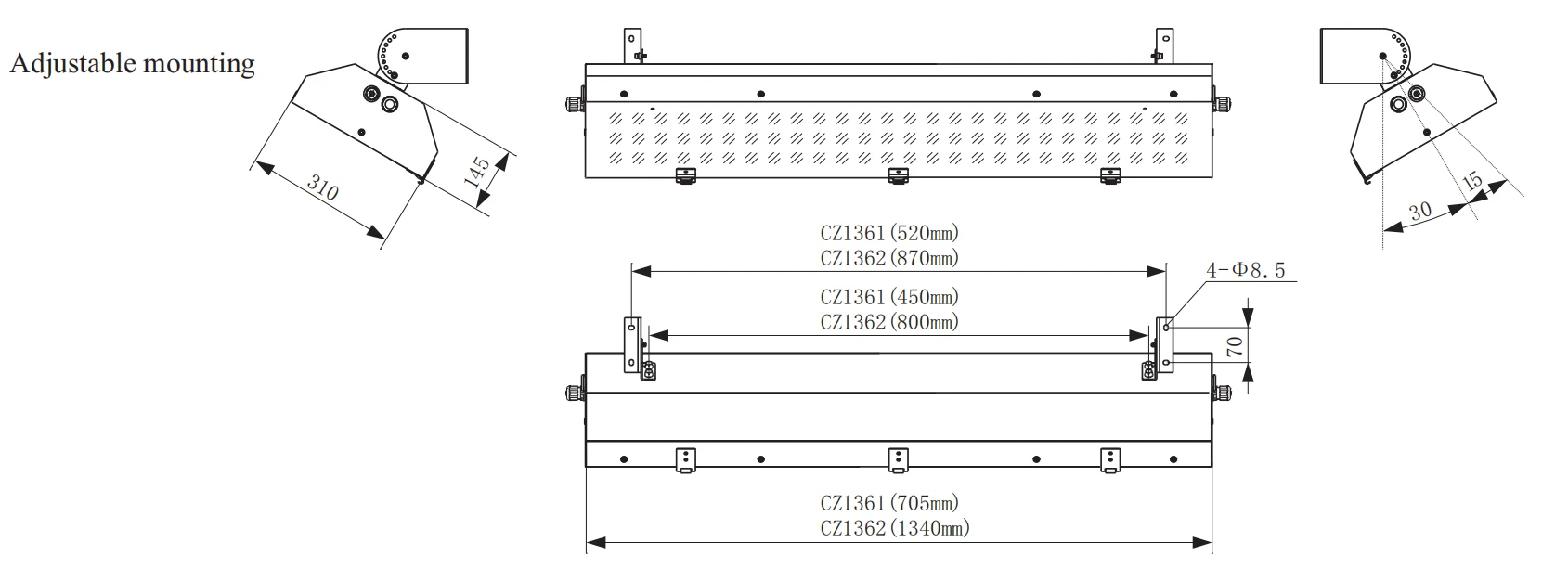

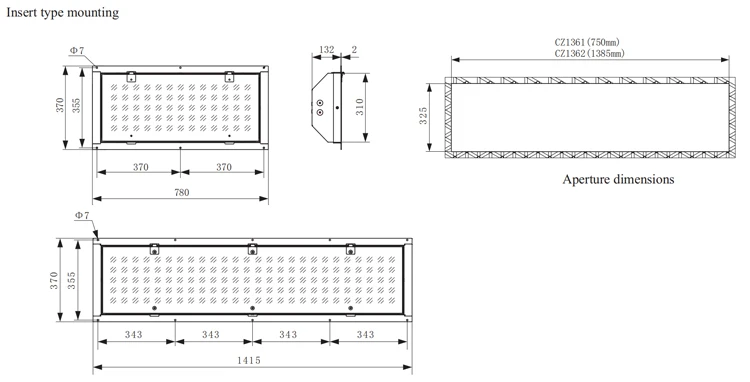

Outline dimensions:

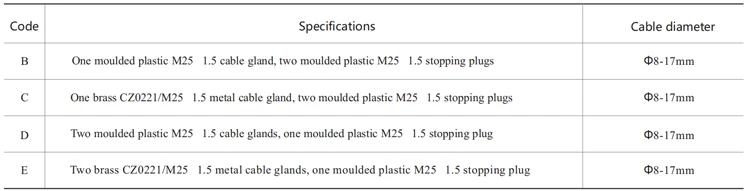

code of cable gland:
FAQ
Q1. Can I have a sample order for testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 sets.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
