Low speed 100w 12V 24V 3 phase ac permanent magnet generator with CE
- Category: >>>
- Supplier: Jiangsu Naier Wind Power Technology Development Co. Ltd.
Share on (60786268554):
Product Overview
Description
Product Description
Note:
Pls tell us your option :
12v or 24v;
one shaft or two shaft;
whether with mounting base
The package will include one pmg and one controller
pictures:

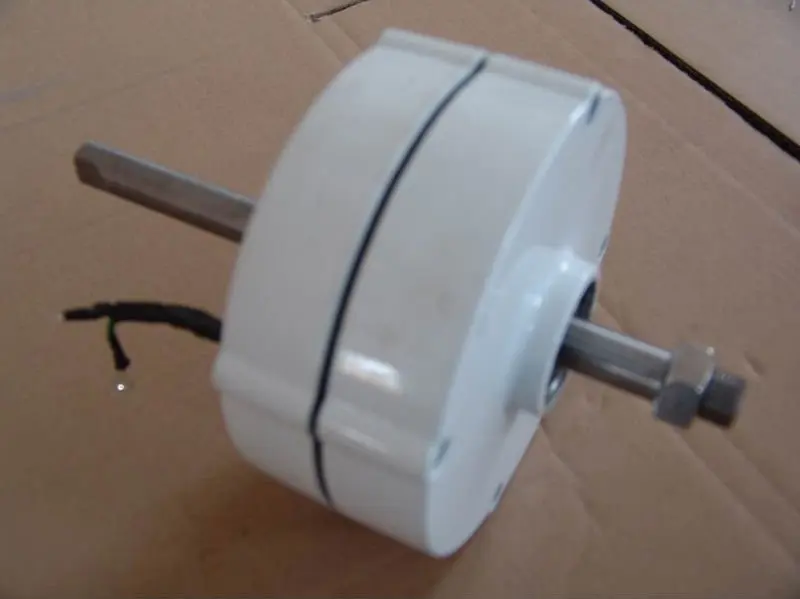

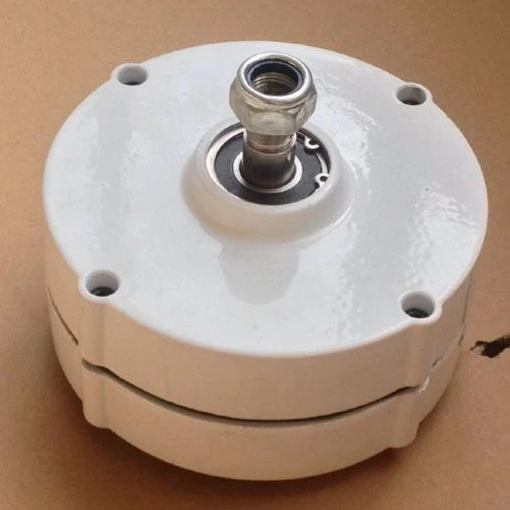

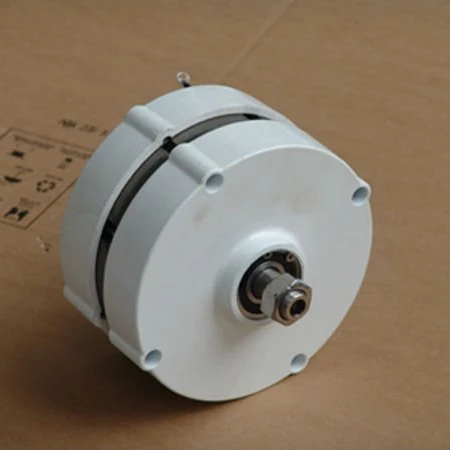

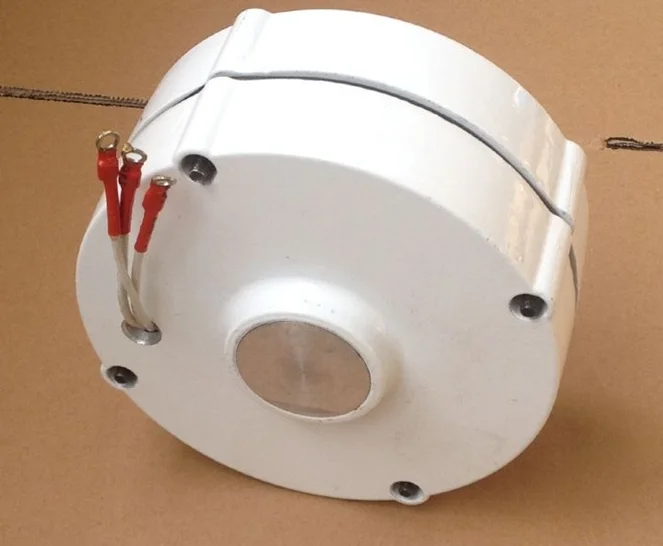

one shaft two shaft:

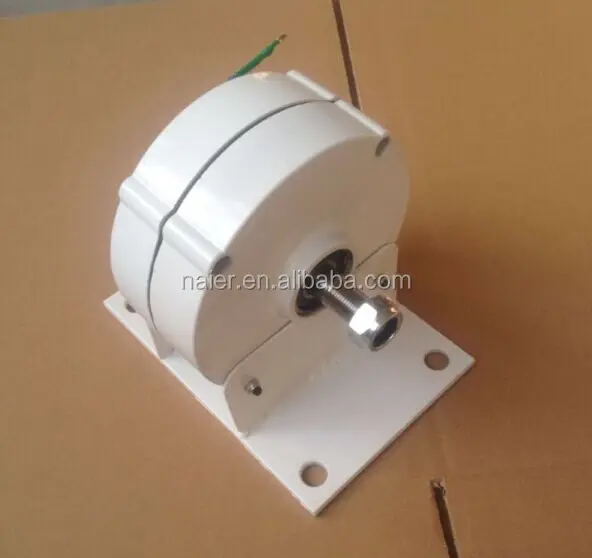

With mounting base

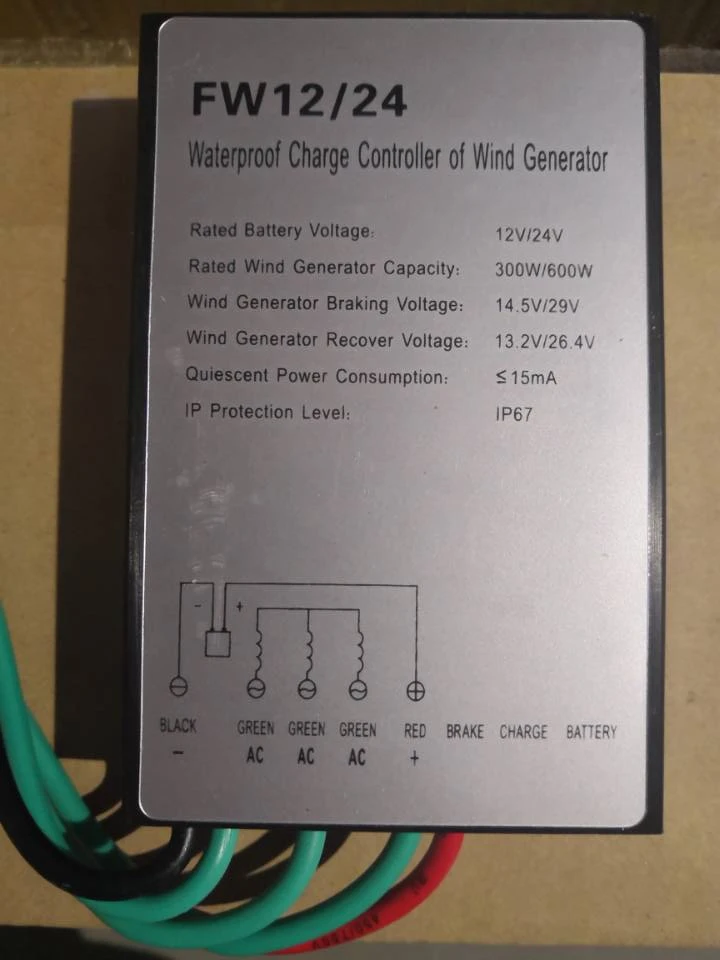

Controller
Technical data:
Model | NE-100S |
Rated Power(w) | 100w |
Max Power(w) | 130w |
Rated Voltage(v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.4kg |
Output Current | AC |
Start Torque: | 0.12Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminium alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Details: inner material and shell case

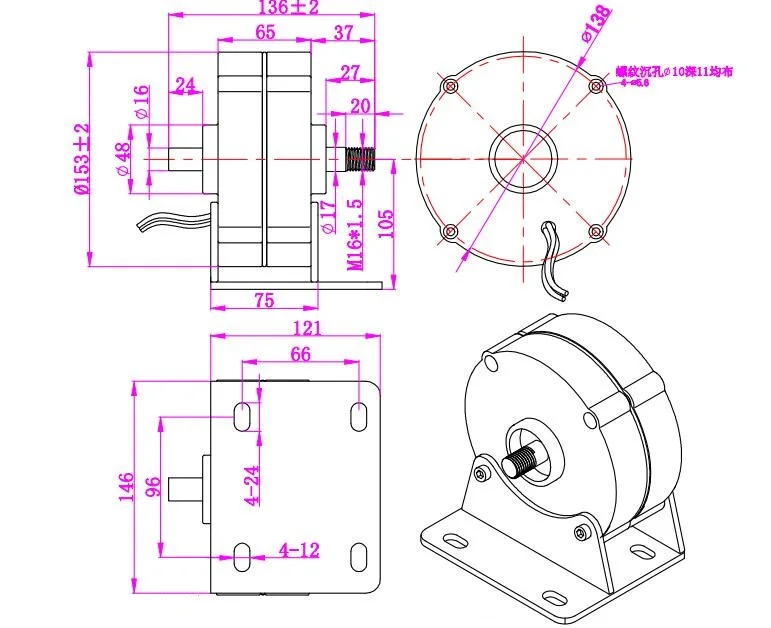

Drawing:

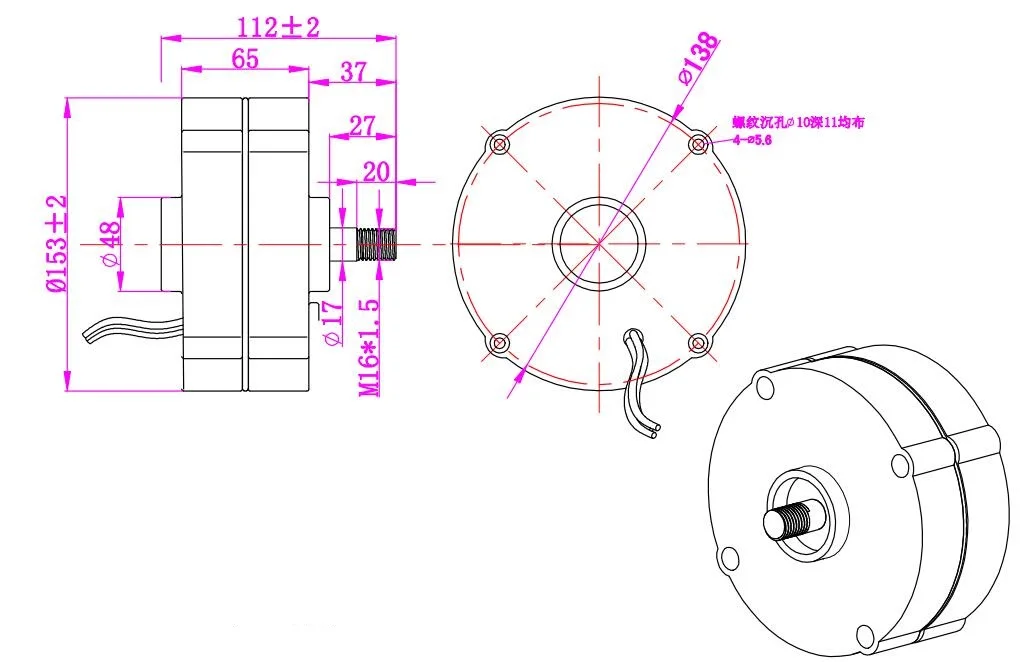

Single shaft

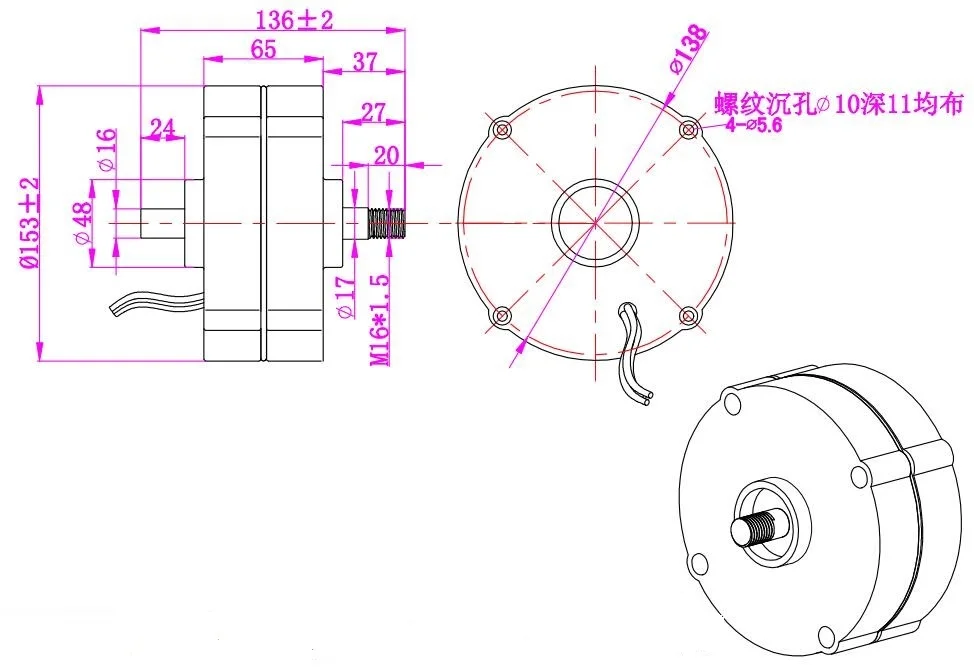

Double shaft
with mounting base

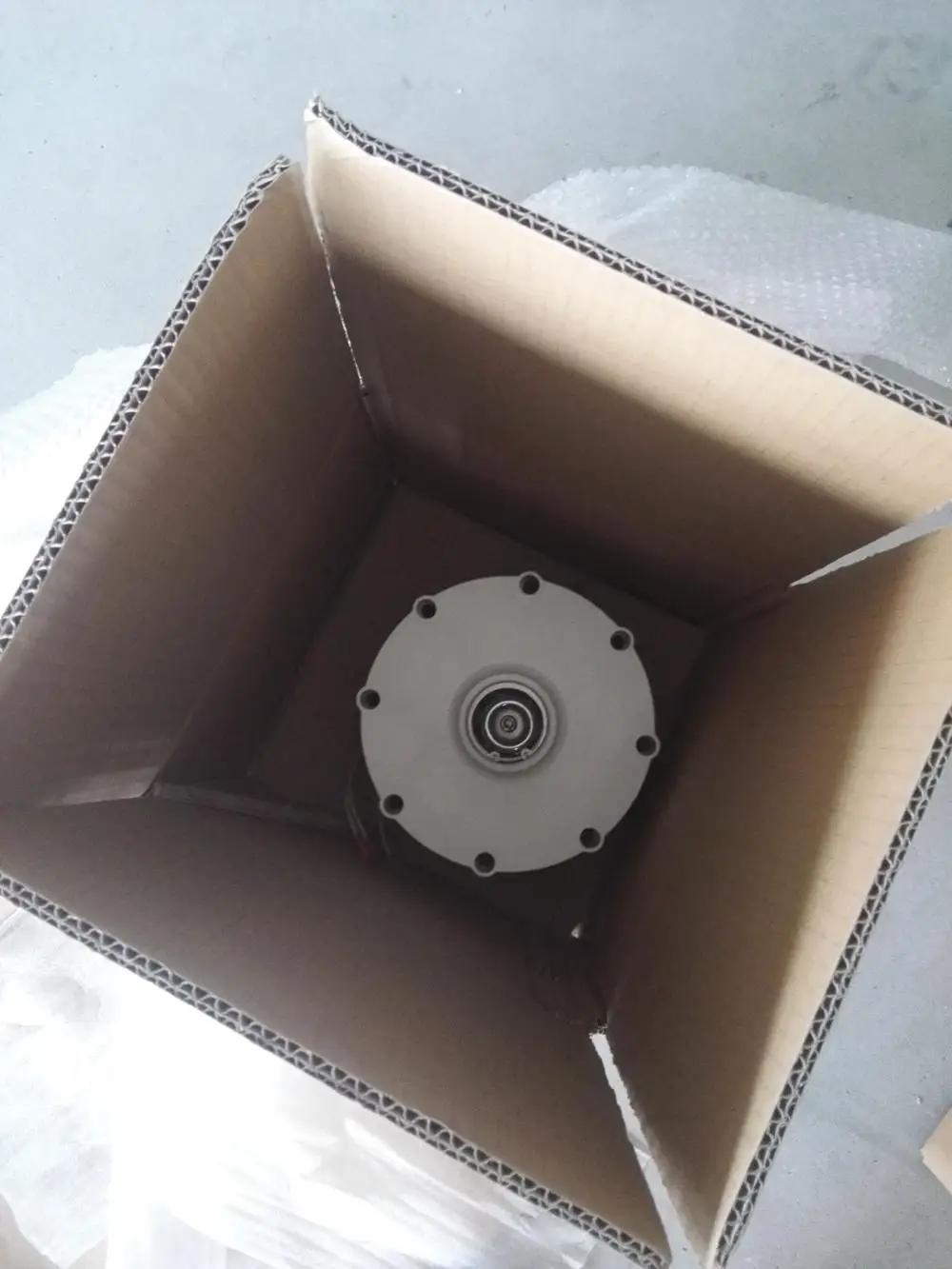

Packaging & Shipping
Delivery:
