Geocomposite Drain Pipe

Product Overview

Description

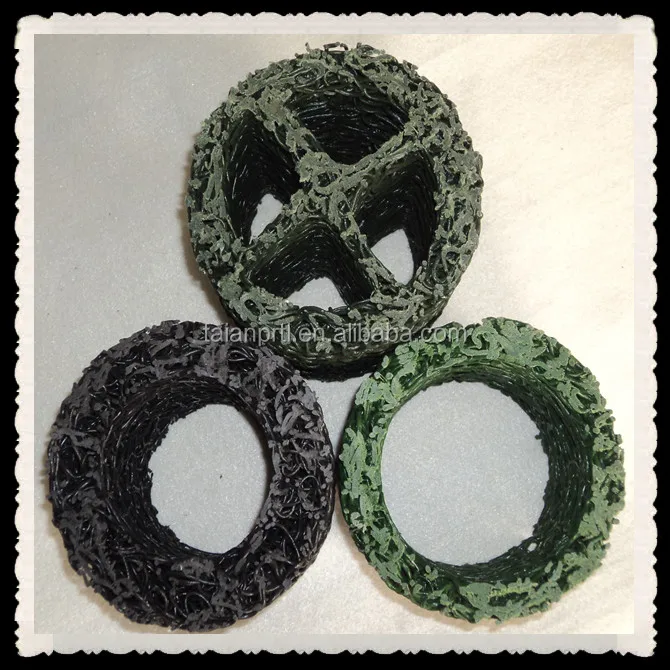

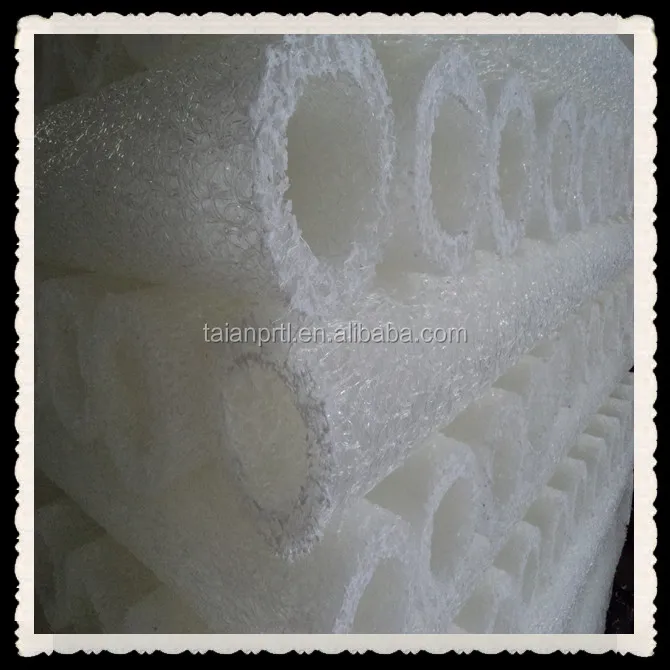

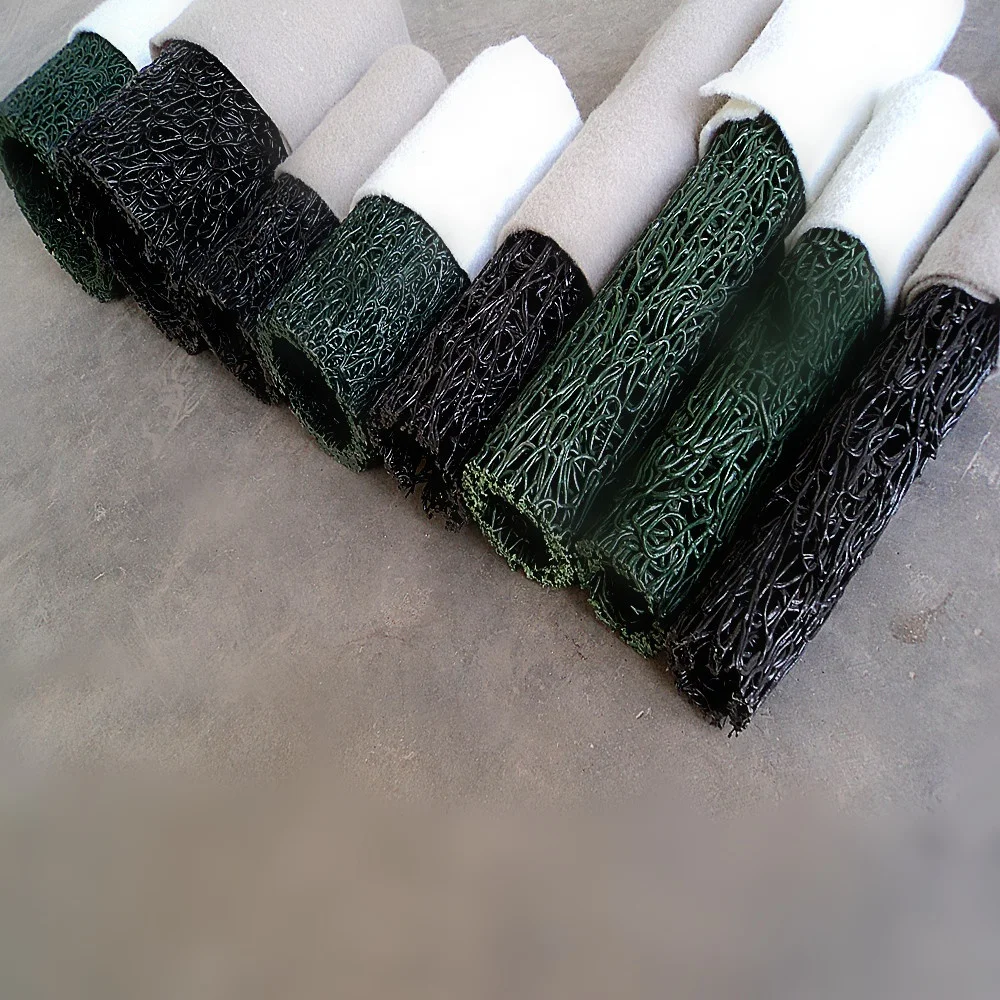

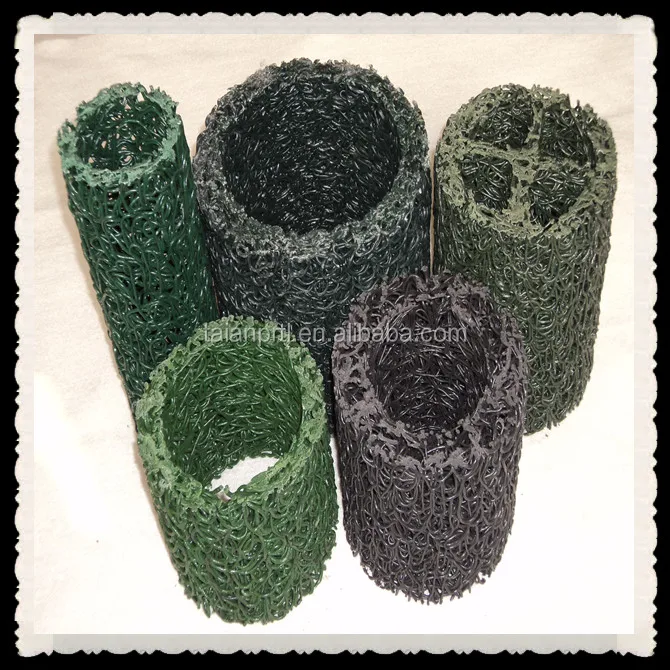

Geocomposite Drain Pipe is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects

Application of Geocomposite Drain Pipe

1)      Highway and roadway subgrade

2)      Retaining wall

3)      Landfill

4)      Roof garden

5)      Building foundation

6)      Underground irrigation



diameter:60-300mm
color:black,green
lenth:2-6m
material:pp pipe+nonwoven geotextile

form:square,Circular,sheet



Geocomposite drain pipe technical datas



Item		Square shape			Circular shape
Type		YA7030	YA1235	YA1550	YB60	YB80	YB100	YB150	YB200	YB250	YB300
Outer size(mm)		70x30	120x35	120x50	φ60	φ80	φ100	φ150	φ200	φ250	φ300
Cannular size (mm)≥		40x10	40x10x2	40x20x2	φ25	φ45	φ55	φ80	φ120	φ170	φ220
Voidage (%)≥		70
Compress strength (kPa)	Flattening 5%	70	60	50	85	80	70	50	40	35	30
	Flattening 10%	110	110	70	170	160	140	70	60	55	50
	Flattening 15%	150	130	125	220	200	180	100	90	80	70
	Flattening 20%	190	180	160	280	250	220	125	120	110	100
