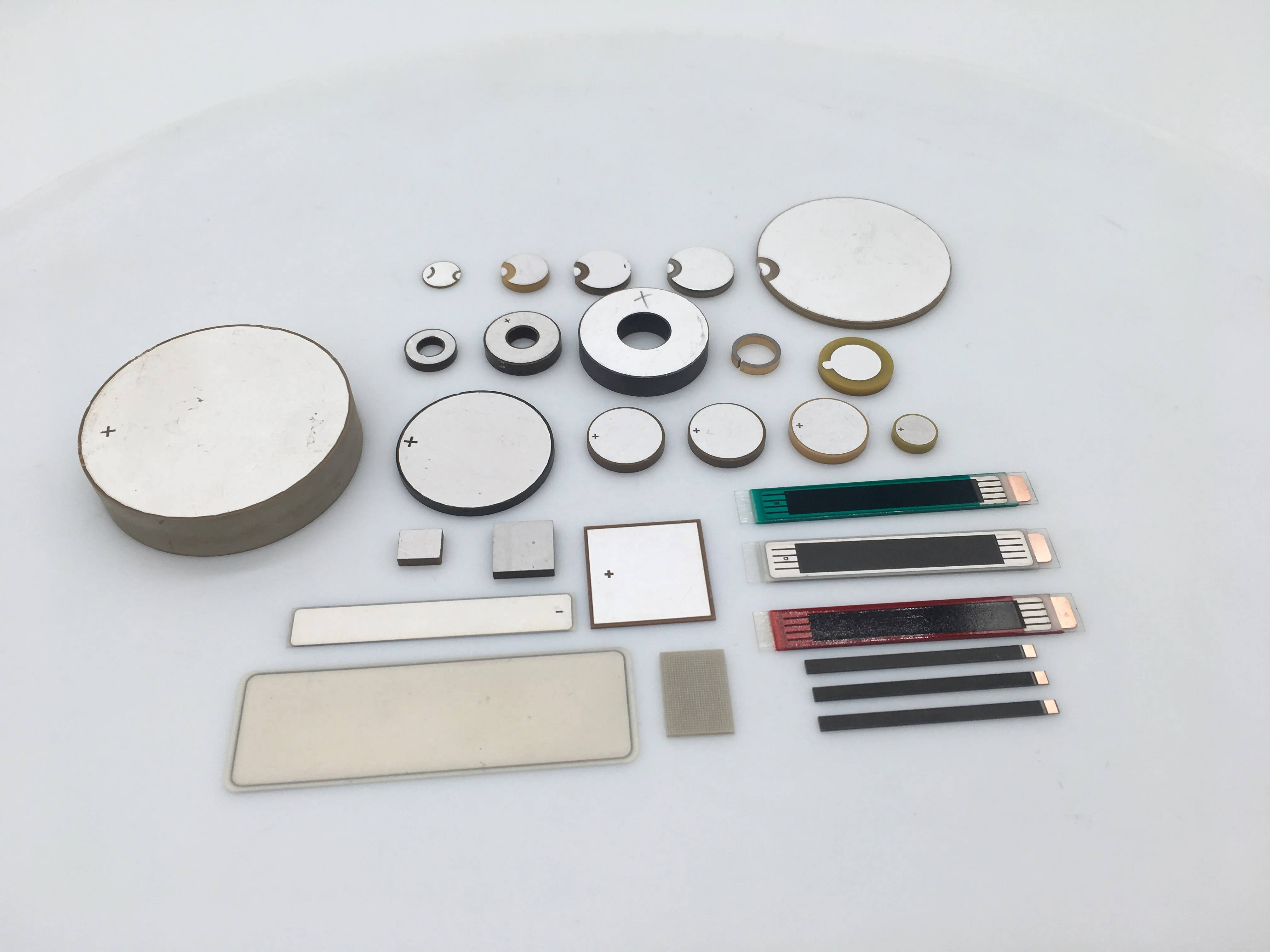

JIAKANG Ultrasonic Piezoelectric Piezo Ceramic Disc 1MHZ Piezo Generator
- Category: >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (60786282567):
Product Overview
Description
You are here:Home >>Piezoelectric Ultrasonic Transducer >>Piezoelectric Ultrasonic Disc>>
JIAKANG High Accuracy Ultrasonic Piezoelectric Paint Piezo Actuator Material 1MHZ Piezo Generator
Product Description

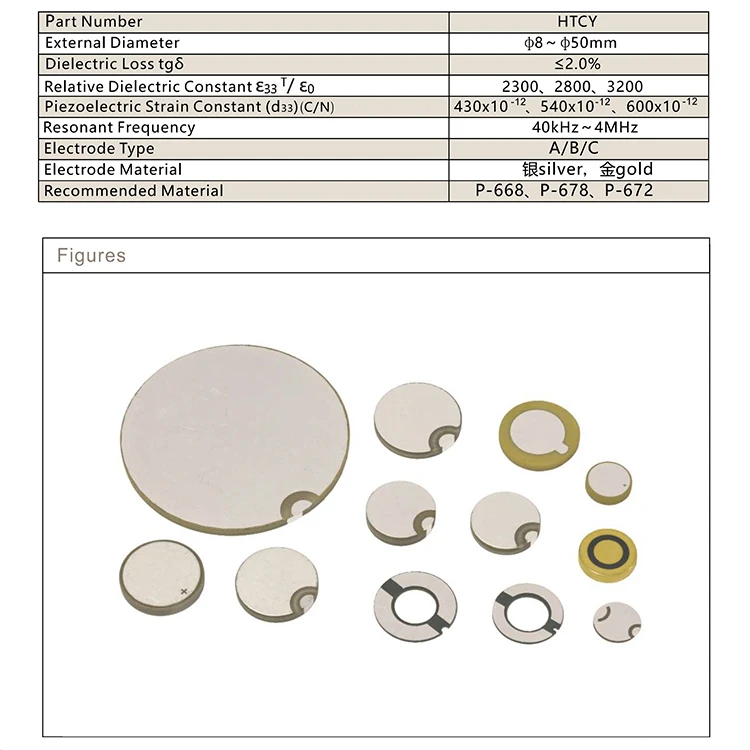

Specifications | ||
(Item) | (Unit) | (Standard) |
Resonant frequency (Fr) | MHz | 1.000±0.010 |
Resonant impedance (Za) | kΩ | ≥3.0 |
Static capacitance (C0) | pF | 1200±15% |
Dielectric loss (tgδ) | % | ≤2.0 |
d33 | 10-12C/N | ≥400 |
Tc | °C | 359 |

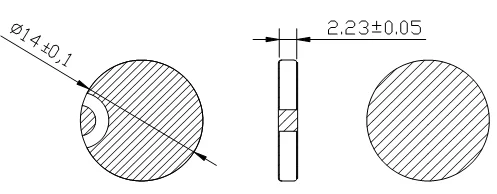

| Dimensions |
|
Company Information
Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect. We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster. |
Our Services
Customer praise
Our products are praised by customers from different countries, and the praises are true.
FAQ
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
