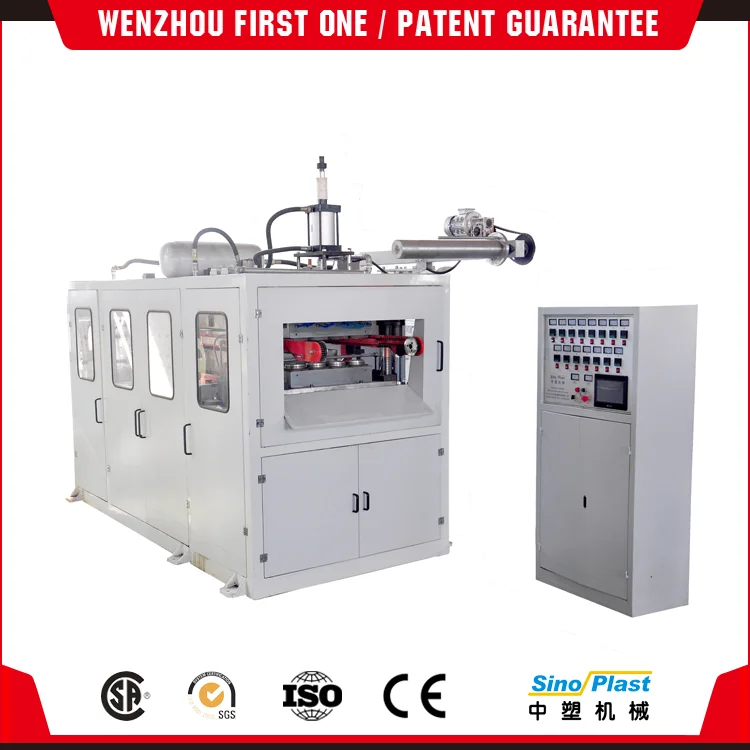

Ideal Standard 35KW Automatic Disposable Cup Thermoforming Machine
Product Description
| Machine Frame | Square Steel Size 120×120: machine base is complete steel plate with thickness=40mm |
| Machine Door | The top part of the door with observation window from the operation side, Heating oven could move outside |
| Mold Plate | QT500 nodular cast iron, pore-free, sand free |
| Pillar | 4-pillar dia.=80mm, 40Cr steel thermal refining, hard chrome plating, mirror finish: Gide bushing Dia.≤200mm, Material: metal ceramic Zns |
| IR Ceramic Heater | IR Ceramic Heater,Size:240X80mm: Top Oven:machine direction 10pcs*9 zones: Bottom oven:machine direction 9pcs*9zones Total:171pcs,Power:800W/pcs,made in China |
| Max. Forming Area | 660×320mm |
| Max.Forming Depth | 200mm |
| Mold Plate Size | 1350×420mm |
| Main Gearmotor | P-11KW(4P) |
| Strecting Servo Motor | 5.5KW |
| Sheet Feeding Servo Motor | 4KW |
Sheet Thickness | 0.25~2.0mm |
| Running Speed | ≤32cycles/min |
| Electrical Consumption | Approx 55KW |
| Installing Power | Approx130KW |
| Solenoid Valve | MAC, USA |
Our Products
Our Advantage
Our Services
Company Information
Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.We produce many different types products for your selection.
WARRANTY:
1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.
INSTALLATION AND TRAINING:
We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.
