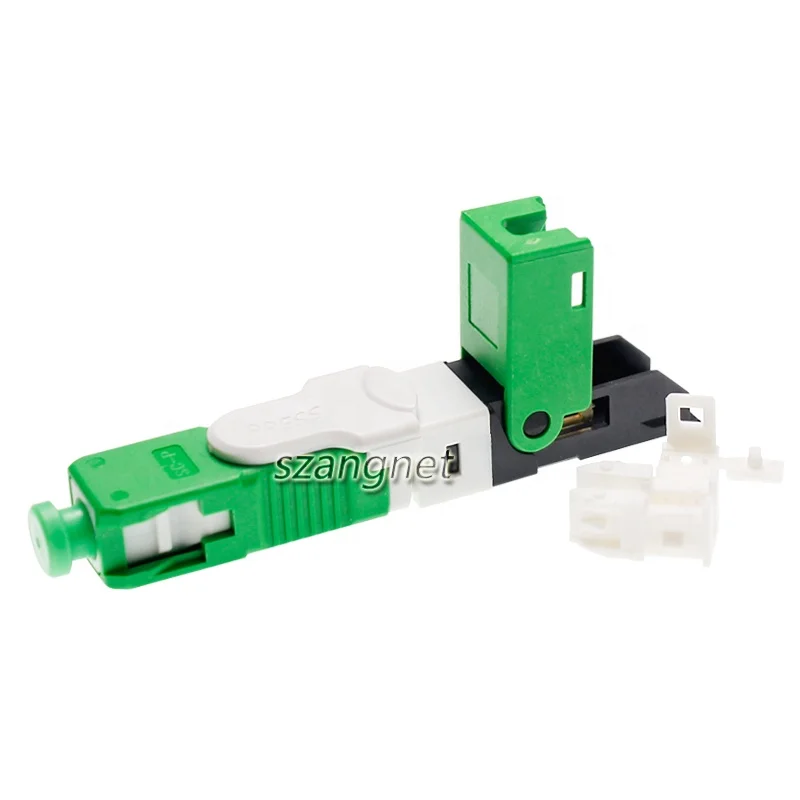

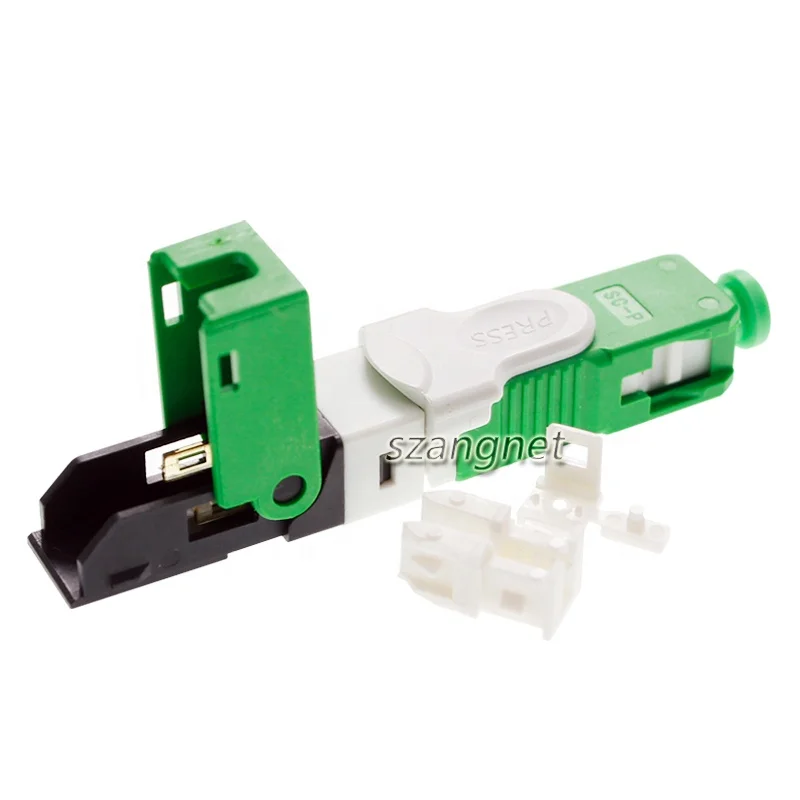

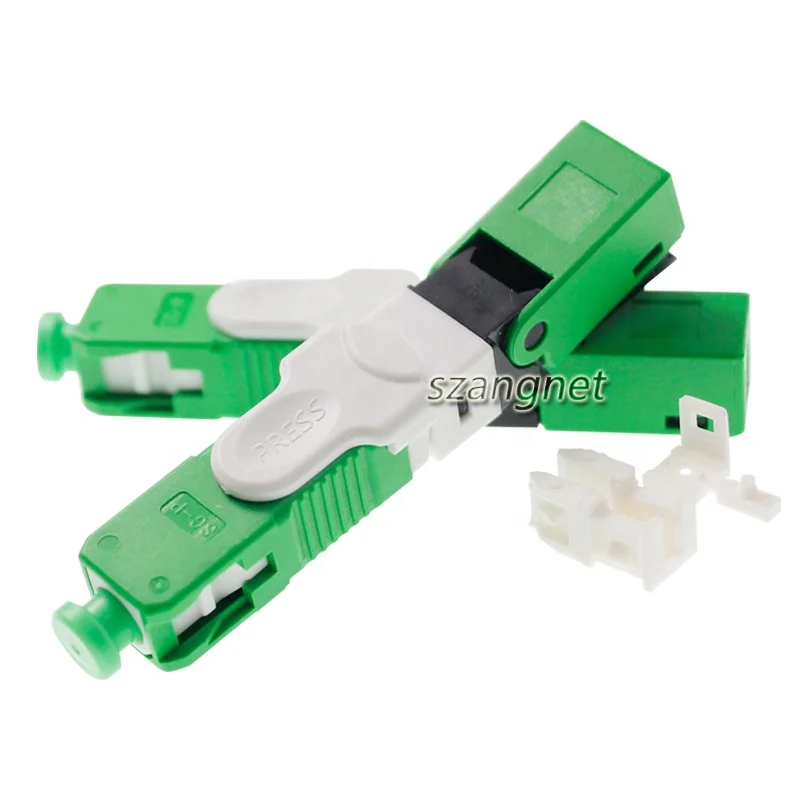

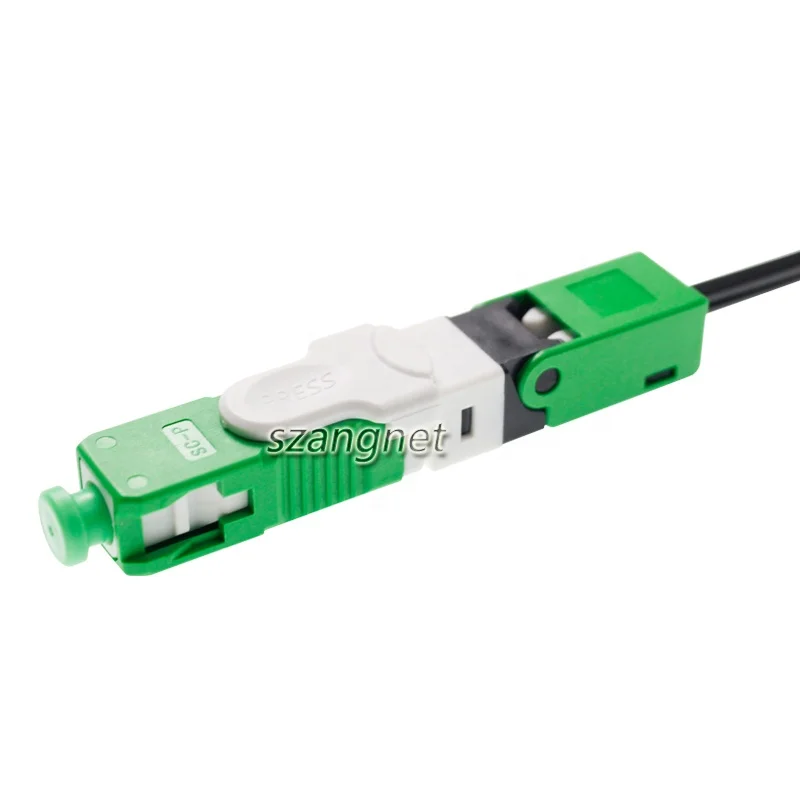

ESC250D Mechanical Fiber Optic Connector SC APC Fast Connectors For Drop Cable
- Category: >>>
- Supplier: Shenzhen Angnet Technology Co. Ltd.
Share on (60786292915):
Product Overview
Description
ESC250D Mechanical Fiber Optic Connector SC APC Fast Connectors For Drop Cable
Product Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Feature:
1. Fast and easy termination of rectangular section FTTH drop cable
2. No polishing or adhesives required
3. Terminate cable to exact required length
4. Can be re-opened up to 5 times
5. Simple to assemble with our guide rail tool
6. Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
7. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
| Item | Parameter | |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable | |
| Size: | 51*9*7.55mm | |
| Fiber Diameter | 125μm ( 652 & 657 ) | |
| Coating Diameter | 250μm | |
| Mode | SM | |
| Operation Time | about 15s(exclude fiber presetting) | |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) | |
| Return Loss | ≤ -50dB for UPC, ≤ 55dB for APC | |
| Success Rate | >98% | |
| Reusable Times | >5 times | |
| Tighten Strength of Naked Fiber | >5 N | |
| Tensile Strength | >30 N | |
| Temperature | -40 ~ +85 C | |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
| Mechanical Durability(500 times) | IL ≤ 0.3dB | |
| Drop Test | IL ≤ 0.3dB | |
| (4m concrete floor, once each direction, three times total) | ||
Applitcation:
1. No special tools needed when installed;
2. Can be made on-site without splicing connectors ;
3. Only 30 seconds needed to learn the process of installation and making;
4. Can be intalled and maked repeatedly thus avoiding loss
Related Products
Factory Show
Shenzhen Angnet Technology Co., Ltd, established in 2015, located in Shenzhen China, is a professional manufacturer engaged in the research, development, production, sale and service of Fiber optic products and network products. Our main products: FTTH products and Network products.
Quality and standards are the foundation of Angnet, we have passed many quality system verifications, like ISO9001 and RoHS. Dedicated to strict quality control and thoughtful customer service, Our products are selling well in all cities and provinces around China, and overseas.
The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service. Shenzhen Angent Technology Co., Ltd is looking forward to cooperate with you.
FAQ
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
