PE High & Low pressure Blowing Film Machine/PE film extruder/Shopping bag blown film machine
- Category: >>>
- Supplier: Ruian Guotai Plastic Machine Co. Ltd.
Share on (60786336728):
Product Overview
Description
Banner
Products Description

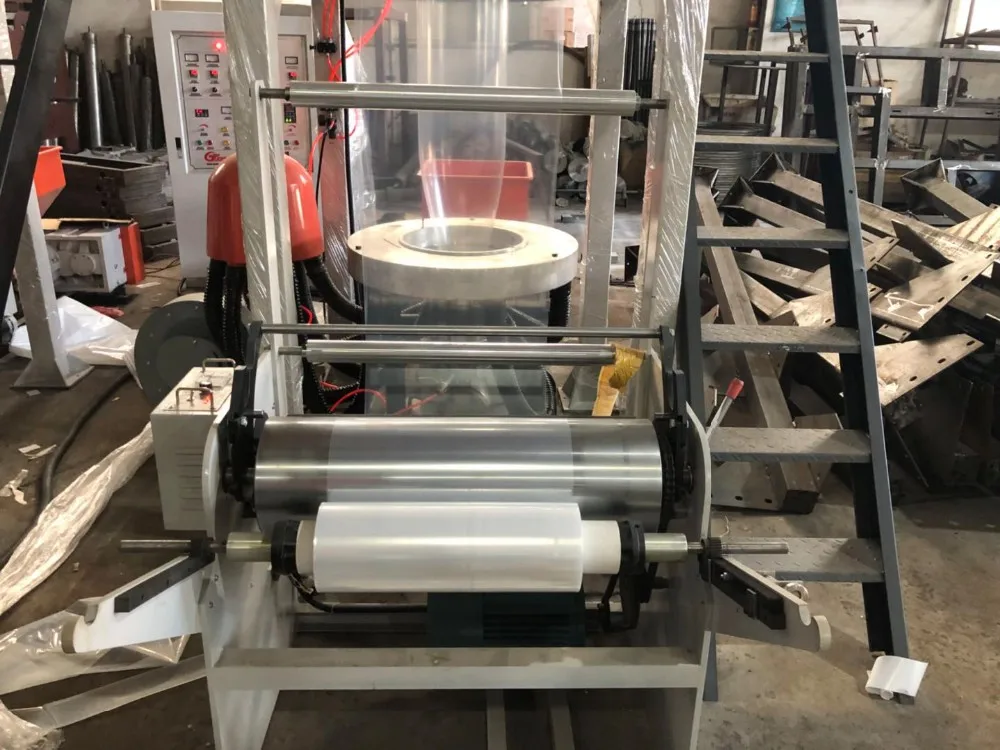

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Model | A50 | A55 | A65 | A65-1 |
Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
Reduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
Single-face Thickness of film(mm) | 0.01-0.08 | 0.01-0.08 | 0.01-0.08 | 0.01-0.08 |
Max.Extrusion(kg/h) | 35 | 50 | 65 | 80 |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Power of main motor(kw) | 11 | 15 | 18.5 | 22 |
Power of Traction motor(kw) | 1.1 | 1.1 | 1.5 | 1.5 |
Heating Power(kw) | 11 | 13 | 19 | 21 |
Outline diameter(L*W*H)(mm) | 5000*1600*3800 | 5600*2200*4700 | 6500*2300*5150 | 6500*2500*5150 |
Weight(T) | 1.8T | 2.2T | 2.6T | 2.8T |
Machine Parts

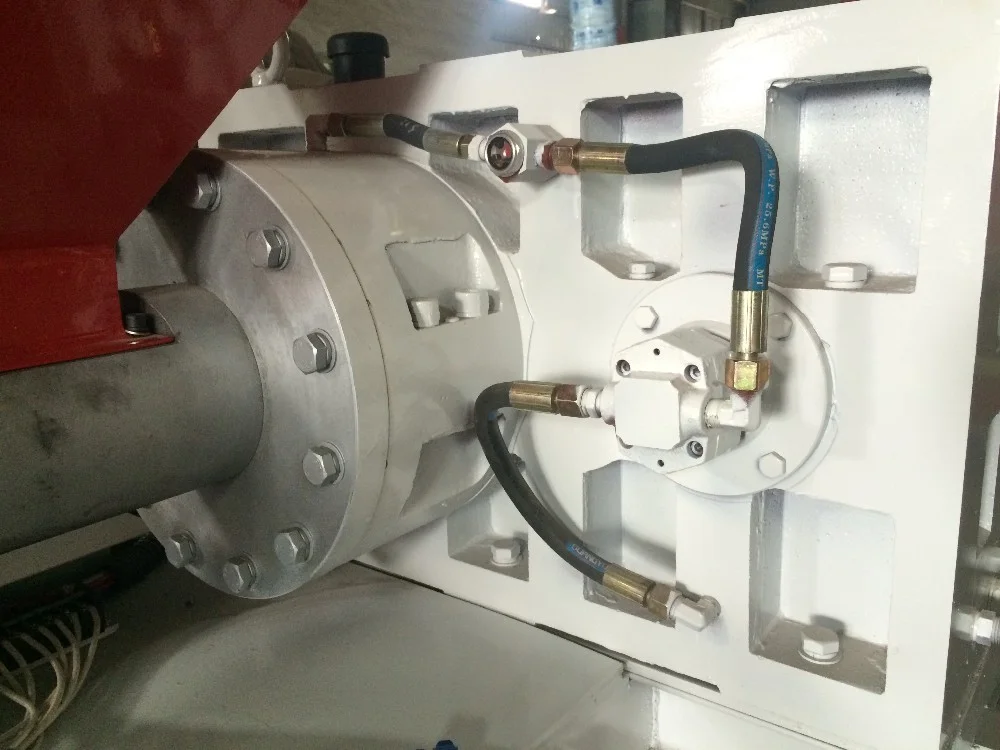

Name: Gearbox
Brand: Guomao
Original:China
it is hard surface gearbox. with Oil Lubrication system and water cooling system
Main Features

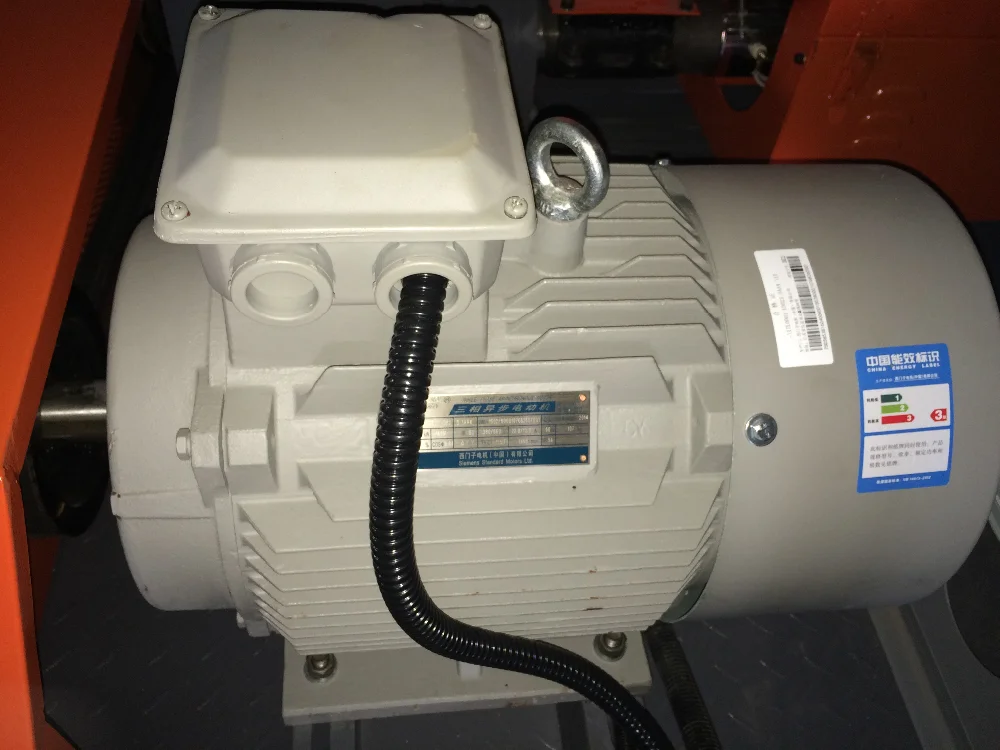

Name: Main driving motor
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
Machine Parts

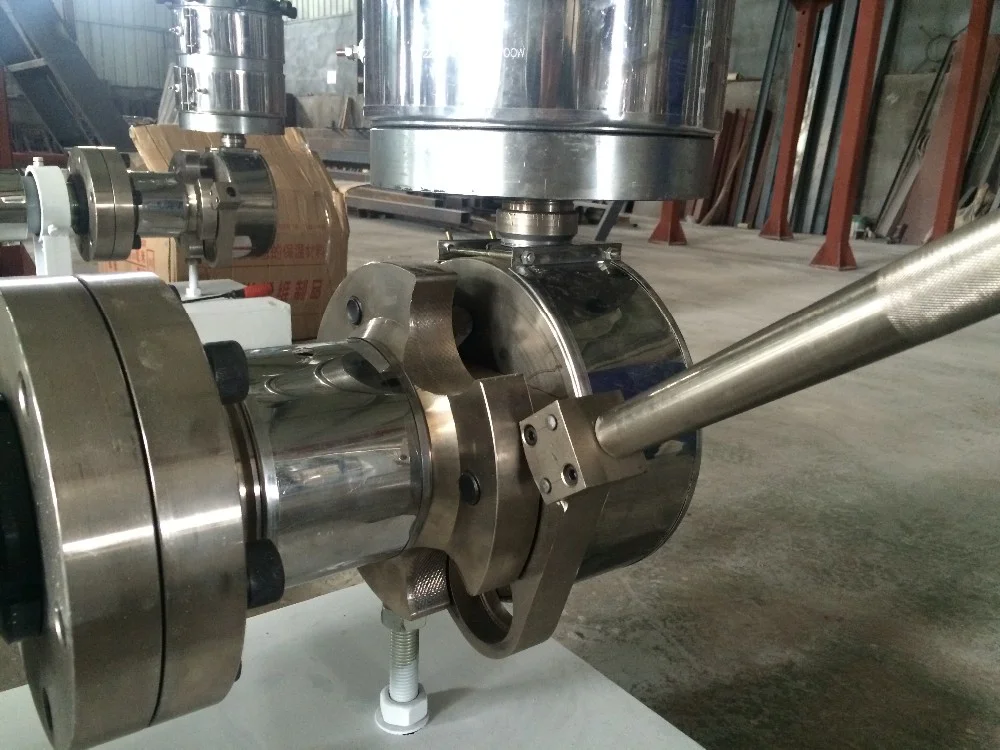

Name: Fast Screen Changer
Brand: Guotai
Original: China
It is 45 Steel Materials, very stronger, non leakage
Main Features

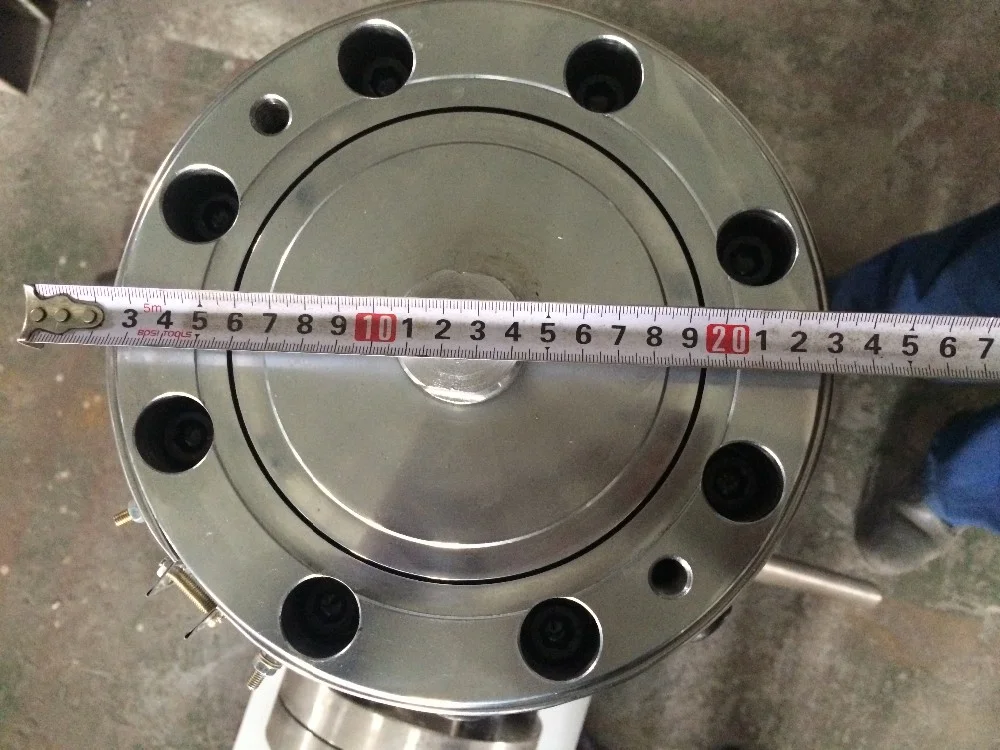

Name: High Speed Die Head
Brand: Guotai
Original: China
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Machine Feature

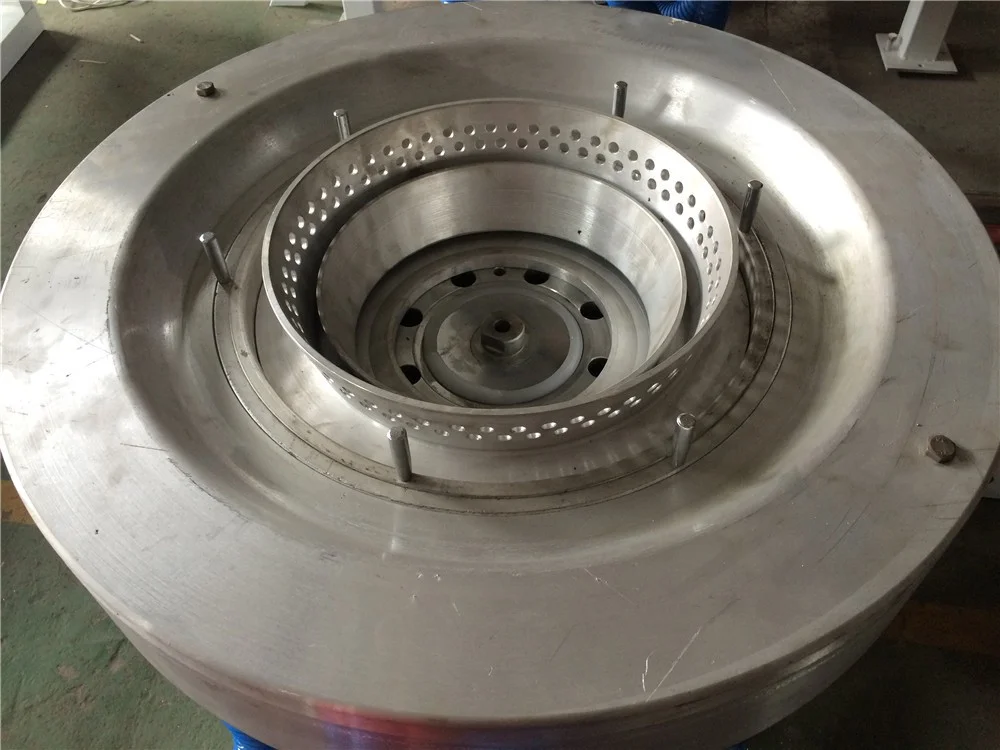

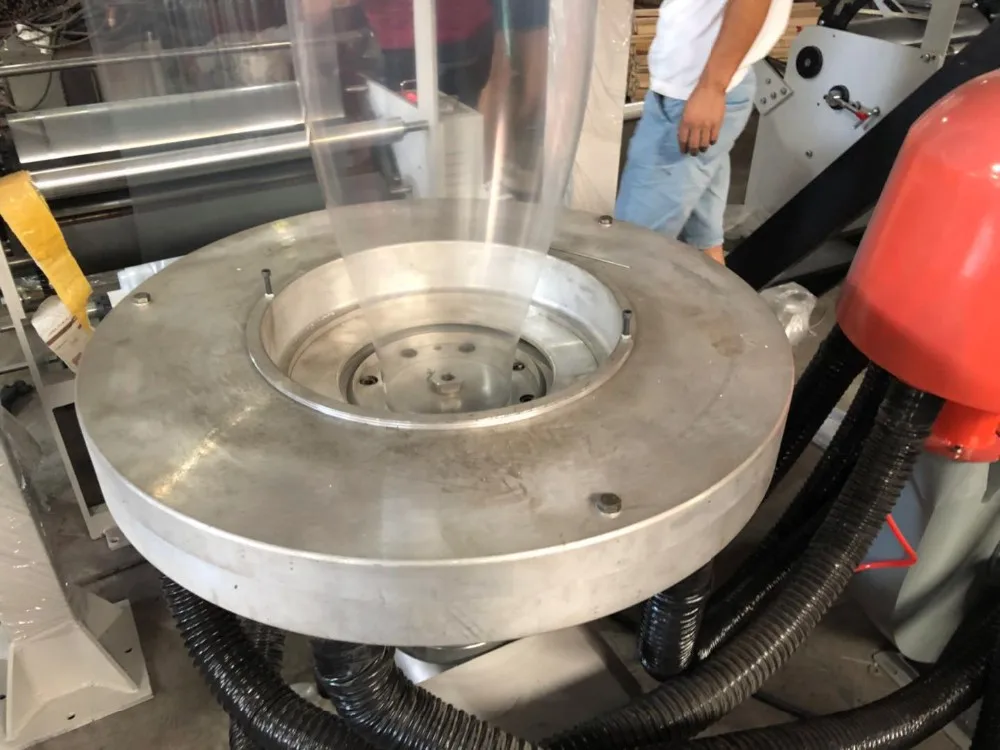

Name: Double vent air ring
Brand: Guotai
Original: China
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Machine Feature

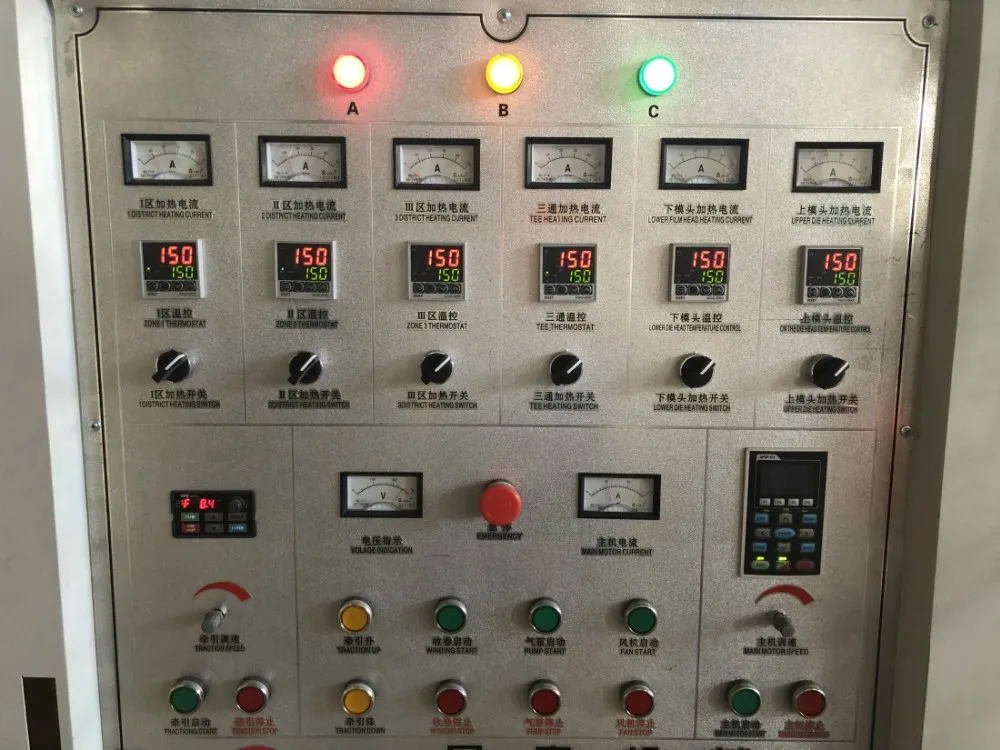

Name: Electric Box
Brand: Guotai
Original: China
Temperature controller is Omron Brand
Inverter is LG brand
Switch is CHINT brand, best supplier of China
Main Products
Company Profile
Packing & Shipping
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.Our factory has been engaged in making plastic machine since 1988.
2.Q：What equipment do you mainly produce？
A:Including film blowing machine, bag making machine, printing machine, stretch film machine, slitting rewinding machine,bubble film machine, label printing machine and recycling machine
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4. Q: What's the main market of your company?
A: We have customers all over the world.
5.Q:What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
Welcome old customers and new customers send us inquiries or visit our company. We'll sincerely do our best to offer best quality and service to all customers
A: We are a factory.Our factory has been engaged in making plastic machine since 1988.
2.Q：What equipment do you mainly produce？
A:Including film blowing machine, bag making machine, printing machine, stretch film machine, slitting rewinding machine,bubble film machine, label printing machine and recycling machine
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4. Q: What's the main market of your company?
A: We have customers all over the world.
5.Q:What about the service after sale?
A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.
Welcome old customers and new customers send us inquiries or visit our company. We'll sincerely do our best to offer best quality and service to all customers
