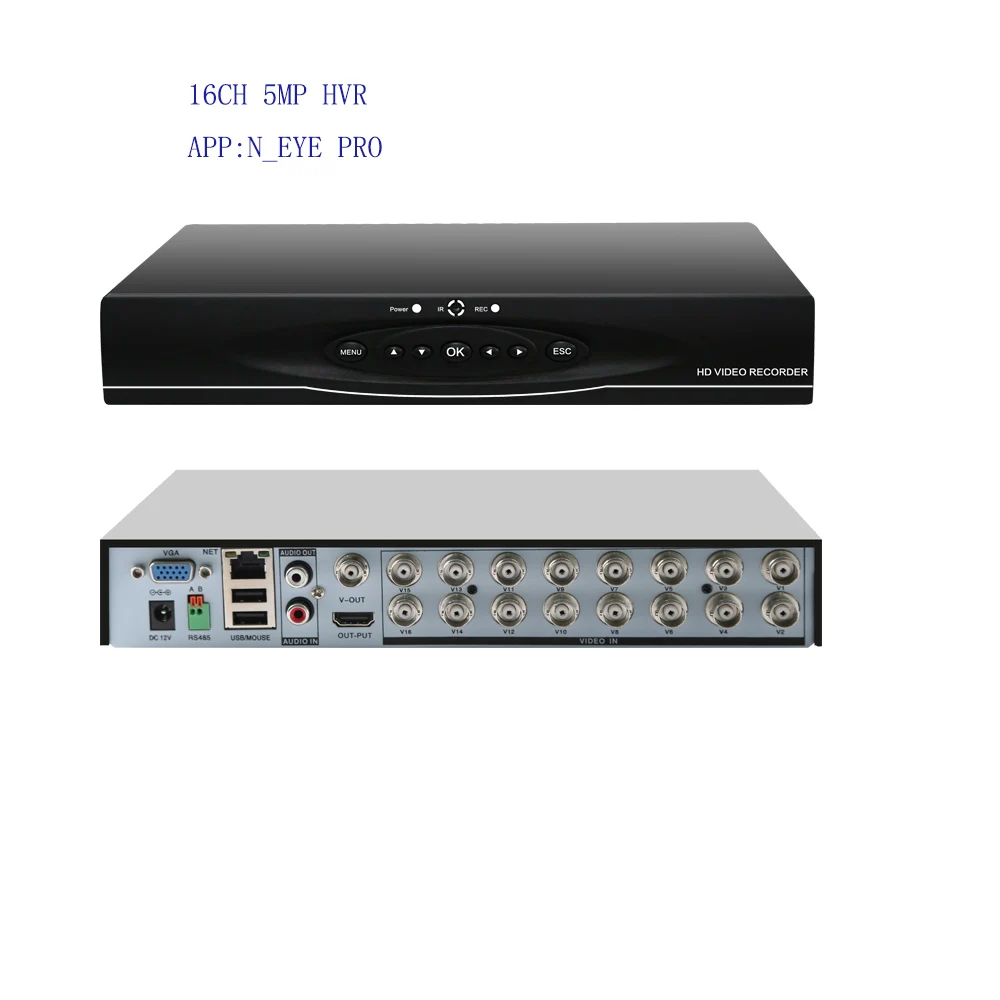

Home cctv security system 16 channel h 264 5MP Digital video recorder Hybrid DVR

Product

Model

HVR9116-C1

System

Main Processor

Embedded processor

Operating System

Embedded LINUX operating system

Video Spec.

Video Coding

H.264

Coding Resolution

16CH 5MP

Video Frame

PAL:1~25FP/S;NTSC:1~30FP/S

Video Bit Rate

512Kbps-4096Kbps,Customizable,Default to be 2048Kbps

dual-stream

Video Streaming / Composite Stream

Audio Coding

G.711

Audio Sampling rate

8KHz,16Bit

Audio Bit Rate

64Kbps

Video Input

16CH BNC Port

Video output

1CH VGA output,1CH HDMI output(CVBS optional)

Audio Ports

Audio Input/Output

1CH RCA Audio Input / 1CH RCA Audio Output

Audio Intercom

Audio Input-Output Multiplexing

Recording Manage

Recording Mode

Automatic, Manual, Motion Detection, Alarm

Playback

4CH Playback

Backup Mode

Mobile Hard Disk / U-Hard-Disk / Network

Network

Protocol

Support TCP/IP,UDP,RTP/RTSP,DHCP,DDNS,NTP etc.

IE Control

With WEB Server to modify configuration parameters and remote control IE

P2P Cloud

Support login via www.yunyis.com to meet One-Key Remote Control.

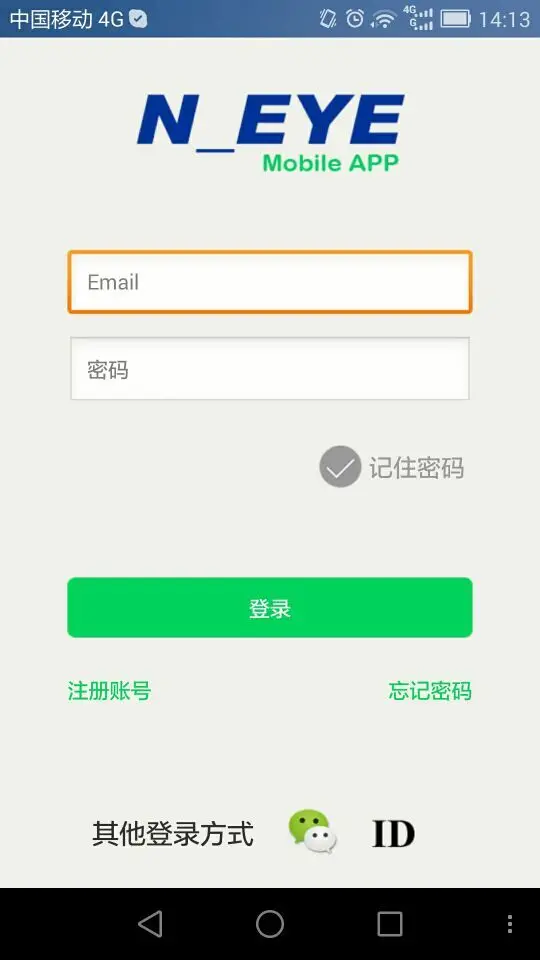

Mobile Remote

Support IOS, Android

HDD

HDD Port

Support 1pc SATA port max 4TB

Interface

Network/USB

1pc RJ45 port, 100M E-internet Port ,USB 2ports

Interface

1  Standard RS485 port

  Others

Power/Consumption

DC12V  ; <15W(No HDD)

Temperature/Humidity

Temperature:-10℃-+55℃ /  Humidity: 10%~90%

Size/Weight

225mm×215mm×45mm / According package Carton
