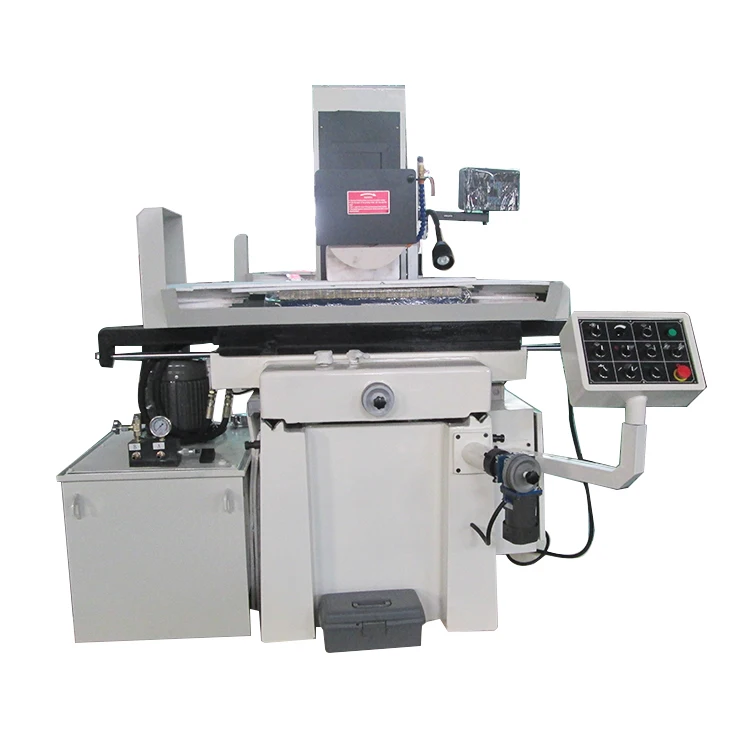

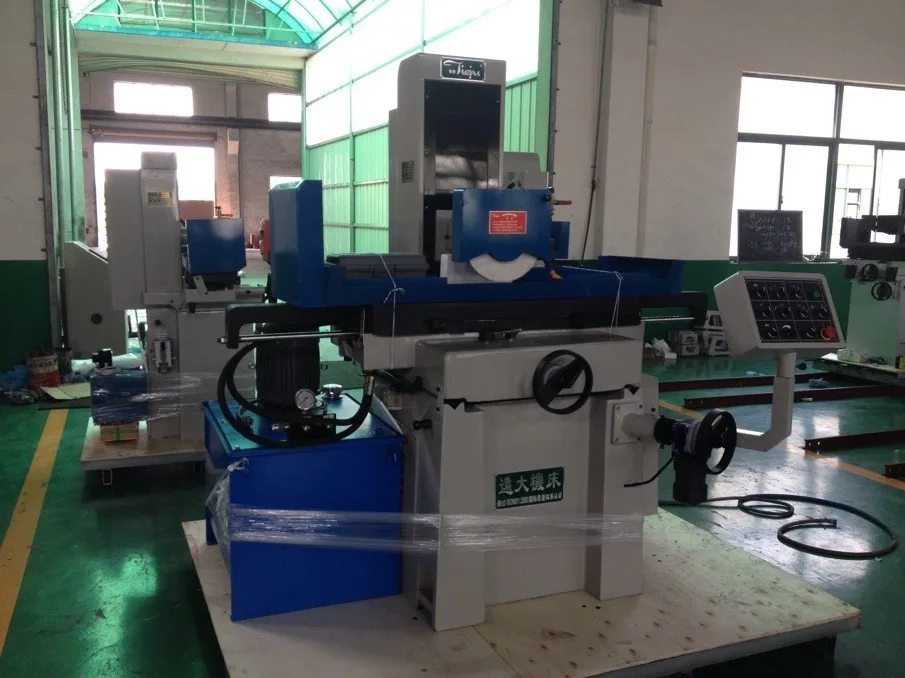

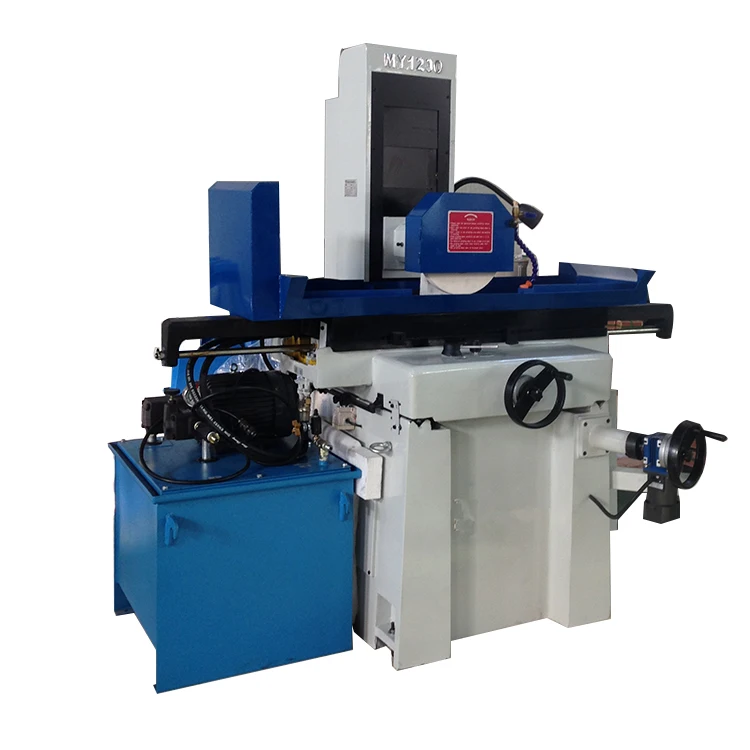

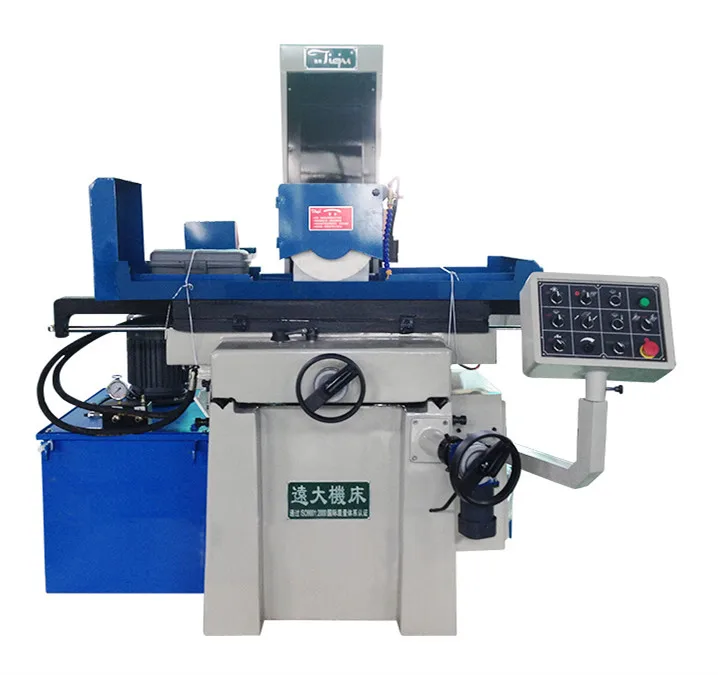

Hydraulic surface grinding machine Surface Grinder for sale MY1224

Model

MY1224

Working table

Table Size (L× W)

mm

600×300

Max movement of working table(L× W)

mm

630×320

T-Slot(number×width)

mm

1×14

Grinding wheel

Max distance from spindle center to table surface

mm

520

Wheel Size(Outer diameter×width×Inner diameter)

mm

φ300×30×Φ76.2

Wheel speed

50HZ

r/min

1450

60HZ

1680

Feed amount

Longitudinal speed of working table

m/min

3-20

Cross feed(front and rear) on handwheel

Continuously(Variable Transmission)

mm/min

600

Intermittently(Variable Transmission)

mm/times

0-6

Per revolution

mm

5.0

Per graduation

mm

0.02

Vertical(up and down) feed on handwheel

Per revolution

mm

2.0

Per graduation

mm

0.01

Speed of vertical feed

Mm/min

360

Motor power

Spindle motor

kw

2.2

Coolant pump motor

W

40

Lifting motor

W

120

Hydraulic system

Hydraulic motor

kw

2.2

Working pressure

Mpa

4

Oil tank capacity

L

100

Max flow

L/min

20

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net

kg

1400

Gross

kg

1530

Overall dimension(L×W×H)

mm

1960x1480x1850

Package dimension(L×W×H)

mm

2000x1640x2020
