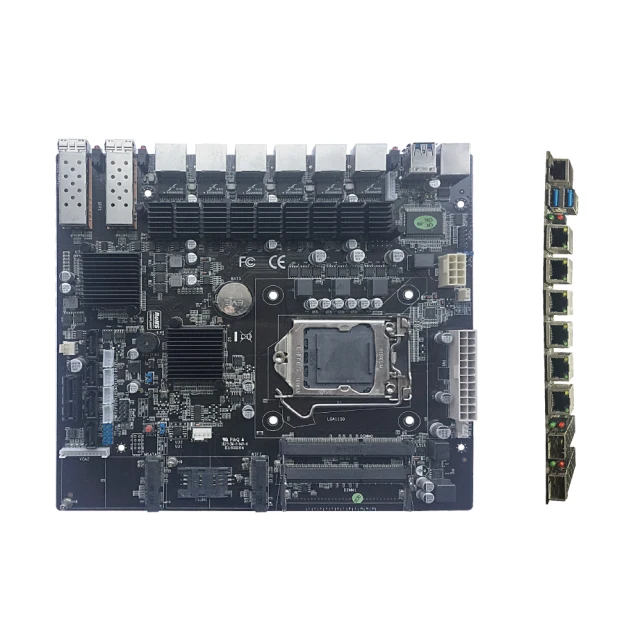

low cost DC 12V mini itx PC motherboard with 32G ram 2x Intel 82599ES 10 Gigabit Ethernet network
- Category: >>>
- Supplier: Shenzhen Armortec Technology Co. Ltd.
Share on (60786387666):
Product Overview
Description

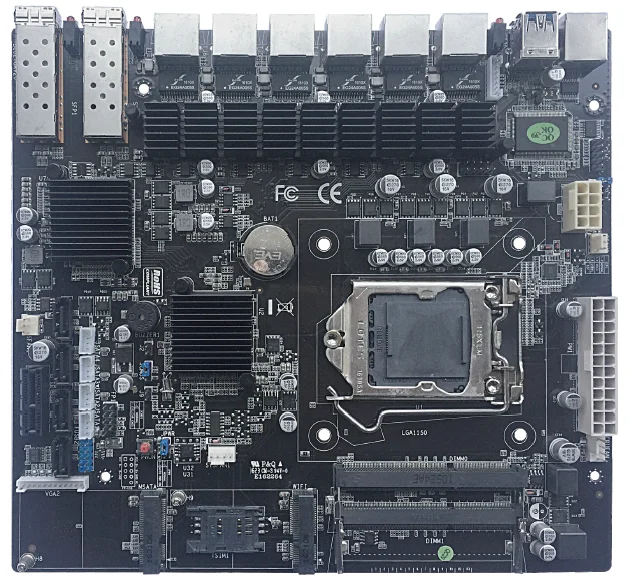

FM-B85P6W
Intel 4thGenerationCorei7/Corei5/Corei3/Pentium/Celeron Processor 6 LAN industrial motherboard
Feature:
Support Corei7/Corei5/Corei3/Pentium/Celeron processor
B85 Chipset
Built in Intel Graphics Media Accelerator
2 x single channel DDR3 1066/1333/1600 MHz memory, Max. 32Gb
2x Intel 82599ES 10 Gigabit Ethernet network
Specification:
Model | FM-B85P6W |
Dimension | 212mm x 230mm |
Processor | Support Intel 4th Generation Core™ Corei7/Corei5/Corei3/Pentium/Celeron processor |
Chipset | B85 |
Display | |
System Memory | 2* SODIMM DDR3 Slot |
support 1066/1333/1600MHz DDR3 memory, up to 32 GB | |
BIOS | AMI 64Mb Flash ROM |
Front I/O | 2* fan connectors:CPU fan connector, system fan connector |
2* SATA header | |
2* USB 3.0 | |
2*USB Pins Headers support 2*USB 2.0 | |
1*PS/2 pin header | |
1*VGA pin header, 1*RS232 pin header | |

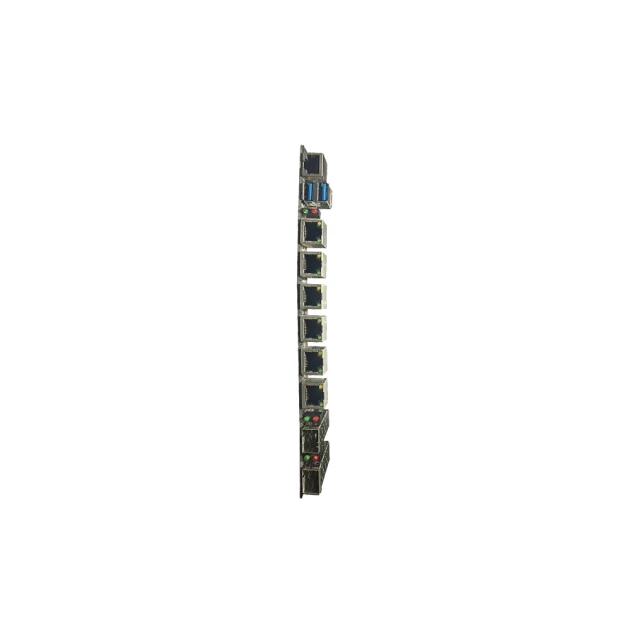

Rear I/O | 2*USB3.0
|
6*LAN | |
2* Intel 82599ES 10 Gigabit Ethernet Controller interface | |
1*TJ-45 console port | |
Expansion Slots | 2*DDR3 memory slot |
1*WIFI | |
1*MSATA slot | |
1*TSIM1 | |
1*PCIE 1X Slot | |
Onboard Serial ATA | 2*Standard SATA header |
1*MSATA slot | |
Onboard LAN | 6* Intel WG82574L .10/100/1000M slot |
OS | Windows 7, Windows8, Windows XP,Linux |
System monitoring and management | System power management |
Temperature management | |
Network wakeup | |
Operating Temp. | -10℃~55℃ |
Operating Humidity | 0-95% (relative humidity; non-condensing) |
Unique performance | None |
Ordering Information
Part number | CPU | Memory | VGA | LAN | USB | console | Power |
FM-B85P6W | Intel 4th Generation Core™ Corei7/Corei5/Corei3/Pentium/Celeron processor | Max. 32 GB | 1 | 6 | 2 | 1 | DC 12 |
FM-1800N4 | Celeron J1800 | Max. 8 GB | 1 | 4 | 2 | 1 | DC 12 |
Packing List
1 | SATA data cable |
2 | SATA power cable |
3 | Driver CD |
Optional Accessories
1 | Rear I/O panel |
Producing Process :
SMT
DPI
AOI
Assembly
Burn- in Room
Packaging
Established in 2011, Armortec Technology Limited has grown rapidly in the industrial motherboard industry, diversifying itself from a manufacturer for industrial motherboard to industrial PC, mini PC, firewall server and industrial motherboards. This has made Armortec the choice vendor for many of the quality-oriented manufacturers that integrate PC assemblies into their non-PC equipment where unique form factor, 24/7/365 operation, strict revision control, harsh operating environments, and 5 to 7+ years product life cycles are required.
Armortec is a company that is fully committed to developing its products, services and consumer relations through extensive R&D, strict Quality Assurance practices, and effective outreach initiatives. Customer loyalty through interaction, focus and feedback are policies that help form the Armortec culture, as well as a commitment to achieve, and a dedication to innovate.
In their efforts, Armortec's global achievements in the industry have received both recognition and respect, proving their level of quality and commitment time and time again. Armortec continue to develop award-winning products, offering a complete range of networking solutions consisting of industrial motherboard, industrial PC, mini PC, firewall servers, NAS PC, ATM PC, POS PC and so on.
Through technological advancements and the power of imagination, Armortec is continuing to grow, endlessly striving to achieve their goal of becoming one of the top 3 industrial PC and mini PC providers in China. While continuing to develop their global market share, Armortec will never cease to promote opportunities to further advance through the world of networking and innovation.
Armortec - Technology Creates Future.
Our Services
1.Warranty: 1 year, the second year and the third year, we can
repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: How did I trust your company?
Answer: We have 12 years export from Alibaba, and our factory have more than 16 years' R&D Manufaturing experiences.
Question: After I get the products, If the products are broken , what kind of After-sales service you support?
Answer: First, please contact us and tell us problems, we can give good solutions to you, Second, you can return the goods, and we repair. We want to make a long time business with you, not one time.
