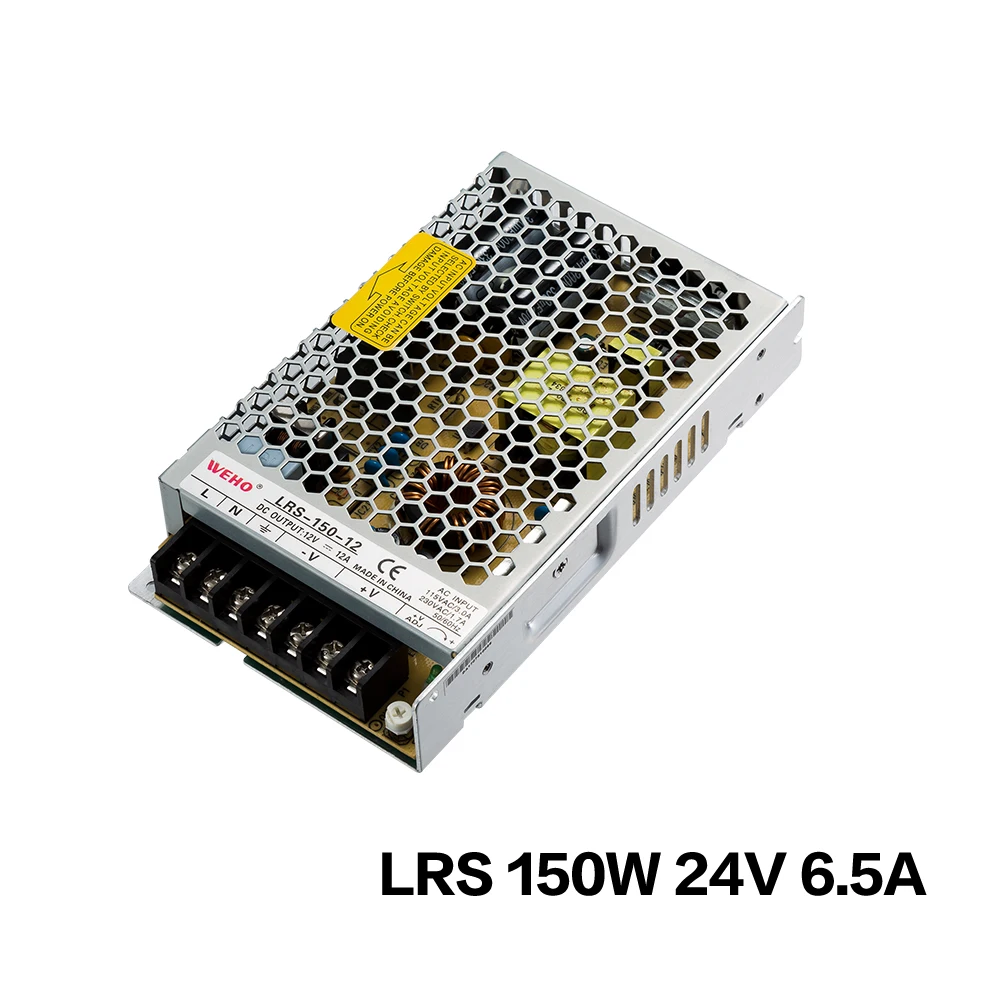

NEW model ultra thin LRS 150 24 110v 220v ac to dc 150w 24v smps

Model

LRS-150-12

LRS-150-24

Dc output voltage

12V

24V

Rated output current

12.5A

6.5A

Output current rage

0-12.5A

0-6.5A

Rated  Power

150W

156W

Wave and noise

150mVp-p

200mVp-p

Voltage ADJ. range

10.2-13.8V

21.6-28.8V

Voltage tolerance

±1%

±1%

Line Regulation

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

Efficiency

87.5%

89.0%

AC input voltage range

AC85~AC264V    47~63Hz; 240~370VDC

Input current

2.8A/115V   1.6A/230V

AC INnrush current

Cold-start  60A/230V

Overload proctection

110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd

Over-voltage protection

13.8-16.2V

28.8-33.6V

Potection type :Shut down o/p voltage,re-power on to recover

Setup rise time

 500ms,30ms/230VAC 500ms,30ms/115VAC at full lod

 Hold up time

40ms/230VAC ,35ms/115VAC at full lod

Withstand voltage

I/P-O/P:1.5KVAC   I/ P-FG:1.5 KVAC   O/P-FG:0.5 KVAC

Isolation resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-30°C~+70°C

Overall dimension

162*97*30mm

EMC standards

EN60950-1

Weight

0.38Kgs
