Anhe 4th Axis Cnc Machine Center Heavy Duty Mould Use Vertical Machining Center Machine
- Category: >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (60786453721):
Product Overview
Description
Product Description

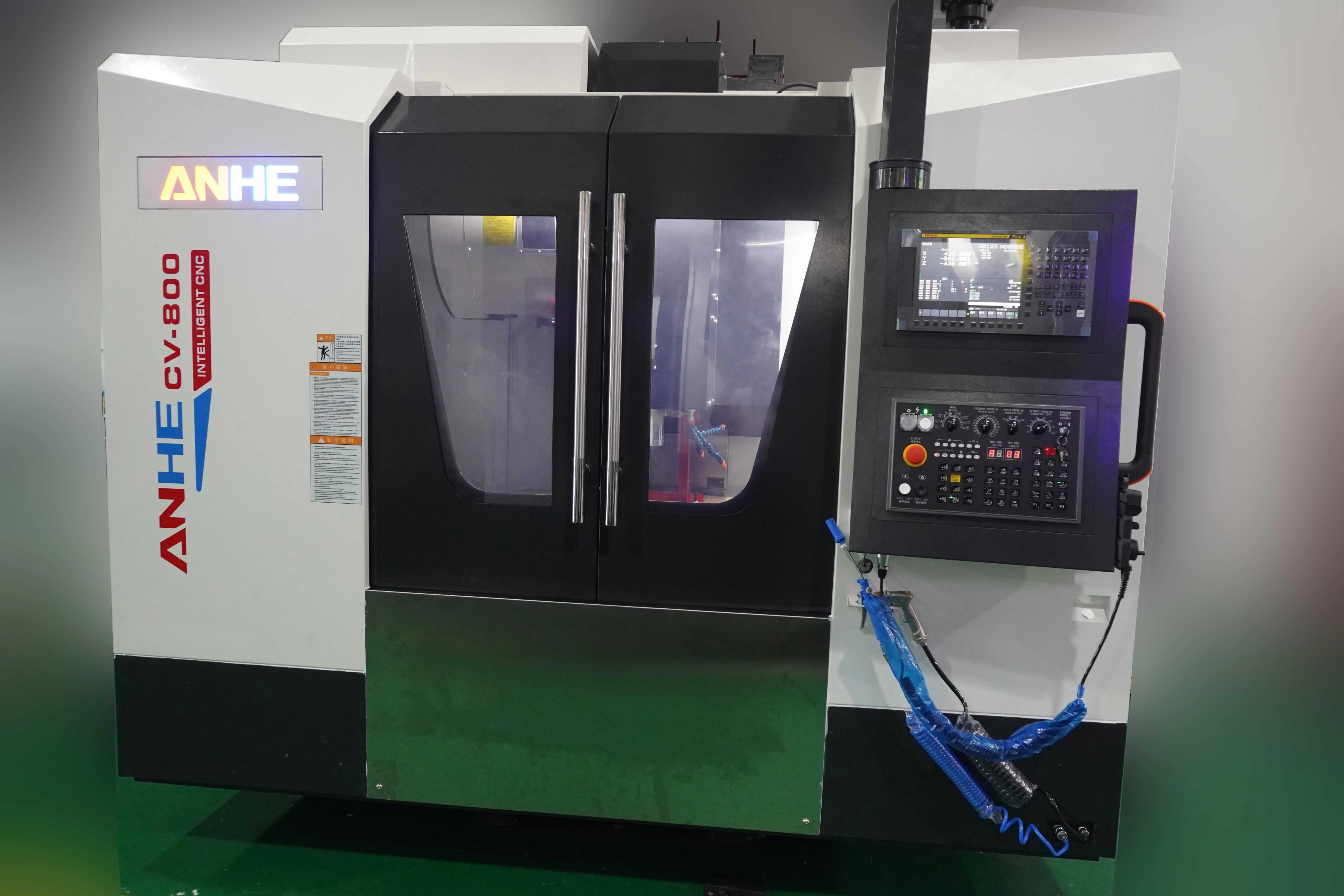

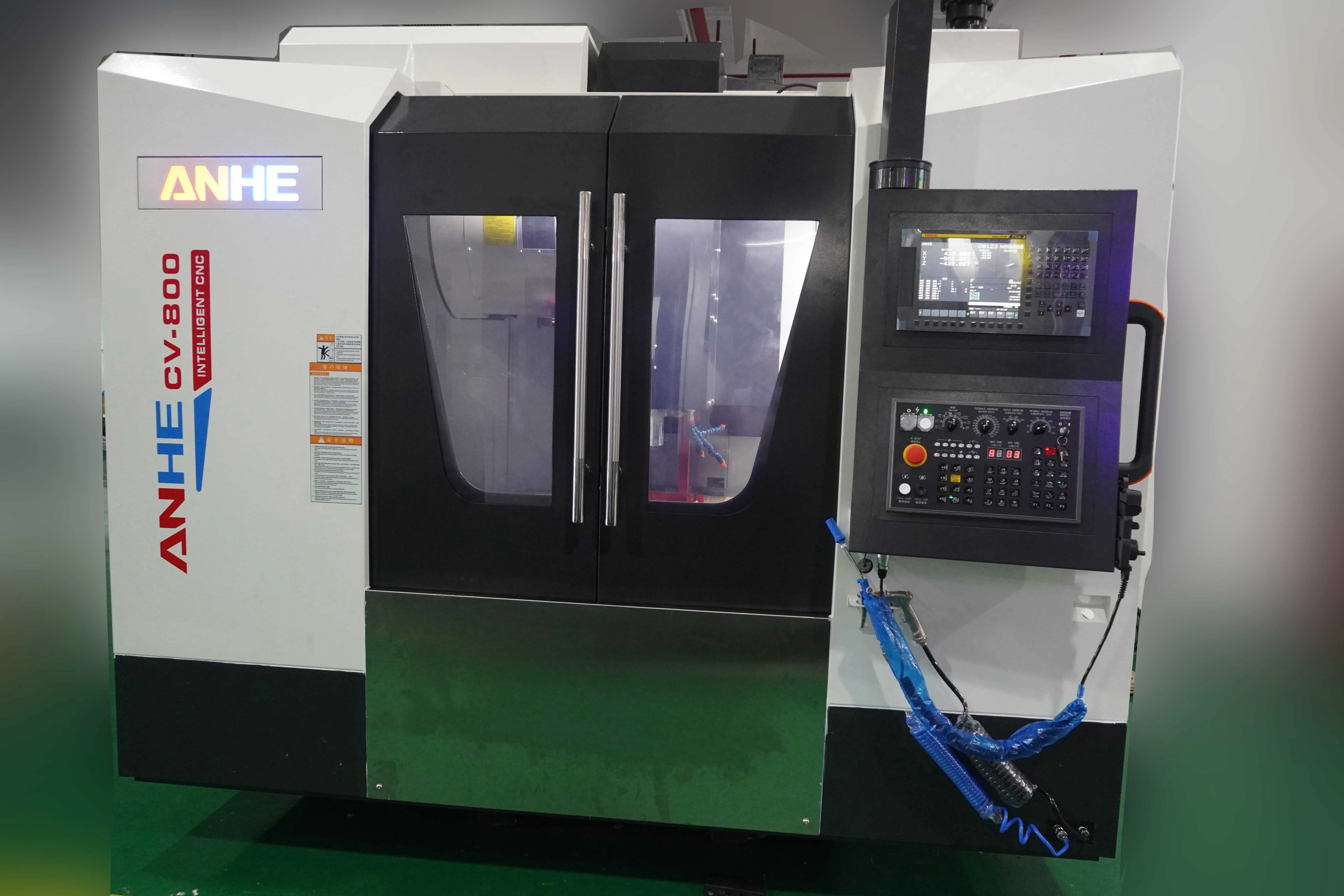

Anhe 4th Axis Cnc Machine Center Heavy Duty Mould Use Vertical Machining Center Machine
Feature:
1.The best bed structure design can withstand the inertia generated by high G
2.High rigidity spindle,makes the tools work long .
3.Three axis rapid movement, greatly shortening the processing time.
4.Used for heavy duty work piece and mould.
Specification
| Model | CV-800 |
| Work table size | 1000*550mm |
| X.Y.Z travel | 820/550/550mm |
| Max loading weight | 600kg |
| Spindle nose to work table | 130-680mm |
| T-slot | 18*5*100mm |
| Spindle taper | belt drive BT40 |
| Spindle speed | 8000RPM |
| Spindle power | 7.5KW |
| Three axis motor power | 3.0/3.0/3.0 KW |
| Thress axis fast moving | 36m/min |
| Ball screw | ¢40*12/10 mm |
| Linear guide way | X:35*2,Y:45*2,Z:45*3mm |
| Positioning accuracy | ±0.005/300mm |
| Re-positioning accuracy | ±0.003/300mm |
| Machine size | 2600x2700x2400mm |
| Weight | 5500kg |
Standard accessories

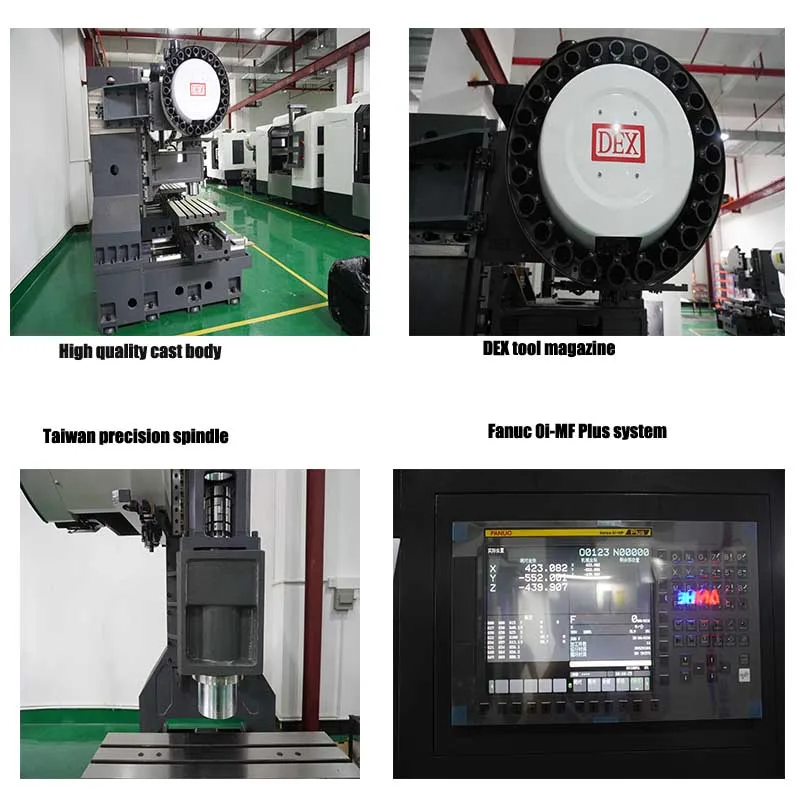

| System | Fanuc 0i-MF Plus 5 package |
| Spindle motor | Fanuc |
Spindle | Spintrue |
| Ball screw | PMI |
| Guide way | PMI |
| Bearing | NSK(Japan) |
| Cable | Fanuc |
motor Spindle oil cooler | RUIKE |
Tool magazine | DEX (24T) |
Three axis telescopic | Fanuc Keyarrow |
| Coupling | JIUYANG |
| Handwheel | Tosoku |
| Circuit breaker | Schneider |
| Connect | Schneider |

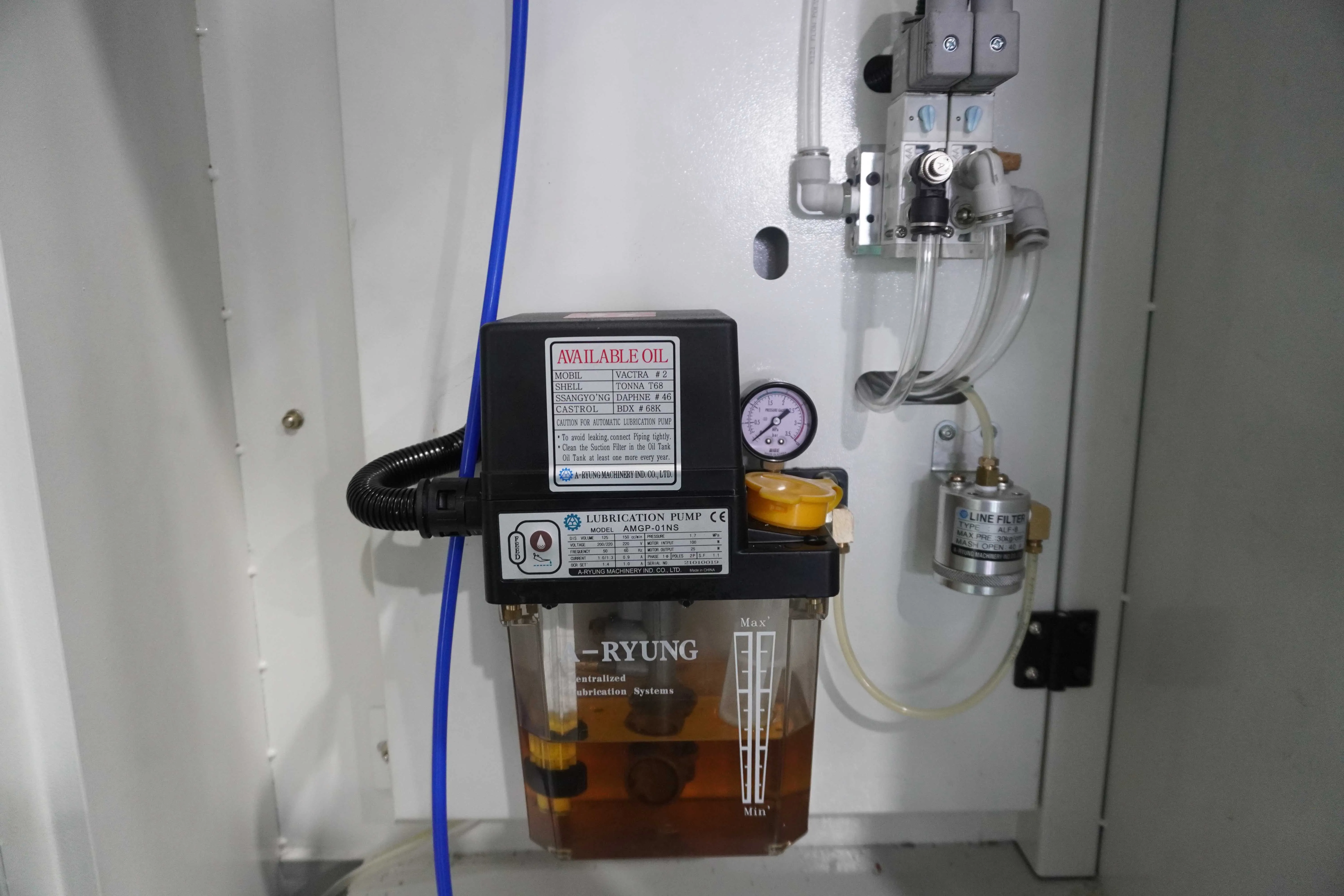

| Cutting tool motor | A-RYUNG |
| Blowing system | SMC |
| Cutter head | KENTURN |
| 4th axis cnc rotary table | (Optional) |
Product Overviews
FAQ
Q: What's the lead time of the cnc machine center
A: Normally need 30-45days
Q: What's the system of the cnc machine center ?
A: System base on customers request ,for example :Fanuc ,Siemens,Mitsubishi ,GSK etc .
Q: What's the package of cnc machine center ?
A: The cnc machine center will be packed in a plywood case
