2.6 CBM self loading concrete mixer truck for sale

            Product Application  for  CMT2600R self loading concrete mixer

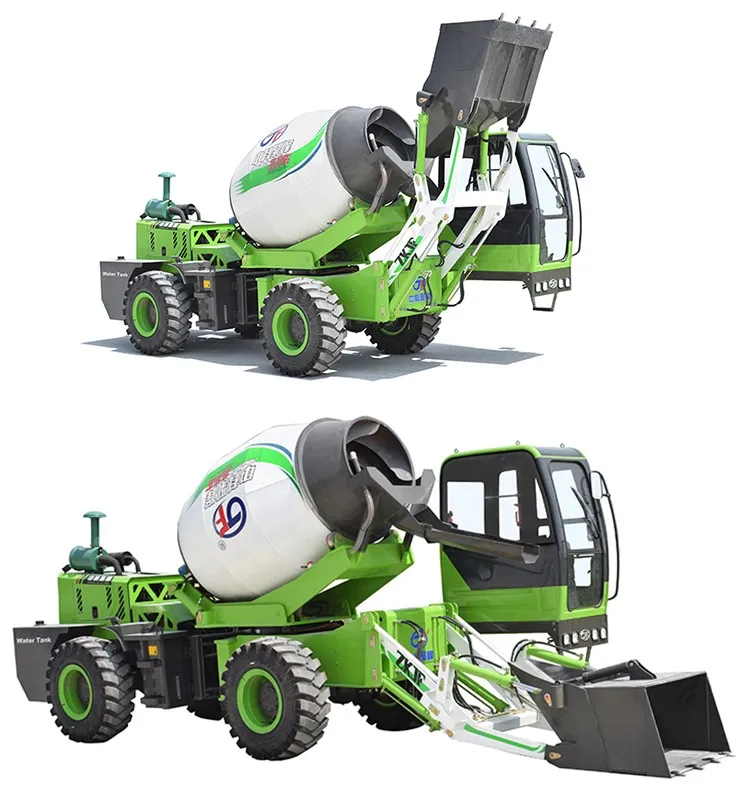

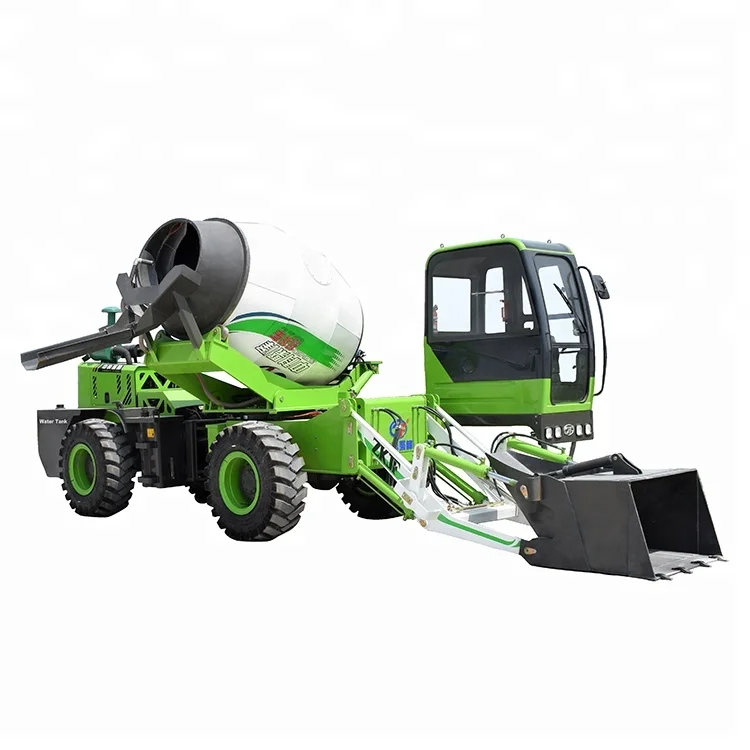

CMT2600R  Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,78 kW Diesel engine and 4 wheel  drive plus 2 wheel steering,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 270° for high discharge over

2 m on the four sides of the vehicle.

The the Geometric Volume of Mixing Drum is 3.6 m³. Concrete output is 2.6 m³  per Batch.  The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 83 m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Main Features

2) The  Articulated Structure Chassis Design for shorter turning radius

3) The mixing unit could slew hydraulically up to 270°

4) Bottom Hydraulic Lifting Mechanism for easy discharge of material.

5) 500 Liter Teeth Fitted Shovel completed with Hydraulic Opening Gate

6) Excavator Style  Spacious Driver’s Cab with  A/C and Fire Extinguisher inside

8) Rear Location of Water Tank

China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional

Articulated Structure

Chassis Design

The Chassis of this machine is articulated structure, which could make the machine more flexible and get shorter turning radius

than that with integrated chassis

Mixing  Drum could slew hydraulically up to 270°

 The mixing Drum could slew hydraulically up to 270° for high discharge over 2 m on the four sides of the vehicle.  One  set of 1.2 m chute is standard equipment. The extra prolonged chute is availabe upon request.

 Bottom Hydraulic

 Lifting Mechanism

 Two pcs of hydraulic cylinder are fixed at the bottom  of mixing drum. The hydraulic cylinder will lift the dum up to 19° while the drum is reversing for material discharge, which could

make the discharging of material  more complete. The residue left in the drum is very few.

500 Liter Teeth Fitted Shovel

Excavator Style Spacious Driver’s Cab

Our driver's cab is much more spacious than other's.  It is a kind of crawler excavator style cab. Two sets of joystick control system are  situated on the two sides of driver's

seat. The Panoramic Color Monitor  is near the steering wheel. The operation situation  from the four sides of machine could be shown clearly on the Color Monitor, which increase the safety of drive. Fire Extinguisher , Safety Hammer and Air Conditioner are also equipped inside the cab.

Off Road Industrial Steel
Wire Line Tyre

The machine is equipped with Off Road Industrial Steel Wire Line Tyre with model of 16/70-20, PR14.  The  drive means is 4x4 .The steel wire line tyre is much more stronger nylon  tyre, which could ensure the machine work safely on muddy and bumpy road.

Rear Location of Water Tank

Two PCS of Water Tank are positioned opposite each other at the rear of machine, with total volume of 500 Liter. The electric water pump is mounted on the top of water tank, which is beneficial to suck water from water tank easily.

Q1.: Are you trading Company or Factory?

A:  We are factory. We have been engaged in the production of  self loading concrete mixer

   for more than 27 years.

Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock,

it will be about 20 days, subject to the quantity you ordered.

Q7.:  What is your acceptable payment terms.

  A: By T/T. 30% deposit in advance, balance to be paid before delivery.

   or By irrocable LC at Sight.
