Saftty BW BCP 140 Thermal Protector Instead Ff SEKI ST 22
- Category: >>>
- Supplier: Guangzhou Saftty Electronic Technology Co. Limited [Guangdong China]Guangzhou
Share on (60786495245):
Product Overview
Description
Saftty BW-B series thermal protector
Specification
1. Snap action and auto-reset
2. UL/TUV/VDE/CQC certified
3. Mini size & 10,000 times cycle
4. Plastic/metal case available
5. Suitable for most impregnation processes
|
Application |
AC motors, pumps, battery packs, transformers etc. |
|
Reset type |
Automatic |
|
Electrical Rating |
5A / 250VAC |
|
Max. Operating Temperature |
170°C |
|
Min. Operating Temperature |
40°C |
|
Tolerance |
±5°C for open action(Optional ±3°C or less) |
|
Protection class |
IP00 |
|
Contact material |
Silver |
|
Dielectric Strength |
AC 1500V for 1 minute or AC 1800V for 1 second |
|
InsulationResistance |
More than 100MW at DC 500V by Mega Ohm tester |
|
Resistance Between Terminals |
Less than 100mW |
|
Approvals |
UL/ TUV/VDE/CQC |
|
Terminal type |
Custom available |
|
Lead Wire |
UL10362 AWG22/UL3398 AWG22/custom available |
Packaging & Shipping
Company Information

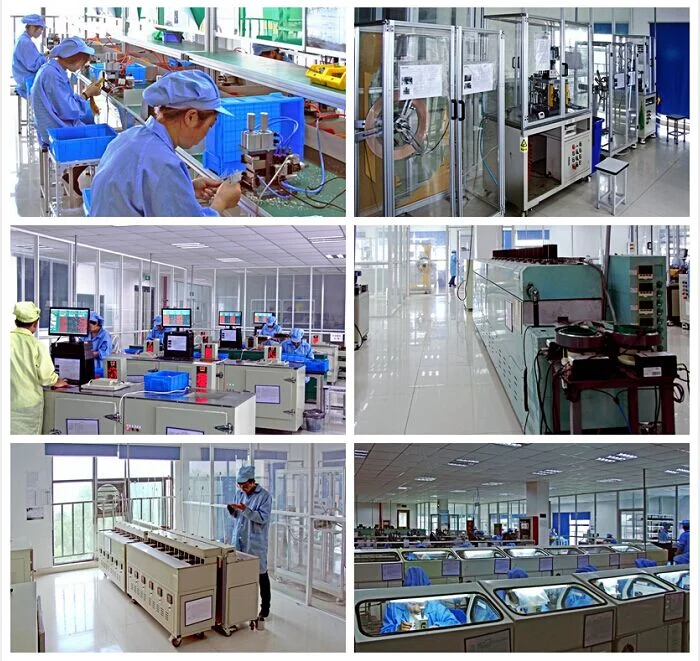

Our factory:
Our Certificate :
Our Exhibition :
Our Partners :
FAQ
1.What's your company mianly products ?
Thermal protector, thermal cutoff , thermal switch, thermal fuse, PTC, etc .
2.Where is your market ?
UK, Italy, Germany ,Turkey, France, USA, Brrazil, India, Sri Lanka, Hongkong, Thailand and so on.
3.What applications are thermal protectors used for?
Motor, power supply, battery, transformance, fan, heating machine ,etc .
4.What's your after sale service?
When meet problems ,pls contact the sales and then we will offer you the solutions within 24 hours .
5.Do you offer the samples ?
Yes, we would offer below 20pcs free samples for your check and test.
6.Are you manufactory ?
Yes, we own manufacturing base in Yangzhou,Jiangsu and sales office in Guangzhou.
