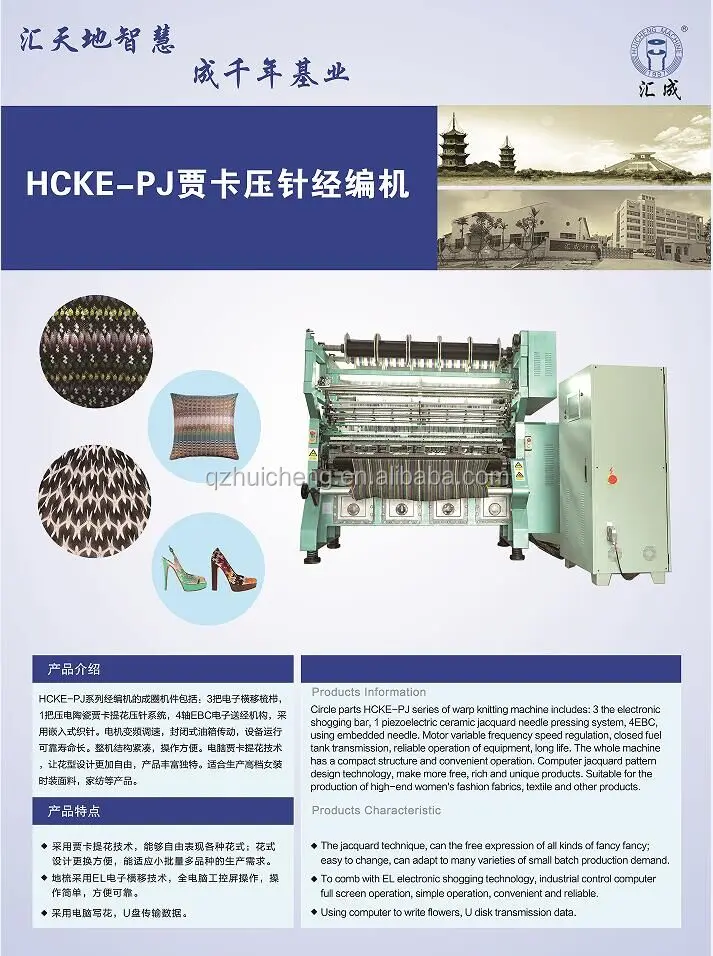

HCKE PJ Tricot Jacquard Muster Press Knitting Machine

Product Overview

Description

High Lights of HCKE-PJ Tricot Jacquard Muster Press Knitting Machine

• 4 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Japanese brands)
• 3 guide bars EL: Pattern processes can be input through USB, active and saved with PLC
• Cut presser: EL and  jacquard
• Equipped with embedded needles
• Main motor frequency conversion, CVT
• Touch screen operation
• Standard: Q/HCZZ001-2018
• Suitable products: Fashion shell fabric,Jacquard mesh fabric

Technical Specification of HCKE-PJ Tricot Jacquard Muster Press Knitting Machine

• Needle-type: Bearded needle
• Machine gauge: E12
• Products width allowance: 3234mm(132")
• Number of guide bars: 3
• Cut presser: EL and jacquard
• Method of warp let-off: E-positive, customized beaming parameters (EBC)
• Beam size: 14”
• Flange Diameter: φ356
• Shaft Diameter: φ102
• Aperture: φ70
• Beam Width: 356
• Density tuning method: Digital controlled, PC touch screen operation (EBA)
• Braiding method: EL, digital controlled presser
• Main shaft speed: 500 RPM (frequency control)
• Main motor: 2.2 KW
• Yarn feeding motor: 0.5 KW×2 pieces
• Shogging motor: 0.75 KW×4 pieces
• Outline dimension:
• 132”: 4200mm (Length) x 2200 mm (wide) x 2600mm (height)
• Total weight: Approximately 3500 Kg
•
