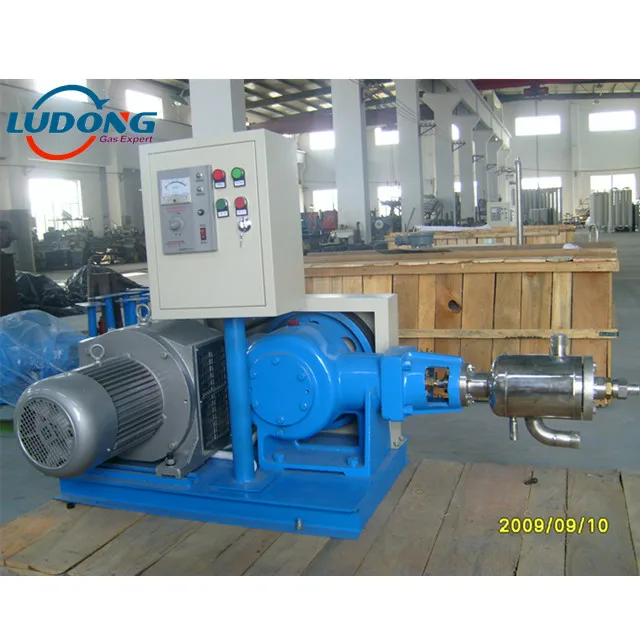

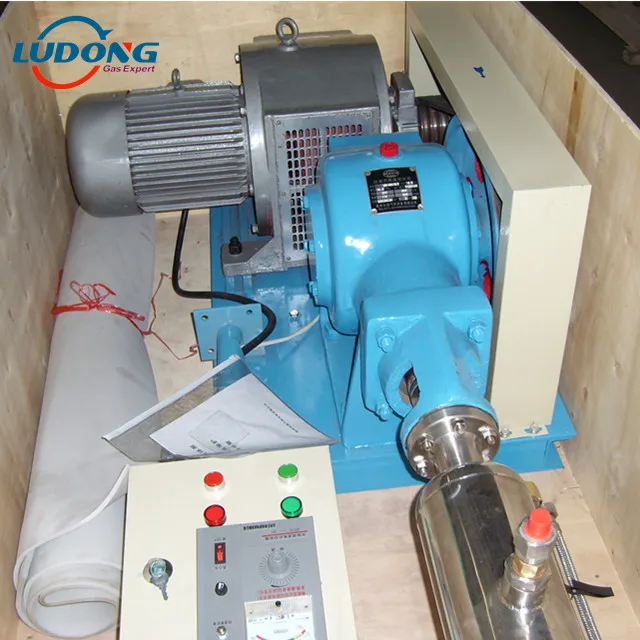

LOX LIN LAR cryogenic pump

Product Overview

Description



CRYOGENIC PUMP



Product Description Brand: BPO

Product Description: Cryogenic Liquid Pump

Medium: LOx,LN2,LAr

Throughput/Flow: 5~6000L/h Outlet Pressure: 0~40MPa



1. Product Introduction



The new generation of reciprocating cryogenic liquid pump is elaborately designed and produced by our company, based on the latest technologies introduced from foreign countries. It is compatible for liquid oxygen, liquid nitrogen and liquid argon fill-up systems. The function of this pump is filling the liquid gas to the steel cylinder from gas tank. The stability of the equipment in long-running is guaranteed by the simplified and optimized design and elaborate manufacture.



2.Performance and Features

The pump has new and optimized structure, high quality materials, elaborate manufacture, high stability, long working life, and is easy to use.

Drive system is of connecting rod level and crosshead structure and its working life is longer.

High pressure reciprocating cryogenic hydraulic pump adopts the high-vacuum cold end clamping pump head, with short pre-cooling time and little liquid loss.

Built-in filter which is practical and reliable

Piston ring and sealing ring are made of macro-molecular compound material of good anti-abrasion. It has long working life.

Convenient operation, Start-up time is only about five minutes.

The running of pump will not increases pressure in storage tank, but will reduce it after long time operation.

The pump is driven by large scale speed-adjustable motor, easy and convenient to use Low energy consumption and low noise.



3. Technical Parameters



Model	Medium	Flow rate (L/h)	Inlet pressure	Max output pressure	Electricity	Motor speed(r.p.m)	power (KW)
BPO-15-75/16.5	Liquid argon, oxygen, nitrogen	15-75	0.02--1.6 Mpa	16.5Mpa	380V, 3 phase, 50HZ or 220 V    3 Phase	600---1200	3
BPO-30-80/16.5		30-80					3
BPO-100-300/16.5		100-300					5.5
BPO-100-450/16.5		100-450					5.5
BPO-200-600/16.5		200-600					5.5
BPO-400-800/16.5		400-800					7.5
BPO-600-1000/16.5		600-1000					7.5





(Pump with customized throughput and pressures as per client’s requirement is available. 25Mpa max output pressure can be manufactured according to customer requirements)





4. Scope of Supply



Pump head, accessories and quick-wear parts



Ripple-pipe compensator



Speed-adjustable motor, strap and strap wheel



Electric controlling box, special toolbox, heat insulating material of pipe



Wheel box, accessories and quick-wear parts



Installation, Operation and Maintenance manual
