Sincerity 0.1 Precision Grade Competitive Price Coriolis Foam Mud Solid Coffee Density Meter For Petroleume
- Category: >>>
- Supplier: Beijing Sincerity Automatic Equipment Co. Ltd. Tongzhou Branch
Share on (60786690451):
Product Overview
Description
Product description
| Code | Product | |||||||||||

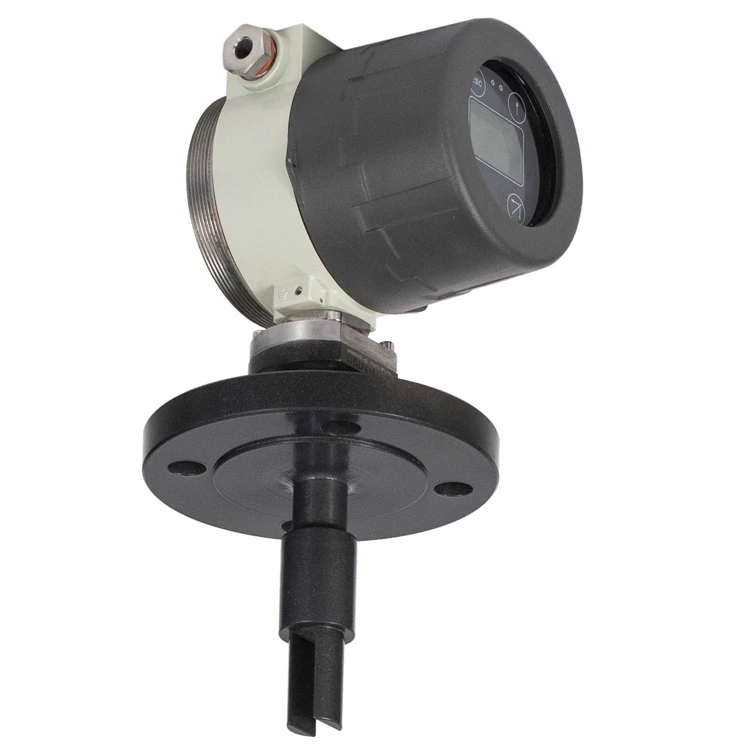

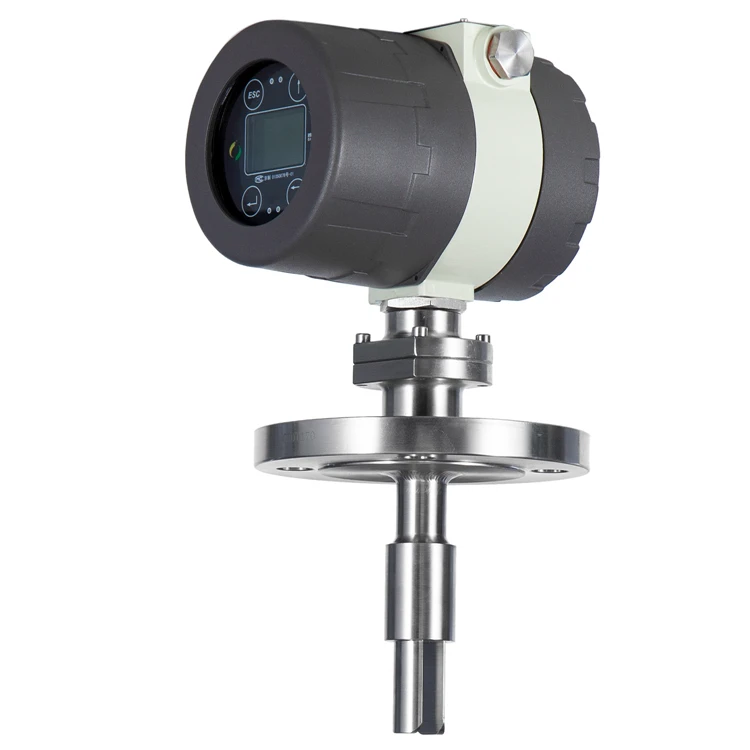

| CR | DMF-1-CR Insertion Density Meter | |||||||||||
| code | Fork Material | |||||||||||
| A | SS 316L | |||||||||||
| B | HC Hastelloy | |||||||||||
| C | SS316L with PTFE | |||||||||||
| D | HC Hastelloy with PTFE | |||||||||||
| code | Output | |||||||||||
| E | 4-20mA 0-1000Hz RS485 Modbus RTU | |||||||||||
| code | Power Supply | |||||||||||
| A | 24VDC | |||||||||||
| B | 220VAC | |||||||||||
| code | Transmitter Casing Material | |||||||||||
| F | Aluminium Alloy | |||||||||||
| code | Pressure Class | |||||||||||
| 16 | 1.6MPa | |||||||||||
| 40 | 4MPa | |||||||||||
| XXX | Special pressure can be ordered | |||||||||||
| code | Process Connection | |||||||||||
| A | DN50 HG/T 20592-2009 RF | |||||||||||
| B | Chuck Connection | |||||||||||
| XXX | Special connection can be ordered | |||||||||||
| code | Length | |||||||||||
| 128 | Standard 128mm | |||||||||||
| XXX | Special length can be ordered | |||||||||||
| code | Extension Pipeline Material | |||||||||||
| A | Without extension pipeline | |||||||||||
| B | SS 316L | |||||||||||
| C | HC Hastelloy | |||||||||||
| D | SS 316L with PTFE | |||||||||||
| E | HC Hastelloy with PTFE | |||||||||||
| code | Flange Material | |||||||||||
| A | SS 316L | |||||||||||
| B | HC Hastelloy | |||||||||||
| C | SS 316L with PTFE | |||||||||||
| D | HC Hastelloy with PTFE | |||||||||||
| code | Installation Method | |||||||||||
| A(XX) | Horizontal Pipeline (XX:Pipeline Size) | |||||||||||
| B(XX) | Vertical Pipeline (XX:Pipeline Size) | |||||||||||
| C | Tank Installation | |||||||||||
| D | Other installation method can be special ordered | |||||||||||
| code | Factory Setting | |||||||||||
| G | Factory Setting Options | |||||||||||
| CR | A | E | A | F | 40 | A | 128 | A | A | A |
G
|
Ordering Information |
Product installation
Vibration turning fork :
The density meters can be installed on both pipelines and in the tanks. If the pipeline size is less than DN150, (6” ) then the enlargement of the pipeline size is required.
