Vvvf Machine Room Home Passenger Elevator

Product Overview

Description

Vvvf Machine Room Home Passenger Elevator



Small Machine Room Elevator Specifications

Loading Capacity/ Passengers	Rated Speed (m/s)	Door Opening Size (mm) (JJ×HH)	Door Opening Type	Car Size (mm) (AA×BB)	Hoistway Size (mm)			Machine Room Size (mm) (W×H)
					AH×BH	PP	OH
450kg/ 6 Passengers	1.0	800×2100	Center Opening	1400×850	2000×1550	1500	4500	2000×1550
	1.5   1.75					1600
630kg/ 8 Passengers	1.0	800×2100	Center Opening	1400×1100	2000×1750	1500	4500	2000×1750
	1.5   1.75					1600
800kg/ 10 Passengers	1.0	800×2100	Center Opening	1400×1350	2000×2000	1500	4500	2000×2000
	1.5   1.75					1600
1000kg/ 13 Passengers	1.0	900×2100	Center Opening	1600×1400	2200×2150	1500	4500	2200×2150
	1.5   1.75					1600
1250kg/ 16 Passengers	1.0	1100×2100	Center Opening	2000×1400	2600×2150	1500	4500	2600×2150
	1.5   1.75					1600	4700
1350kg/ 18 Passengers	1.0	1100×2100	Center Opening	2000×1500	2600×2250	1500	4500	2600×2250
	1.5   1.75					1600	4700
1600kg/ 21 Passengers	1.0	1100×2100	Center Opening	2000×1750	2600×2500	1500	4500	2600×2500
	1.5   1.75					1600	4700







Standard Function

VVVF drive

VVVF door operator

Independent running

Automatic pass without stop

Automatically adjust door opening time

Reopen with hall call

Express door closing

Car stops and door opens

Car arrival gong

Command register cancel

Photocell protection

Designated stop

Overload holding stop

Anti-stall timer protection

Start protection control

Inspection operation

Fault self-diagnosis

Repeated door closing

Up/down over-run and final limit protection

Down over-speed protection device

Upward over-speed protection device

Micro-touch button for car call and hall call

Floor and direction indicator inside car

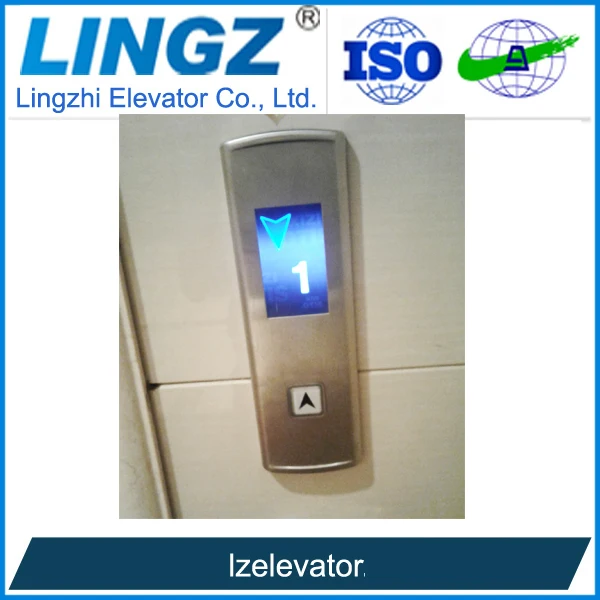

Floor and direction indicator

Emergency car lighting

Inching running

Five way intercom

Bell

Fire emergency return

Car ventilation, light automatic shut off

Remote shut-off
