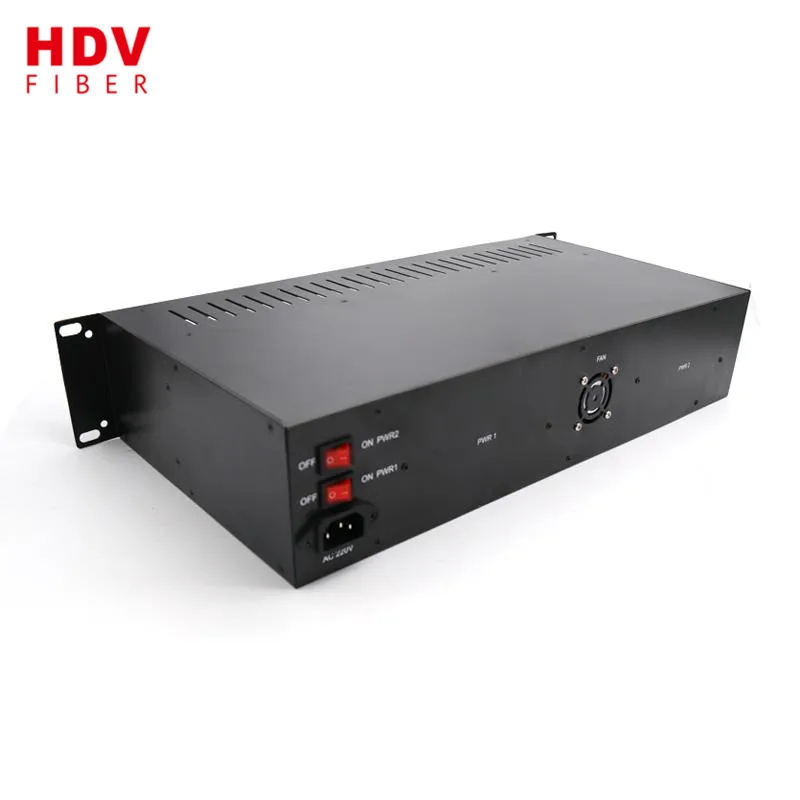

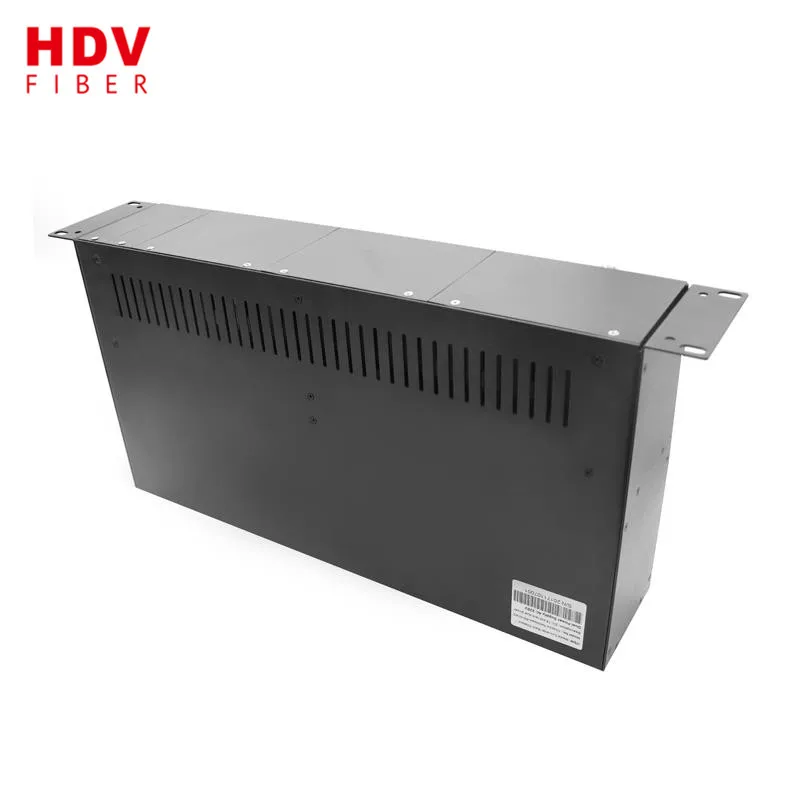

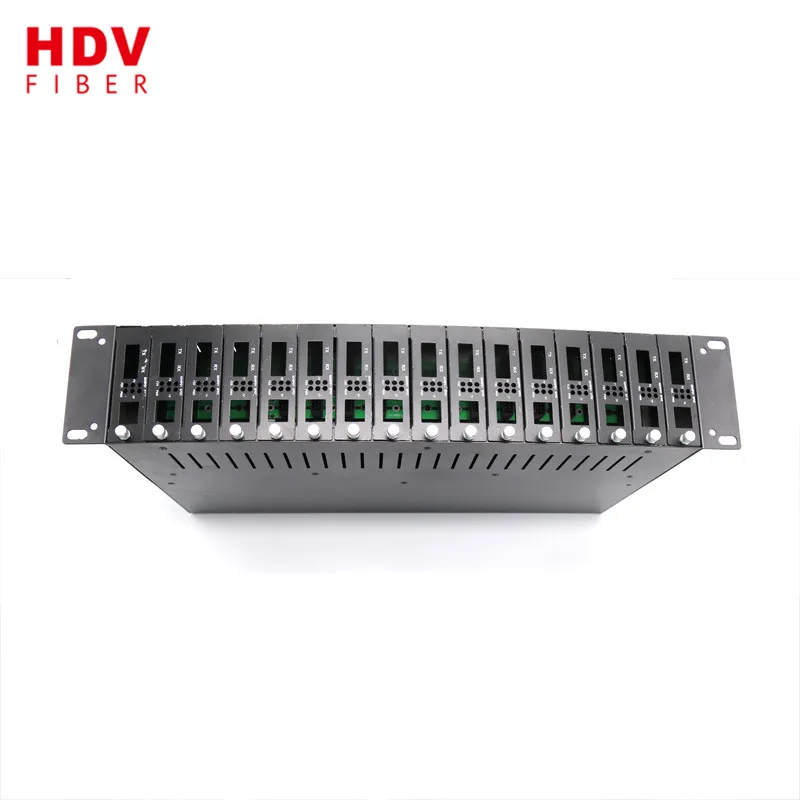

2U 16 slot fiber media converter managed rack mount chassis for standalone media converter

Product Overview

Description

2U 16 slot fiber media converter managed rack mount chassis for standalone media converter





1.Feature:

• installed with standard rack 19"
• It could realize media converter SNMP management. This is media converter module model name as MCC-16
• can insert 16 function MCC-16-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
• support of SNMP via Management Ethernet port, remote management support of Web-based Network Management
• Hot Swappable (Power supply, MC module)
• Power supply: used with 220 VAC 50 Hz, 2 units
• one module can supplied to chassis, fully equip
• have 2 Fans to radiate heat

2.Specification:

Parameter	Specifications
Number of slots	16
Structure	2U rack
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55iC
Operating humidity	5%~90%
Maintaining temperature	-40~70iC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions of rack	112mm (H) * 368mm (W) * 430mm (D)
