This item is our popular compact design item, with factory price, suitable for small size application(space saving), mainly used for commercial office building, Libarary, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!What is more, it is 304 (or 316) stainless steel, semi-automatic(and full automatic for optional).
Technic Date
Name

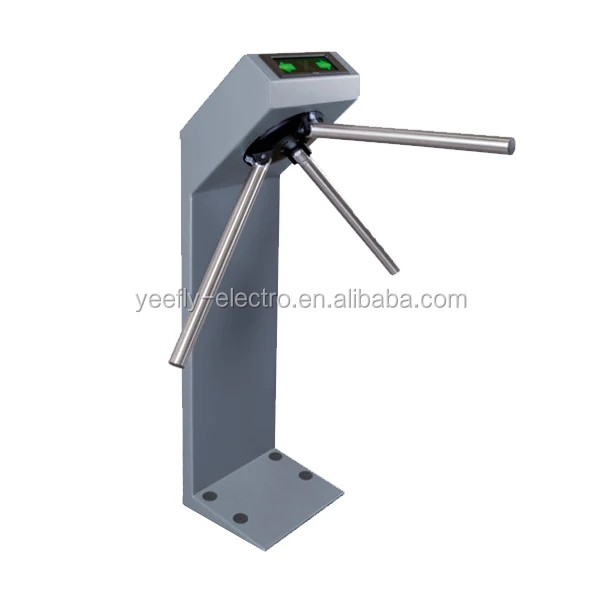

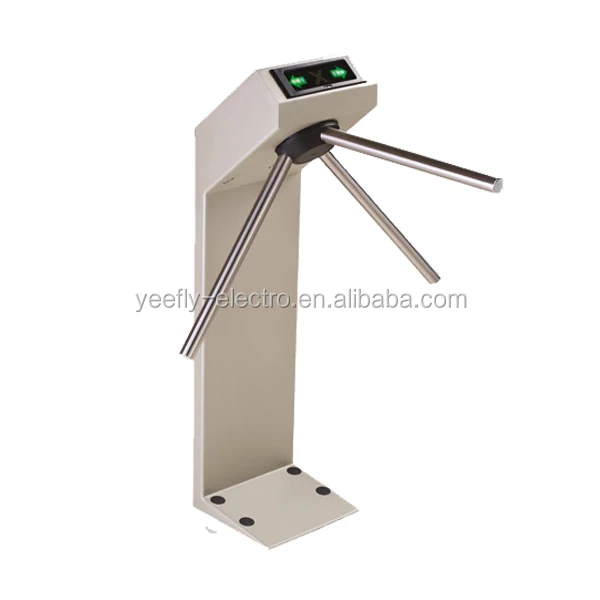

Automatic Access Control Gym Turnstile Tripod Manual Turnstile
Body Material
304/316 stainless steel material
Working Voltage
AC220V±10V, 50HZ or AC110V/60Hz
Control type
IC/ID/Barcode control etc....
Rated Power
80W
Working mode
one directional or bi-direcitonal
Working temperature
-30°C--+70°C
Operating humidity
≤90% non-condensing
Operation life
≥5 million times
Passing speed
20-25 person/min
Open style
Retractable
Relative humility
≤95%, no-condensation
Operating places
Government agency, Residential area, School,etc
Features and advantages:
1. Running stable, little noise and no mechanical impact. 2. Self-checking-power-on function, if power on, turnstile will auto get to be held. 3. Various working means can be set in the control panel menu, namely: bi-direction card reading passing,
or one direction card reading passing and another passing limits, or one direction card reading passing
and another free passing, etc. 4. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press
the arm with a little force and then lift it manually. 5. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire
control requirements. 6. It is with standard electrical interface to connect various kinds of readers and writers for easy
integration and also far control and management can be realized by computer. 7. It will count the persons who have been passed through automatically and will show the number by
LED directly.(LED is optional) 8. Passing direction will be shown by LED and passengers will know which direction is allowed to pass. 9. Card reading memory or card reading without memory function can be set in the control panel menu
according to your request. 10. If working with software, the total-in-population can be set to satisfy special request 11. Card Mounting is available.
12. Optional: 1) Counter and counter display 2) Access controller or card reader 3) Key by-pass

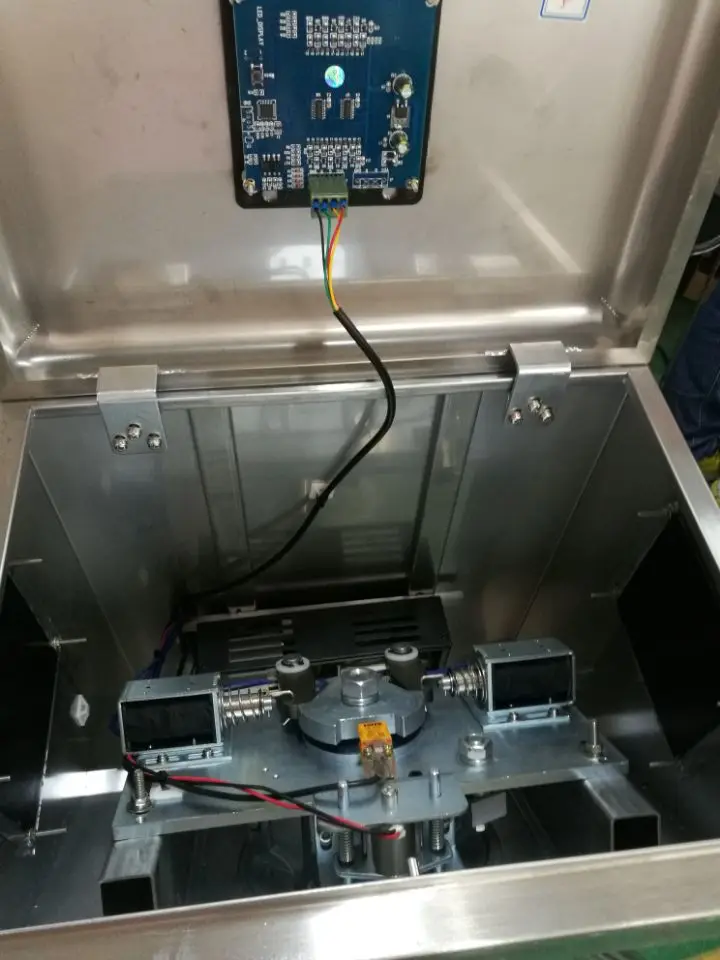

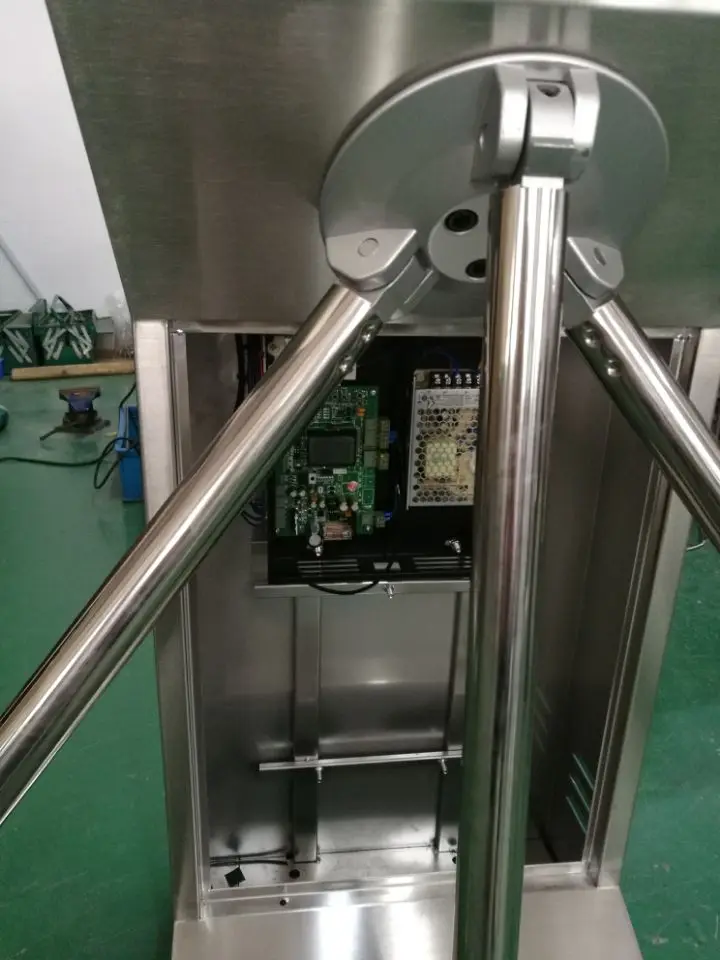

Detailed Images
FAQ
1.What is the difference in functionality of Full Automatic ,Semi Automatic and Manual Setting Machanism A. The Full Automatic Machine is driven by the DC brushless motor system ,such motorized machanism using the big and hard gears .no abrasive wear ,small passing resistance ,so hardly with the outside force ,you can pass easily with the card,and the brake beam will be up when power is on , the beam will be down without the power. It is the high intelligent turnstile ,no maintenance all the of life , No Attrition ,Low noise ,High intelligence .
B.The Semi Automatic Machine is driven by the heavy hard system ,it does not have the auxiliary force .So you can pass after giving the outside force to it ,it is traditional intelligent turnstile .
c. The Manual Setting Machine is without the motor and power ,it is the manual one to pass we just one direction .
2.Can I communicate the bidirectional tripod turnstile design direct with a PC?
No,you can’t communicate the turnstile directly with a pc,because the main board just out put low level signal,but pc can not receive low level signal,so the turnstile must connect a door access control then can connect with a pc.
3.They come with the complete command manual (if we want to develop our own software)? For normal passage control,we have compete command manual for you.Many clients from different countries use our software,don’t need second develop.If your company has the ability to develop your own software, we can provide SDK to you.
4.If I want each bidirectional tripod turnstile design is bi-directional, do I need 2 sets card reader in it? Yes,if you need bi-directional,you need set 2 sets card reader inside the turnstile.
Other questions, welcome to contact us freely and directly, thanks.
Applications for related products:
Packaging & Shipping
All wooden packages for our turnstiles and barrier gates:
Company Information
Company information and service:
1.Quick delivery(1-2days for sample order),cauing we have factory in shenzhen 2.100% QC inspection Before Shippment. 3. CE approved,competitve price. 4. Flexiable working mode, sample order is acceptable, OEM&ODM is welcome too.

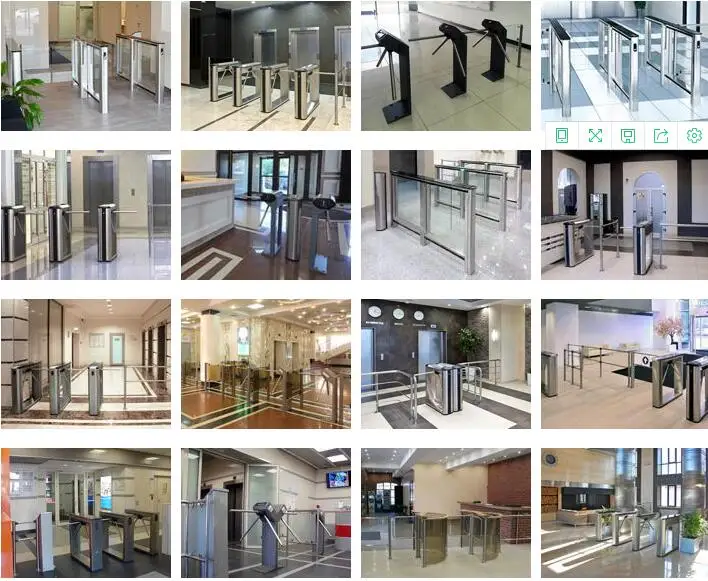

More items for reference:
