This small gear motor is designed to be small size,low noise,easy installation.The mini 12v dc gear motor is widely used for vending machine,automatic microwave oven,ATM machine,bank equipment,BBQ oven and other home appliance.
SPECIFICATIONS FOR 12V MICRO GEAR MOTOR
Name
small geared motor
Rated Current
0.77A
Model
GB24-DC
Rated Speed
1.8rpm
Input Power
12VDC/24VDC
No Load Noise (dB)
less than 45
Reduction Ratio
1047:1
Feature
Lower Noise/small Body
Rated Torque
＞150kgf-cm
Gear material
Powder metal
Motor Speed
2000rpm
Stall Torque
＞416.3kgf-cm
No Load Speed
1.91rpm
Stall Current
＜1.8A
Rotation Direction
CW/CCW
Gear box material
High quality zinc alloy
No load current
0.23A
Main Features
1) Low noise.
2) Small body.
3) Powder metal gear inside.
4) High quality zinc alloy gear box
5) Can be applied for various kinds of small automatic equipment.

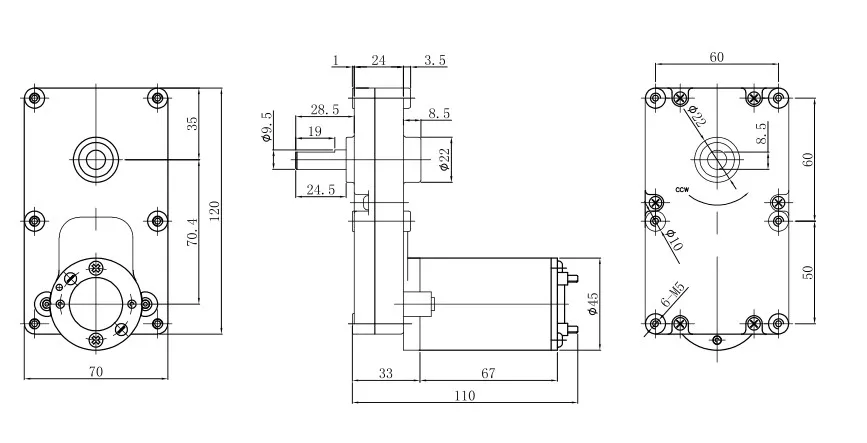

Dimension
Certifications

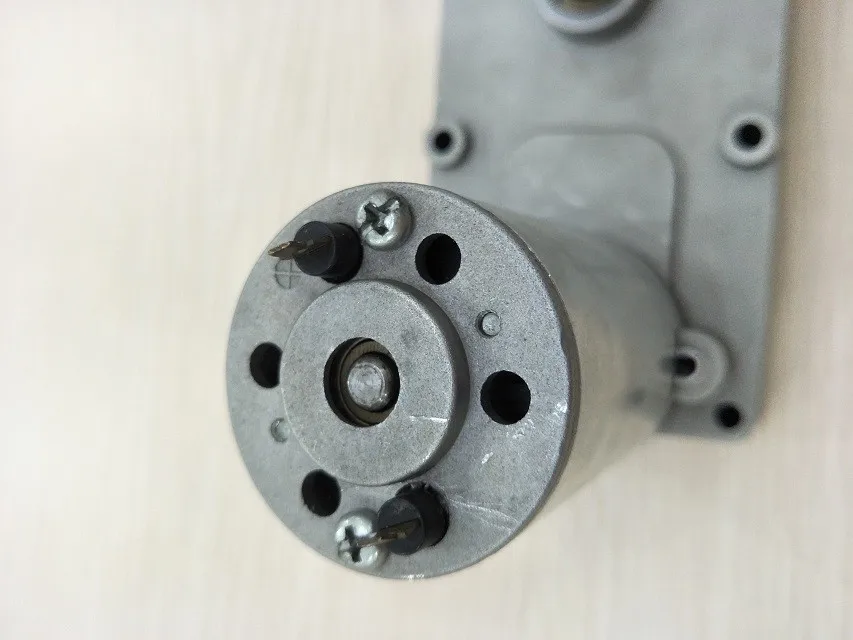

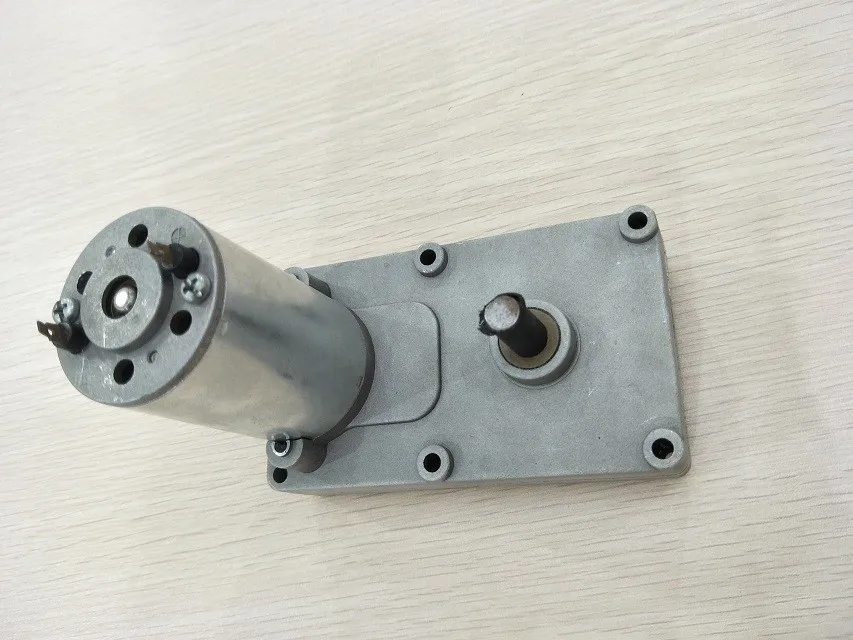

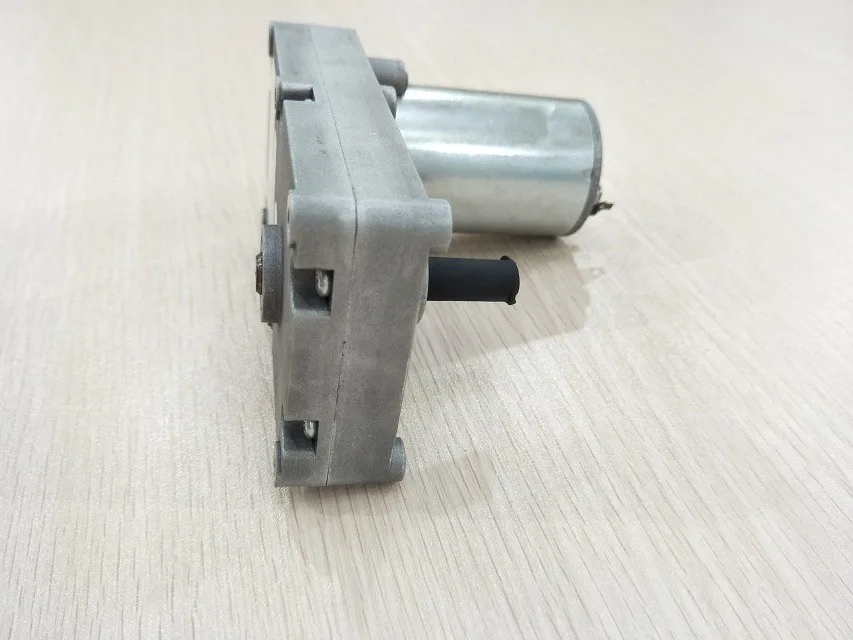

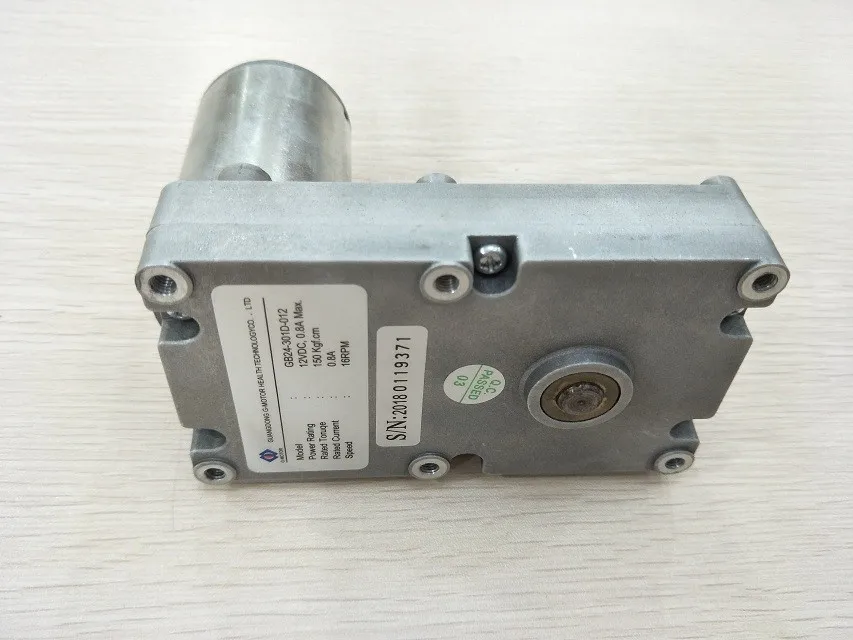

Detailed Images

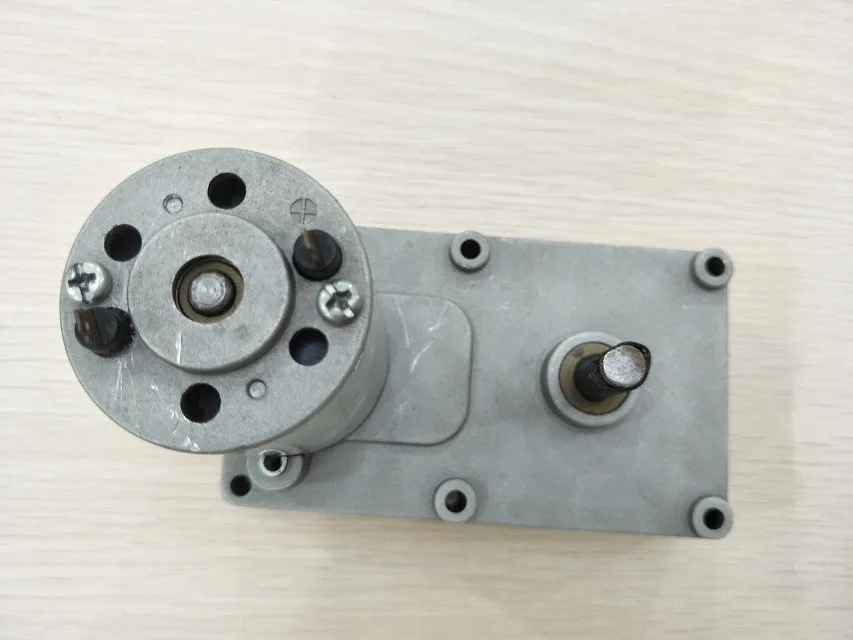

DC gear motor
Model: GB24-DC Brand: G-motor Original: China

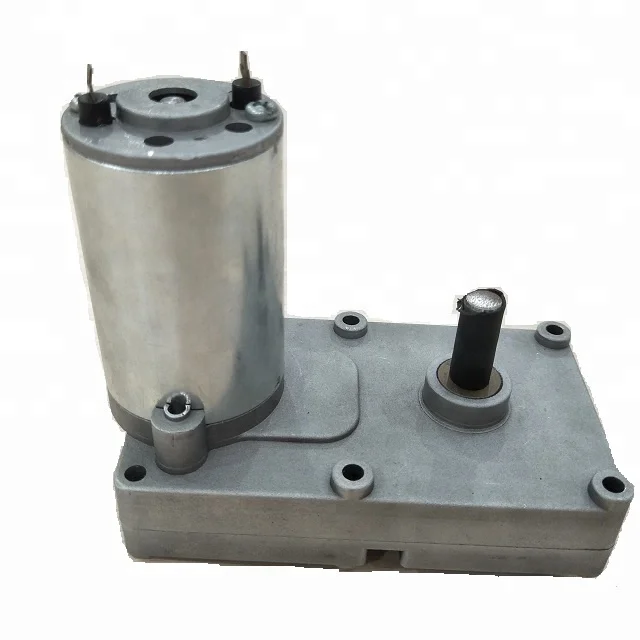

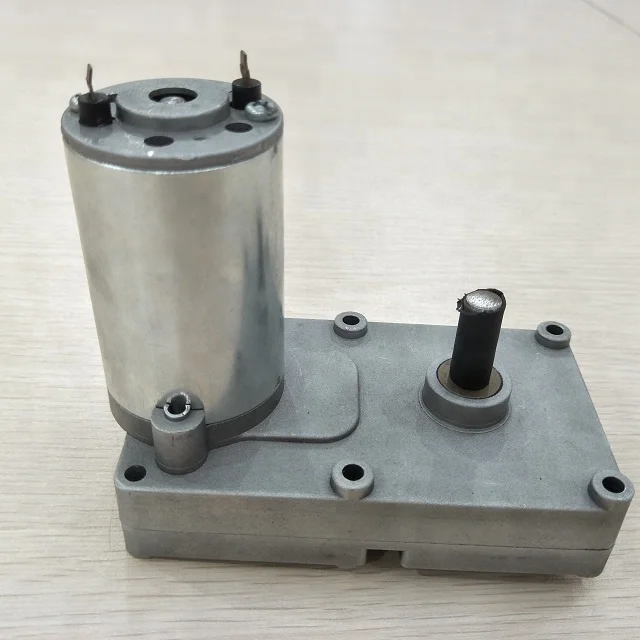

12V geared motor
Model: GB24-DC Brand: G-motor Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Packaging Details
The normal package for sample is carton box(Size: L*W*H).Inside the carton box,there will fill with foam to protect the linear actuator from damage.There are four pcs in one carton box.We will also provide the drawing and test report inside the carton box.
Packaging
Packaging Details
Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
