Product Description
Application

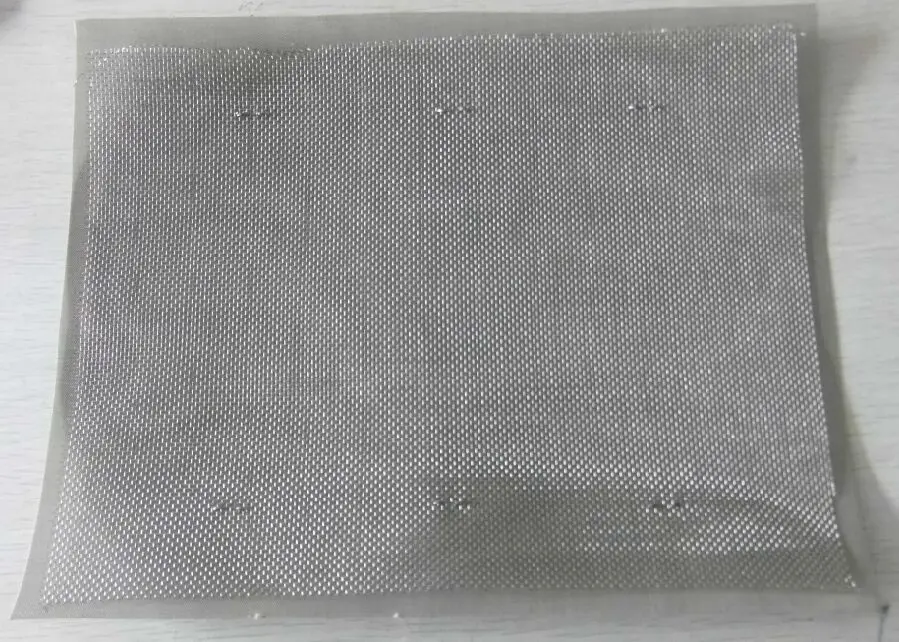

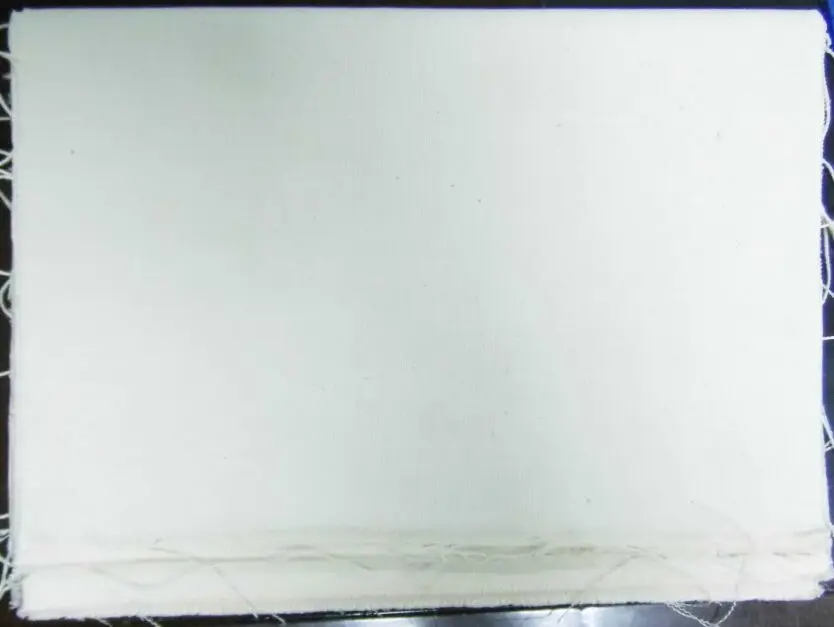

DW5432 Abrasion Resistance Tester of Textile Fabrics by Oscillatory Cylinder Method is used to determine the abrasion resistance of woven fabrics, especially used for automobile decoration or furniture, to the standard abradant (Cotton Duck #10 or Wire Screen). It conforms to American standard ASTM D4157, with four specimen holding arms and pressure pad and electronic counter to control and count cycles.
Standards
ASTM D4157
Note: this oscillatory abrasion resistance testing machine can conform to but not limit to the standards above, for more standards conformance, please contact us.
Key Specifications | ||
Number of specimen holding arms | 4 | |
Oscillating travel | (76±2)mm | |
Oscillating speed | 0~100 cycles per min, adjustable | |
Specimen tension | 2~6lbf, adjustable in increments of 0.5lbf | |
Pressure | 2~3.5lbf, adjustable in increments of 0.5lbf | |

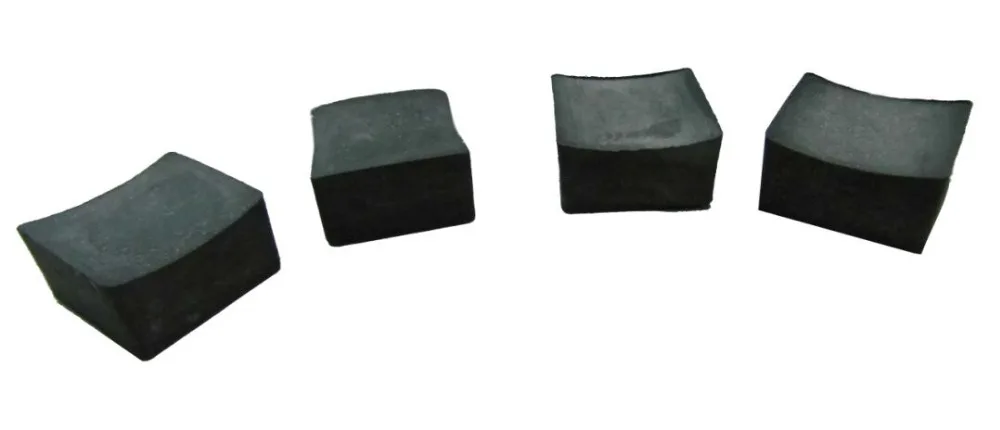

Rubber pad size | 50×50mm | |
Model No. | DW5432 Fabric Wyzenbeek Oscillatory Abrasion Resistance Testing Machine | |
Details pictures

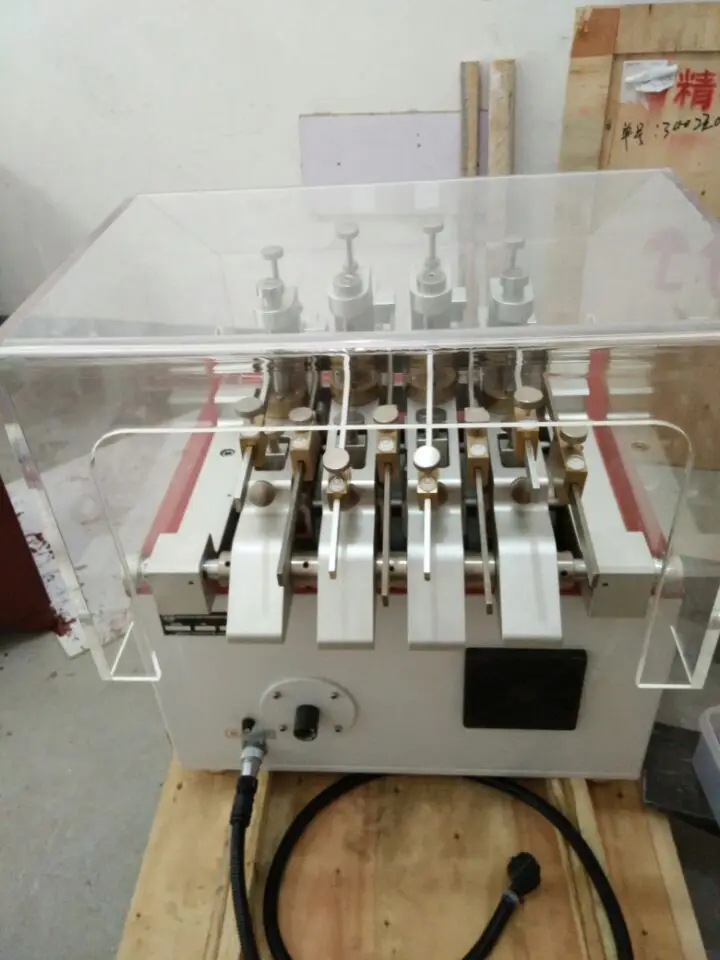

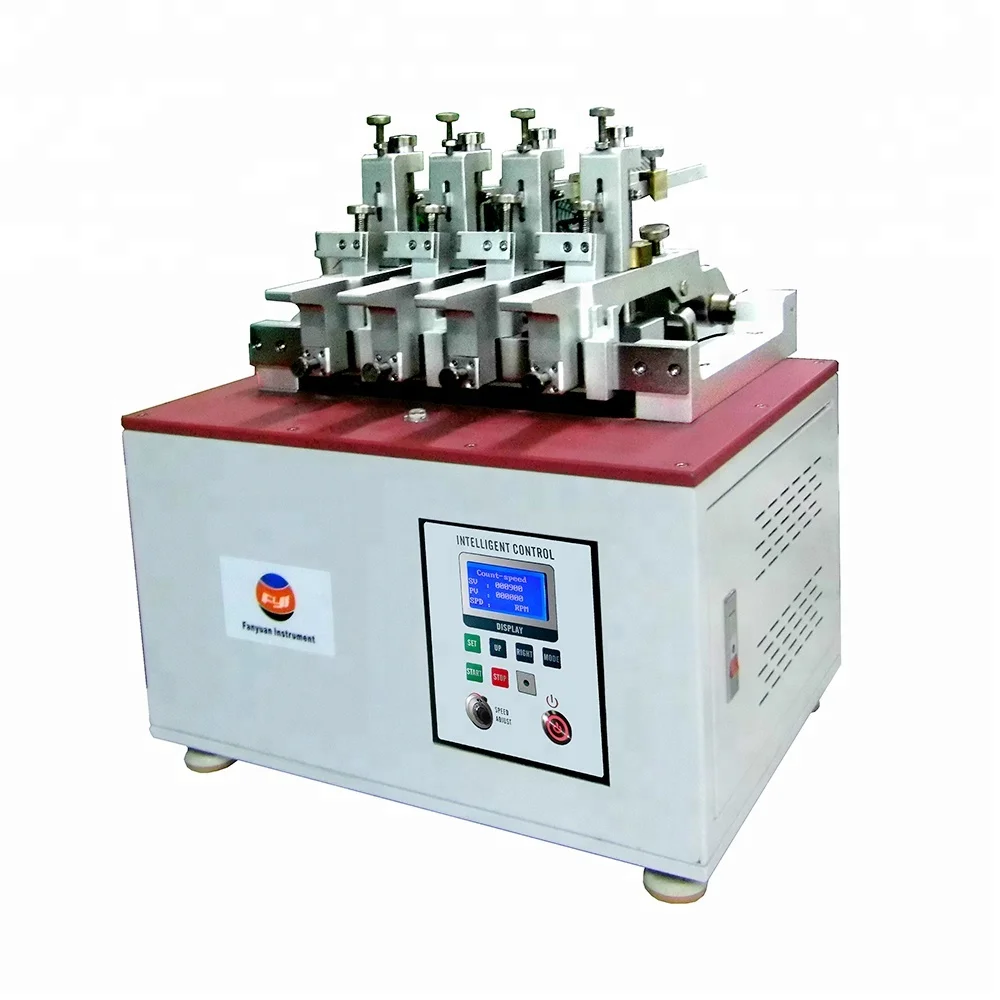

DW5432 Wyzenbeek Oscillatory Abrasion Tester
Main machine

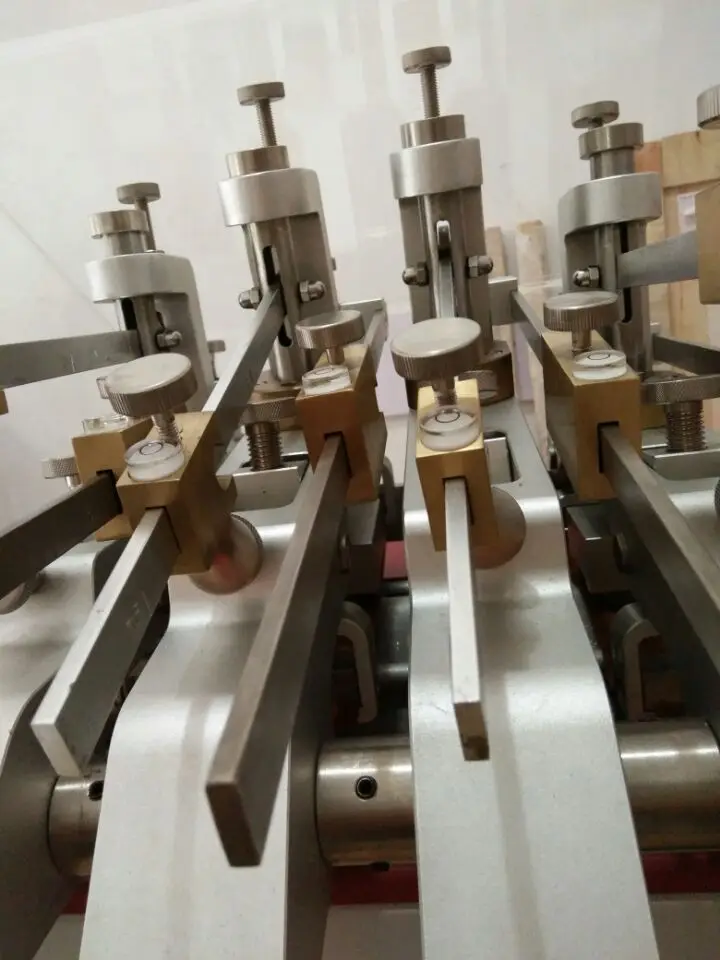

Testing parts
Number of specimen holding arms: 4
Large LCD display
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
