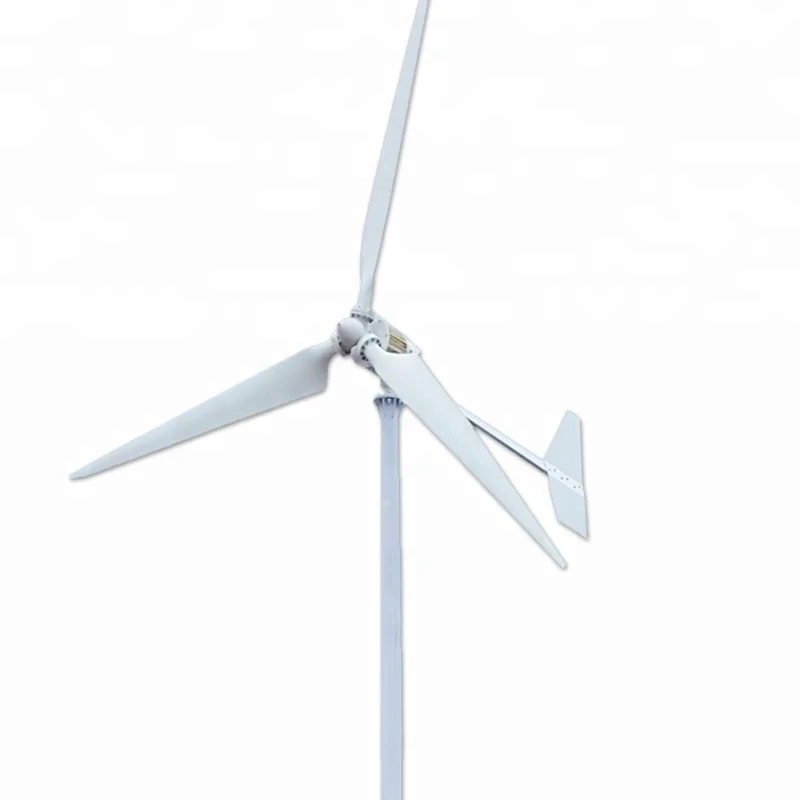

10kw horizontal wind turbine 220v 240v 230v 380v 3 phase ac output with 3 blades with CE certificate wind generator on sale

Product Overview

Description









Specification Sheet



Model	FT-5KG	FT-10KG	FT-20KG	FT-30KG	FT-50KG
Rated power	5000W	10000W	20KW	30KW	50KW
Max power	5700W	13000W	22KW	33KW	53KW
Nominal voltage	96V/120V/ 240V	120V/220V/380V	220/240v	380v	380V
Start-up wind speed	2.5m/s	2.5m/s	3m/s	3m/s	3m/s
Rated wind speed	11m/s	11m/s	12m/s	13m/s	15m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	50m/s
Top net weight	285kg	400kg	500kg	900kg	3400kg
Wind wheel diameter	5.3m	7m	10m	12.5m	18m
Number of blades	3pcs
Blades material	Reinforced glass fiber

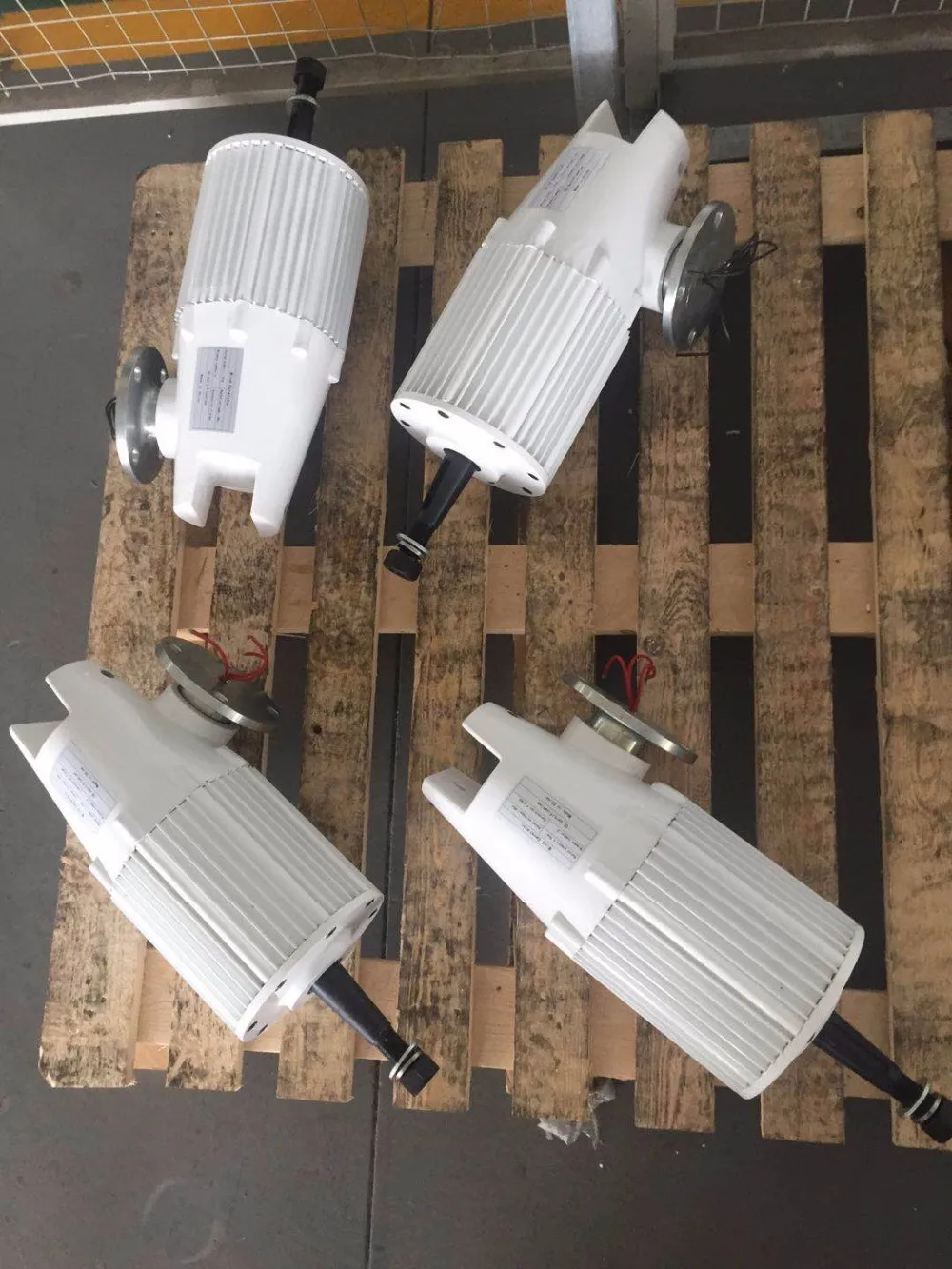

Generator	Three phase ac permanent magnet generator
Controller system	Electromagnetic/Wind wheel yaw
Speed regulation	The wind Angle automatically
Working temperature	-40℃~80℃

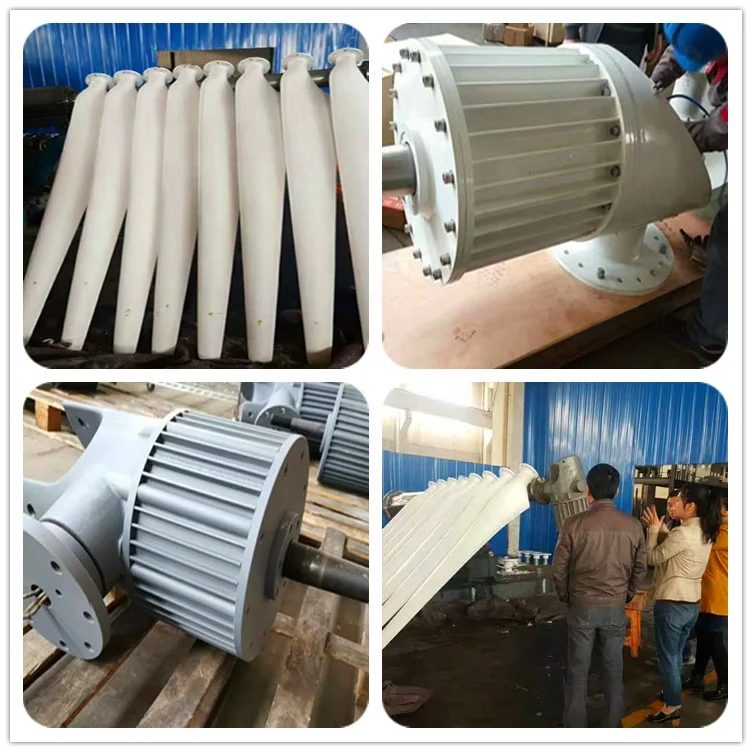

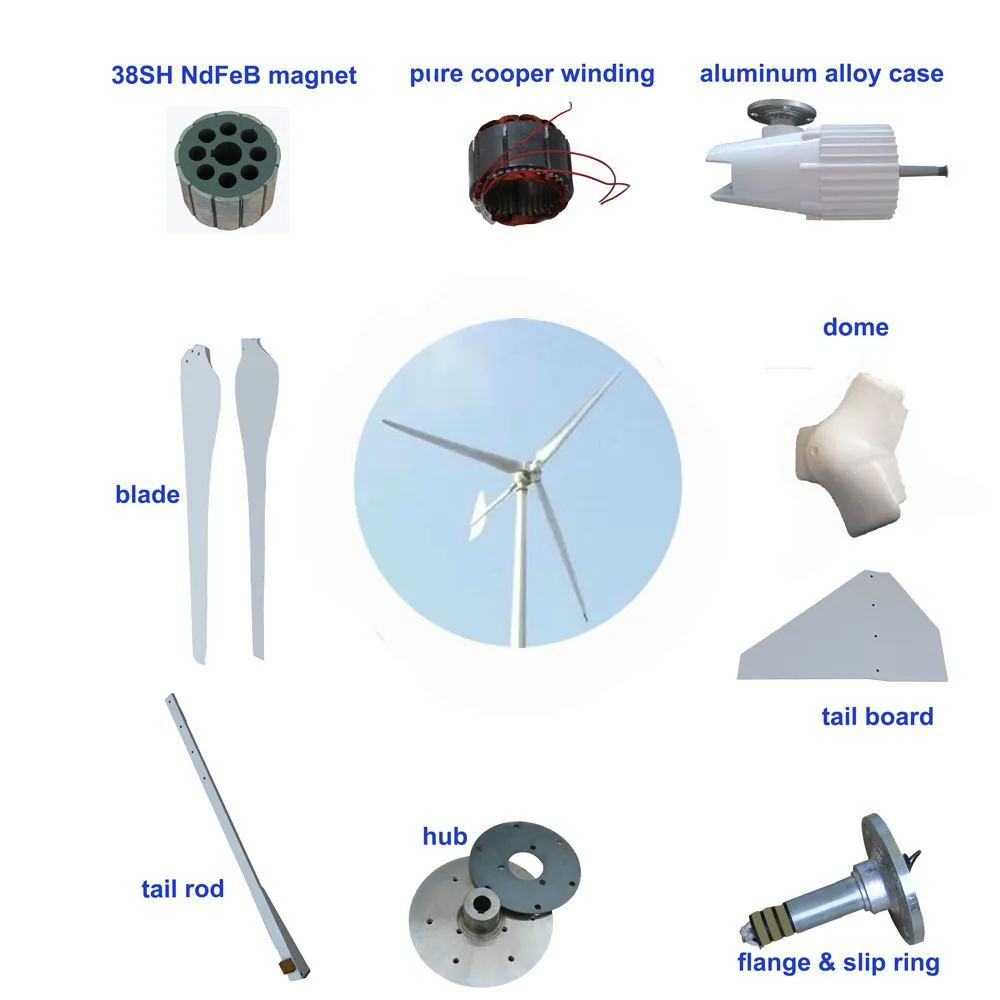

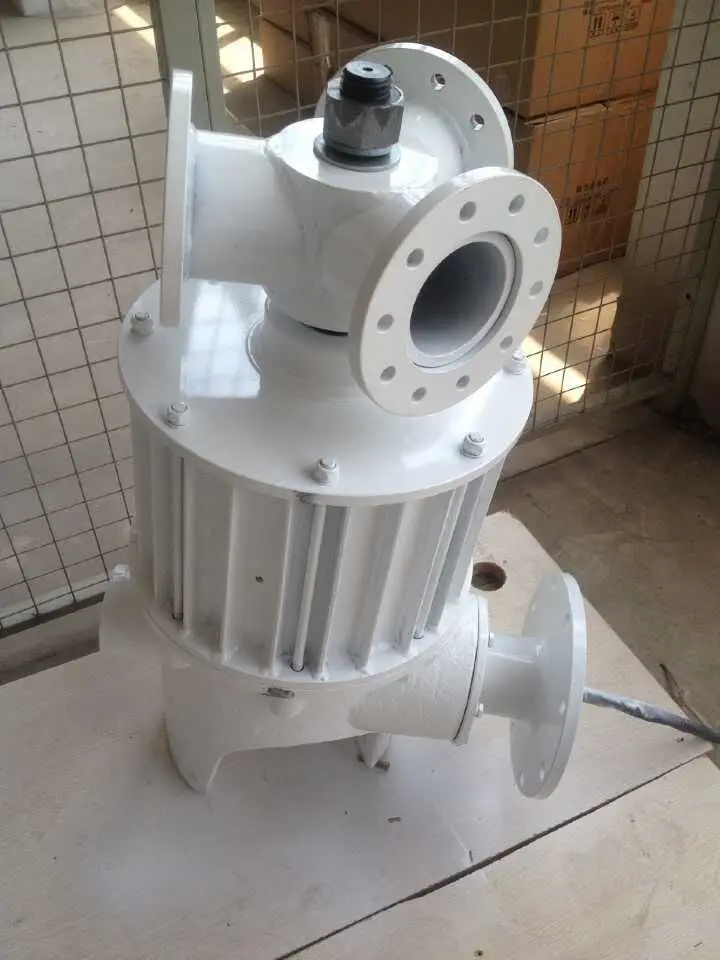

Detailed Parts of 10kw Wind Turbine

Feature

• Selection of casing steel refined but become, light weight, beautiful shape, low vibration.
• The increase of glass fiber reinforced plastic rotor blades, match with optimization of aerodynamic design and mechanism design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity.
• Power generation using the patent technology of ndfeb permanent magnet alternator rotor, stator of special design, effectively reduce the resistance torque of the generator, at the same time make wind turbines and generators have more good matching characteristic, the reliability of unit operation.
• Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.
• Selection of anticorrosive epoxy zinc-rich primer and polyurethane enamel, uv and acid rain resistance, salt fog.
• Grease automatic filling machine, intelligent equipment more flexible operation, long service life.
• Optional maximum power tracking intelligent controller, effectively regulate the current voltage.
