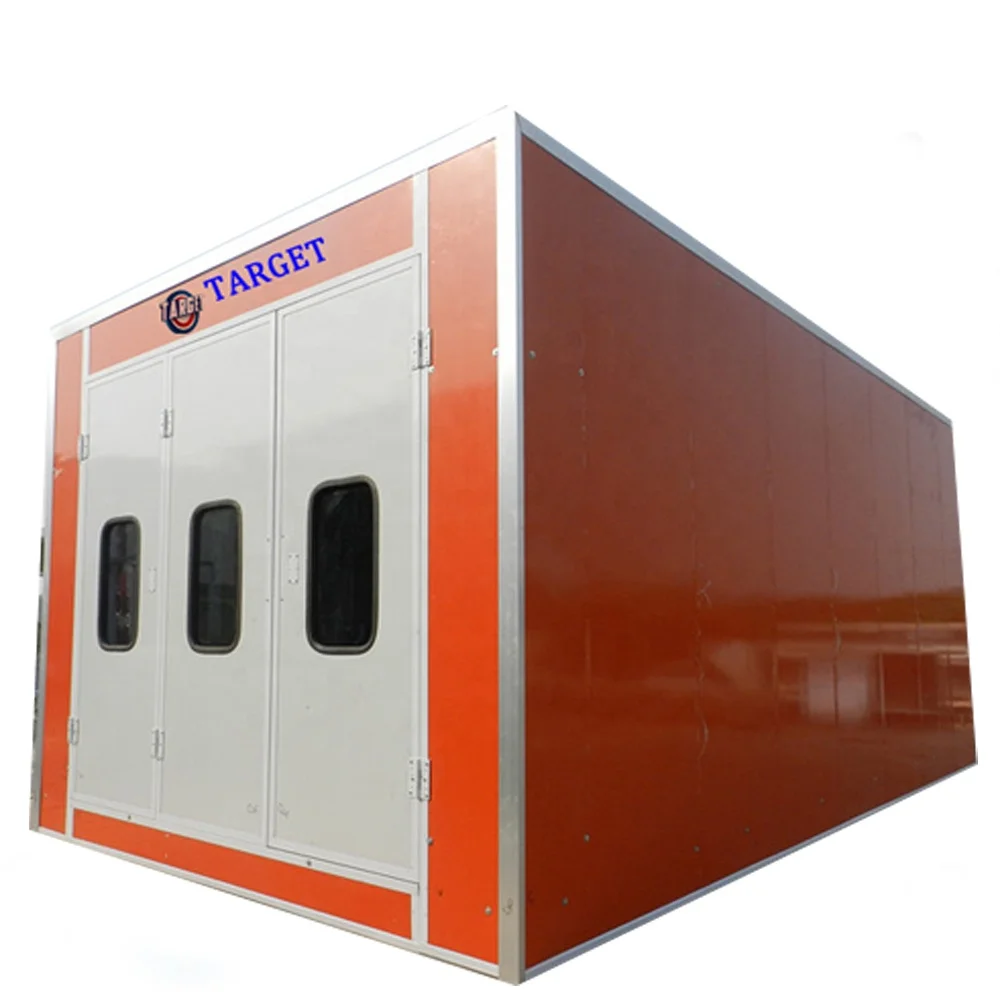

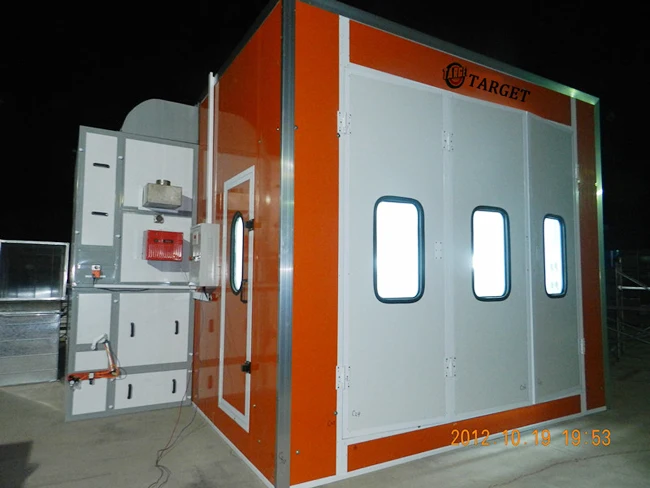

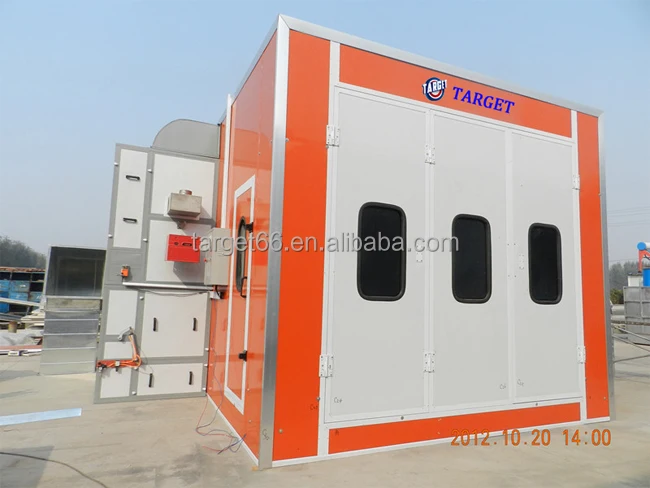

Factory directly TARGET Car Paint Spray Booth paint room cabina di verniciatura
- Category: Spray Booths >>>
- Supplier: Yantai Target Electromechanical Equipment Co. Ltd.
Share on (60786938754):
Product Overview
Description
Alibaba Good Supplier TARGET Car Paint Spray Booth
Product Description
Specification
Inside dimension | 6900*3900*2800 (LxWxH) | Front door(mm) | 3000*2700 mm(W×H) | ||||
Outside dimension | 7000*5300*3500 (LxWxH) | Total Power(Kw) | 12 Kw | ||||

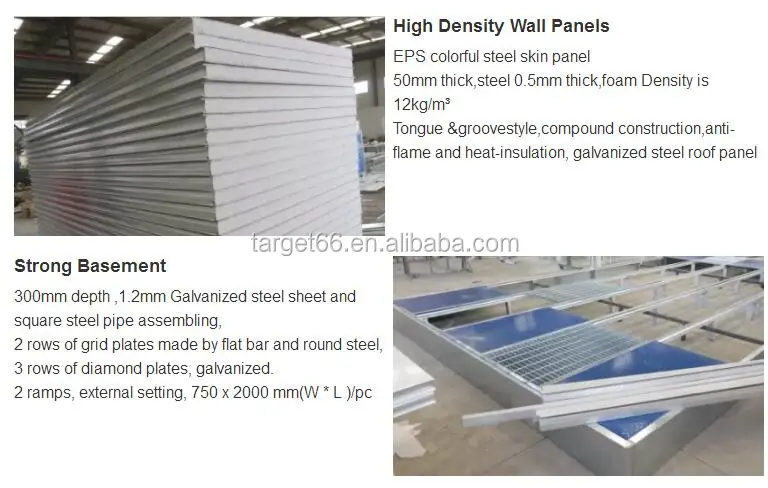

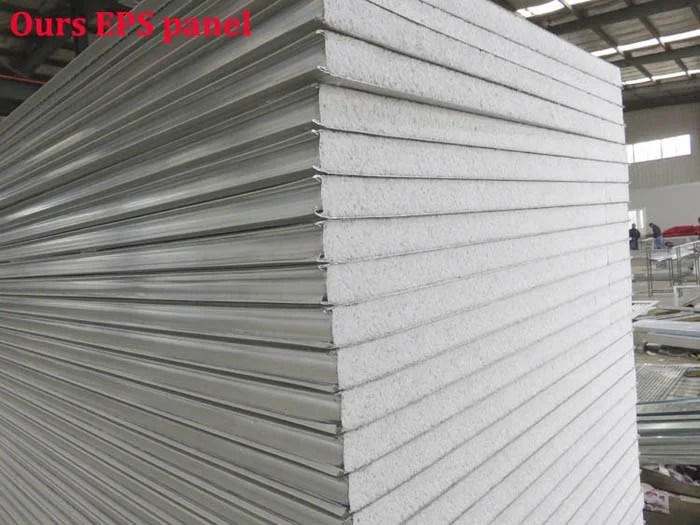

Cabin System | Wallboard | High quality 50mm EPS (epispastics polystyrene) colorful steel skin panelthick,tongue & groove style,compound construction,Aluminum-alloy frame,anti-flame and heat-insulation, galvanized steel roof panel. | |||||
Basement | 300mm depth ,Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel, 3 rows of diamond plates, galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc | ||||||
Air Circulation System | Intake Fan | Blower Capacity:20000m³/h | Exhaust Fan | Blower Capacity:12500m³/h | |||
Power: 3kw/pc | Power: 4kw/pc | ||||||
Quantity:2 pcs | Quantity:1 pc | ||||||
Model:Double-intake centrifugal fan | Model:Double-intake centrifugal fan | ||||||
Air Volume: 20000m³/h , Air flow speed in the cabin:0.3m/s | |||||||

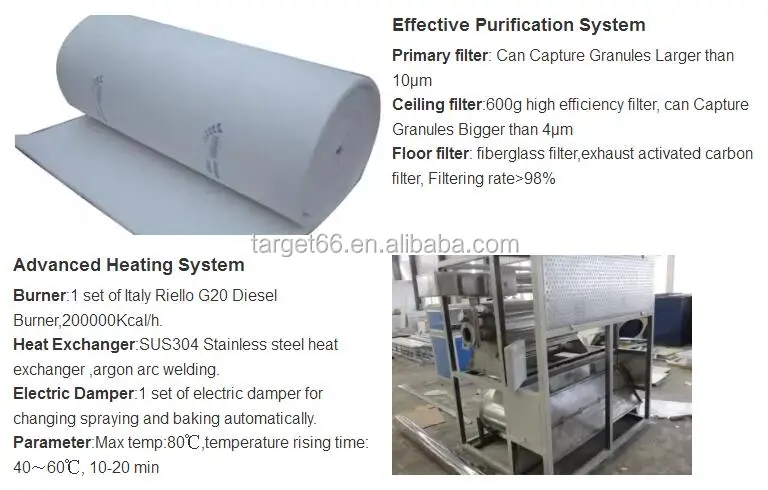

Heating system | Burner | Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304 Stainless steel heat exchanger ,argon arc welding. | |||||
Heat energy | Max Temp:80.C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle | ||||||
Filter system | Dual-filtering structure | Primary filter : Can Capture Granules Larger than 10μm | |||||
Ceiling filter:600g high efficiency filter, can Capture Granules Bigger than 4μm | |||||||
Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>98% | |||||||

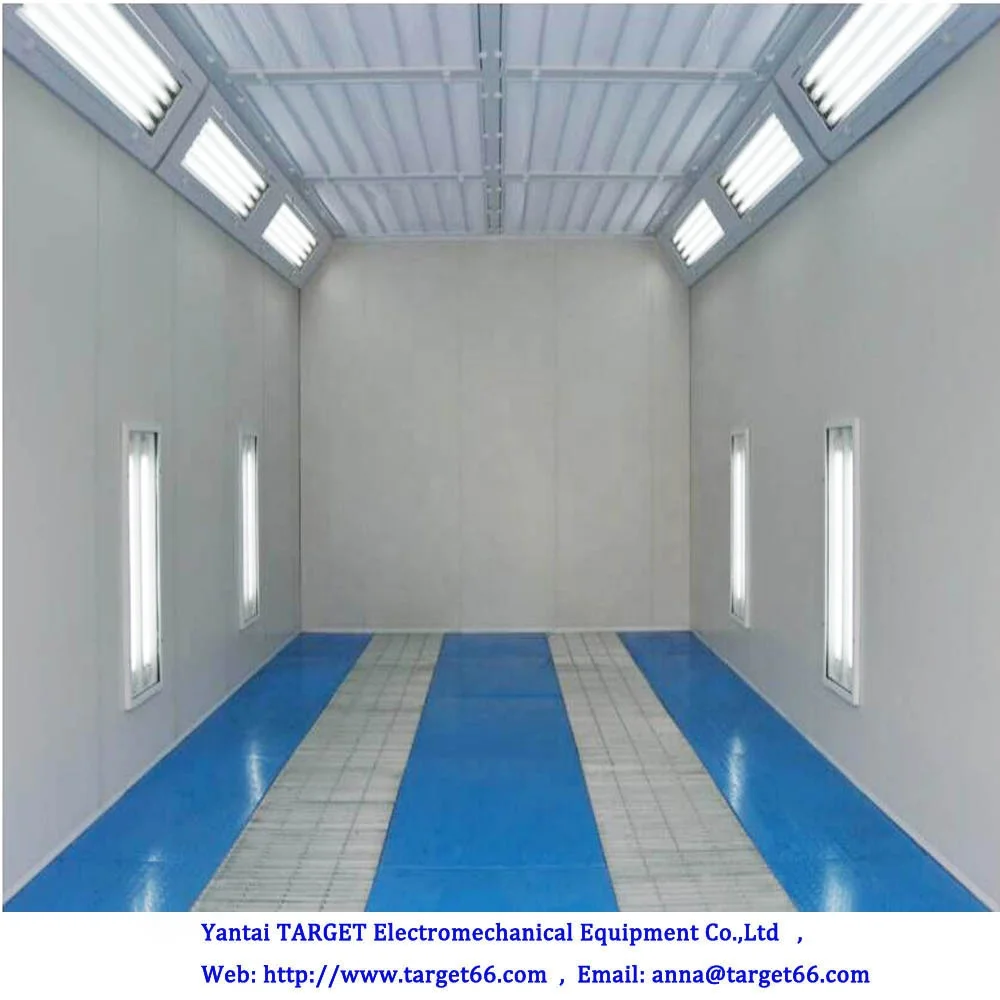

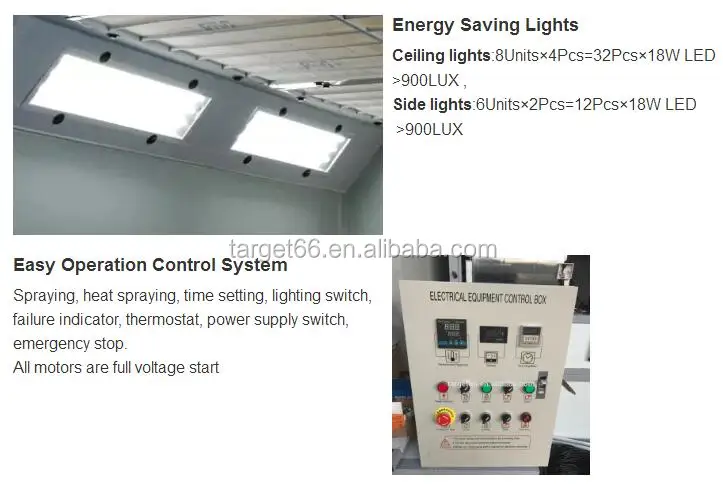

Lighting system | Ceiling lights | 8Units×4Pcs=32Pcs×18W LED Light | |||||
Side lights | 6Units×4Pcs=24Pcs×18W LED Light | ||||||
Control system | Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. | ||||||
Environmental System | Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards | ||||||
Advantages
- 2 years warranty
- Effective filter system
- Original Italian RIELLO Burner,hot wind recycling system with SUS304 heat exchanger
- Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
- 15 years experienced working team
- Customized service
- Life long technical support service

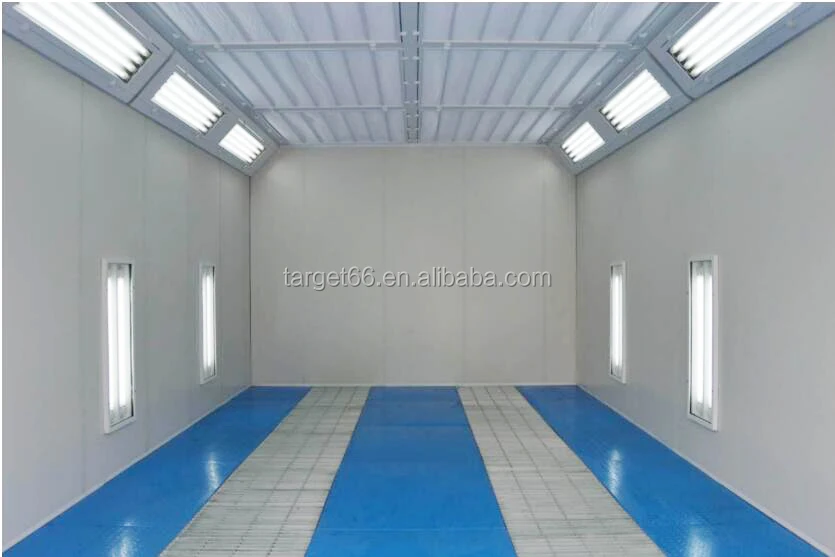

Detailed Images
Parts
Certifications

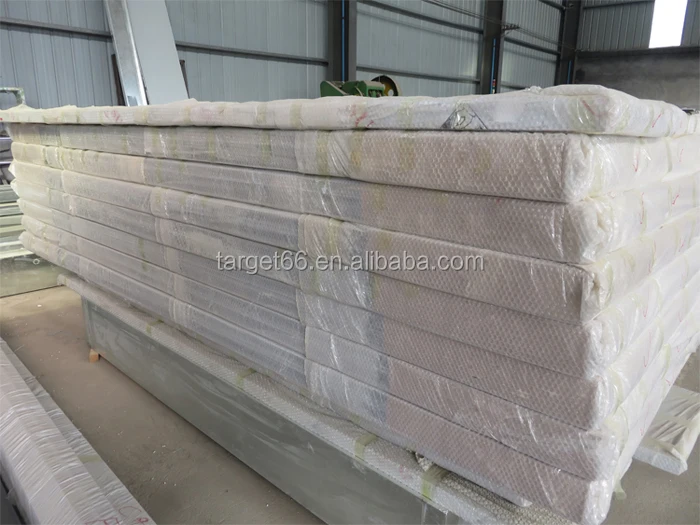

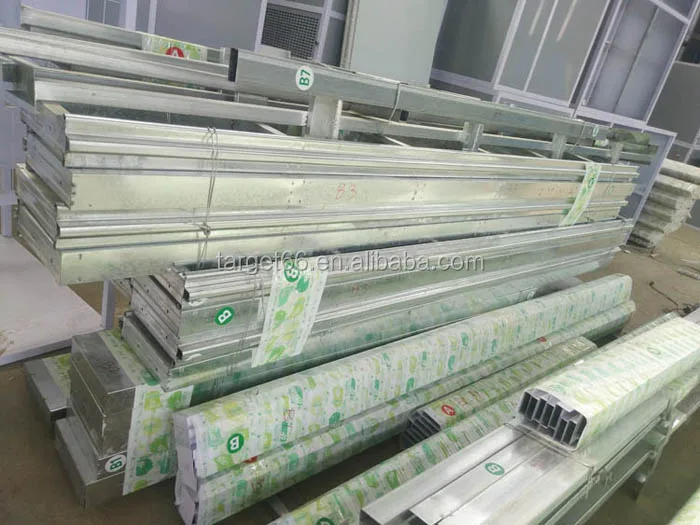

Packaging&Shipping
Our Services
Why Choose TARGET Equipment
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
5. Oversea service will supply if need.
Payment
1. T/T 30% deposit, 70% balance before shipping.
2. Western Union,
3. Money Gram ,
4. Alibaba Trade Assurance
5. other
Company Production

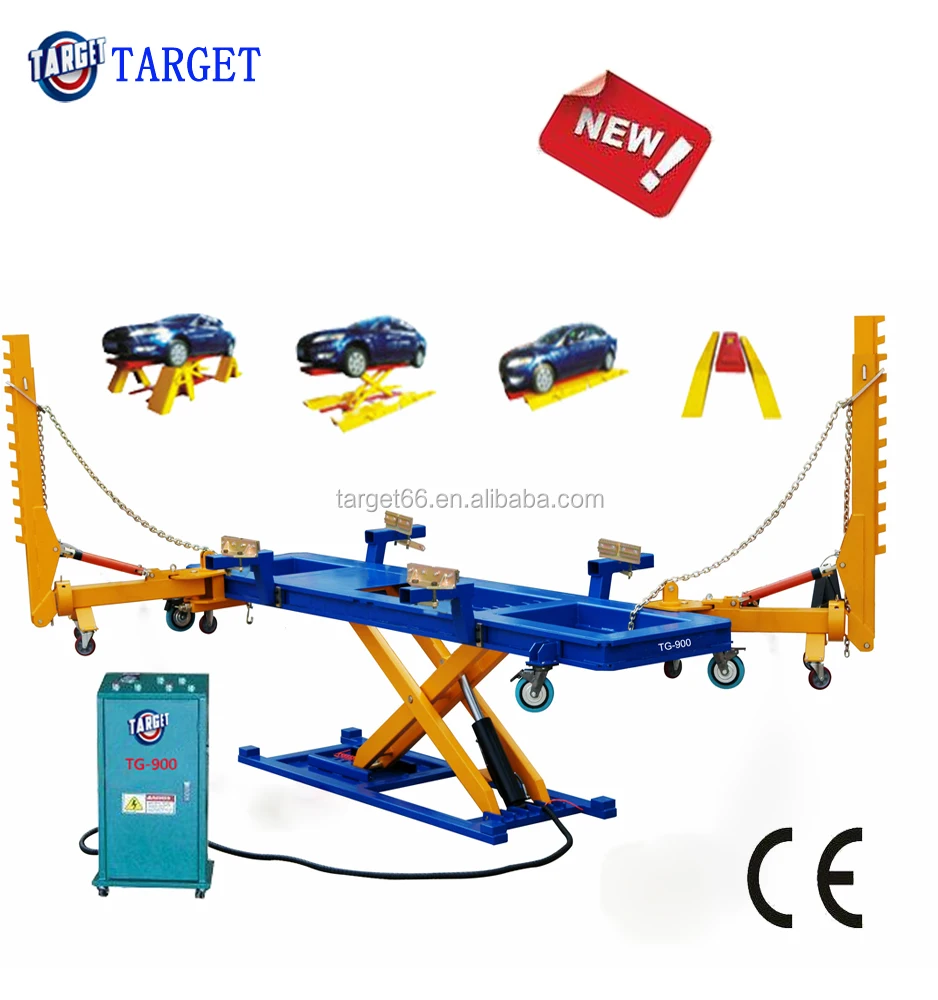

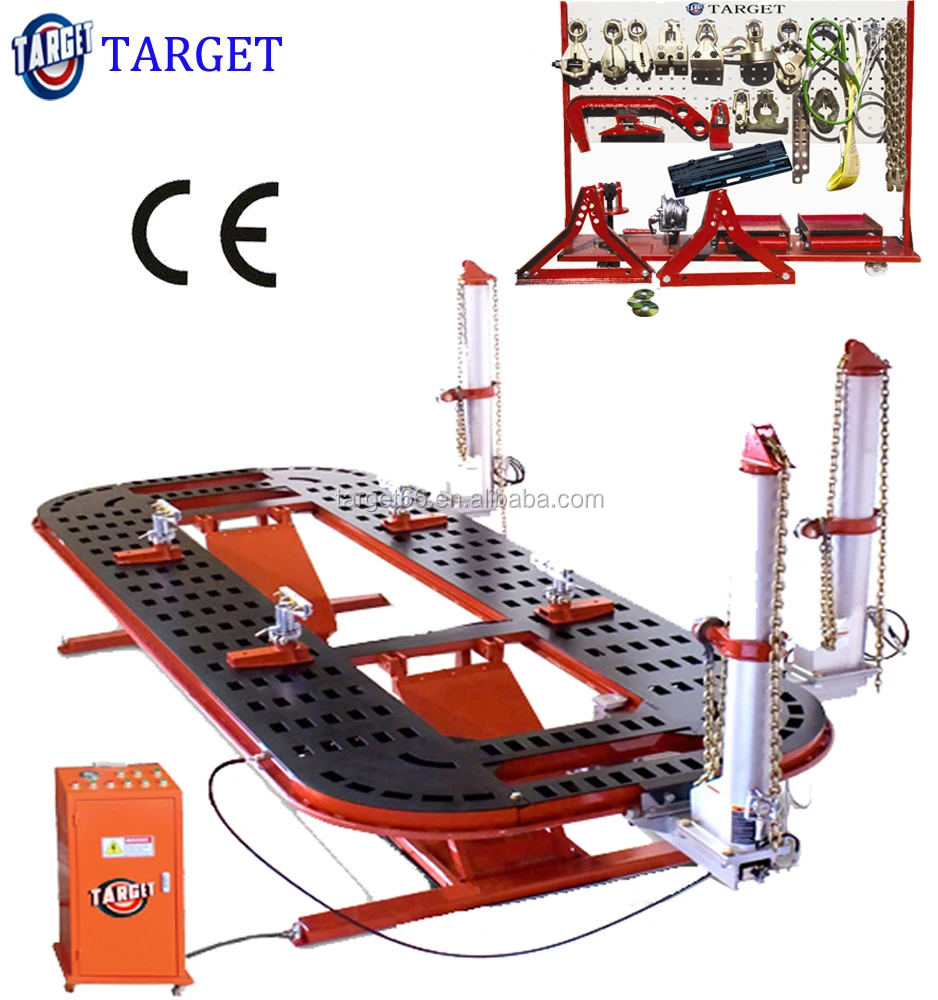

Yantai TARGET Equipment is a professional Spray Booth and Auto Repair Frame Machine manufacturer in China. Have 15 years history , with good service team for customers , more than 10 engineers for oversea service.
