Product Overview
Description
New Model Magnification 3.5X-180X Stereoscopic Microscope|Zoom Lens Microscope For Sale
Product Description
Introduction of Stereo Microscope
1. TX series stereo-microscopes are high precision instruments designed and manufactured by ourselves.They are widely used in factories and schools for checking.We are honors of supplying TX series stereo-microscopes to you.Its two parallel paths and high quality optic system offer you high resolution.Equipped with a electron eyepiece,show the micro-picture on PC screen,and its user-friendly sophisticated micro-image process software help you to preview,measure,compare,count,save and delete.
2. Usually, this microscope is only equipped with a pair of wide-field and plane-scope eyepiece WF10X.If you need,we will also provide you wide-field and plane-scope eyepiece WF15X and WF20X. The specifications of the eyepiece WF10X are showed as following:
| Wide-field Plane-scope Eyepiece | Magnification | Diameter of Viewing Field | Working Distance |
| WF10X | 10 | 18mm | 24.95mm |
3.Objective:There are four objectives for choosing and grouping:1X,2X,3X,4X.Their specifications are showed as following:
| Objective | 1X | 2X | 3X | 4X |
| Working Distance | 55.83mm | 81.05mm | 61.03mm | 57.7mm |
| Numerical Aperture | 0.03mm | 0.05mm | 0.06mm | 0.07mm |
| Focal Distance | 55.83mm | 54.9mm | 46.5mm | 38.9mm |
| Conjugated Distance | 250mm | 250mm | 250mm | 250mm |

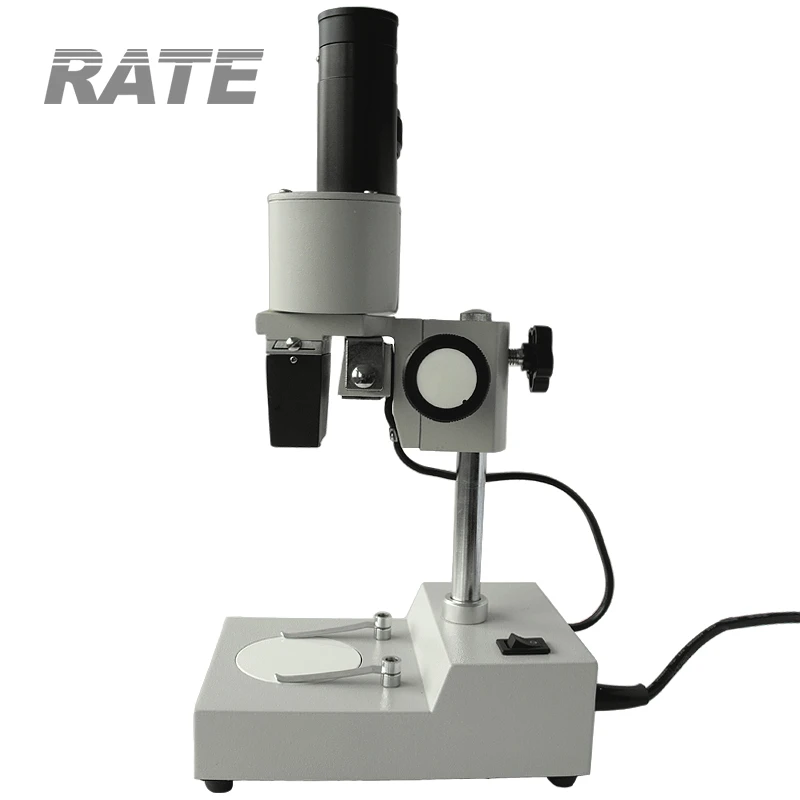

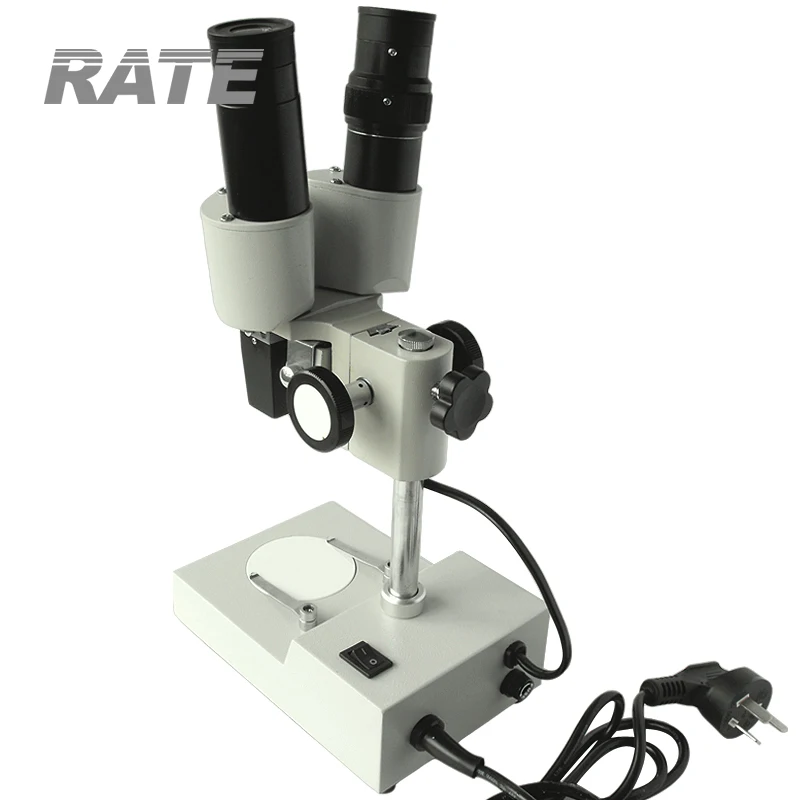

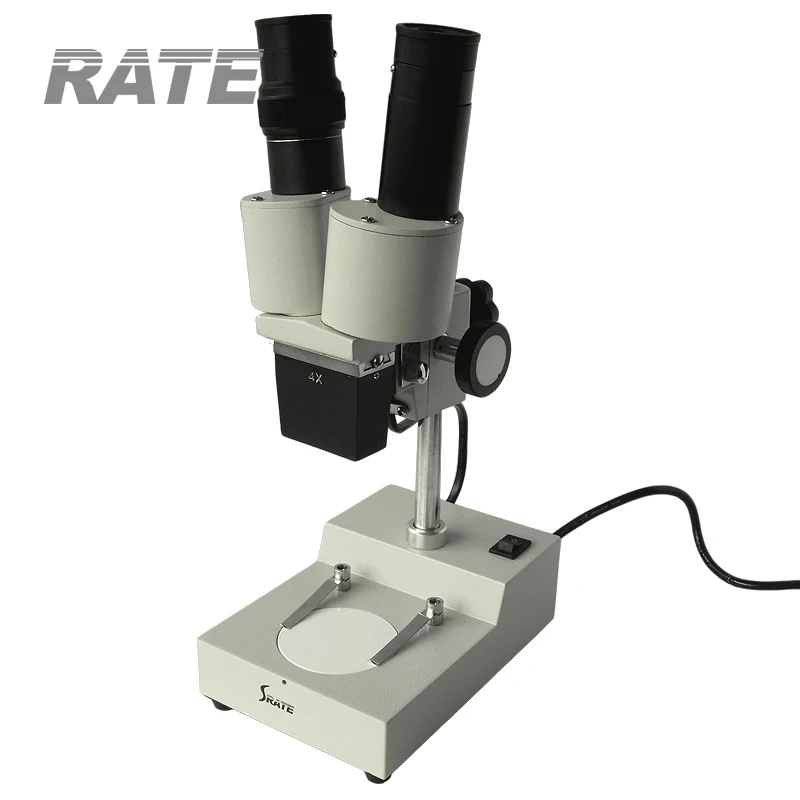

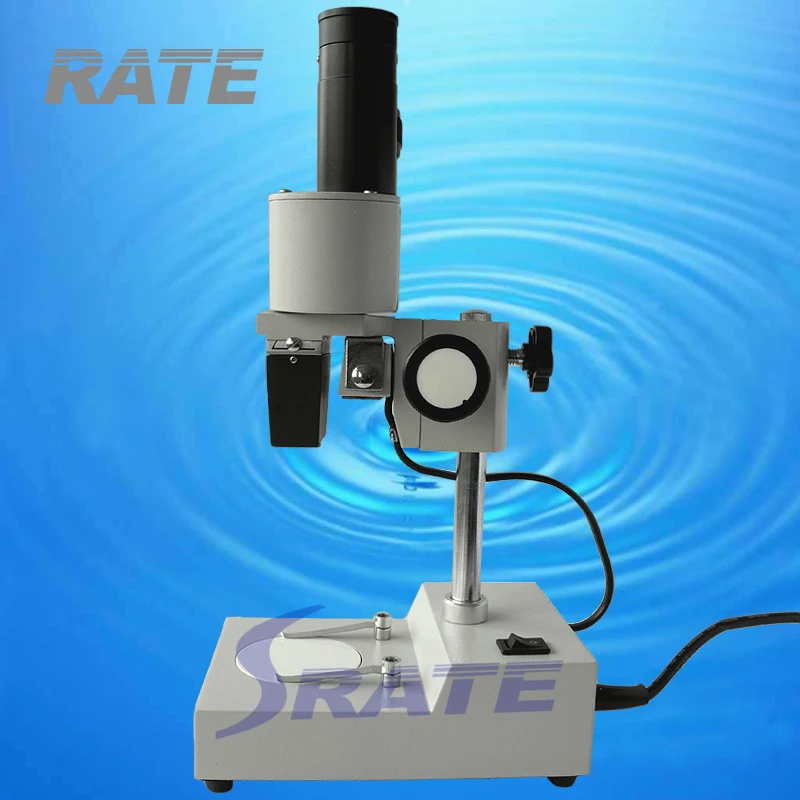

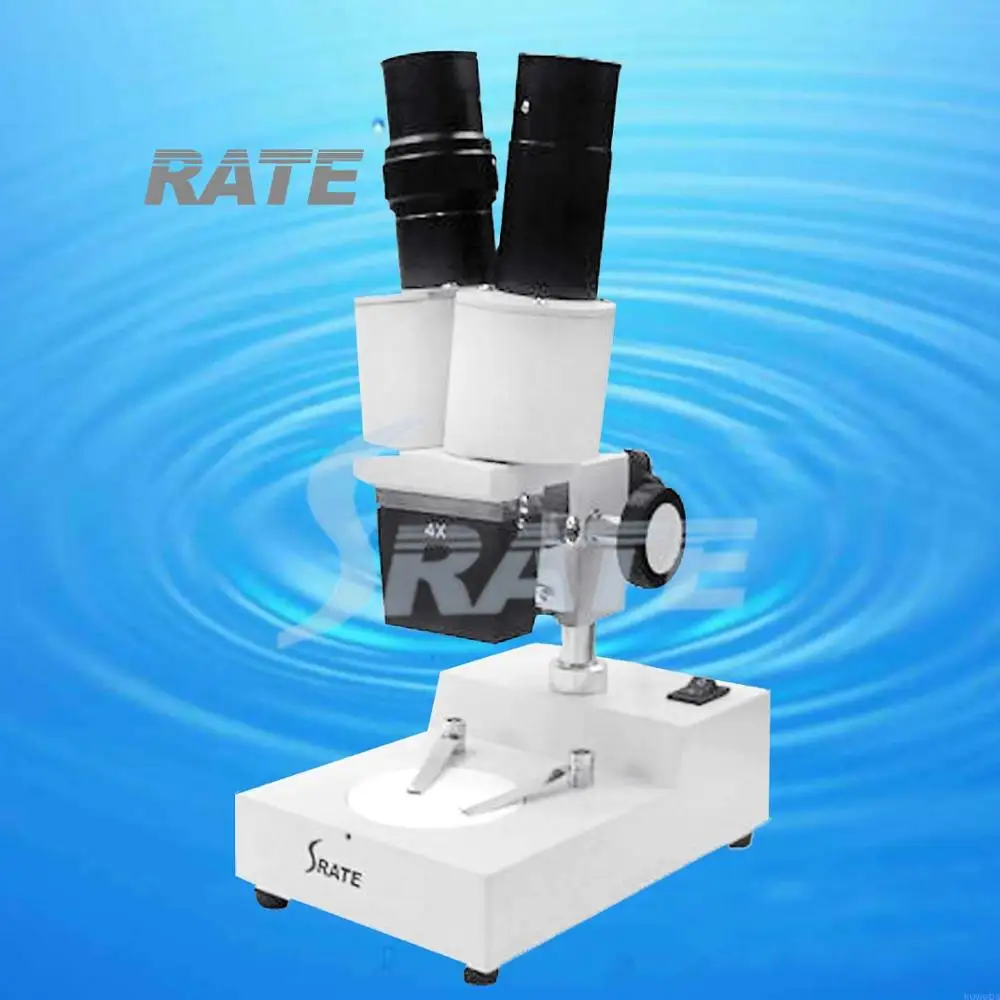

Parameter of Stereo Microscope
| Model: | TX-1B |
| Features: | Objective: Grouped From Any TWO Objectives of 1X, 2X, 3X and 4X. |
| Working Distance: 1X-55MM, 2X-81MM, 3X-61MM, 4X-57MM. | |
| Wide Field Plane-Scope Eyepieces: WF10X.(Optional:WF15X,WF20X). | |
| Toatal Magnification: 10X,or 20X,or 30X,or 40X .(15X, or 30X, or 45X, or 60X, or 80X). | |
| Observation head: Straight Articulated Free Binocular Head,Interpupillary Distance:55-75mm. | |
| Illumination:Top Light 12V/10W Halogen Lamp and Ø60mm Black-White Reversible Stage Plate.(Or optional Light LED Lamp.) | |
| Focusing system: Rack and Pinion Coarse Focusing Mechanism With Slip Cluth And Tension Adjustable. | |
| Inner packing: | Foamed plastic + Inner carton. |
| Outer packing: | Net Weight/Set: 1.8kg. |
| Package: 4sets/Carton 610*350*360mm. | |
| Gross Weight/Carton: 9kg. |

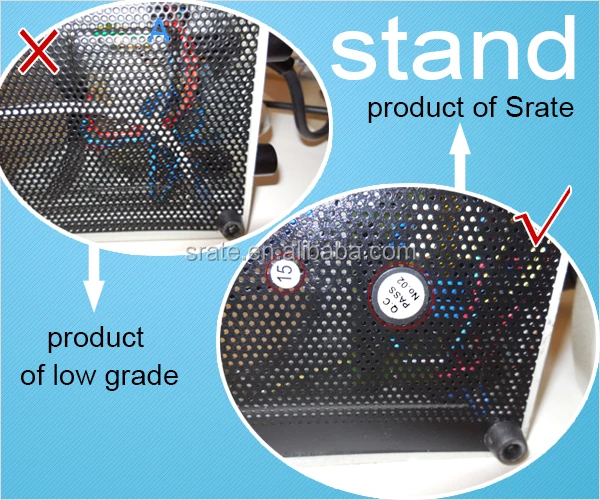

Compare of Stereo Microscope
Effect image of Stereo Microscope
Certification Of Stereo Microscope
Packaging & Shipping
| Packaging: | 1. Inner box with plastic foamed + Outer carton. 2. Net Weight/Set:1.8kg. 3. Package: 4sets/Carton 61*35*36cm. 4. Gross Weight/Carton: 9kg. 5.And other terms as customer required. |
| Shipping: | 1. Shipping by EMS or international express, such as: DHL, UPS, TNT and Fedex(available for samples and small orders, it takes about 3-7days arrive, also called door to door servise.) 2. Shipping by air.(fast, but charge high, it takes about 3-7days arrive) 3. Shipping by sea.(safty and charge low, but it takes about one month to arrive) |
Company Information
Established in 2004, Nanyang City Srate Optical Instrument Manufactory is a specialized manufacturer of optical and electronic products. Enjoying the position at hi-tech key enterprise for earning foreign exchanges in Henan Province and export base of mechanical and electrical products approved by China National Foreign Trade Department, we are able to supply optical lens and prisms, binoculars, microscopes,magnifiers.
Our company has taken optical instruments as the dominant business. Having established steady relations of business cooperation with well-known international corporations from Japan and the America in the optical field, our products are selling well in the American, Japanese, European and Southeast Asian markets.
Providing quality products, excellent service, competitive prices and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
