Pocket Scale 100/150/300/500/750g Cheap Micro Load Cell
- Category: >>>
- Supplier: Hanyu Electronic Technology Co. Ltd.
Share on (60786977947):
Product Overview
Description
Product Description

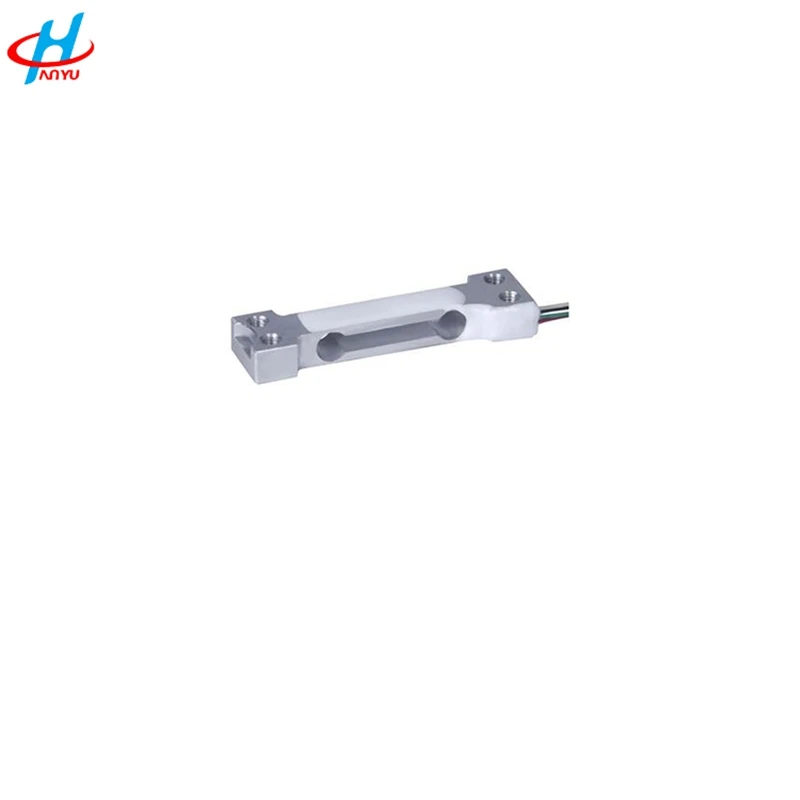

Miniature Load cell/ Micro type/ IP65/ Aluminum / for pocket scale
Description:
Model: LAM-H4
Capacity: 100,150,300,500,750g
Usage: pocket scale,electronic balance
Dimension: 6*12*47mm
Features
- parellel bending beam/miniature load cells
- capacity:100g,...,750g
- accuracy:0.05%R.O.
- low profile
- micro structure
- aluminum construction with surface anodized
- environment protection class:IP65
Applications
- pocket scales
- kitchen scales
- postage scales
- portable scales
- jewellery scales
- small balances
- other platform scales
- coffee machine weighing systems
Data sheet :
Pocket Scale 100/150/300/500/750g Cheap Micro Load Cell
| Single Point Load Cells | |
| Rated Capacity | 100, 150, 300, 500, 750 (g) |
| Accuracy Class | S |
| Rated Output | 0.65 ± 20%mV/V |
| Zero Balance | ± 0.1 mV/V |
| Input Resistance | 1130±20Ω |
| Output Resistance | 1000±10Ω |
| Linearlty Error | ±0.05%R.O. |
| Repeatability Error | ±0.05%R.O. |
| Hysteresis Error | ±0.05%R.O. |
| Creep in 2 Min. | ±0.05%R.O. |
| Temp.Effect on Output | ±0.05%R.O./10℃ |
| Temp.Effect on Zero | ±2%R.O./10℃ |
| Compensated Temp.Range | 0-+40℃ |
| Excitation,Recommended | ≤ 6VDC |
| Operating Temp.Range | -10-+40℃ |
| Safe Overload | 150%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø0.6mm×0.1m * |
| Protection Class | IP65 |
Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAM-H load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAM-H oad cells can be used to measure loads range from 100g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAM-H load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
Note:
- The length of cable can be customized,ordering instructions.

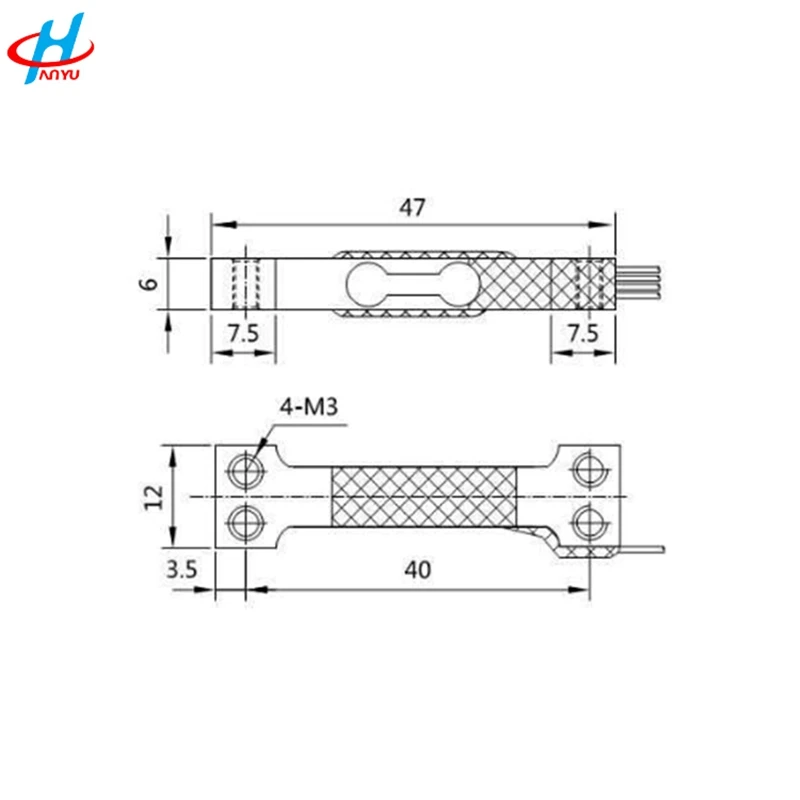

Dimension:
Packaging & Shipping
Our Services
Company Information
Our workshop
Our Team and Our customer
Certifications
FAQ
- Can you provide the sample to check?
- Sure,we can .The sample time is 1~7 days
- Can you put our logo on the product?
- Yes.We can.
- Can you provide the customized package to us?
- Yes.OEM package is acceptable.
- What certificate do you have?
- CE,ROHS,LFGB
- What is the lead time for mass production?
- Usually,the delivery time is 7~20 days.For OEM order,the delivery time is 25~40 days.
- What payment terms can you accept?
- We accept EXW, FOB, CIF, etc. Please choose the one which is the most convenient or cost effective for you.
