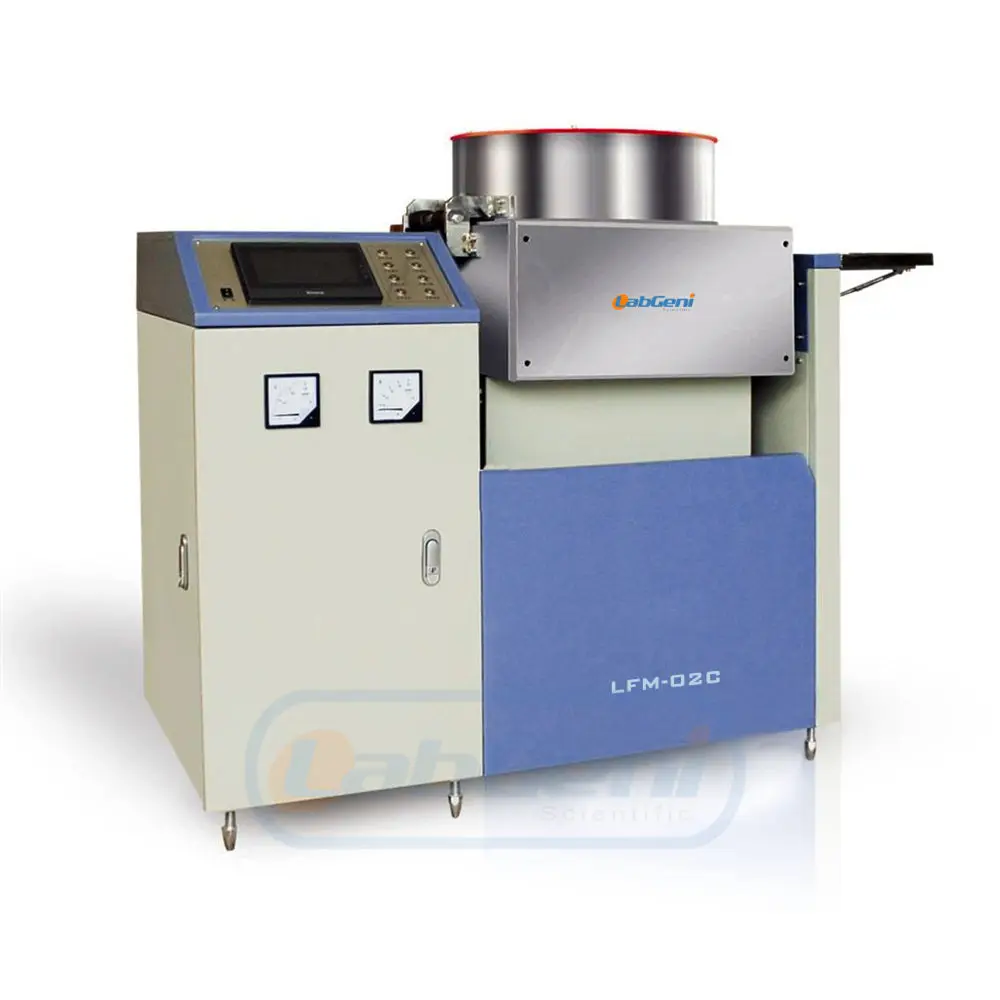

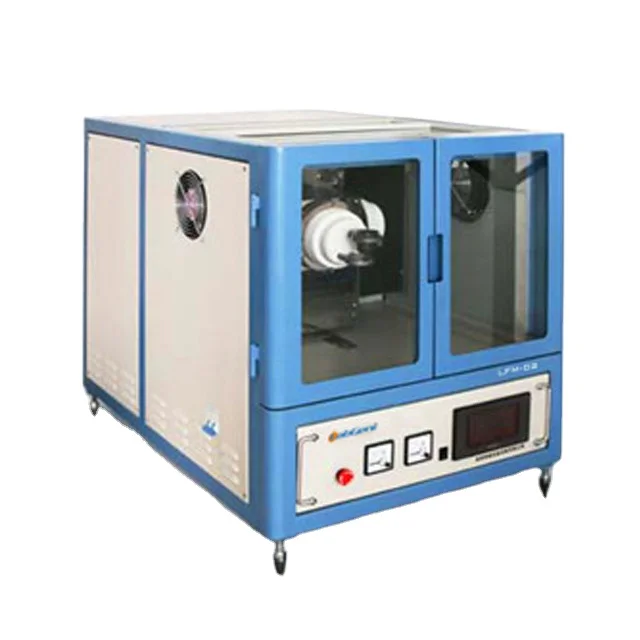

Automatic Fusion Machine special for X ray fluorescence analyzer, automatic film

Product Overview

Description

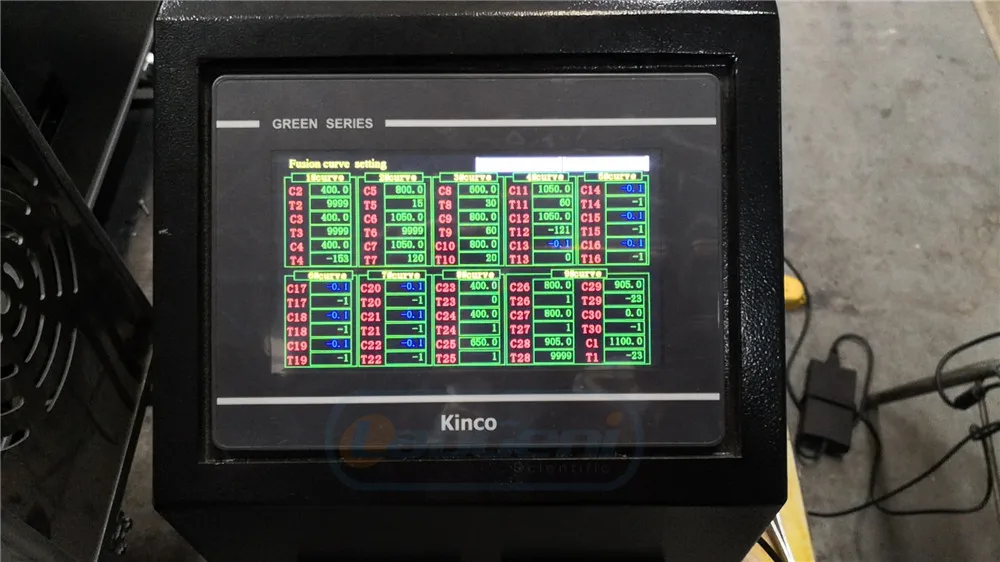

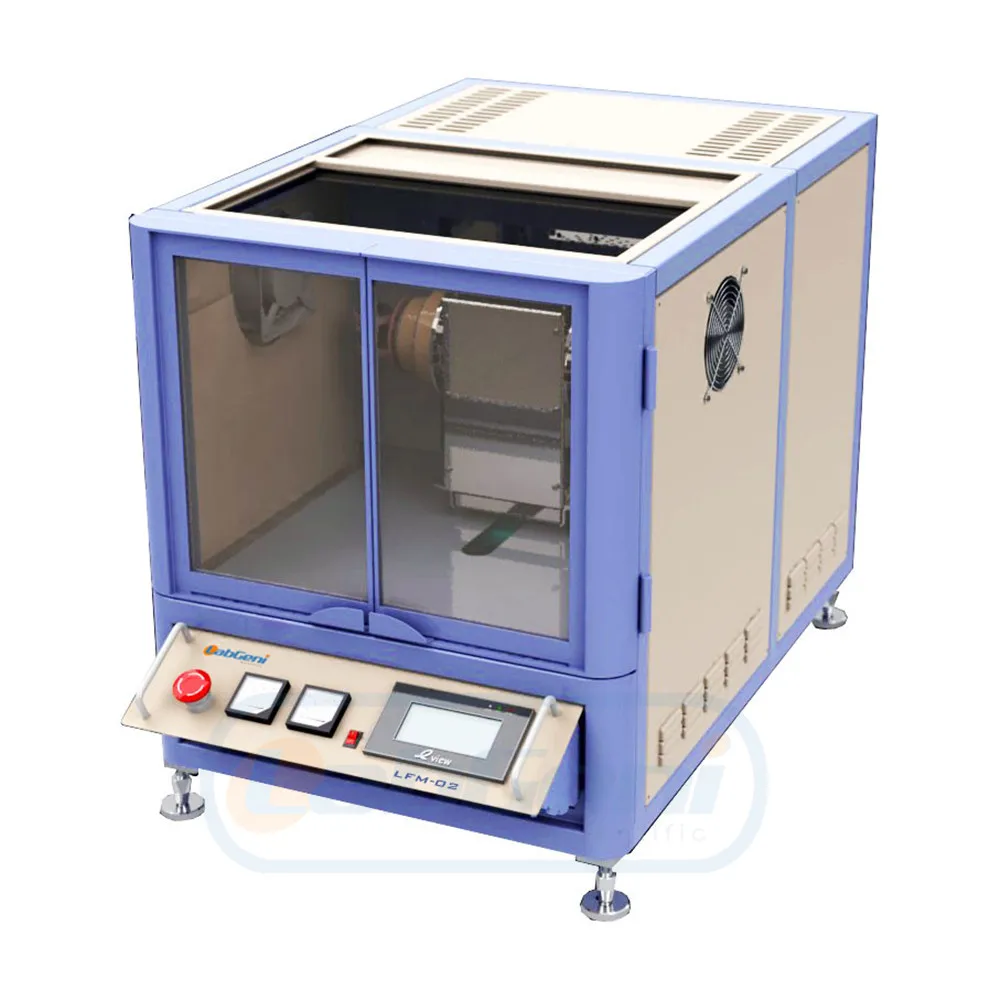

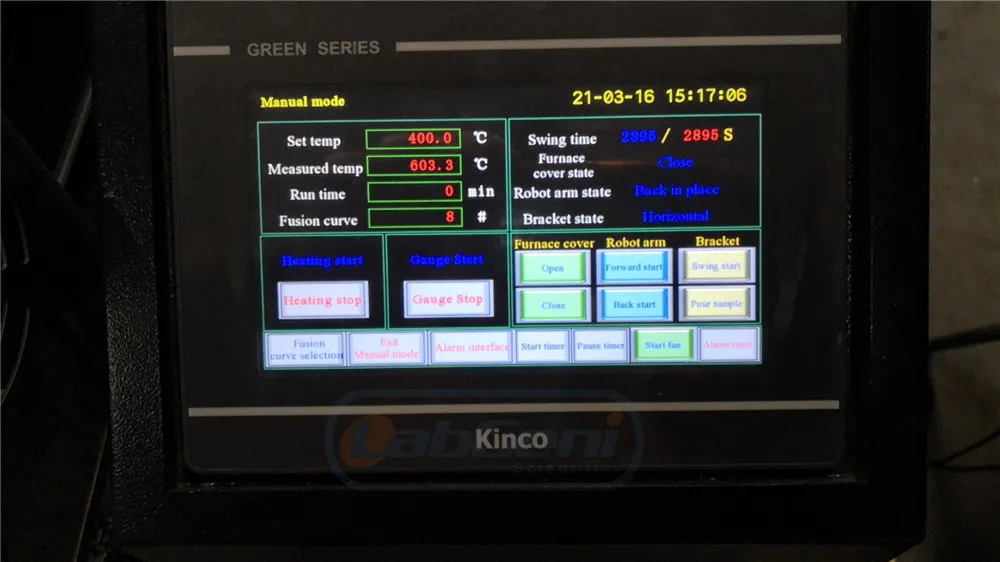

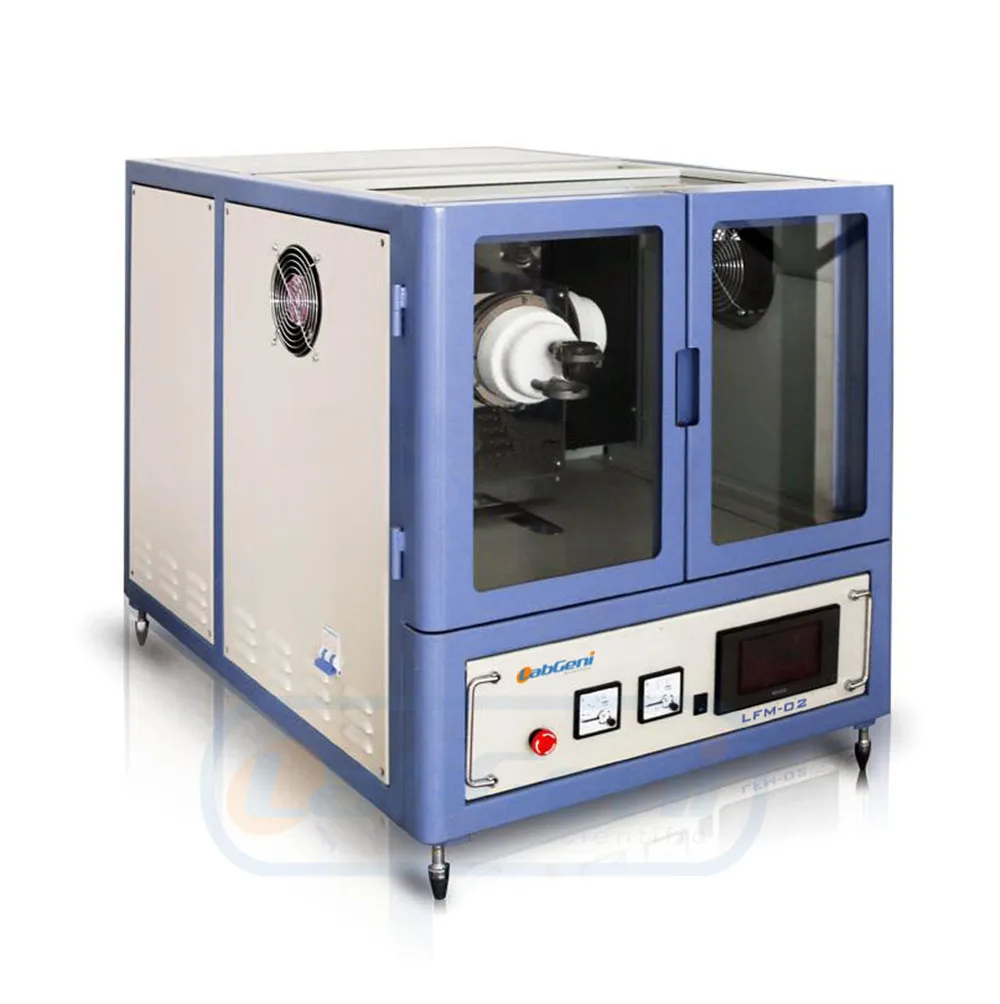

LFM-02 Automatic fusion machine is melting sample test instrument special for X fluorescence analyzer, can be widely used in steel, metallurgy, chemical, geological, cement , ceramics, refractories and other industries. It used of touch-screen display control, friendly interface, easy operation, high degree of automation, with fast heating, precise temperature control, energy saving, stable operation characteristics which has excellent melting effect for refractory materials, melting samples with good reproducibility, superior performance indicators with a good price.



Main technical parameters

MODEL	LFM-02
Rated temperature	1100 °C
Heating rate	average 50 °C / min
Sample spaces	2 (different bit like alternately melt furnace automatic pouring molding)
Temperature accuracy	± 2 °C when the insulation
Swing angle	± 40 °
Beat frequency	15r / min
Instrument Weight	100kg
Dimensions	550mm * 600mm * 800mm (length * width * height)
Rated power	4.5kW
Rated voltage	single-phase 220V
Current Rating	25A
Rated frequency	50Hz
