Factory direct provide manual embossing plastic welding machine

Product Overview

Description

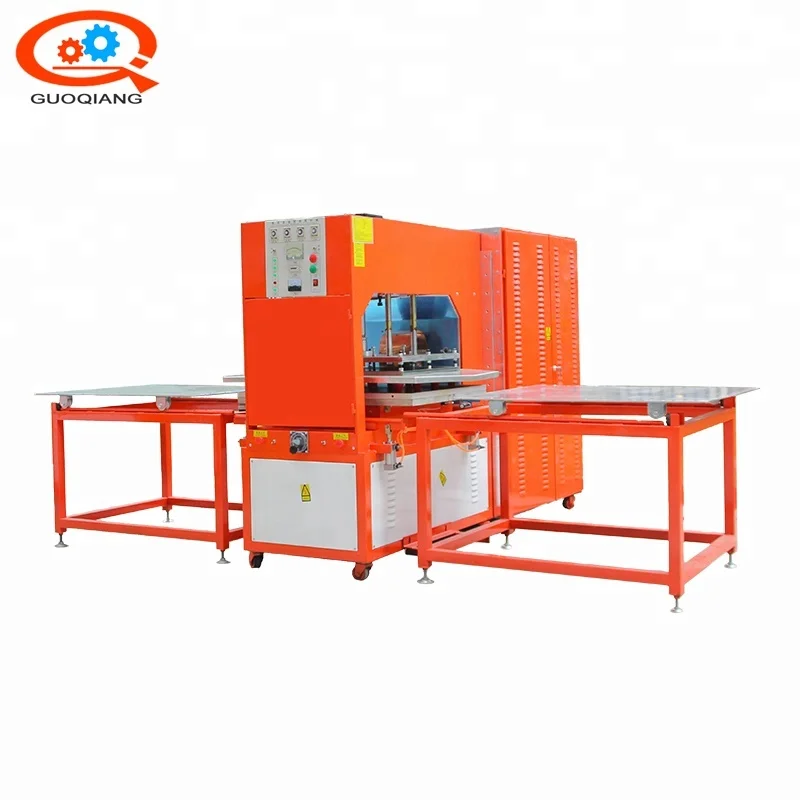

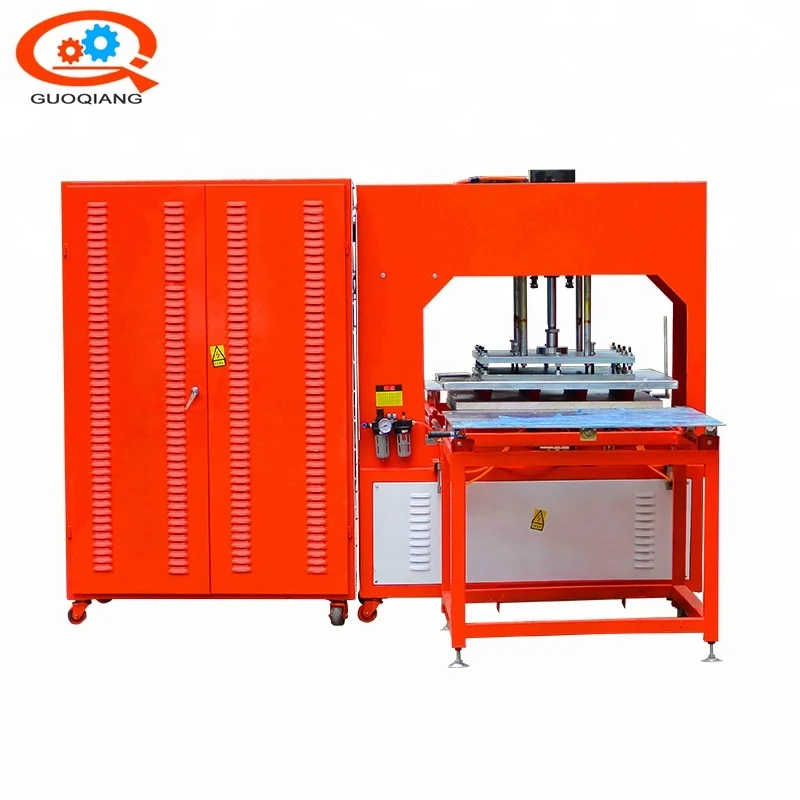

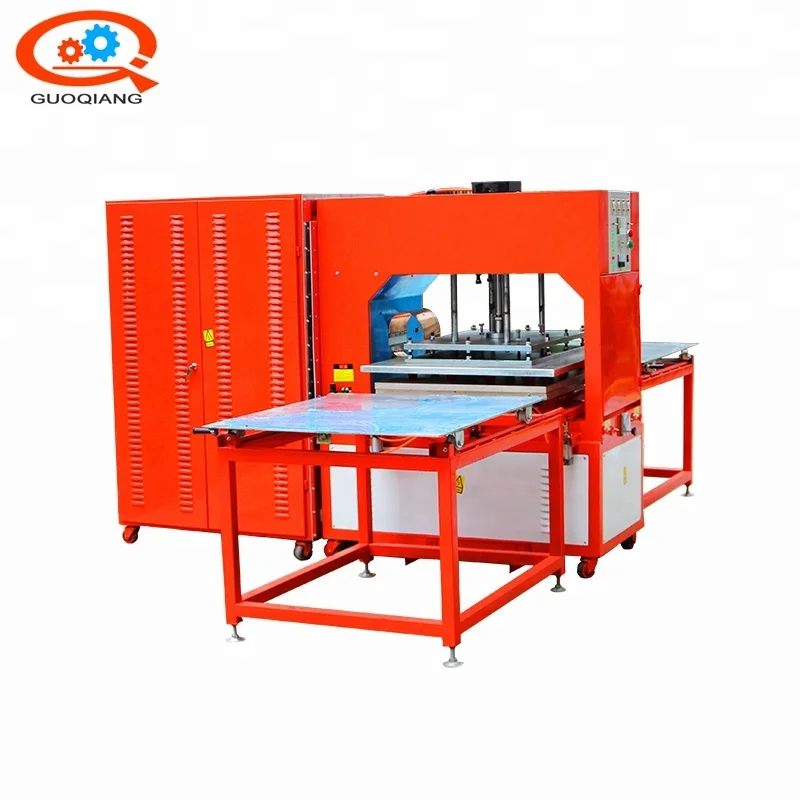

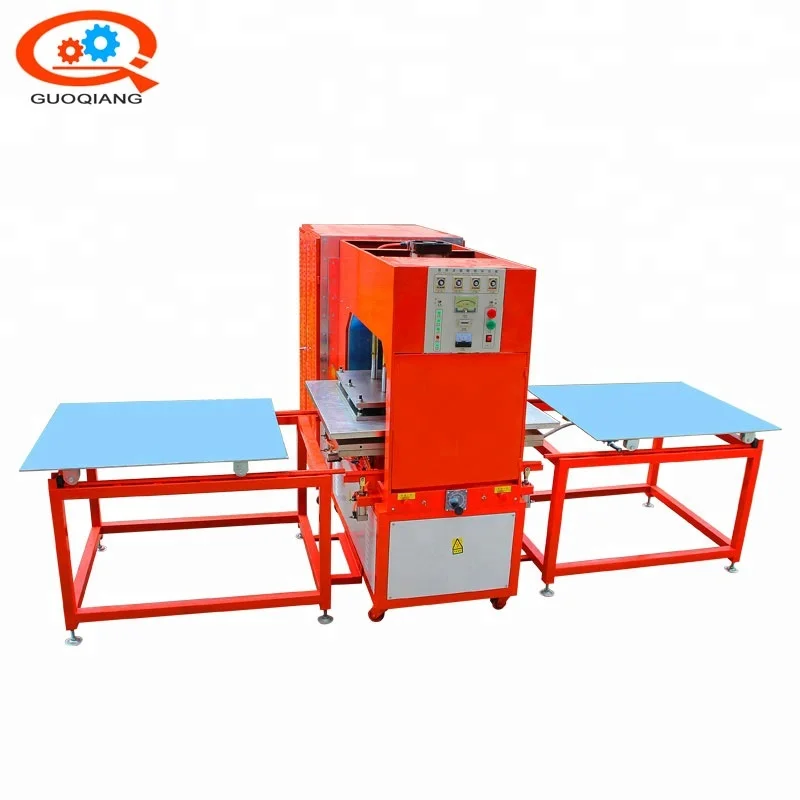

The machine double station shuttle HF welders with 25, 35, 50kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.



1. Machine has one feeding system, with two Inflatable shafts.

2. With two vibration plate, automatic sorting and installing tube

3. NRV forming system, auto feeding and welding.

4. Inlet tube turntable, auto install inlet tube.

5. Outlet turntable, auto install outlet tube.

6. Auto welding the tube and body.

7. Cutting system

8. Auto stack system





Model No	GCQ-W25KW	GCQ-W35KW	GCQ-W50KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	25KW	35KW	50KW
Input Power	30KVA	40KVA	80KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	300×400mm	300×400mm	1400×2000mm
Machine Size	7200×1500×1900	6500×2100×1900	6500×2100×1900
Machine Weight	1800KG	1800KG	1800KG
