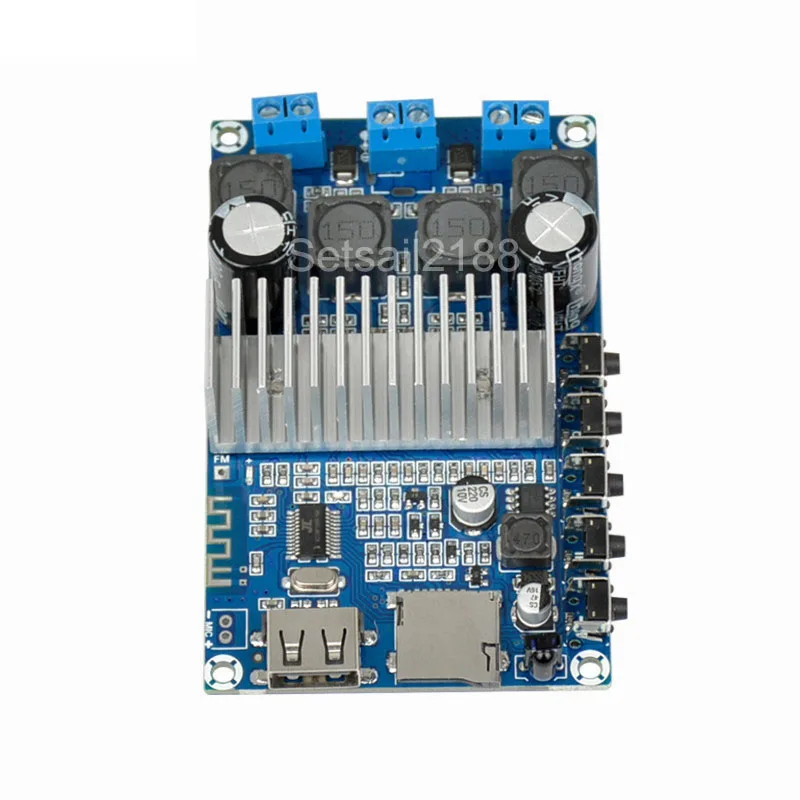

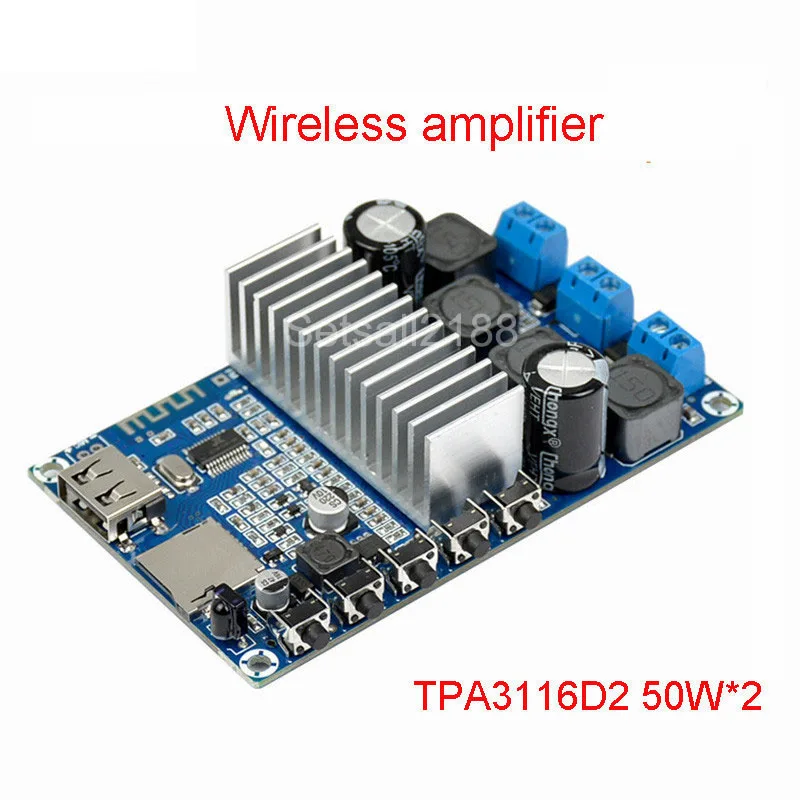

TPA3116 TPA3116D2 Wireless Amplifier Board 50W*2 FM Radio USB Decode WMA MP3 Calls wireless Receive Board
Product Details:
This is a support BT audio receiver, U disk; TF card player; FM radio; remote control function;
USB decoding: Support WMA, MP3, WAV, FLAC lossless music file format;
Expansion interface: support for Bluetooth calls,

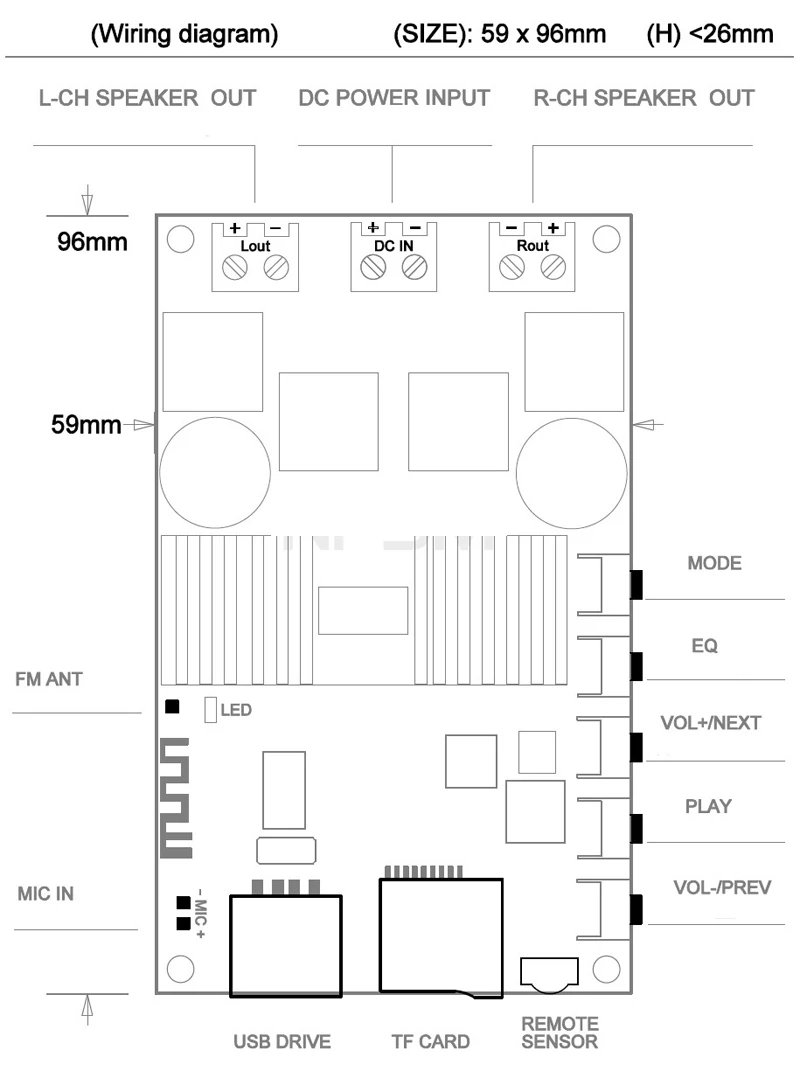

Board is a good test of the finished product welded plate, according to figure connected to the speaker box, connected to the power supply, plug in the U disk / TF card playback or connect the Bluetooth audio device can be used
5 Keys Function
[MODE] Mode conversion: U disk / TF card / BT / FM radio
[EQ] 5-level preset tuning (U disk / TF card playback is valid)
[VOL + / NEXT] Short press volume (+) / Long press to play the next song; Long press FM radio to select (+)
[PLAY / PAUSE] Play / Pause / Talk; Press and hold FM to select and save automatically
[VOL- / PREV] Short press volume (-) / Long press to play a song; Long press FM radio to select (-)
Main Technical Parameters:

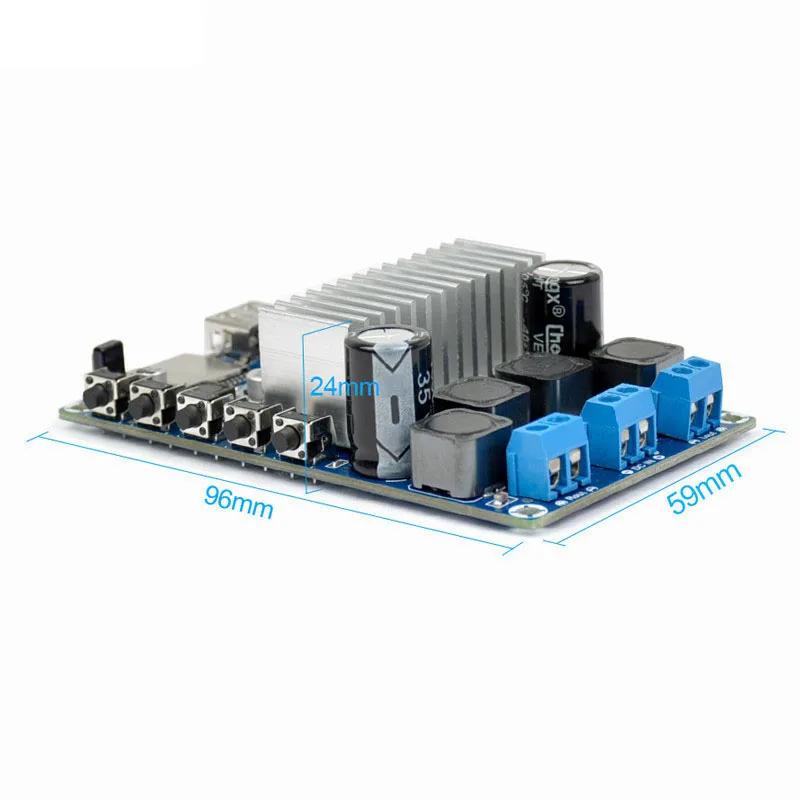

Dimensions:59 (W) x 96 (D) x 25 (H) mm, excluding switch socket projection
Operating voltage range: DC 10-24V (current 3-4A, such as high power requirements 20-24V / 5-6A above)
Bluetooth receiving distance:> 8 m (meters) (barrier-free barrier to receive distance, such as the phone itself Bluetooth performance is not good, will affect the receiving distance)
U disk TF card disk: support FAT, FAT32 file system, does not support NTFS
Speaker impedance: 4-8 Ohm,
Output Power:
12V / 8Ω speakers> 10W x 2; 12V / 4Ω> 15W x 2;
21V / 8Ω> 30W x 2; 21V / 4Ω = 50W x 2;
24V / 8Ω> 35W x 2; 24V / 4Ω> 60W x 2;

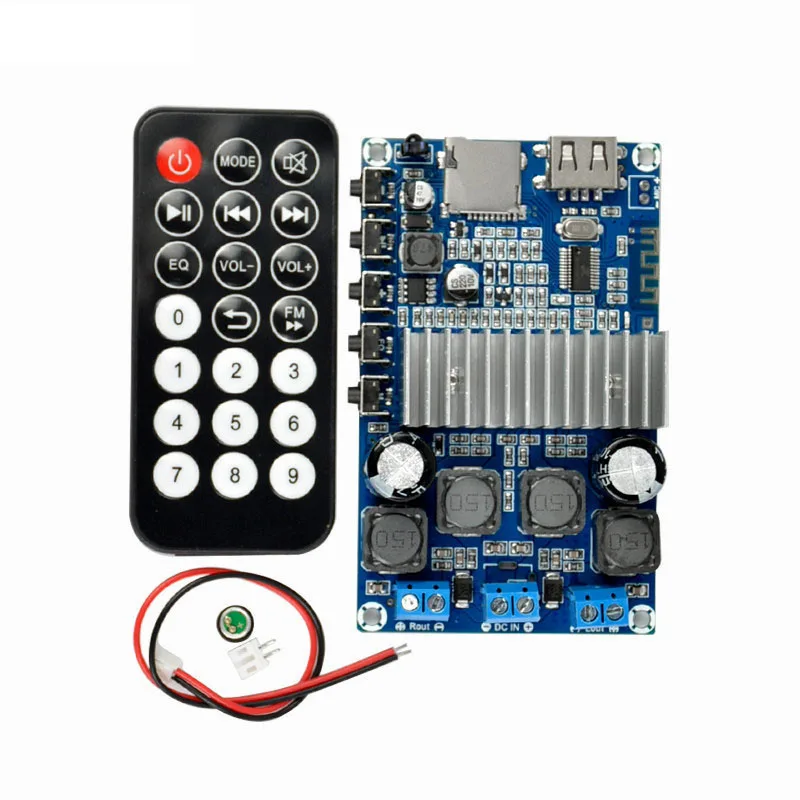

Packaging Including:
1x TPA3116D2 2.0 4.2 Amplifier Board

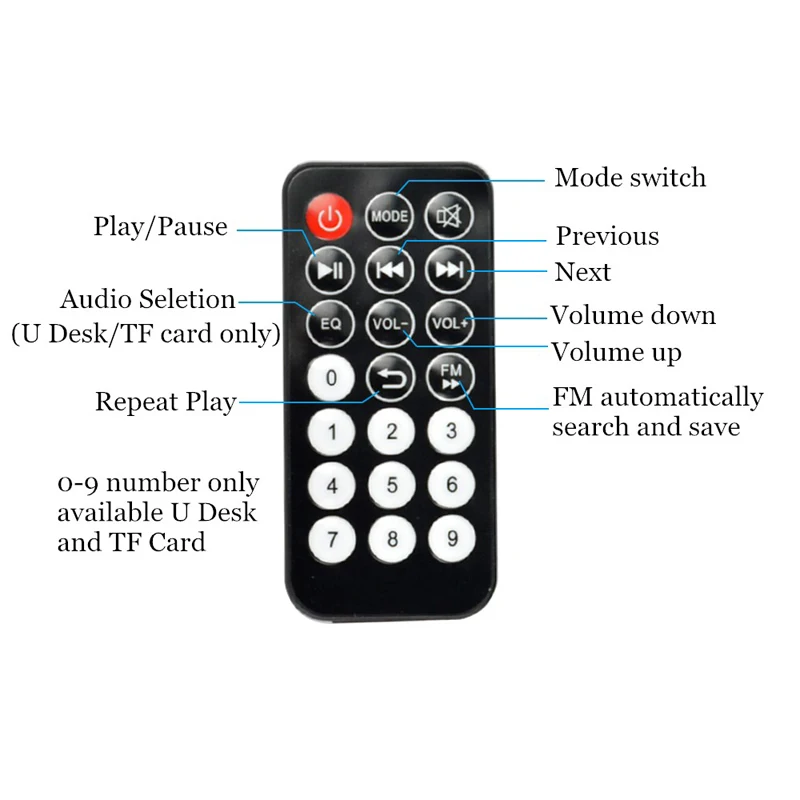

1x Remote Control
1x Cable
