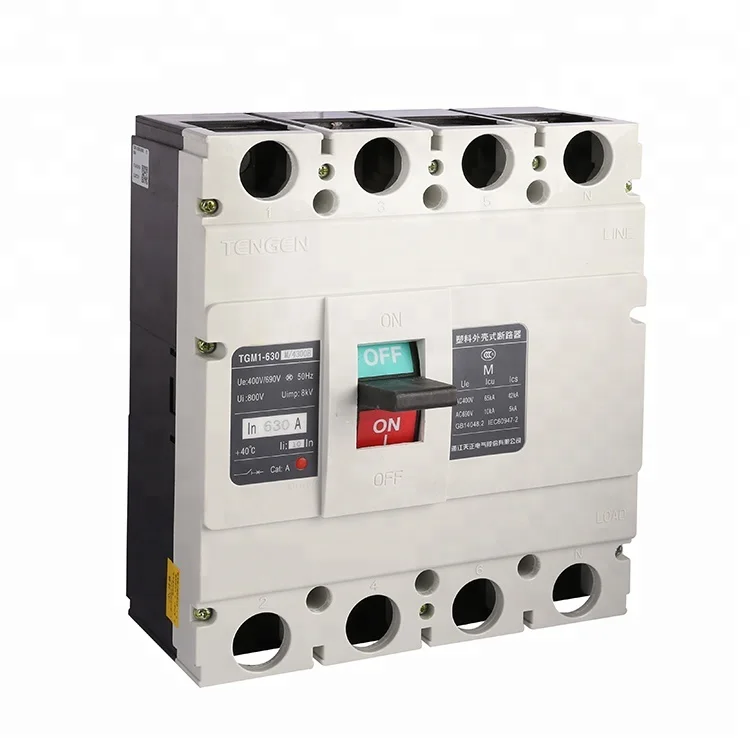

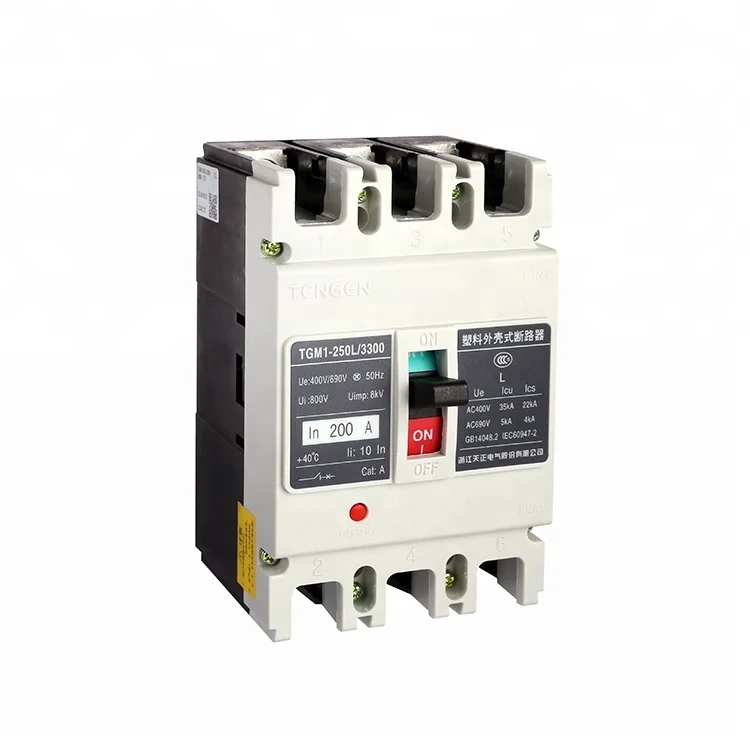

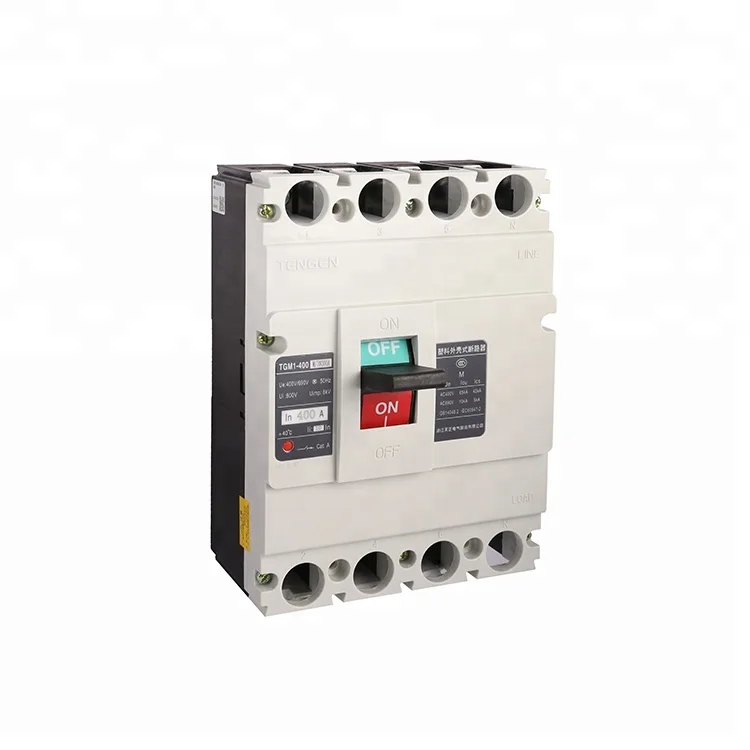

630A 3 Phase Automatic Circuit Breaker MCCB

Product Overview

Description

630A 3 Phase Automatic Circuit Breaker MCCB

MCCB

1.Feature:



TGM1 series  630a AC mccb is new type product developed and manufactured by adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of A.C.50Hz,rated operating voltage AC 400V,or below rated operating current up to 800A for infrequent changing over and starting of the motors. Equiped with the protection devices for over-current. short circuit and under voltage. The product is capable of preventing damage of circuits and supply units. TGM1 series  630a AC mccb conforms to IEC60947-2 standard.



Rated insulating voltage : 750v
Rated operating voltage : 690 and below
Ultimate short breaking capacity : 25KA~150KA
Servies short circuit breaking capacity : 25KA~150KA



Type	Rated current (A)	Poles	Rated insulation voltage(V)	Arcing-Over Distance (mm)	Ultimated short Circuit Breaking Capacity(KA)	Service Short Circuit  Breaking Capacity(KA)	Operation performance
							ON	OFF
TGM1-63L	6,10,16,20,25,32,40, 50,63	3P 4P	660V	480V	0	25	1500	8500
TGM163M					0	50
TGM1-100C	6,10,16,20,25,32,40, 50,63,80,100				0	25
TGM1-100L					0( ≤50)	35
TGM1-100M					0( ≤50)	50
TGM1-100H					0( ≤50)	85
TGM1-225C	100,125,160,180,    200				≤50	25	1000	7000
TGM1-225L					≤50	35
TGM1-225M					≤50	50
TGM1-225H					≤50	85
TGM1-400C	225,250,315,350,   400				≤50	35	1000	4000
TGM1-400L					≤50	50
TGM1-400M					≤50	65
TGM1-630C	400,500,630				≤100	35
TGM1-630L					≤100	50
TGM1-630M					≤100	65
TGM1-630H					≤100	100
CM1-800M	630,700,800				≤100	65
CM1-800H					≤100	100
