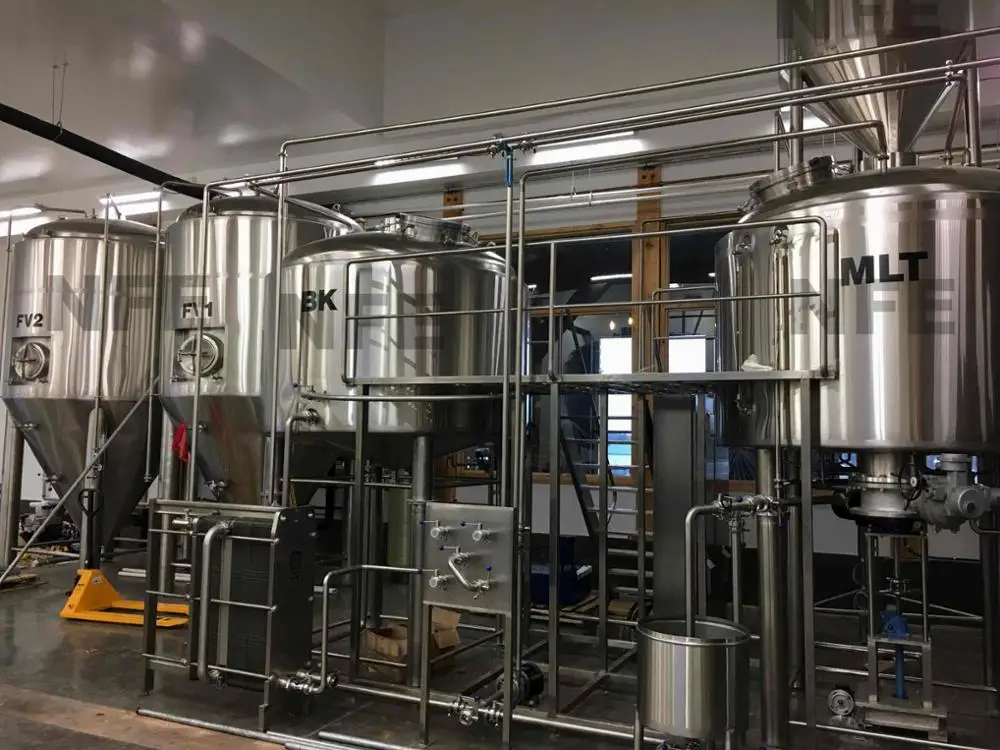

30bbl Beer brewhouse system, brewery equipment, beer manufacturing plant
- Category: >>>
- Supplier: Jinan NFE Machinery Co. Ltd.
Share on (60787090737):
Product Overview
Description

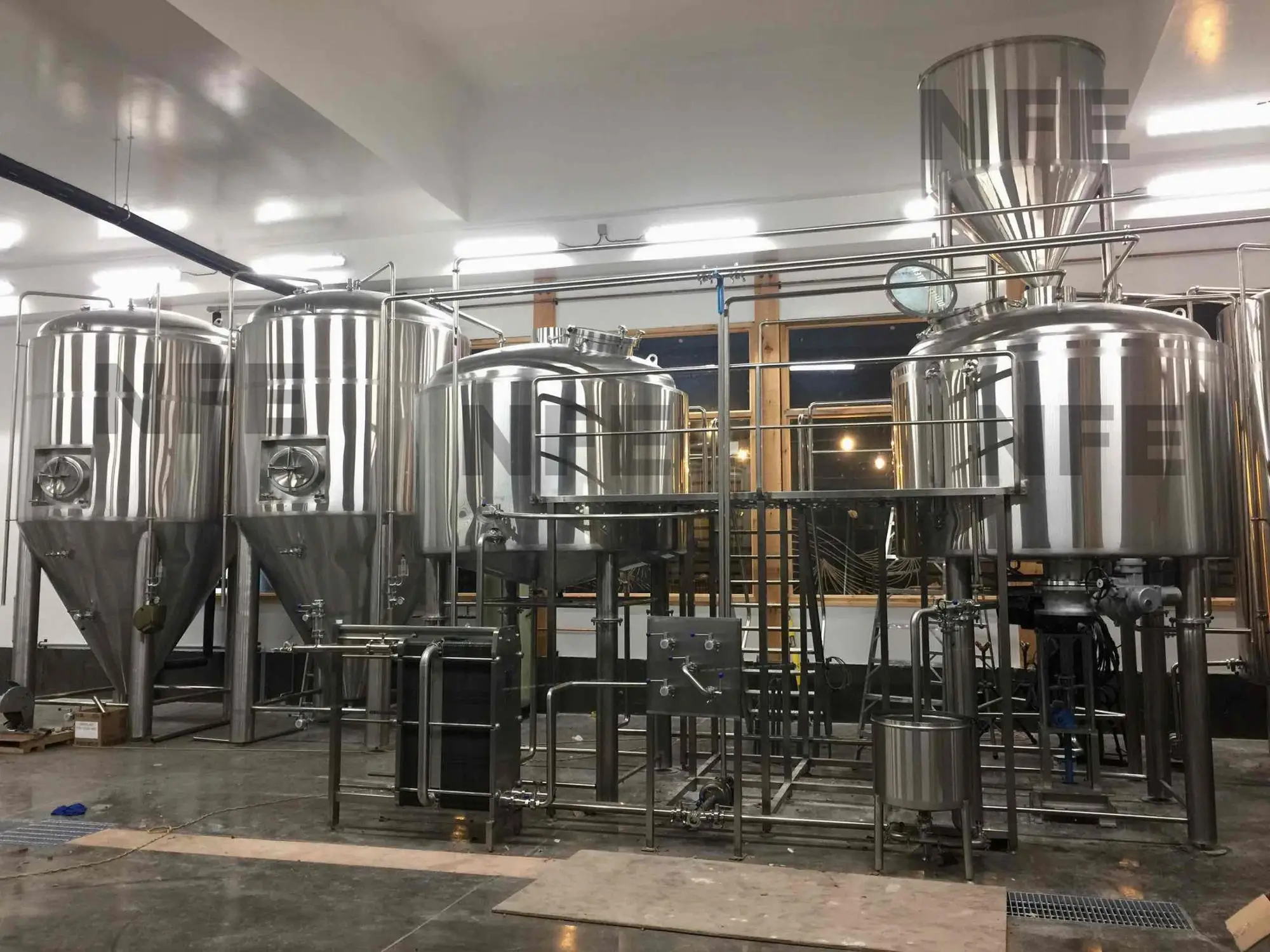

30BBL Brewhouse Brewery Equipment
About us
NFE-Series Beer Brewing Equipment, Brewery Equipment
NFE Machinery Co., Ltd. is is a professional manufacturer of beer brewery equipment,fermenters,stainless steel vessels,etc.
We could offer suitable brewery Project according to your requirement,idea.Such as you want build these item in your Home,Hotel, bars,Restaurant, barbecue, small and medium-sized breweries and so on.
Output Calculation
| Production Capacity | 100L/day | 200L/day | 300L/day | 500L/day | 1000L/day | 2000L/day |
| Floor space | ≥15 M2 | ≥25 M2 | ≥35 M2 | ≥50 M2 | ≥80 M2 | ≥120 M2 |
| Total power | 12 KW | 12 KW | 12 KW | 15/36 KW | 22/72 KW | 31/144 KW |
| Consumption of water(Max) | 0.2 M3/H | 0.4 M3/H | 0.5 M3/H | 1.0 M3/H | 1.5 M3/H | 2.0 M3/H |
| Total water consumption per day | 0.5 M3/D | 1.0 M3/D | 1.5 M3/D | 2.5 M3/D | 5.0 M3/D | 10 M3/D |
| Consumption of Malt | 20 KG | 40 KG | 60 KG | 100 KG | 200 KG | 400 KG |

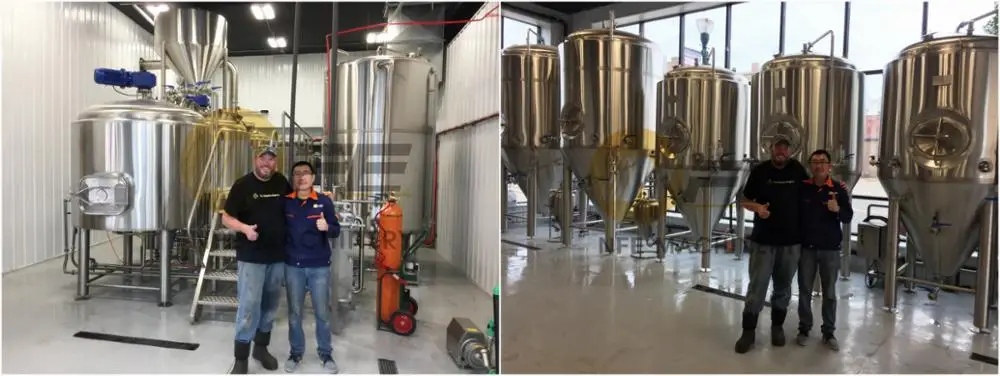

PROJECT CASE
Details
Project Description
|
Beer Brewing Equipment System (For Reference) |
||
|
Brewing System |
Components |
Specification |
|
Grinding System |
Miller |
Double Roller, Noise<60db |
|
Heating System |
Boiler |
Electric, Gas, Oil, Coal Type/CE certification |
|
Brewhouse System |
Mash/Lauter tun |
Mashing Process: Decoction. Infusion. Multi-step infusion Interior:3mm Exteior:2mm |
|
Brew Kettle/ |
||
|
Hot Water Tank |
||
|
Heat exchanger |
Stainless steel plate |
|
|
Fermentation System |
Fermentation Tank |

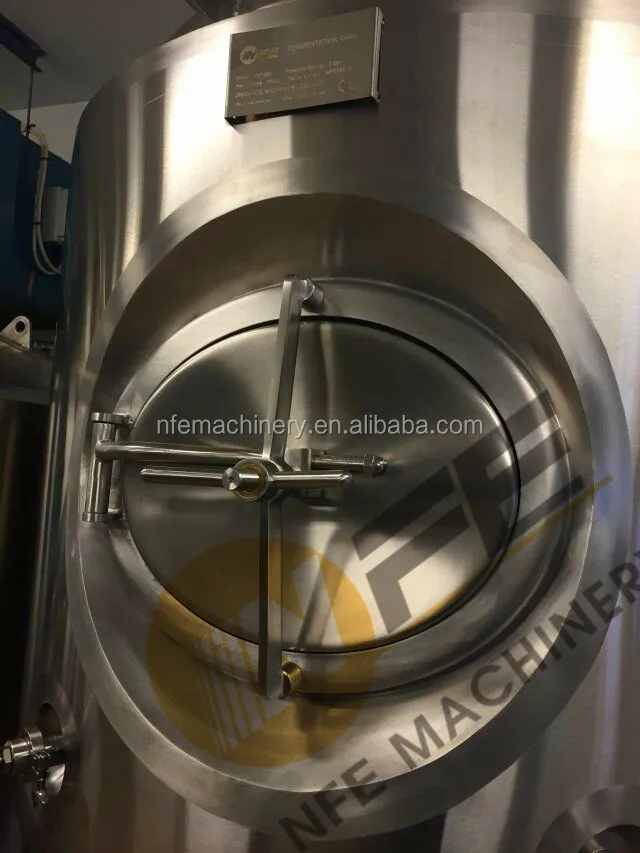

Top manway/Side manway |
|
Yeast Adding Tank |
SUS304 Stainless Steel |
|
|
Cooling System |
Glycol Water tank |
Equiped with PU level indicator |
|
Chiller |
UL/CE certified electric elements,Copeland compressor |
|
|
Pump |
|
|
|
Cleaning System |
/ |
SUS304 full welded |
|
/ |
||
|
Pump |
||
|
Control System |
Control Cabinet |
Manual/Semi-automatic/Automatic |
Configuration

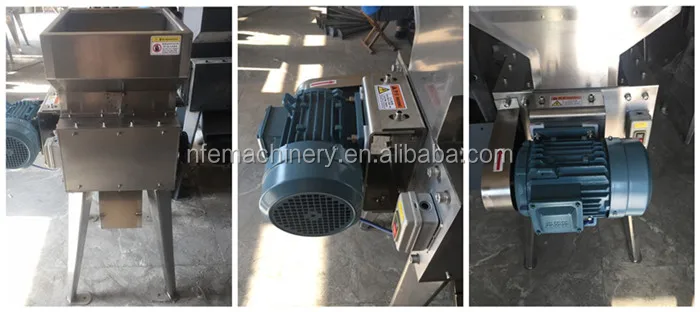

Part 1, Milling Unit

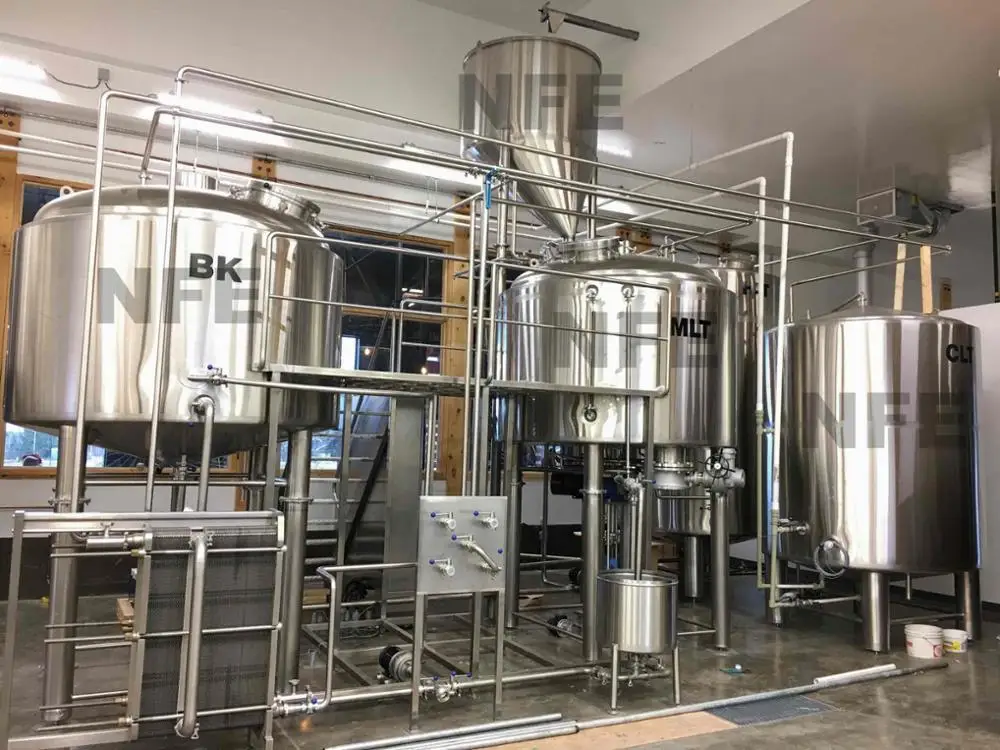

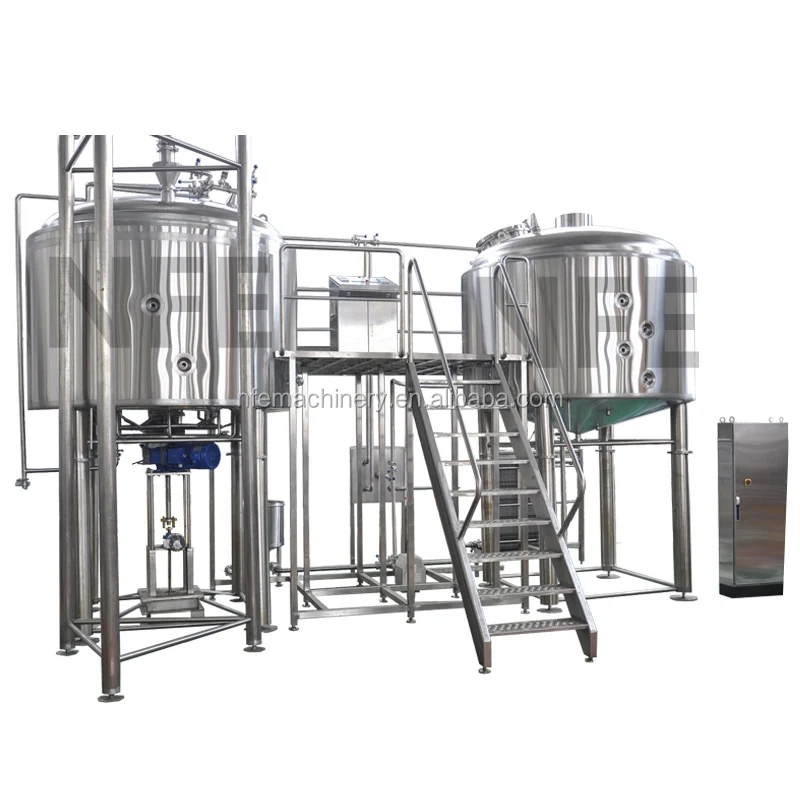

Part 2, Brewhouse System
| Brewhouse System | Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination |
| Infusion or decoction brewing methods are designed exactly | |
| Infusion or decoction brewing methods are designed exactly |

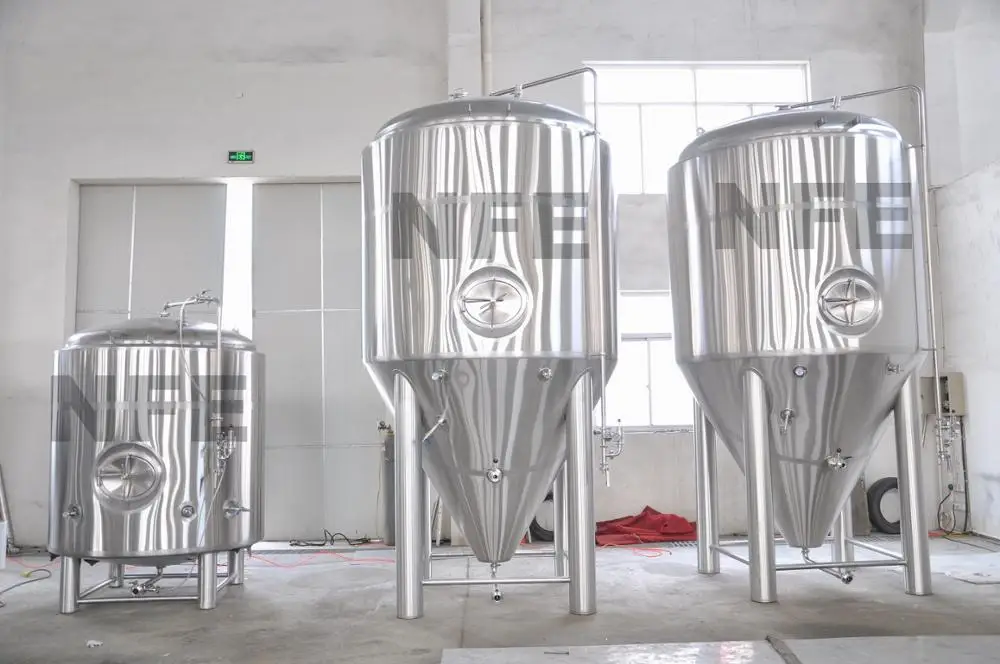

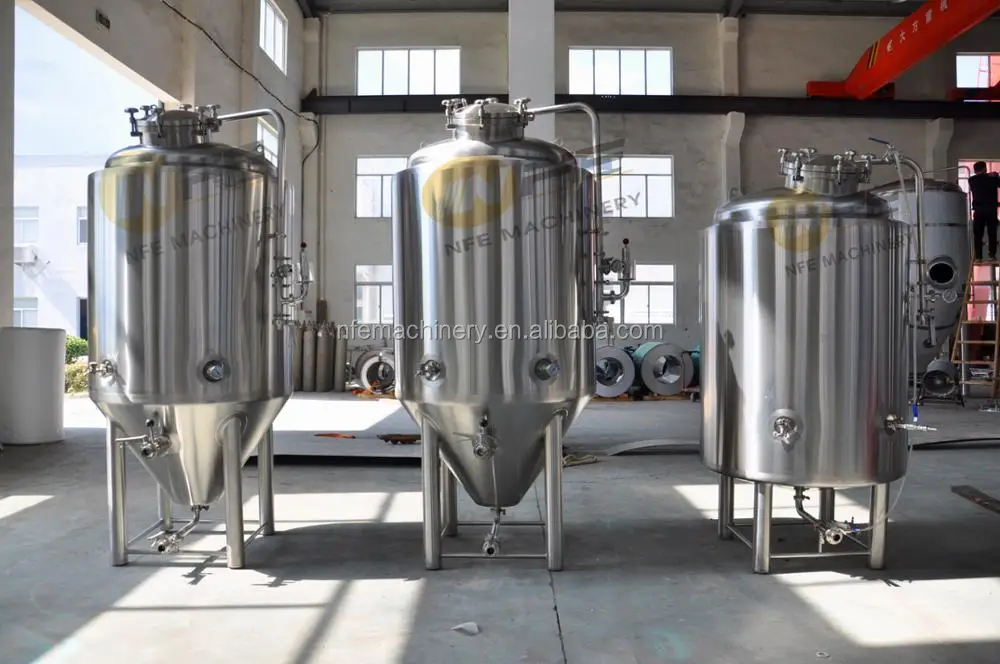

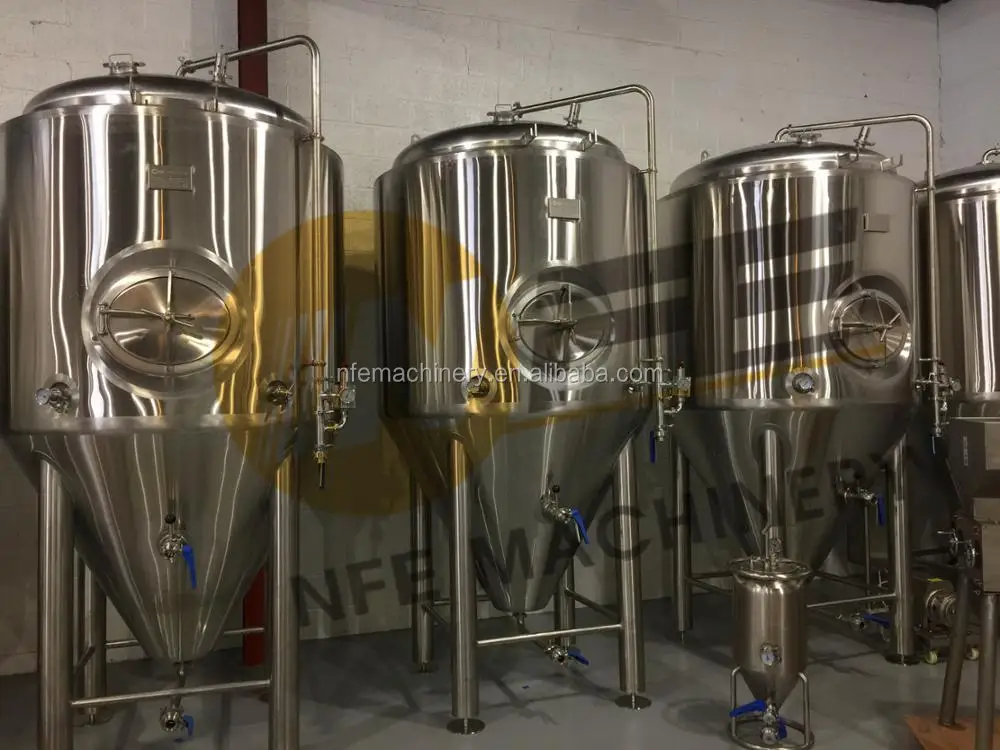

Part 3, Fermentation Tank
| Fermentation Tank | Standard stainless steel conical cylindrical fermentation tanks |
| Single size as brewhouse is common used in restaurant |

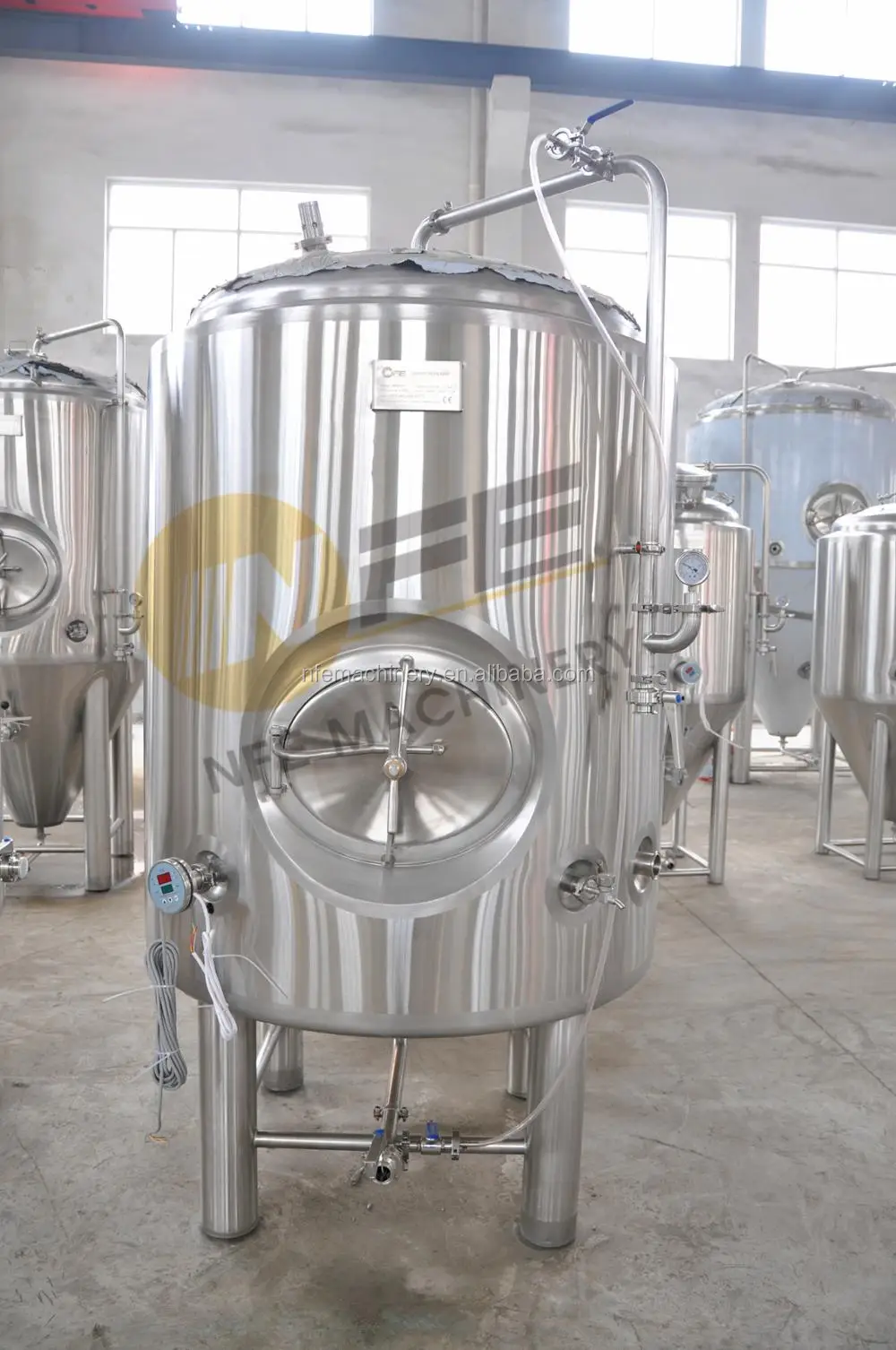

Part 4, Beer Bright Tank

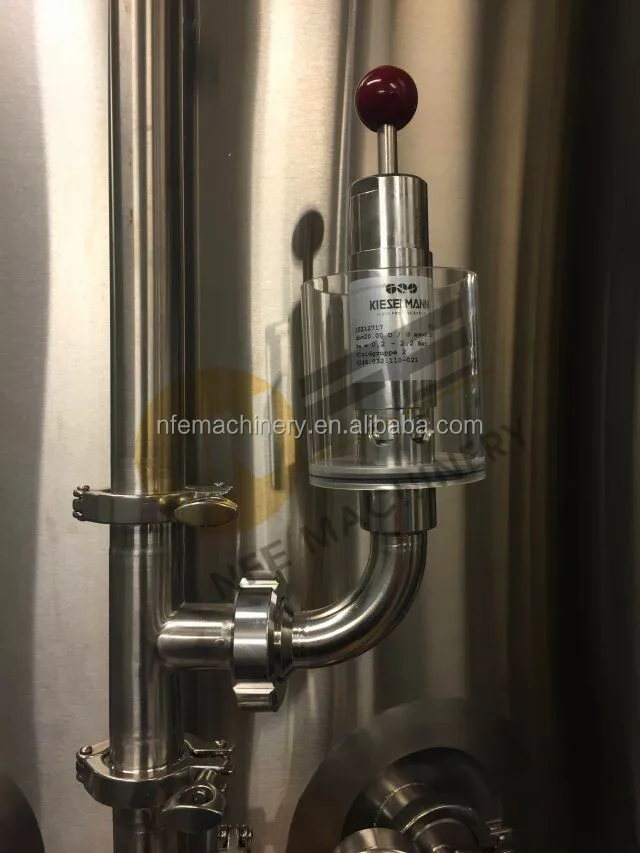

| Beer Bright Tank | Adopting scientific pressure maintaining and temperature cooling technology. |
| Equipped with rotary spray ball,carbonation stone device,relief valve,pressure regulating valve,etc. | |
| The tank wall and bottom cone are welded with cooling jacket device to reach quick cooling and section cooling purpose. |

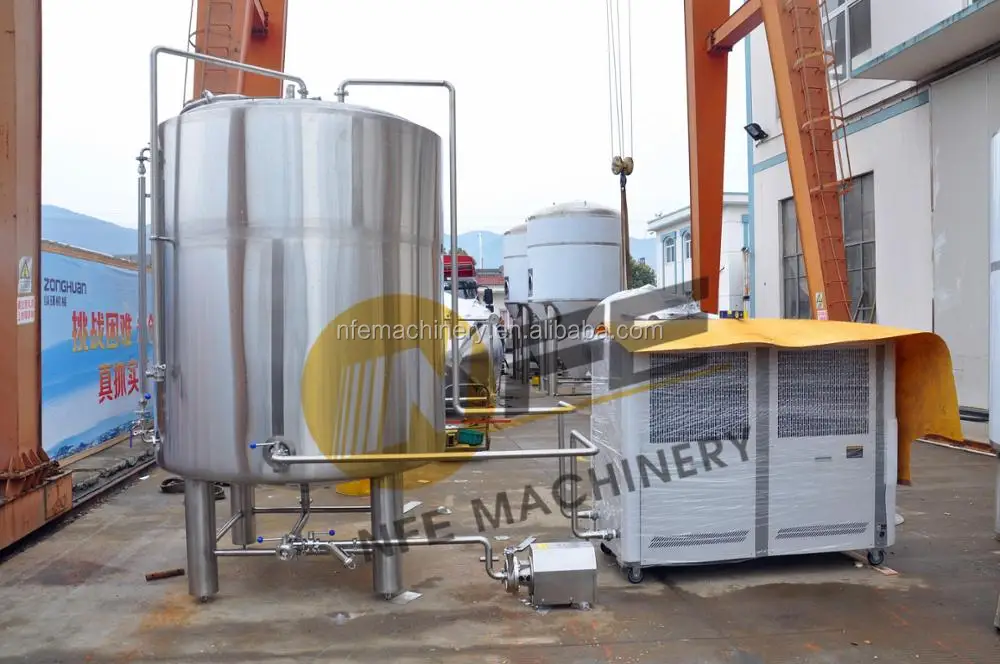

Part 5, Glycol Cooling Unit
| Glycol Cooling Unit | Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing |
| Efficiency chillers or refrigerators with fryonto supply cooling energy |

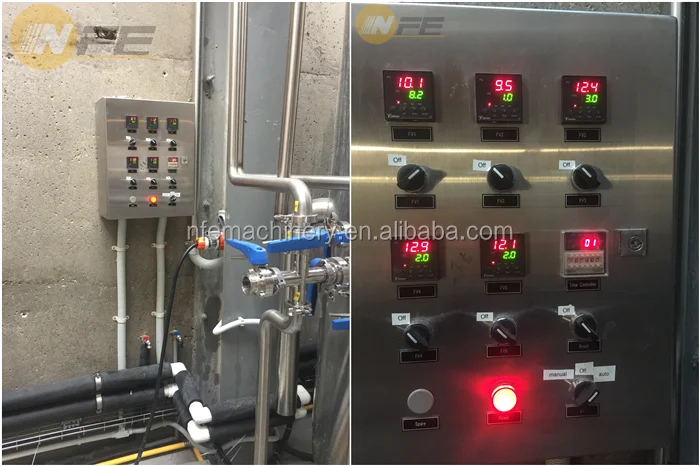

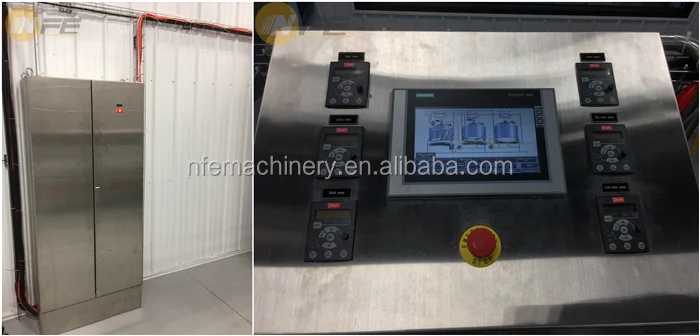

Part 6, Controlling Unit
| Controlling Cabinet |
2 types: Instrument (Button)panel and PLC Touch screen Panel controller, |
| Electrical controlling cabinet with temperature, on-off controlling for brewhouse | |
| Temperature controller, thermocouple, solenoid valves etc are included |
Certifications

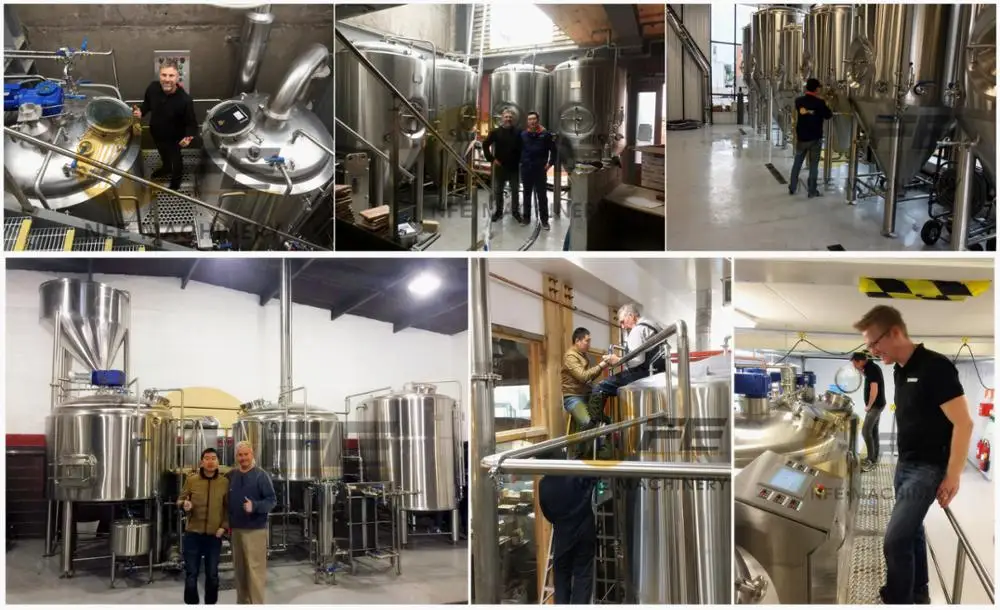

Our Services
1.We supply the complete turnkey beer brewery equipment include the bottle and
barrel filling system.
2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation
pipeline connection drawing,the operation manual.
3.We can transport the goods to your delivery place.
4.Support sending engineer to install and training technology on site and supervised-installation with remote support.
5.We supply the beer recipes,brewing technology.
6.Guarantee 3 Years service for the beer brewery equipment.
